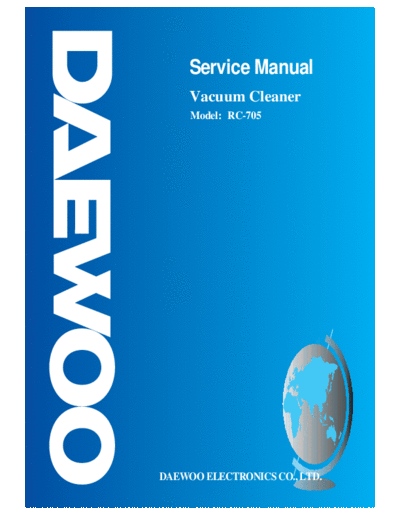

Image preview - the first page of the document



>> Download RC-705 documenatation <<

Text preview - extract from the document

     Service Manual
     Vacuum Cleaner
     Model: RC-705




DAEWOO ELECTRONICS CO., LTD.
CONTENTS




 1. SPECIFICATION ...........................................................................................................1


 2. DESCRIPTIONS ...........................................................................................................3


 3. WIRING DIAGRAM .....................................................................................................4


 4. CAUSE OF TROUBLE AND COUNTERMEASURE ........................5


 5. DISASSEMBLING AND TREATMENT........................................................7


 6. EXPLODED VIEW AND PARTS LIST ......................................................12
1. SPECIFICATIONS

 RATED VOLTAGE / FREQUENCY       AC 100V / 50~60HZ
                                 AC 110V / 60HZ
                                 AC 120V / 60HZ
                                 AC 220V / 50HZ
                                 AC 220V / 60HZ
                                 AC 230V / 50HZ
                                 AC 240V / 50HZ


 RATED INPUT                     1200W


 DIMENSION (BODY)                431 x 241 x 284 mm (W x H x D)


 WEIGHT(BODY)                    6.1kg


 CORD LENGTH                     5 / 6m


 POWER CONTROL                   ELECTRONICS, VARIABLE


 DUST METER                      MECHANICAL


 HOSE                            CURRENT 1.5m


 EXTENSION PIPE                  2 PLASTIC / 2 STEEL


 NOZZLE                          WIDE SUCTION BRUSH
                                 DUSTING BRUSH
                                 CREVICE NOZZLE




                             1
3. WIRING DIAGRAM


                                                                                          THERMOSTAT
           SLIDE VOLUME

                                              MOTOR
                                                                                                       CORD REEL




                                      MICRO S/W                                          P. C. B




CIRCUIT DIAGRAM


                                                                                                                     PART NAME            SPEC
                                                                                                                        R1, R2        10K OHM, 1/2W
                                                                                                                          R3          180K OHM, 1/2W

                             BLUE     BLUE
                                                                                           YELLOW                         R4          240K OHM, 1/2W
                                                                                                           MICRO
                      12uH
                             BLACK    BLACK
                                                                 FILTER COIL                               SWITCH         R5          100 OHM, 1W
                             WHITE    WHITE
                      8A                              C2                                                                TRIAC         600V, 5A
                                                                                    R4             WHITE
                                                                                                                         DIAC         37V~40V, DB4
                                                           12




                   MOTOR     THERMO                                                                    S/V            C1, C2, C3      AC 600V, 0.1uF
                                                C3                   TRIAC
                              STAT                                                                     500K             FILTER
                                                                 G




                              N85
