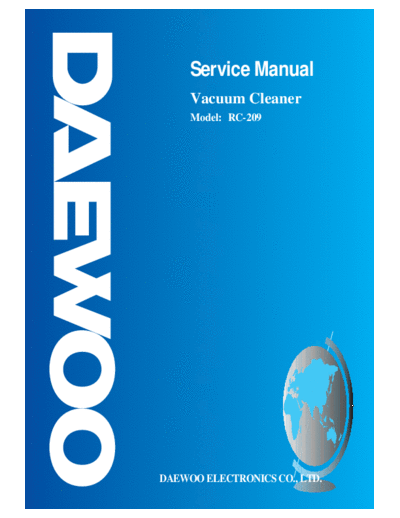

Image preview - the first page of the document
>> Download RC-209 documenatation <<Text preview - extract from the document Service Manual
Vacuum Cleaner
Model: RC-209
DAEWOO ELECTRONICS CO., LTD.
CONTENTS
1. SPECIFICATIONS 3
2. DIAGRAM 4
1) WIRING DIAGRAM 4
2) CIRCUIT DIAGRAM 4
3. EXPLODED VIEW AND PARTS LIST 5
1) TOTAL ASSEMBLY 5
2) BODY ASSEMBLY 7
3) COVER ASSEMBLY 9
4) CORD REEL ASSEMBLY 11
5) MOTOR ASSEMBLY 13
6) DUST METER ASSEMBLY 14
7) HOSE LINE ASSEMBLY 15
8) BRUSH ASSEMBLY 17
9) PIPE ASSEMBLY 19
10) BRUSH MULTI ASSEMBLY 20
2
1. SPECIFICATIONS
RATED VOLTAGE AND RATED FREQUENCY AC 100V/ 50~60HZ
AC 110V/ 60HZ
AC 220V/ 50HZ
AC 220V/ 60HZ
AC 230V/ 50HZ
AC 240V/ 50HZ
RATED INPUT 670W, 1000W
AIR WATT 190W
DEGREE OF VACUUM 2500 mmAq
AIR FLOW 1.1m2 / min
NOISE 70dB
DIMENSION (L x H x W) 356 x 221 x 246 mm
POWER CORD RETRACTABLE 5m
SUCTION CONTROL ON/OFF SWITCH, SLIDE VOLUME
DUST METER MECHANICAL
PARTS KEEPING STAND KEEPING
DUST BAG CAPACITY 2.2 Liter
WEIGHT NET 4.9Kg
GROSS 6.2Kg
FILTER DUST CAVITY 2-LAYER PAPER BAG
NON-WOVEN FABRIC MAT
MOTOR CAVITY NON-WOVEN FABRIC MAT
HOSE CURRENT 1.3M
EXTENSION PIPE PLASTIC 2 EA
BRUSH NORMAL
SPARE PAPER BAG 2EA
3
2. DIAGRAM
1) WIRING DIAGRAM
ON/OFF CONTROL
BK
SWITCH MOTOR
FUSE
BL
BK
YL
CORD
P.C.B REEL
WH
YL
DIAC CONTROL
SLIDE VOLUME WH
YL
P.C.B BK
YL BL
CORD
REEL
BL
MOTOR BK
BK
POWER CORD
Thermostat
4
2) CIRCUIT DIAGRAM
ON/OFF CONTROL
R2 R3
47 OHM 10K
1/4W 1/4W
DIODE
MOTOR
R1
47 Q1
1/2W C3
333K
TRIAC
C1 Q2
POWER CORD 104K
C2
104K
R4
10K
1/4W
C4 R5 R6
333K 300K 300K
PCB 1/4W 1/4W
SWITCH
DIAC CONTROL
YELLOW
BLUE BLUE
BLACK BLACK
FILTER COIL
WHITE WHITE
C2 120
