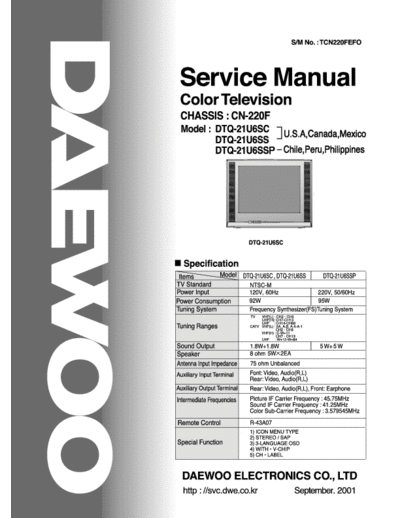

Image preview - the first page of the document
>> Download CN-220F documenatation <<
Text preview - extract from the document
1
2
(USA, Canada, Mexico)
3
(Chile, Peru, Philippines)
4
5
6
MODE ADJUSTMENT DATA REMARKS
MAX INITIAL
SVC2 Screen Adjustment
VIDEO LEVEL 7 7
RF AGC DELAY 63 10 Align RF AGC threshold
SVC5
FM LEVEL 31 20
AGC POINT 3.75 Select AGC reference voltage
H.PHASE 31 15 Align sync flyback pulse, using internal cross pattern(s11)
H.SIZE 63 32 Fixed
P.CUSHION 63 32 Fixed
V.POSI 63 30 Align Vertical DC Bias, using internal cross pattern(s11)
V.SIZE 127 35 Align Vertical Amplitude, using internal cross pattern(s11)
SVC6 V.LIN 31 15 Align Vertical Linearity, using internal cross pattern(s11)
V.S 31 14 Align Vertical Slope, using internal cross pattern(s11)
TILT 63 38 Fixed
TOP.C 15 8 Fixed
BOT.C 15 8 Fixed
V.SIZE.C 7 7 Fixed
ABL.POINT 7 0
BK.LEVEL 3 3
BK.START 3 3
BRI.STOP 1 0
Y.CORING 1 0
PRE.SHOOT 3 3
SVC7 DC.REST 3 3
W.PEAK 1 1
FRESH 1 0
OSD.GAIN 3 0
OSD.GRAY 1 0
OSD.SW 1 0
HT.SW 1 1
HT.LEVEL 3 0
C.BPF 1 0
C.KILL 7 0
RB.ANGLE 15 3
G.ANGLE 1 1
SVC7-2 C.EXT 1 1
FILTER 7 3
TRAP.TEST 7 0
CORING.GN 3 3
H.SIZE.CP 7 4
R.DRIVE 127 65
G.DRIVE 15 10
B.DRIVE 127 75
SVC8
R.BIAS 255 127
G.BIAS 255 160
B.BIAS 255 127
SCR R-BIAS 255 0
SCR G-BIAS 255 127
SCR B-BIAS 255 0
SVC-8 SCR R-DRIVE 127 64
SCR G-DRIVE 15 10
SCR B-DRIVE 127 64
SCR BRIGHT 127 80
SUB BRIGHTNESS 127 70 Align common RGB DC level
CONTRAST 28 27
TINT 77 38
COLOR 27 15
SVC9
SHARPNESS 13 13
FM/AM PRE 127 45(55) ( ) is SSP default value.
SCART PRE 127 45(53) ( ) is SSP default value.
MONI VOL 127 60(36) ( ) is SSP default value.
H.B.R 7 4
H.B.L 7 5
H.BLK.SW 1 1
SVC10 AFG&G 1 1
H.FREQ 63 36
V.SEP 1 0
V.COUNT 1 0
Internal Black Display Internal Black Pattern
Internal 100% White Display Internal 100% White
SVC11
Internal 60% White Display Internal 60% White
Internal Cross Pattern Display Internal Cross Pattern
SVC12 Forwarding Mode Factory Initialization
7
ALIGNMENT INSTRUCTIONS
8
9
10
11
ZZ100 48B4343A07 TRANSMITTER REMOCON R-43A07 (AA) C423 CMYE2G334J C MYLAR 400V PU 0.33MF J
ZZ110 PTACPWJ885 ACCESSORY AS DTQ-21U6SC C634 CEYF1E332V C ELECTRO 25V RSS 3300MF (16X31.5)
10000 48586054K1 MANUAL INSTRUCTION DTM-2082CW C803 CL1JB3104M C LINE ACROSS AC250V 0.1MF M ECQ-UV WRL
M821 4858213800 BAG INSTRUCTION L.D.P.E T0.05X250X400 C804 CEYN2D331P C ELECTRO 200V LHS 330MF
ZZ120 PTBCSHJ885 COVER BACK AS DTQ-21U6SC C813 CEYN2D221T C ELECTRO 200V FWS 220MF (22X30)
M211 4852158703 COVER BACK FR HIPS GY C820 CEYF1E332V C ELECTRO 25V RSS 3300MF (16X31.5)
M781 4857817610 CLOTH BLACK FELT 300X20X0.7 C824 CBYB3D152K C CERA SEMI 2KV BL(N) 1500PF K
ZZ130 PTPKCPJ885 PACKING AS DTQ-21U6SC C831 CEYF1E332V C ELECTRO 25V RSS 3300MF (16X31.5)
10 6520010100 STAPLE PIN AUTO W65 C880 CH1BFE472M C CERA AC AC400V 4700PF M U/C/V
M801 4858059100 BOX DW-3 C881 CH1BFE472M C CERA AC AC400V 4700PF M U/C/V
M811 4858196300 PAD EPS 21U6 D801 PTC1SW8902 HEAT SINK ASS`Y DPBS606GU- + 7174300811
M821 4858219100 BAG P.E P.E FOAM T0.5X1300X1150 D801 DPBS606GU- DIODE BRIDGE PBS606G
ZZ131 58G0000154 COIL DEGAUSSING DC-21F1 D801A 4857018902 HEAT SINK A1050P-H24
ZZ132 48519A7110 CRT GROUND NET 2101F-1015-1P D801B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
ZZ140 PTCACAJ885 CABINET AS DTQ-21U6SC D810 DRGP30J--- DIODE RGP30J
40 2TF01612CL TAPE FILAMENT 0.15X12mmX55mm D815 DRGP30J--- DIODE RGP30J
AD001 4859000240 ADAPTER 2P15A 300V(D=4.0) DF01 DKLR114L-- LED KLR114L
CRT1 4859634760 CRT A51QDJ279X32 P38 F801 5F1GB5021L FUSE GLASS TUBE CSA/UL 125V 5A
M201A 4856013300 SCREW CRT FIXING 30X80 BK I101 1LA76834-- IC MAIN LA76834
M201B 4856219502 WASHER RUBBER CR T2.0 BLACK I301 PTJ2SW8210 HEAT SINK ASS`Y 1LA7841--- + 7174300811
M201C 4856013302 SCREW CRT FIXING 30X190 BK 1 1LA7841--- IC VERTICAL LA7841
M201D 4856816300 CLAMP WIRE NYLON 6 (V0) 0000A 4857028210 HEAT SINK AL EX
M211A 7172401412 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 0000B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
M541 4855415800 SPEC PLATE 150ART P/E FILM (C/TV) I401 1KA7805--- IC REGULATOR KA7805
M681 4856812001 TIE CABLE NYLON66 DA100 I502 1TDA9183P- IC COMBFILTER TDA9183P
M683 4856816300 CLAMP WIRE NYLON 6 (V0) I503 1MM1118--- IC A/V SWITCH MM1118
SP01A 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN I601 1MSP3440B6 IC AUDIO MSP3440G-B6
SP02A 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN I602 PTA2SW8215 HEAT SINK ASS`Y 1TDA8946J- + 7174301011
ZZ200 PTFMSJJ885 MASK FRONT AS DTQ-21U6SC 1 1TDA8946J- IC AUDIO TDA8946J
M191 4851945003 BUTTON CTRL 4948703+5543401 0000A 4857028215 HEAT SINK AL EX
M191A 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN 0000B 7174301011 SCREW TAPPTITE TT2 RND 3X10 MFZN
M201 4852076903 MASK FRONT FR HIPS GY I603 1KA7805--- IC REGULATOR KA7805
M481 4854859303 BUTTON POWER FR ABS GY 21U6 I701 1DW8632LA1 IC MICOM DW863240V-LA1(5Y14)
M481A 4856716000 SPRING SWPA PIE0.5 I702 1AT24C16PC IC AT24C16-10PC
M561 4855617500 MARK BRAND CU AU+ABS BK I703 1KA7805--- IC REGULATOR KA7805
M591 4855933401 DECO EYE ABS BLUE I801 PTB2SW7920 HEAT SINK ASS`Y 1STRF6626- + 7174301011
M591B 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN 1 1STRF6626- IC POWER STR-F6626
ZZ202 PTSPPWJ885 SPEAKER AS DTQ-21U6SC 0000A 4857027920 HEAT SINK AL EX BK
P601A 4850704S31 CONNECTOR YH025-04+35098+ULW=800 0000B 7174301011 SCREW TAPPTITE TT2 RND 3X10 MFZN
SP01 4858314910 SPEAKER SP-33129A03 I802 1DP123---- IC ERROR AMP DP123
SP02 4858314910 SPEAKER SP-33129A03 I803 1LTV817C-- IC PHOTO COUPLER LTV-817C
ZZ290 PTMPMSJ885 PCB MAIN MANUAL AS DTQ-21U6SC I805 TX0202DA-- THYRISTOR X0202DA1BA2
10 2193100801 SOLDER BAR SN:PB=63:37 3PI(NO FLUX) IF01 1TS0P1238W IC PREAMP TS0P1238WI1
30 2291050616 FLUX SOLDER JS-64T3 JA01 4859109250 JACK PIN BOARD PH-JB-9614A
40 2291050301 FLUX SOLVENT IM-1000 JA02 4859109250 JACK PIN BOARD PH-JB-9614A
C307 CEYF1E332V C ELECTRO 25V RSS 3300MF (16X31.5) JA03 4859108450 JACK PIN BOARD YSC03P-4120-14A
C405 CCYB2H103K C CERA 500V B 0.01MF K JP01 4859102130 JACK EARPHONE YSC-1537
C409 CMYH3C822J C MYLAR 1.6KV BUP 8200PF J L105 58N0000042 COIL VCO TRF-V008
12
ELECTRICAL PARTS LIST
LOC PART CODE PART NAME PART DESCRIPTION REMARK LOC PART CODE PART NAME PART DESCRIPTION REMARK
L111 58C5580019 COIL CHOKE TRF-9225 (0.55UH) E002 4856310300 EYE LET BSR T0.2 (R1.6)
L403 58H0000055 COIL H-LINEARITY TRL-361A E003 4856310300 EYE LET BSR T0.2 (R1.6)
L801 5PLF24A2-- FILTER LINE LF-24A2 E004 4856310300 EYE LET BSR T0.2 (R1.6)
M351 4853530901 HOLDER LED P.P E005 4856310300 EYE LET BSR T0.2 (R1.6)
M682 4856813600 HOLDER WIRE NYLON 66 DAWH-13NA E006 4856310300 EYE LET BSR T0.2 (R1.6)
M683 4856812001 TIE CABLE NYLON66 DA100 E007 4856310300 EYE LET BSR T0.2 (R1.6)
P401A 4850708N08 CONNECTOR BIC-08T-25T+C-20T+ULW=400 E008 4856310300 EYE LET BSR T0.2 (R1.6)
P602A 4850708N11 CONNECTOR BIC-08T-25T+C-20T+ULW=300 E009 4856310300 EYE LET BSR T0.2 (R1.6)
PWC1 4859907810 CORD POWER AS ME301P+TER=2100 E010 4856310600 EYE LET BSR T0.2 (R2.3)
Q402 PTD2SW7601 HEAT SINK ASS`Y TKSC5386-- + 7174300811 E011 4856310600 EYE LET BSR T0.2 (R2.3)
1 TKSC5386-- TR KSC5386 E012 4856310600 EYE LET BSR T0.2 (R2.3)
0000A 4857027601 HEAT SINK AL EX E013 4856310300 EYE LET BSR T0.2 (R1.6)
0000B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN E014 4856310300 EYE LET BSR T0.2 (R1.6)
Q901 TKTC3229-- TR KTC3229 E015 4856310300 EYE LET BSR T0.2 (R1.6)
Q902 TKTC3229-- TR KTC3229 E016 4856310600 EYE LET BSR T0.2 (R2.3)
Q903 TKTC3229-- TR KTC3229 E017 4856310600 EYE LET BSR T0.2 (R2.3)
R801 DDC3R0M140 POSISTOR ECPCD3R0M140 E018 4856310600 EYE LET BSR T0.2 (R2.3)
R802 RX10T109KS R CEMENT 10W 1 OHM K TRIPOD SMALL E019 4856310600 EYE LET BSR T0.2 (R2.3)
R825 RW02Z128KS R WIRE WOUND 2W 0.12 OHM K SMALL E020 4856310300 EYE LET BSR T0.2 (R1.6)
SCT01 4859303530 SOCKET CRT PCS629-03C E023 4856310300 EYE LET BSR T0.2 (R1.6)
SF101 5PTSF5241P FILTER SAW TSF5241P E024 4856310300 EYE LET BSR T0.2 (R1.6)
SW701 5S50101035 SW TACT KPT-1112 1C-1P E025 4856310300 EYE LET BSR T0.2 (R1.6)
T401 50D10A3--- TRANS DRIVE TD-10A3 E026 4856310300 EYE LET BSR T0.2 (R1.6)
T402 50H0000223 FBT FFA64717M E027 4856310300 EYE LET BSR T0.2 (R1.6)
T402A 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK E028 4856310300 EYE LET BSR T0.2 (R1.6)
T801 50M4242B6- TRANS SMPS TSM-4242B6 E029 4856310300 EYE LET BSR T0.2 (R1.6)
TU01 4859719130 TUNER VARACTOR DT5-NF20F E030 4856310300 EYE LET BSR T0.2 (R1.6)
X601 5XE18R432E CRYSTAL QUARTZ HC-49/U 18.43200MHZ 30PPM E031 4856310300 EYE LET BSR T0.2 (R1.6)
X701 5XYR03276C CRYSTAL QUARTZ C-001R 32.768000KHZ 20PPM E032 4856310300 EYE LET BSR T0.2 (R1.6)
Y801 5SC0101338 SW RELAY DQ5D1-O(M)/GJ-SS-105LM E033 4856310300 EYE LET BSR T0.2 (R1.6)
Z501 5PYXT4R5MB FILTER CERA XT 4.5MB E036 4856310600 EYE LET BSR T0.2 (R2.3)
Z802 DSVC471D14 VARISTOR SVC471D14A E037 4856310600 EYE LET BSR T0.2 (R2.3)
ZZ200 PTMPJ0J885 PCB MAIN (RHU) AS DTQ-21U6SC E038 4856310600 EYE LET BSR T0.2 (R2.3)
C113 CEXF1C471V C ELECTRO 16V RSS 470MF (10X12.5)TP E039 4856310600 EYE LET BSR T0.2 (R2.3)
C311 CEXF1C471V C ELECTRO 16V RSS 470MF (10X12.5)TP E040 4856310600 EYE LET BSR T0.2 (R2.3)
C404 CEXF2E100V C ELECTRO 250V RSS 10MF (10X20) TP E041 4856310600 EYE LET BSR T0.2 (R2.3)
C417 CEXF1V471V C ELECTRO 35V RSS 470MF (10X20) TP E046 4856310600 EYE LET BSR T0.2 (R2.3)
C419 CEXF1V102V C ELECTRO 35V RSS 1000MF (13X25) TP E047 4856310600 EYE LET BSR T0.2 (R2.3)
C424 CEXA2D229E C ELECTRO 200V RUL 2.2MF (10X16) TP E048 4856310300 EYE LET BSR T0.2 (R1.6)
C521 CEXF1C471V C ELECTRO 16V RSS 470MF (10X12.5)TP E049 4856310300 EYE LET BSR T0.2 (R1.6)
C801 CCXB3D681K C CERA 2KV B 680PF K (TAPPING) E050 4856310300 EYE LET BSR T0.2 (R1.6)
C805 CH1BEE222M C CERA AC U/C/V 2.5KV 2200PF TP E051 4856310300 EYE LET BSR T0.2 (R1.6)
C806 CH1BEE222M C CERA AC U/C/V 2.5KV 2200PF TP E052 4856310300 EYE LET BSR T0.2 (R1.6)
C810 CBXB3D471K C CERA SEMI 2KV BL(N) 470PF K (T) E053 4856310300 EYE LET BSR T0.2 (R1.6)
C814 CEXF2C101V C ELECTRO 160V RSS 100MF (16X25) TP E054 4856310600 EYE LET BSR T0.2 (R2.3)
C816 CEXF2A470V C ELECTRO 100V RSS 47MF (10X16) TP E055 4856310600 EYE LET BSR T0.2 (R2.3)
C819 CCXB3D102K C CERA 2KV B 1000PF K (TAPPING) E056 4856310300 EYE LET BSR T0.2 (R1.6)
C906 CH1BEE472M C CERA AC U/C/V 2.5KV 4700PF TP E057 4856310300 EYE LET BSR T0.2 (R1.6)
ZZ200 PTMPJBJ885 PCB MAIN M-10 AS DTQ-21U6SC E058 4856310300 EYE LET BSR T0.2 (R1.6)
10 2TM18006BE TAPE MASKING 6.2X500 E059 4856310300 EYE LET BSR T0.2 (R1.6)
E001 4856310300 EYE LET BSR T0.2 (R1.6) E060 4856310300 EYE LET BSR T0.2 (R1.6)
E061 4856310300 EYE LET BSR T0.2 (R1.6)
13
E062 4856310300 EYE LET BSR T0.2 (R1.6) R810 RS02Z109JS R M-OXIDE FILM 2W 1 OHM J SMALL
E063 4856310300 EYE LET BSR T0.2 (R1.6) R811 RS02Z109JS R M-OXIDE FILM 2W 1 OHM J SMALL
E064 4856310300 EYE LET BSR T0.2 (R1.6) R823 RS02Z273JS R M-OXIDE FILM 2W 27K OHM J SMALL
E065 4856310600 EYE LET BSR T0.2 (R2.3) R828 RS02Z100JS R M-OXIDE FILM 2W 10 OHM J SMALL
E066 4856310600 EYE LET BSR T0.2 (R2.3) R921 RS02Z243JS R M-OXIDE FILM 2W 24K OHM J SMALL
E067 4856310600 EYE LET BSR T0.2 (R2.3) R922 RS02Z243JS R M-OXIDE FILM 2W 24K OHM J SMALL
E068 4856310600 EYE LET BSR T0.2 (R2.3) R923 RS02Z243JS R M-OXIDE FILM 2W 24K OHM J SMALL
E070 4856310600 EYE LET BSR T0.2 (R2.3) R924 RS02Z243JS R M-OXIDE FILM 2W 24K OHM J SMALL
E071 4856310600 EYE LET BSR T0.2 (R2.3) R925 RS02Z243JS R M-OXIDE FILM 2W 24K OHM J SMALL
E072 4856310600 EYE LET BSR T0.2 (R2.3) R926 RS02Z243JS R M-OXIDE FILM 2W 24K OHM J SMALL
E073 4856310600 EYE LET BSR T0.2 (R2.3) ZZ200 PTMPJRJ885 PCB MAIN RADIAL AS DTQ-21U6SC
E077 4856310600 EYE LET BSR T0.2 (R2.3) C106 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
E078 4856310600 EYE LET BSR T0.2 (R2.3) C107 CEXF1H228V C ELECTRO 50V RSS 0.22MF (5X11) TP
E079 4856310300 EYE LET BSR T0.2 (R1.6) C108 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5) TP
E080 4856310300 EYE LET BSR T0.2 (R1.6) C109 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
E081 4856310300 EYE LET BSR T0.2 (R1.6) C114 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
E082 4856310300 EYE LET BSR T0.2 (R1.6) C116 CMXM2A333J C MYLAR 100V 0.033MF J (TP)
E083 4856310300 EYE LET BSR T0.2 (R1.6) C117 CMXM2A103J C MYLAR 100V 0.01MF J (TP)
E084 4856310300 EYE LET BSR T0.2 (R1.6) C201 CEXF1H108V C ELECTRO 50V RSS 0.1MF (5X11) TP
E085 4856310300 EYE LET BSR T0.2 (R1.6) C202 CEXF1H228V C ELECTRO 50V RSS 0.22MF (5X11) TP
E086 4856310300 EYE LET BSR T0.2 (R1.6) C205 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
E087 4856310300 EYE LET BSR T0.2 (R1.6) C210 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
E088 4856310600 EYE LET BSR T0.2 (R2.3) C213 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
E089 4856310600 EYE LET BSR T0.2 (R2.3) C214 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
E090 4856310300 EYE LET BSR T0.2 (R1.6) C215 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
E091 4856310300 EYE LET BSR T0.2 (R1.6) C216 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
E092 4856310300 EYE LET BSR T0.2 (R1.6) C217 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP
N001 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN) C301 CXSL2H100D C CERA 500V SL 10PF D (TAPPING)
N002 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN) C303 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
N003 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN) C304 CMXM2A224J C MYLAR 100V 0.22MF J
N004 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN) C305 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5) TP
N007 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN) C306 CEXD1H109Q C ELECTRO 50V RT 1MF (6.3X11) TP
N008 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN) C308 CMXM2A153J C MYLAR 100V 0.015MF J (TP)
P601 485923172S CONN WAFER YW025-04 (STICK) C309 CMXM2A473J C MYLAR 100V 0.047MF J (TP)
R104 RS02Z472JS R M-OXIDE FILM 2W 4.7K OHM J SMALL C310 CMXM2A103J C MYLAR 100V 0.01MF J (TP)
R304 RS02Z109JS R M-OXIDE FILM 2W 1 OHM J SMALL C401 CCXB2H102K C CERA 500V B 1000PF K (TAPPING)
R305 RS02Z129JS R M-OXIDE FILM 2W 1.2 OHM J SMALL C402 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
R308 RS02Z681JS R M-OXIDE FILM 2W 680 OHM J SMALL C421 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
R309 RS02Z181JS R M-OXIDE FILM 2W 180 OHM J SMALL C429 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
R315 RS02Z241JS R M-OXIDE FILM 2W 240 0HM J SMALL C433 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
R317 RS02Z681JS R M-OXIDE FILM 2W 680 OHM J SMALL C437 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP
R401 RS02Y120JS R M-OXIDE FILM 2W 12 OHM J SMALL C501 CMXL1J105J C MYLAR 63V MEU 1MF J
R411 RS02Z241JS R M-OXIDE FILM 2W 240 0HM J SMALL C502 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
R415 RS02Z302JS R M-OXIDE FILM 2W 3K OHM J SMALL C503 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP
R417 RS01Z229J- R M-OXIDE FILM 1W 2.2 OHM J (TAPPING) C504 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
R418 RS02Z109JS R M-OXIDE FILM 2W 1 OHM J SMALL C505 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
R419 RS02Z109JS R M-OXIDE FILM 2W 1 OHM J SMALL C506 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
R420 RS01Z249J- R M-OXIDE FILM 1W 2.4 OHM J (TAPPING) C507 CMXM2A224J C MYLAR 100V 0.22MF J
R425 RS02Z163JS R M-OXIDE FILM 2W 16K OHM J SMALL C508 CMXM2A224J C MYLAR 100V 0.22MF J
R450 RS02Z101JS R M-OXIDE FILM 2W 100 OHM J SMALL C509 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
R511 RS02Z560JS R M-OXIDE FILM 2W 56 OHM J SMALL C510 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
R601 RS02Z910JS R M-OXIDE FILM 2W 91 OHM J SMALL C511 CMXM2A153J C MYLAR 100V 0.015MF J (TP)
14
ELECTRICAL PARTS LIST
LOC PART CODE PART NAME PART DESCRIPTION REMARK LOC PART CODE PART NAME PART DESCRIPTION REMARK
C512 CEXF1H108A C ELECTRO 50V RSM 0.1MF 4X7 Q403 TKTC3207-- TR KTC3207 (TP)
C513 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP Q407 TKTC3198Y- TR KTC3198Y
C515 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP Q703 TKTC3198Y- TR KTC3198Y
C517 CMXM2A103J C MYLAR 100V 0.01MF J (TP) Q704 TKTA1266Y- TR KTA1266Y (TP)
C518 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP Q705 TKTC3198Y- TR KTC3198Y
C570 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP Q706 TKTC3198Y- TR KTC3198Y
C603 CMXL1J224J C MYLAR 63V MEU 0.22MF J (TP) Q801 TKSA1013Y- TR KSA1013Y (TP)
C605 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP Q802 TKTC3198Y- TR KTC3198Y
C606 CMXM2A104J C MYLAR 100V 0.1MF J (TP) Q803 TKTC3198Y- TR KTC3198Y
C607 CMXL1J224J C MYLAR 63V MEU 0.22MF J (TP) Q806 TKTC3198Y- TR KTC3198Y
C608 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP Q904 TKTC3198Y- TR KTC3198Y
C609 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP Q905 TKTC3198Y- TR KTC3198Y
C610 CMXL1J224J C MYLAR 63V MEU 0.22MF J (TP) Q906 TKTC3198Y- TR KTC3198Y
C611 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP Q907 TKTA1266Y- TR KTA1266Y (TP)
C613 CMXL1J224J C MYLAR 63V MEU 0.22MF J (TP) R102 RN02B680JS R METAL FILM 2W 68 OHM J SMALL
C614 CMXM2A104J C MYLAR 100V 0.1MF J (TP) R204 RN02B181JS R METAL FILM 2W 180 OHM J SMALL
C615 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP SW702 5S50101090 SW TACT THVH472GCA
C616 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP SW703 5S50101090 SW TACT THVH472GCA
C617 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP SW704 5S50101090 SW TACT THVH472GCA
C619 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP SW705 5S50101090 SW TACT THVH472GCA
C620 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP SW706 5S50101090 SW TACT THVH472GCA
C621 CMXM2A152J C MYLAR 100V 1500PF J (TP) SW707 5S50101090 SW TACT THVH472GCA
C622 CMXM2A152J C MYLAR 100V 1500PF J (TP) X501 5XEX3R579C CRYSTAL QUARTZ HC-49U 3.579545M (TP)
C625 CEXF1H108V C ELECTRO 50V RSS 0.1MF (5X11) TP ZZ200 PTMPJAJ885 PCB MAIN AXIAL AS DTQ-21U6SC
C629 CEXF1H108V C ELECTRO 50V RSS 0.1MF (5X11) TP 10 2TM14006LB TAPE MASKING 3M #232 6.0X2000M
C631 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP 20 2TM10006LB TAPE MASKING 3M #232-MAP-C 6.2X2000M
C636 CEXF1H108V C ELECTRO 50V RSS 0.1MF (5X11) TP A001 4859814291 PCB MAIN 330X246
C637 CEXF1H108V C ELECTRO 50V RSS 0.1MF (5X11) TP C103 CCZF1H103Z C CERA 50V F 0.01MF Z
C638 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP C111 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C639 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C112 CCZF1H103Z C CERA 50V F 0.01MF Z
C640 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C115 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C642 CEXF1H339V C ELECTRO 50V RSS 3.3MF (5X11) TP C151 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C669 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP C154 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
C703 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP C203 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C704 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP C206 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
C705 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP C207 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
C706 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP C211 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
C707 CMXL1J104J C MYLAR 63V MEU 0.1MF J C221 CCZF1H103Z C CERA 50V F 0.01MF Z
C709 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP C500 CBZR1C392M C CERA 16V Y5R 3900PF M (AXIAL)
C808 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP C514 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C829 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C516 CZCH1H160J C CERA 50V CH 16PF J (AXIAL)
C832 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11) TP C519 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C833 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C522 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C834 CMXM2A104J C MYLAR 100V 0.1MF J (TP) C523 CCZF1H103Z C CERA 50V F 0.01MF Z
C862 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP C524 CCZF1H103Z C CERA 50V F 0.01MF Z
F801A 4857415001 CLIP FUSE PFC5000-0702 C525 CCZF1H103Z C CERA 50V F 0.01MF Z
F801B 4857415001 CLIP FUSE PFC5000-0702 C528 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
L805 58CX430599 COIL CHOKE AZ-9004Y 940K TP C530 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
L806 58CX430599 COIL CHOKE AZ-9004Y 940K TP C540 CCZF1H103Z C CERA 50V F 0.01MF Z
L901 5CPX181J-- COIL PEAKING 180UH J (RADIAL) C541 CCZB1H181K C CERA 50V B 180PF K (AXIAL)
Q203 TKTA1266Y- TR KTA1266Y (TP) C601 CZCH1H479K C CERA 50V CH 4.7PF K (AXIAL)
Q205 TKTC3198Y- TR KTC3198Y C602 CZCH1H479K C CERA 50V CH 4.7PF K (AXIAL)
15
C604 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z D410 D1N4937G-- DIODE 1N4937G (TAPPING)
C612 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z D411 D1N4937G-- DIODE 1N4937G (TAPPING)
C618 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z D415 DUZ9R1BM-- DIODE ZENER UZ-9.1BM
C623 CZSL1H200J C CERA 50V SL 20PF J (AXIAL) D502 D1N4148--- DIODE 1N4148 (TAPPING)
C624 CCZF1H103Z C CERA 50V F 0.01MF Z D504 D1N4148--- DIODE 1N4148 (TAPPING)
C626 CCZB1H102K C CERA 50V B 1000PF K (AXIAL) D601 DMTZJ5R6B- DIODE ZENER MTZJ 5.6B
C627 CCZB1H102K C CERA 50V B 1000PF K (AXIAL) D605 DUZ9R1BM-- DIODE ZENER UZ-9.1BM
C628 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z D622 DMTZJ5R6B- DIODE ZENER MTZJ 5.6B
C630 CZSL1H470J C CERA 50V SL 47PF J (AXIAL) D623 DMTZJ5R6B- DIODE ZENER MTZJ 5.6B
C632 CCZF1H103Z C CERA 50V F 0.01MF Z D705 D1N4148--- DIODE 1N4148 (TAPPING)
C633 CCZF1H103Z C CERA 50V F 0.01MF Z D706 DUZ3R9B--- DIODE ZENER UZ-3.9B
C635 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z D719 D1N4148--- DIODE 1N4148 (TAPPING)
C643 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z D803 D1N4937G-- DIODE 1N4937G (TAPPING)
C645 CCZB1H471K C CERA 50V B 470PF K (AXIAL) D804 D1N4937G-- DIODE 1N4937G (TAPPING)
C646 CCZB1H471K C CERA 50V B 470PF K (AXIAL) D805 D1N4937G-- DIODE 1N4937G (TAPPING)
C647 CCZB1H471K C CERA 50V B 470PF K (AXIAL) D807 D1N4937G-- DIODE 1N4937G (TAPPING)
C648 CCZB1H471K C CERA 50V B 470PF K (AXIAL) D812 D1N4937G-- DIODE 1N4937G (TAPPING)
C690 CCZF1H103Z C CERA 50V F 0.01MF Z D814 D1N4937G-- DIODE 1N4937G (TAPPING)
C691 CCZF1H103Z C CERA 50V F 0.01MF Z D819 D1N4937G-- DIODE 1N4937G (TAPPING)
C701 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z D821 DUZ9R1BM-- DIODE ZENER UZ-9.1BM
C702 CCZF1H103Z C CERA 50V F 0.01MF Z J001 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C708 CZCH1H120J C CERA 50V CH 12PF J (AXIAL) J002 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C711 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z J003 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C712 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z J004 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C713 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z J005 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C720 CCZB1H102K C CERA 50V B 1000PF K (AXIAL) J006 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C722 CCZF1H103Z C CERA 50V F 0.01MF Z J007 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C723 CCZF1H103Z C CERA 50V F 0.01MF Z J008 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C741 CCZB1H221K C CERA 50V B 220PF K (AXIAL) J009 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C752 CZCH1H180J C CERA 50V CH 18PF J (AXIAL) J010 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C754 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z J011 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C757 CCZB1H333K C CERA 50V B 0.033MF K AXL J012 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C777 CCZF1H103Z C CERA 50V F 0.01MF Z J013 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C807 CCZB1H821K C CERA 50V B 820PF K AXIAL J014 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C817 CCZB1H101K C CERA 50V B 100PF K (AXIAL) J015 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C830 CCZB1H102K C CERA 50V B 1000PF K (AXIAL) J016 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C901 CCZB1H271K C CERA 50V B 270PF K J017 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C902 CCZB1H271K C CERA 50V B 270PF K J018 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C903 CCZB1H271K C CERA 50V B 270PF K J019 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D101 DUZ5R1B--- DIODE ZENER UZ-5.1B J020 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D102 DUZ33B---- DIODE ZENER UZ-33B J021 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D202 D1N4148--- DIODE 1N4148 (TAPPING) J022 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D203 DUZ9R1BM-- DIODE ZENER UZ-9.1BM J023 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D204 D1N4148--- DIODE 1N4148 (TAPPING) J024 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D207 D1N4148--- DIODE 1N4148 (TAPPING) J025 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D208 DUZ9R1BM-- DIODE ZENER UZ-9.1BM J026 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D209 D1N4148--- DIODE 1N4148 (TAPPING) J027 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D219 D1N4148--- DIODE 1N4148 (TAPPING) J028 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D301 D1N4004S-- DIODE 1N4004S J029 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D406 DRGP15J--- DIODE RGP15J J030 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D407 D1N4937G-- DIODE 1N4937G (TAPPING) J031 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D408 DRH1B----- DIODE RH1B J032 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
16
ELECTRICAL PARTS LIST
LOC PART CODE PART NAME PART DESCRIPTION REMARK LOC PART CODE PART NAME PART DESCRIPTION REMARK
J033 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J086 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J034 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J087 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J035 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J088 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J036 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J089 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J037 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J090 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J038 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J091 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J039 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J092 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J040 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J093 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J041 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J094 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J042 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J095 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J043 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J096 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J044 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J097 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J045 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J098 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J046 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J099 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J047 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J100 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J048 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J101 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J049 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J102 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J050 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J103 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J051 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J104 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J052 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J105 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J053 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J106 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J054 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J107 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J055 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J108 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J056 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J109 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J057 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J110 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J058 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J111 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J059 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J112 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J060 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J113 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J061 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J114 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J062 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J115 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J064 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J116 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J065 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J117 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J066 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J118 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J067 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J119 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J068 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J120 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J069 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J121 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J070 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J122 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J071 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J123 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J072 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J124 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J073 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J125 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J074 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J126 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J075 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J127 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J076 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J128 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J077 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L101 5CPZ330K02 COIL PEAKING 33UH K (AXIAL 3.5MM)
J078 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L203 5CPZ100K04 COIL PEAKING 10UH 10.5MM K (LAL04TB)
J079 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L501 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5MM)
J080 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L502 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5MM)
J081 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L533 5CPZ150K02 COIL PEAKING 15UH K (AXIAL 3.5MM)
J082 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L601 5CPZ560K02 COIL PEAKING 56UH K (AXIAL 3.5MM)
J083 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L602 5CPZ150K02 COIL PEAKING 15UH K (AXIAL 3.5MM)
J084 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L603 5CPZ560K04 COIL PEAKING 56UH K (AXIAL 10.5MM)
J085 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L701 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5MM)
17
L802 5MC0000100 COIL BEAD HC-3550 R501 RD-4Z111J- R CARBON FILM 1/4 110 OHM J
L804 5MC0000100 COIL BEAD HC-3550 R502 RD-2Z151J- R CARBON FILM 1/2 150 OHM J
L807 5MC0000100 COIL BEAD HC-3550 R503 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
L808 5MC0000100 COIL BEAD HC-3550 R504 RD-AZ622J- R CARBON FILM 1/6 6.2K OHM J
R103 RD-AZ153J- R CARBON FILM 1/6 15K OHM J R505 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R106 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R506 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R107 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R507 RD-AZ123J- R CARBON FILM 1/6 12K OHM J
R154 RD-AZ473J- R CARBON FILM 1/6 47K OHM J R508 RD-AZ203J- R CARBON FILM 1/6 20K OHM J
R156 RD-AZ473J- R CARBON FILM 1/6 47K OHM J R509 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R163 RD-AZ153J- R CARBON FILM 1/6 15K OHM J R510 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R164 RD-AZ104J- R CARBON FILM 1/6 100K OHM J R512 RD-AZ241J- R CARBON FILM 1/6 240 OHM J
R165 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J R513 RD-AZ331J- R CARBON FILM 1/6 330 OHM J
R201 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R519 RD-AZ123J- R CARBON FILM 1/6 12K OHM J
R202 RD-AZ154J- R CARBON FILM 1/6 150K OHM J R521 RD-AZ152J- R CARBON FILM 1/6 1.5K OHM J
R205 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R522 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R206 RD-AZ331J- R CARBON FILM 1/6 330 OHM J R523 RD-AZ622J- R CARBON FILM 1/6 6.2K OHM J
R207 RD-AZ473J- R CARBON FILM 1/6 47K OHM J R525 RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J
R208 RD-AZ680J- R CARBON FILM 1/6 68 OHM J R526 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R209 RD-AZ750J- R CARBON FILM 1/6 75 OHM J R531 RD-AZ623J- R CARBON FILM 1/6 62K OHM J
R210 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R532 RD-AZ331J- R CARBON FILM 1/6 330 OHM J
R211 RD-AZ473J- R CARBON FILM 1/6 47K OHM J R533 RD-AZ331J- R CARBON FILM 1/6 330 OHM J
R214 RD-AZ750J- R CARBON FILM 1/6 75 OHM J R534 RD-AZ331J- R CARBON FILM 1/6 330 OHM J
R215 RD-AZ203J- R CARBON FILM 1/6 20K OHM J R554 RD-4Z102J- R CARBON FILM 1/4 1K OHM J
R216 RD-2Z151J- R CARBON FILM 1/2 150 OHM J R557 RD-AZ302J- R CARBON FILM 1/6 3K OHM J
R217 RD-AZ203J- R CARBON FILM 1/6 20K OHM J R559 RD-AZ331J- R CARBON FILM 1/6 330 OHM J
R221 RD-AZ473J- R CARBON FILM 1/6 47K OHM J R562 RD-AZ914J- R CARBON FILM 1/6 910K OHM J
R222 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R567 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R223 RD-AZ473J- R CARBON FILM 1/6 47K OHM J R568 RN-AZ4701F R METAL FILM 1/6 4.7K OHM F
R224 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R570 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R225 RD-AZ473J- R CARBON FILM 1/6 47K OHM J R604 RD-AZ392J- R CARBON FILM 1/6 3.9K OHM J
R230 RD-AZ473J- R CARBON FILM 1/6 47K OHM J R605 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R231 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R606 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R232 RD-AZ473J- R CARBON FILM 1/6 47K OHM J R607 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R234 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R608 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R235 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R609 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R301 RD-AZ362J- R CARBON FILM 1/6 3.6K OHM J R610 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R302 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J R611 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R306 RD-4Z104J- R CARBON FILM 1/4 100K OHM J R641 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R307 RD-4Z113J- R CARBON FILM 1/4 11K OHM J R701 RD-AZ240J- R CARBON FILM 1/6 24 OHM J
R314 RD-AZ333J- R CARBON FILM 1/6 33K OHM J R702 RD-AZ514J- R CARBON FILM 1/6 510K OHM J
R316 RD-AZ243J- R CARBON FILM 1/6 24K OHM J R703 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R321 RD-AZ303J- R CARBON FILM 1/6 30K OHM J R704 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R322 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R705 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
R408 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R706 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R409 RD-AZ331J- R CARBON FILM 1/6 330 OHM J R707 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R410 RD-4Z472J- R CARBON FILM 1/4 4.7K OHM J R708 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R413 RD-4Z912J- R CARBON FILM 1/4 9.1K OHM J R709 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R424 RD-4Z123J- R CARBON FILM 1/4 12K OHM J R710 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R427 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R711 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R443 RD-AZ152J- R CARBON FILM 1/6 1.5K OHM J R712 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
R451 RD-2Z151J- R CARBON FILM 1/2 150 OHM J R713 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R500 RD-AZ514J- R CARBON FILM 1/6 510K OHM J R714 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
18
ELECTRICAL PARTS LIST
LOC PART CODE PART NAME PART DESCRIPTION REMARK LOC PART CODE PART NAME PART DESCRIPTION REMARK
R715 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R813 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
R717 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R814 RD-AZ153J- R CARBON FILM 1/6 15K OHM J
R718 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R815 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
R719 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R817 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R722 RD-AZ512J- R CARBON FILM 1/6 5.1K OHM J R819 RD-AZ622J- R CARBON FILM 1/6 6.2K OHM J
R723 RD-AZ121J- R CARBON FILM 1/6 120 OHM J R821 RC-2Z105KP R CARBON COMP 1/2 1M OHM K
R724 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R826 RD-2Z121J- R CARBON FILM 1/2 120 OHM J
R725 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R829 RD-4Z123J- R CARBON FILM 1/4 12K OHM J
R726 RD-AZ473J- R CARBON FILM 1/6 47K OHM J R830 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R727 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R831 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
R728 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R833 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R731 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R888 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R732 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R901 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
R733 RD-AZ152J- R CARBON FILM 1/6 1.5K OHM J R902 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
R734 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J R903 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
R735 RD-AZ392J- R CARBON FILM 1/6 3.9K OHM J R904 RD-AZ151J- R CARBON FILM 1/6 150 OHM J
R736 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J R905 RD-AZ181J- R CARBON FILM 1/6 180 OHM J
R737 RD-AZ392J- R CARBON FILM 1/6 3.9K OHM J R906 RD-AZ151J- R CARBON FILM 1/6 150 OHM J
R738 RD-AZ362J- R CARBON FILM 1/6 3.6K OHM J R907 RD-AZ121J- R CARBON FILM 1/6 120 OHM J
R739 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J R908 RD-AZ121J- R CARBON FILM 1/6 120 OHM J
R740 RD-AZ202J- R CARBON FILM 1/6 2K OHM J R909 RD-AZ121J- R CARBON FILM 1/6 120 OHM J
R741 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R910 RD-AZ751J- R CARBON FILM 1/6 750 OHM J
R742 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R913 RD-AZ561J- R CARBON FILM 1/6 560 OHM J
R743 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R914 RD-AZ133J- R CARBON FILM 1/6 13K OHM J
R748 RD-AZ471J- R CARBON FILM 1/6 470 OHM J R915 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
R751 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J R918 RD-2Z272J- R CARBON FILM 1/2 2.7K OHM J
R753 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R919 RD-2Z272J- R CARBON FILM 1/2 2.7K OHM J
R754 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J R920 RD-2Z272J- R CARBON FILM 1/2 2.7K OHM J
R755 RD-AZ512J- R CARBON FILM 1/6 5.1K OHM J R931 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
R761 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J R932 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
R769 RD-AZ471J- R CARBON FILM 1/6 470 OHM J R933 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
R770 RD-4Z101J- R CARBON FILM 1/4 100 OHM J
R776 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R777 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R778 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R779 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R780 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R783 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R790 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R791 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R792 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R793 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R797 RD-AZ331J- R CARBON FILM 1/6 330 OHM J
R799 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R800 RC-2Z565KP R CARBON COMP 1/2 5.6M OHM K
R803 RD-AZ911J- R CARBON FILM 1/6 910 OHM J
R804 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
R805 RD-4Z242J- R CARBON FILM 1/4 2.4K OHM J
R806 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R808 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R809 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R812 RD-AZ363J- R CARBON FILM 1/6 36K OHM J
19
CABINET PARTS LIST
PART/MODEL 21U6SC 21U6SS/SSP7
MASK FRONT 4852076903 4852076902
COVER BACK 4852158703 4852158702
BUTTON CTRL 4851945003 4851945002
BUTTON POWER 4854859303 4854859302
CRT PARTS LIST
PART/MODEL 21U6SC/SS 21U6SSP
PART CODE DESCRIPTION PART CODE DESCRIPTION
CRT 4859634760 A51QDJ279X32 P38 4859634764 A51QDJ279X32 M10
COIL DEGAUSSING 58G0000154 DC-21F1 58G0000147 DC-21SF
OPTION PARTS LIST
PART/MODEL 21U6SC/SS 21U6SSP
PART CODE DESCRIPTION PART CODE DESCRIPTION
ANT ROD 4850A02510 S3BW216B (L=600 MM) 4850A03510 PH-RA-003A
TRANS ANT MATCHING 4850A00250 IMT-06 4850A00650 YSC-T-07 BR
CORD POWER AS 4859907810 ME301P+TER=2100 4859908410 MP229+H03VVH2-F+TER=2100
DIFFERENCE PARTS LIST
LOC PART/MODEL 21U6SC/SS 21U6SSP
PART CODE DESCRIPTION PART CODE DESCRIPTION
T801 TRANS SMPS 50M4242B6- TSM-4242B6 50M4242B7- TSM-4242B7
I801 IC POWER 1STRF6626- STR-F6626 1STRF6654- STR-F6654
C804 C ELECTRO CEYN2D331P 200V LHS 330MF CEYN2W151P 450V LHS 150MF (25X40)
C834 C MYLAR CMXM2A104J 100V 0.1MF J (TP) CMXM2A102J 100V 1000PF J (TP)
C880 C CERA AC CH1BFE472M AC400V 4700PF M U/C/V -
C881 C CERA AC CH1BFE472M AC400V 4700PF M U/C/V -
C882 C CERA AC - CH1BFE222M U/C/V AC400V 2200PF
D801 DIODE BRIDGE DPBS606GU- PBS606G DPBS408GU- PBS408GU-CA
F801 FUSE GLASS TUBE 5F1GB5021L CSA/UL 125V 5A 5F3GB4022L V/S TL 4A 250V MF51
L801 FILTER LINE 5PLF24A2-- LF-24A2 5PLF24A1-- LF-24A1
R801 POSISTOR DDC3R0M140 ECPCD3R0M140 DDC7R0M290 ECPCD7R0M290
R802 R CEMENT RX10T109KS 10W 1 OHM K TRIPOD SMALL RX10T339J- 10W 3.3 OHM J TRIPOD
R803 R CARBON FILM RD-AZ911J- 1/6 910 OHM J RD-AZ102J- 1/6 1K OHM J
R804 R CARBON FILM 85801065GY AWG22 1/0.65 TIN COATING RD-2Z330J- 1/2 33 OHM J
R805 R CARBON FILM RD-4Z242J- 1/4 2.4K OHM J RD-4Z332J- 1/4 3.3K OHM J
R808 R CARBON FILM RD-AZ102J- 1/6 1K OHM J RD-AZ681J- 1/6 680 OHM J
R823 R M-OXIDE FILM RS02Z273JS 2W 27K OHM J SMALL RS02Z153JS 2W 15K OHM J SMALL
R825 R M-OXIDE FILM RW02Z128KS 2W 0.12 OHM K SMALL RS02Z228JS 2W 0.22 OHM J SMALL
R829 R CARBON FILM RD-4Z123J- 1/4 12K OHM J RD-4Z822J- 1/4 8.2K OHM J
R831 R M-OXIDE FILM 85801065GY AWG22 1/0.65 TIN COATING RS02Z153JS 2W 15K OHM J SMALL
R832 R CARBON FILM - RD-4Z912J- 1/4 9.1K OHM J
20
DTQ-21U6
21
22
23
24
( (
25
26
27
28
29
30
31
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
