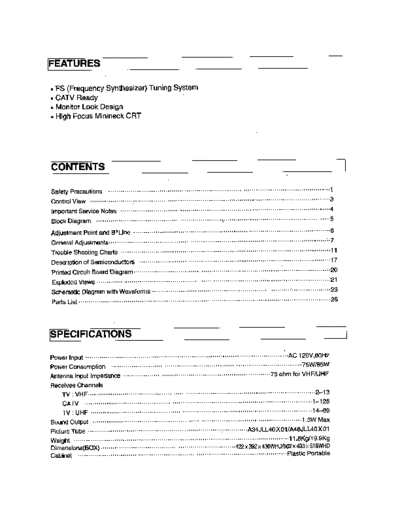

Image preview - the first page of the document



>> Download CN-150 documenatation <<

Text preview - extract from the document

CONTROL VIEW




 REMOCON SENSOR                                       POWER ON/OFF

 ENTER                                                    CH UP/DN

 MENU                                                    VOL UP/DN




         F-CONNECTOR

                  300 OHM-75 OHM
                  COUPLING
                  TRANSFORMER

             VHF



             75

                                   FROM 75 OHM
                                   VHF ANTENNA WITH
                                   CABLE OR CABLE
                                   TV SYSTEM




                                   3
    IMPORTANT SERVICE NOTES
1. X-RAY RADIATION PRECAUTION                                       * Minimum brightness
1) Excessive high voltage can produce potentially                      Plug the AC line cord directly into a 120V AC outlet (do
   hazardous X-RAY RADIATION. To avoid such                            not use a line isola-tion transformer during this check).
   hazards, the high voltage must not be above the
                                                                       Use an AC voltmeter having 5000 ohms per volt or
   specified limit. The nominal value of the high voltage
                                                                       more sensitivity in the following manner.
   of this receiver is 24.4kv(28.6kv) at zero beam current
 * (minimum brightness) under a 120V AC power source.                  Connect at 1500 ohm 10 watt resistor, paralleled by a
   The high voltage must not, under any circumstances,                 0.15
