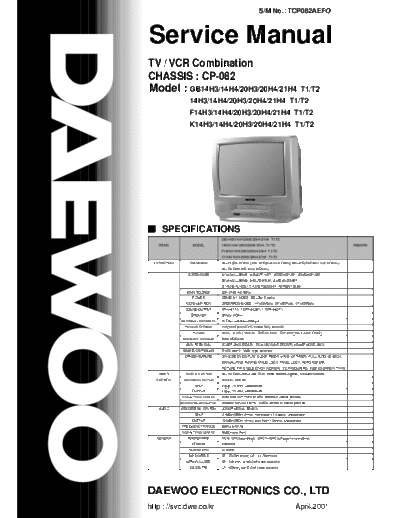

Image preview - the first page of the document
>> Download daewoo_chassis_cp082_service_manual documenatation <<
Text preview - extract from the document
S/M No. : TCP082AEFO
Service Manual
TV / VCR Combination
CHASSIS : CP-082
Model : GB14H3/14H4/20H3/20H4/21H4 T1/T2
14H3/14H4/20H3/20H4/21H4 T1/T2
F14H3/14H4/20H3/20H4/21H4 T1/T2
K14H3/14H4/20H3/20H4/21H4 T1/T2
SPECIFICATIONS
GB14H3/14H4/20H3/20H4/21H4 T1/T2
ITEMS MODEL 14H3/14H4/20H3/20H4/21H4 T1/T2 REMARK
F14H3/14H4/20H3/20H4/21H4 T1/T2
K14H3/14H4/20H3/20H4/21H4 T1/T2
TV SECTION STANDARD PAL-I/II(GB MODEL),PAL-B/G(BLANK MODEL),PAL-B/G,SECAM-L/L(F MODEL)
PAL/SECAM-B/G,DK(K MODEL)
SCREEN SIZE 14":A34JLL90X01, A34AGT14X71, A33EKC01X01, A34EAC01X06
20":A48JLL90X02, A48LPE01X01, A48EAX33X081
21":A51EAL155X17, A51EFS83X181, A51EBV13X09
MAIN VOLTAGE 220~240V AC,50Hz
POWER STAND BY MODE : BELOW 5 Watts
CONSUMPTION OPERATION MODE : 14"=59Watts, 20"=65Watts, 21"=69Watts
SOUND OUTPUT 1Wmin(14"), 1.5Wmin(20"), 1.5Wmin(21")
SPEAKER 3Watts 8 Ohm
ANTENNA IMPEDANCE 75 Ohm unbalanced input
TUNING SYSTEM FVS(FREQUENCY SYNTHESIS) TUNING
TUNER VHF-L : E2-S7, VHF-H : S8-S36, UHF : S37-E69 (PAL-I=UHF ONLY)
NUMBER OF PROGRAM 100 PROGRAM
AUX. TERMINAL SCART JACK(REAR) , RCA JACK(AV2 FRONT), HEADPHONE JACK
REMOTE CONTROLLER R-46C with 2 "AAA" type batteries
OTHER FEATURE ON SCREEN DISPLAY, SLEEP TIMER, WAKE UP TIMER, FULL AUTO SEARCH,
MANUAL/FINE TUNING,CHILD LOCK, PANEL LOCK, AUTO REPEAT,
PICTURE TYPE SELECTION (NORMAL 1/2, FAVOURITE), INDEX SEARCH, TV/AV
VIDEO SINGLE SYSTEM PAL/SECAM colour and CCIR mono chrome signals, 625lines/50fields.
SECTION RECORDING SYSTEM 2HEAD / 4HEAD
INPUT 1Vp-p, 75 ohm, unbalanced
OUTPUT 1Vp-p, 75 ohm, unbalanced
SIGNAL TO NOISE RATIO 45dB with NETTETE IMAGE control at center position
HORIZONTAL RESOLUTION 240lines with NETTETE IMAGE control at center position
AUDIO RECORDING SYSTEM LONGITUDINAL TRACK
INPUT -3.8dBm(500m Vrms), more than 47 Kohms, unbalanced
OUTPUT -3.8dBm(500m Vrms), less than 1 Kohms, unbalanced
FREQUENCY RANGE 100Hz to 8KHz
SIGNAL TO NOISE RATIO 40dB(more than)
GENERA TEMPERATRE 5oC to 35oC(operating), -20oC to 60oC (storage temperature)
FORMAT standard
TAPE WIDTH 12.65mm
TAPE SPEED SP : 23.39mm/sec, LP : 11.70mm/sec
WITH FULLSIZE SP : 240 min, win E-240 video cassette
CASSETTE LP : 480min, win E-240 video cassette
DAEWOO ELECTRONICS CO., LTD
http : //svc.dwe.co.kr April.2001
TABLE OF CONTENTS
SAFETY INSTRUCTION ....................................................................................................... 2
SPECIFICATION ................................................................................................................... 3
CIRCUIT BLOCK DIAGRAM ................................................................................................. 4
ALIGNMENT INSTRUCTIONS .............................................................................................. 5
SERVICE REMOCON DIAGRAM .......................................................................................... 8
SCHEMATIC DIAGRAM........................................................................................................ 11
EXPLODED VIEW ................................................................................................................. 13
PRINTED CIRCUIT BOARD .................................................................................................. 18
SERVICE PARTS LIST ......................................................................................................... 20
Different parts list for inch ................................................................................................................................... 37
The different parts list for system & tuner ............................................................................................................ 39
The different parts list for crt ............................................................................................................................... 50
The different parts list for deck ............................................................................................................................ 51
The different parts list for remote control ............................................................................................................. 52
1
SAFETY INSTRUCTION
CAUTION
WARNING : BEFORE SERVICING THIS CHASSIS,READ PRODUCT SAFETY NOTICE
THE "X-RAY RADIATION PRECAUTION", " SAFETY Many electrical and mechanical parts in this have special
PRECAUTION" AND "PRODUCTION SAFETY NOTICE" safety-related characteristics.
BELOW. These characteristics are often passed unnoticed by a
visual inspection and the X-RAY RADIATION protection
X-RAY RADIATION PRECAUTION afforded by them cannot necessarily be obtained by using
replacement components rated for higher voltage, watt-
1. Excessive high voltage can produce potentially hazard age,etc. Replacement parts which have these special
ous X-RAY RADIATION. To avoid such hazards, safety characteristics are identified in this manual and its
the high voltage must not exceed the specified limit supplements, electrical components having such features
The nominal value of the highvoltage of this receiver is are identified by designated symbol on the parts list.
23-25KV(14"),25-28KV(20"),25~29KV(21") at max. Before replacing any of these components,read the parts
beam current, The high voltage must not,under any circ- list in this manual carefully.
umstances, exceed 26KV(14"),30KV(20"),31KV(21"). The use of substitute replacement parts which do not have
Each time a receiver requires servicing,the high voltage the same safety characteristics as specified in the parts
should be checked. list may create X-RAY Radiation.
It is recommended the reading of the high voltage be
recorded as a part of the service records, It is important
to use an accurate and reliable high voltage meter.
2. The only source of X-RAY radiation in this TV receiver
is the picture tube. For continuous X-RAY RADIATION
protection, the replacemnt tube must be exactly the
same type tube as specified in the parts list.
SAFETY PRECAUTION
1. Potentials of high voltage are present when this
receiver is operating. Operation of the receiver outside
the cabinet or with the back board removed involves a
shock hazard from the receiver.
1) Servicing should not be attempted by anyone who is
not thoroughly familiar with the precautions necesary
when working on high voltage equipment.
2) Always discharge the picture tube before handling the
tube.The picture tube is highly evacuated and if
briken, glass fragments will be violently expelled.
2. If any fuse in this TV receiveris blown, replace it with
the FUSE specified in the Replacement Parts list.
3. When replacing a high wattage resistor ( metal oxide
film resistor ) in circuit board, keep the resistor 10mm
away from circuit board.
4. Keep wires away from high voltage or high temperature
components.
5. This receiver must operate under AC260 volts, 50Hz.
NEVER connect to DC supply or any other power or
frequency.
2
SPECIFICATION
CAUTION
GB14H3/14H4/20H3/20H4/21H4 T1/T2
MODEL 14H3/14H4/20H3/20H4/21H4 T1/T2 REMARK
ITEMS F14H3/14H4/20H3/20H4/21H4 T1/T2
K14H3/14H4/20H3/20H4/21H4 T1/T2
TV STANDARD PAL-I/II(GB MODEL),PAL-B/G(BLANK MODEL),PAL-B/G,SECAM-L/L(F MODEL)
SECTION PAL/SECAM-B/G,DK(K MODEL)
SCREEN SIZE 14":A34JLL90X01, A34AGT 14X71, A33EKC01X01, A34EAC01X06
20":A48JLL90X02, A48LPE01X01, A48EAX33X081
21":A51EAL155X17, A51EFS83X181, A51EBV13X09
MAIN VOLTAGE 220~240V AC,50Hz
POWER STAND BY MODE : BELOW 5 Watts
CONSUMPTION OPERATION MODE : 14"=59Watts, 20"=65Watts, 21"=69Watts
SOUND OUTPUT 1Wmin(14"), 1.5Wmin(20"), 1.5Wmin(21")
SPEAKER 3Watts 8 Ohm
ANTENNA IMPEDANCE 75 Ohm unbalanced input
TUNING SYSTEM FVS(FREQUENCY SYNTHESIS) TUNING
TUNER VHF-L : E2-S7,
VHF-H : S8-S36,
UHF : S37-E69 (PAL-1=UHF ONLY)
NUMBER OF PROGRAM 100 PROGRAM
AUX, TERMINAL SCART JACK(REAR) , RCA JACK(AV2 FRONT), HEADPHONE JACK
REMOTE CONTROLLER R-46C with "AAA" type batteries
OTHER FEATURE ON SCREEN DISPLAY, SLEEP TIMER, WAKE UP TIMER
FULL AUTO SEARCH, MANUAL/FINE TUNING
CHILD LOCK, PANEL LOCK, AUTO REPEAT,
PICTURE TYPE SELECTION (NORMAL 1/2, FAVOURITE),
INDEX SEARCH, TV/AV
VIDEO SINGLE SYSTEM PAL/SECAM colour and CCIR mono chrome signals, 625lines/50fidlds.
SECTION RECORDING SYSTEM 2 HEAD / 4 HEAD
INPUT 1Vp-p, 75 ohm, unbalanced
OUTPUT 1Vp-p, 75 ohm, unbalanced
SIGNAL TO NOISE RATIO 45dB with NETTETE IMAGE control at center position
HORIZONTAL RESOLUTION 240lines with NETTETE IMAGE control at center position
AUDIO RECORDING SYSTEM LONGITUDINAL TRACK
INPUT -3.8dBm(500m Vrms), more than 47 Kohms, unbalanced
OUTPUT -3.8dBm(500m Vrms). less than 1 Kohms, unbalanced
FREQUENCY RANGE 100Hz to 8KHz
SIGNAL TO NOISE RATIO 40dB(more than)
GENERA TEMPERATRE 5oC to 35oC(operating)
-20oC to 60oC (storage temperature)
FORMAT standard
TAPE WIDTH 12.65mm
TAPE SPEED SP : 23.39mm/sec, LP : 11.70mm/sec
WITH FULLSIZE SP : 240 min, win E-240 video cassette
CASSETTE LP : 480min, win E-240 video cassette
3
CIRCUIT BLOCK DIAGRAM
4
ALIGNMENT INSTRUCTIONS
1. MAIN TUNER AGC
1) Set a Pattern Generator with RF level 62 2 dBuV, 210.25 MHz.
2) Connect a OSCILLOSCOPE PROBE to P101 (pin #1) ,(TUNER AGC INPUT).
3) Adjust AGC UP/DOWN KEY the voltage drop about 1V DC over below it's maximum voltage.
2. SUB TUNER AGC
1) Set a pattern Generator with RF level 62 2dBuV, 210.25 MHz
2) Connect a OSCILLOSCOPE PROBE to P101(pin #3)
3) Press the REC-B key two times.
4) Ajust R157 on the MAIN PCB the voltage drop about 1V DC over below it's maximum voltage.
3. SCREEN
1) Apply a COLOR BAR PATTERN SIGNAL.
2) Press the "SCREEN" KEY.
3) Connect a OSCILLOSCOPE PROBE to P901 ( CRT CATHODE R,G,B )
4) Adjust the screen volume on FBT such that the highest black level voltage 120V 5Vdc.
* Another methode
1) Press "AV Key" in condition of AV no signal.
2) Press the "SCREEN" KEY.
3) Connect a OSCILLOSCOPE PROBE to P901 ( CRT CATHODE R,G,B )
4) Adjust the screen volume on FBT such that the highest black level voltage 140V 5Vdc.
4. WHITE BALANCE
1) Apply a COLOR BAR PATTERN SIGNAL.
2) Adjust the R,G,B UP/DOWN KEY of the other color which did not appear on the screen to obtain WHITE.
5. FOCUS
1) Apply a RETMA PATTERN SIGNAL.
2) Adjust the FOCUS VOLUME on FBT to obtain optimal resolution.
6. GEOMETRY
6-1. S-CORRECTION
1) Apply a CROSSHATCH PATTERN SIGNAL.
2) Adjust the S-CORR UP/DOWN KEY obtain the same distance between horizontal lines.
6-2. VERTICAL SLOPE
1) Apply a RETMA PATTERN SIGNAL.
2) Pressing the V-SLOPE +/- KEY, the lower half of the screen is blanked.
3) Adjust the border line of blanked picture coincident with the center marks of the patte
using the V-SLOPE +/- KEY.
6-3. VERTICAL CENTER
1) Apply a RETMA PATTERN SIGNAL.
2) Adjust the center line of pattern coincident with the mechanical center marks of the
CRT using the V-CENTER +/- KEY.
6-4. VERTICAL SIZE
* The V-CENTER adjustment has to be done in advance.
1) Apply a RETMA PATTERN SIGNAL.
2) Adjust the upperside of the pattern coincident with the mechanical center marks of
the CRT using the V-SIZE +/- KEY.
5
ALIGNMENT INSTRUCTIONS
6-5. HORIZONTAL CENTER
1) Apply a RETMA PATTERN SINGNAL.
2) Adjust picture centering with H-CENTER +/- KEY.
7. DECK ADJUSTMENT
7-1. X-POSITION AND P2,P3 ADJUSTMENT
1) Adjust point : X-POSITION
Checking point : oscilloscope ch1 = H/SW (PY03 #2)
oscilloscope ch2 = PB ENVE (PY03 #4)
Triggering : CH1
Measuring Equipment : oscilloscope, path jig
Mode : PLAYBACK, ATK OFF
Test tape : DP-2 (6KHz)
* Adjustment Procedure
1) Connect the PATH JIG to PY03 after Test tape PLAYBACK
2) Insert the DP-2 TAPE. ( Auto playback )
3) Pressing the "ATK OFF" KEY.
4) Adjust the waveform of PB ENVE to maximum(figure1) using X-position VR.
5) Adjust IN/OUTPUT GUIDE until the exact waveform appear as bellow figure2.
6
ALIGNMENT INSTRUCTIONS
7-2. AUTO PG ADJUSTMENT
1) After adjustment of 7-1. Press the "REC." button.
2) Eject the Test tape.
7-3. AZIMUTH ADJUSTMENT
1) Adjust point : AZIMUTH SCREW
Checking point : SOUND OUTPUT (P601)
Measuring Equipment : oscilloscope or audio level meter.
Mode : PLAYBACK
Test tape : DP-2 (6KHz)
* Adjustment Procedure
1) Connect the measuring equipment to the AUDIO OUTPUT (P601) terminal.
2) After test tape playback, adjust the output level maximally by varing the azimuth screw.
3) Fix the azimuth screw with locking paint.
* If EEPROM (I702) has been changed :
- Option data has to be changed and
- all alignment function has to be readjusted.
7
SERVICE REMOCON
1. DIAGRAM
* To enter the "SERVICE MODE"
Press NORMAL => AV => SLEEP => CLEAR => POWER buttons in regular
sequency within 10seconds using USER REMOCON after setting ST-BY.
8
SERVICE REMOCON
2. HOW TO CHECK TV SECTION WITHOUT VCR DECK
If you want to check TV section without DECK mechanism, then please perform in this order.
1) Pull out the power cord.
2) Remove the VCR DECK mechanism.
3) Supply the main power. ( Main sw on )
4) Wait for about 10 seconds. ( You can see the light of power LED if the TV is normal.)
5) Turn on the TV using the remocon. ( You can see the OSD "EMERGENCY" )
6) Check the TV section.
3. Refer to general adjustment
1) S-CORR +/- ( S-CORRECTION )
Press this button to adjust the same distance between horizontal lines on screen of crosshatch pattern.
2) V-SLOPE +/- ( VERTICAL SLOPE )
Press this button to adjust the border line of blanked picture coincident with the center marks of the pattern.
3) V-CENT +/- ( VERTICAL CENTER )
Press this button to adjust the center line of the pattern coincident with the mechanical center marks of the CRT on
screen of RETMA pattern.
4) V-SIZE +/- ( VERTICAL SIZE )
Press this button to adjust the upperside of the pattern coincident with the mechanical center marks the CRT on
screen of RETMA pattern.
5) H-CENT +/- ( HORIZONTAL CENTER )
Press this button to adjust picture centering with H-center on screen of RETMA pattern.
6) R,G,B +/- ( WHITE BALANCE )
The screen is become WHITE adjust R,G,B level by this button.
7) ATK OFF ( Auto tracking off )
Press this button to adjust X-Position adjustment.
Front panel's LED's are lighted up if you press this button.
Press the PB button.
ATK OFF : (RED, RED)
ATK MIN : (BLINK, OFF)
ATK MAX : (OFF, BLINK)
ATK ON : (BLINK,BLINK)
; LEFT LED = ST-BY, RIGHT LED = REC/T.REC
8) REC
Press this button to adjust AUTO PG.
9) SCREEN
Press this button to adjust the screen volume on FBT.
10) SHIP ( SHIPPING CONDITIONS )
Press this button to set the SHIPPING CONDITIONS.
11) REC-B (Only 2-TUNER Model)
Press this button to adjust SUB TUNER AGC.
Press once : picture is displayed colour pattern.
Press once more : picture is displayed black/white pattern.
12) AGC +/-
Press this button to adjust MAIN TUNER AGC.
9
SERVICE REMOCON
13) STILL
Press this button to enter the PAUSE/STILL mode.
14) STOP
Press this button to enter the STOP mode.
15) REW/REV
Press this button to enter the REW/REV mode.
16) PLAYBACK
Press this button to enter the PLAYBACK mode.
17) FF/CUE
Press this button to enter the FF/CUE mode.
18) LANGUAGE
Press this button to enter the LANGUAGE SELECTION mode.
You can select the language you want by press AGC + (moving up) or AGC - (moving down) buttons.
19) OSD-POS / OSD / OSD
Press OSD-POS button to enter the OSD Position adjust mode.
You can adjust OSD position you want by press OSD or OSD buttons.
20) COUNTRY SET
Press this button to enter the COUNTRY SET mode.
Press the this button :
Option1 (PAL-I/I system)
Option2 (PAL-B/G system)
Option3 (PAL-B/G, SECAM-L/L' system)
Option4 (PAL/SECAM-B/G, D/K system, EAST Europe)
Option5 (PAL/SECAM-B/G, D/K system, Middle ASIA)
Option6 (PAL-B/H system)
21) Tuner Option
Press this button to set Tuner option.
Press the this button : 1. Daewoo
2. Philips
3. LG
22) Text Option
Press this button to set Text option
Press the this button : 1. West Europe
2. East Europe
3. Cyrillic
4. Greek
5. Arabic
6. Iranian
* If you forget your "child lock secret No."
-> 1. Enter the SERVICE MODE.
2. POWER OFF/ON
10
SCHEMATIC DIAGRAM
- 11 -
SCHEMATIC DIAGRAM
- 12 -
EXPLODED VIEW
1. 14H3
13
EXPLODED VIEW
2. 14H4
14
EXPLODED VIEW
3. 20H3
15
EXPLODED VIEW
4. 20H4
16
EXPLODED VIEW
5. 21H4
17
SERVICE PARTS LIST
CAUTION
" " is safety component, so it must be used the same component.
" R " is recomendable part for stock.
* Model : F14H3T2
LOC PART CODE PART NAME DESCRIPTION REMARK LOC PART CODE PART NAME DESCRIPTION REMARK
ZZ100 48B4446C16 TRANSMITTER REMOCON R-46C16 (AAA) R DQ02 DLH2PR---- LED BLOCK LH-2P-R
ZZ110 PTACPWA668 ACCESSORY AS DVT-14H3LA I151 1TDA9802-- IC RF TDA9802 R
10 4850Q00910 BATTERY R03/NN I501 1TDA8842N2 IC VIDEO TDA8842/N2 R
20 4850A03310 ANT ROD PH-RM-008A I502 1KA7808--- IC REGULATOR KA7808 R
ZZ120 PTBCSHA668 COVER BACK AS DVT-14H3LA R I601 PTJ1SW8902 HEAT SINK ASS`Y 1TDA8943SF + 7174300811
M211 4852158501 COVER BACK HIPS GY 1 1TDA8943SF IC AUDIO AMP TDA8943SF R
M781 4857817610 CLOTH BLACK FELT 300X20X0.7 0000A 4857018902 HEAT SINK A1050P-H24
ZZ130 PTPKCPA668 PACKING AS DVT-14H3LA 0000B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
M801 4858035800 BOX CARTON "SW-3 DVT-1488,1484" I701 1SDA555XFL IC MICOM OTP SDA555XFL R
M801A 6520010100 STAPLE PIN 18M/M J D O I702 1AT24C16PC IC AT24C16-10PC R
M811 4858195900 PAD EPS 14H3 IA01 1TC4053BP- IC TC4053BP R
M821 4858213800 BAG INSTRUCTION L.D.P.E T0.05X250X400 IA03 1TC4066BP- IC TC 4066BP R
M822 4858215700 BAG PE PE FOAM t0.5x1050X950 IA60 1TC4053BP- IC TC4053BP R
ZZ131 48519A4710 CRT GROUND NET 1401S-1015-1P IL01 1STV8225-- IC SIF STV8225 R
ZZ132 58G0000084 COIL DEGAUSSING DC-1450 IL20 1TA1238N-- IC SECAM.L TA1238N R
ZZ140 PTCACAA668 CABINET AS DVT-14H3LA R IL50 1STV8225-- IC SIF STV8225 R
M191 4851944400 BUTTON CTRL 4948301+5543100 R IN02 1K1A6801K- IC MOTOR DRIVER KIA6801K R
M191A 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN IQ01 1KRT30---- IC PREAMP KRT30 R
M201A 4856013300 SCREW CRT FIXING 30X80 BK JA01 4859109950 JACK PIN BOARD PH-JB-9710A
M201B 4856013301 SCREW CRT FIXING 30X140 YL JS01 4859200401 SOCKET RGB YRS21-R1
M201C 4856215402 WASHER RUBBER CR T2.0 L155 58B0000S88 COIL PIF TRF-7780A (STICK)
M211A 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK M041 97P0475800 CASE SHI PREAMP ET T0.4
M281 4852817761 DOOR F/L ABS GY M191 4851931000 DECK AS DRS-9400N R
M281A 4856723400 SPRING SWPB 0.4 M191A 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK
M461 97P4602700 CLAMP CORD NYLON 66 BLK 5280N M191B 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK
M481 4854858901 BUTTON POWER ABS GY R M191C 97P0919100 PLATE EARTH AB SUS 304 CSP T=0.2
M481A 4856716000 SPRING SWPA PIE0.5 M191D 7278300611 SCREW TAPPTITE TT3 WAS 3X6 MFZN
M541 4855415800 SPEC PLATE 150ART P/E FILM (C/TV) M381 4853818100 FRAME MAIN PCB FR HIPS BK
M561 48556136SS MARK BRAND SILVER ETCHING DIA-CUTTIN M381A 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN
SP01A 4856013600 SCREW SPKR FIX SWRM+SECC M391 4853948400 BRKT EARTH C5212P-1/2M T0.15
V901 4859609841 CRT A34AGT14X71 P38 M392 4853953200 BRKT PCB FR HIPS BK
ZZ200 PTFMSJA668 MASK FRONT AS DVT-14H3LA R M392A 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK
M201 4852076601 MASK FRONT HIPS GY M392B 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN
M331 4853312501 RETA BACK HIPS NC M721 4857248300 SHIELD TOP SECC T0.8
ZZ202 PTSPPWA668 SPEAKER AS DVT-14H3LA R M721A 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK
PA601 4850703S50 CONNECTOR YH025-03+35098+ULW=200 M721D 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN
SP01 48A8306000 SPEAKER SYSTEM SS-5070A01 3W 8 OHM R M722 4857243000 SHIELD BOTTOM SECC-O T0.5
ZZ290 PTMPMSA668 PCB MAIN MANUAL AS DVT-14H3LA R M722A 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN
DN03 DS15312H-- LED IR SI5312-H M722B 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN
DN03A 97P2339600 HOLDER IR ABS M791 4857913304 RUBBER CUSHION FR RUBBER SPONGE
DQ01 DLH2PR---- LED BLOCK LH-2P-R P101 485923162S CONN WAFER YW025-03 (STICK)
20
SERVICE PARTS LIST
LOC PART CODE PART NAME DESCRIPTION REMARK LOC PART CODE PART NAME DECSCRIPTION REMARK
P601 485923162S CONN WAFER YW025-03 (STICK) CC169 HCBK472KCA C CHIP CERA 50V X7R 4700PF K 2012
PA801 4850712V11 CONNECTOR YH025-12+YST025+ULW=200 CC170 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012
PA802 4850709S01 CONNECTOR YH025-09+YST025+ULW=200 CC175 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
PA803 4850707S01 CONNECTOR YH025-07+YST025+ULW=200 CC501 HCQK221JCA C CHIP CERA 50V CH 220PF J 2012
PA901 4850705S04 CONNECTOR YH025-05+YST025+ULW=400 CC502 HCQK151JCA C CHIP CERA 50V CH 150PF J 2012
PAY01 4850706V10 CONNECTOR 60-8283-3068-45+UAW=150 CC504 HCQK560JCA C CHIP CERA 50V CH 56PF J 2012
PAY04 4850702V07 CONNECTOR BIC-02H-20T+USW=100 CC506 HCQK100JCA C CHIP CERA 50V CH 10PF J 2012
PN02 4859292320 CONN WAFER GF120-07S-TS CC512 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
PN02A 4859200270 CONN FFC K-7X140-0.25 CC514 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
PN03 4859278220 CONN WAFER TKC-G10P-A1 CC517 HCQK181JCA C CHIP CERA 50V CH 180PF J 2012
PNA01 4850707V03 CONNECTOR 60-8283-3078-45+ULW=100 CC526 HCQK150JCA C CHIP CERA 50V CH 15PF J 2012
PY02 4859292320 CONN WAFER GF120-07S-TS CC527 HCQK150JCA C CHIP CERA 50V CH 15PF J 2012
PY03 485923202S CONN WAFER YW025-07 (STICK) CC528 HCFK474ZCA C CHIP CERA Y5V 50V 0.47MF Z 2012
RN30 RS02Y399JS R M-OXIDE FILM 2W 3.9 OHM J SMALL CC529 HCBK472KCA C CHIP CERA 50V X7R 4700PF K 2012
SF150 5PJ1952M-- FILTER SAW J1952M CC530 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
SF501 5PJ1952M-- FILTER SAW J1952M CC533 HCQK181JCA C CHIP CERA 50V CH 180PF J 2012
SFL01 5PL9653M-- FILTER SAW L9653M CC535 HCBK332KCA C CHIP CERA 50V X7R 3300PF K 2012
SFL50 5PL9653M-- FILTER SAW L9653M CC536 HCBK472KCA C CHIP CERA 50V X7R 4700PF K 2012
SN01 TST5811--- TR PHOTO ST-5811 CC538 HCQK181JCA C CHIP CERA 50V CH 180PF J 2012
SN01A 97P2343500 HOLDER TR ABS FR CC539 HCQK181JCA C CHIP CERA 50V CH 180PF J 2012
SN02 TST5811--- TR PHOTO ST-5811 CC540 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012
SN02A 97P2343500 HOLDER TR ABS FR CC543 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
SN03 4850S00001 SENSOR REEL SG-258S CC545 HCBK392KCA C CHIP CERA 50V X7R 3900PF K 2012
SN04 4850S00001 SENSOR REEL SG-258S CC546 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
SWN01 5SN0101Z20 SW DETECT JDS1105-6XD CC548 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012
TU01 5800000032 COIL OSC DE0-006 CC550 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
U101 4859721030 TUNER VARACTOR TAEL-G772D R CC552 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
U150 4859719730 TUNER VARACTOR DT5-BF15P R CC554 HCQK151JCA C CHIP CERA 50V CH 150PF J 2012
U150A 4859004650 PLUG PHONE AS PLUG+CABLE1365 AWG26=250B CC576 HCBK472KCA C CHIP CERA 50V X7R 4700PF K 2012
X701 5XE6R0000C CRYSTAL QUARTZ HC-49/U 6.000MHZ 20PPM CC602 HCBK822KCA C CHIP CERA 50V X7R 8200PF K 2012
X702 5XYR03276C CRYSTAL QUARTZ C-001R 32.768000KHZ 20PPM CC619 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
XL20 5XJX4R286C CRYSTAL QUARTZ HC-49S 4.286000M 20PPM TP CC620 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012
XN01 5XJ16R000E CRYSTAL QUARTZ HC-49S 16.000000MHZ 30PPM CC621 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012
XY01 5XJX4R433B CRYSTAL QUARTZ HC-49S 4.433619M 15PPM TP CC703 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
Z154 5PYXT5R5MB FILTER CERA XT 5.5MB CC705 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
Z503 5PYXT5R5MB FILTER CERA XT 5.5MB CC708 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
ZZ200 PTMPJ2A668 PCB CHIP MOUNT B AS DVT-14H3LA CC710 HCBK472KCA C CHIP CERA 50V X7R 4700PF K 2012
CC150 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 CC712 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CC156 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012 CC713 HCQK221JCA C CHIP CERA 50V CH 220PF J 2012
CC157 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012 CC715 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CC159 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012 CC716 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CC160 HCQK820JCA C CHIP CERA 50V CH 82PF J 2012 CC717 HCBK223KCA C CHIP CERA 50V X7R 0.022MF K 2012
CC161 HCBK333KCA C CHIP CERA 50V X7R 0.033MF K 2012 CC719 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CC162 HCBK333KCA C CHIP CERA 50V X7R 0.033MF K 2012 CC720 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CC163 HCBK223KCA C CHIP CERA 50V X7R 0.022MF K 2012 CC721 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CC165 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012 CC722 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CC167 HCQK560JCA C CHIP CERA 50V CH 56PF J 2012 CC724 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
21
SERVICE PARTS LIST
LOC PART CODE PART NAME DESCRIPTION REMARK LOC PART CODE PART NAME DECSCRIPTION REMARK
CC726 HCQK330JCA C CHIP CERA 50V CH 33PF J 2012 CCN32 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CC727 HCQK330JCA C CHIP CERA 50V CH 33PF J 2012 CCP01 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CC728 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012 CCP03 HCBK473KCA C CHIP CERA 50V X7R 0.047MF K 2012
CC730 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012 CCP05 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CC732 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012 CCQ01 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CC734 HCQK221JCA C CHIP CERA 50V CH 220PF J 2012 CCU06 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CC735 HCQK151JCA C CHIP CERA 50V CH 150PF J 2012 CCU09 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CC736 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012 CCU11 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCA01 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012 CCU20 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCA02 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012 CCU27 HCBK222KCA C CHIP CERA 50V X7R 2200PF K 2012
CCA03 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012 CCY04 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCA04 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012 CCY08 HCQK509DCA C CHIP CERA 50V CH 5PF D 2012
CCA05 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012 CCY09 HCQK391JCA C CHIP CERA 50V CH 390PF J 2012
CCA07 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012 CCY11 HCQK201JCA C CHIP CERA 50V CH 200PF J 2012
CCA18 HCQK101JCA C CHIP CERA 50V CH 100PF J 2012 CCY15 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCA64 HCBK472KCA C CHIP CERA 50V X7R 4700PF K 2012 CCY25 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCL01 HCQK220JCA C CHIP CERA 50V CH 22PF J 2012 CCY27 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCL02 HCQK820JCA C CHIP CERA 50V CH 82PF J 2012 CCY31 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCL03 HCQK220JCA C CHIP CERA 50V CH 22PF J 2012 CCY32 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCL08 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 CCY35 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCL09 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 CCY46 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCL11 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012 CCY47 HCBK473KCA C CHIP CERA 50V X7R 0.047MF K 2012
CCL20 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 CCY48 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCL21 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012 CCY50 HCQK510JCA C CHIP CERA 50V CH 51PF J 2012
CCL22 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012 CCY51 HCQK300JCA C CHIP CERA 50V CH 30PF J 2012
CCL23 HCQK150JCA C CHIP CERA 50V CH 15PF J 2012 CCY52 HCQK300JCA C CHIP CERA 50V CH 30PF J 2012
CCL24 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 CCY54 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCL26 HCQK101JCA C CHIP CERA 50V CH 100PF J 2012 CCY55 HCQK300JCA C CHIP CERA 50V CH 30PF J 2012
CCL27 HCQK101JCA C CHIP CERA 50V CH 100PF J 2012 CCY56 HCQK300JCA C CHIP CERA 50V CH 30PF J 2012
CCL28 HCBK333KCA C CHIP CERA 50V X7R 0.033MF K 2012 CCY57 HCQK510JCA C CHIP CERA 50V CH 51PF J 2012
CCL30 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 CCY60 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCL31 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 DC154 DBB639C--B DIODE CHIP BB639C
CCL32 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 ICN01 1DW777FE1Q IC MICOM DW37777MAH-FE1(408GP)
CCL33 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 ICP01 1LC74793-- IC VPS LC74793JM
CCL36 HCBK473KCA C CHIP CERA 50V X7R 0.047MF K 2012 ICY01 1LA71598MQ IC CHIP Y/C LA71598SM
CCL39 HCBK473KCA C CHIP CERA 50V X7R 0.047MF K 2012 QC150 T2SA812T2B TR CHIP 2SA812-T2B
CCL40 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 QC151 T2SC1623T2 TR CHIP 2SC1623-L6/T2B
CCL41 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012 QC152 T2SC1623T2 TR CHIP 2SC1623-L6/T2B
CCL50 HCQK220JCA C CHIP CERA 50V CH 22PF J 2012 QC153 T2SC1623T2 TR CHIP 2SC1623-L6/T2B
CCL51 HCQK820JCA C CHIP CERA 50V CH 82PF J 2012 QC501 T2SC1623T2 TR CHIP 2SC1623-L6/T2B
CCL52 HCQK220JCA C CHIP CERA 50V CH 22PF J 2012 QC502 T2SC1623T2 TR CHIP 2SC1623-L6/T2B
CCL53 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012 QC503 T2SA812T2B TR CHIP 2SA812-T2B
CCL56 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012 QC504 T2SC1623T2 TR CHIP 2SC1623-L6/T2B
CCN07 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012 QC505 T2SC1623T2 TR CHIP 2SC1623-L6/T2B
CCN14 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 QC506 T2SA812T2B TR CHIP 2SA812-T2B
CCN29 HCBK332KCA C CHIP CERA 50V X7R 3300PF K 2012 QC507 T2SC1623T2 TR CHIP 2SC1623-L6/T2B
CCN30 HCBK182KCA C CHIP CERA 50V X7R 1800PF K 2012 QC508 T2SC1623T2 TR CHIP 2SC1623-L6/T2B
22
SERVICE PARTS LIST
LOC PART CODE PART NAME DESCRIPTION REMARK LOC PART CODE PART NAME DECSCRIPTION REMARK
QC509 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC167 HRFT223JCA R CHIP 1/10 22K OHM J 2012
QC601 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC168 HRFT104JCA R CHIP 1/10 100K OHM J 2012
QC603 T2SA812T2B TR CHIP 2SA812-T2B RC169 HRFT104JCA R CHIP 1/10 100K OHM J 2012
QC604 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC174 HRFT154JCA R CHIP 1/10 150K OHM J 2012
QC605 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC175 HRFT753JCA R CHIP 1/10 75K OHM J 2012
QC701 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC176 HRFT152JCA R CHIP 1/10 1.5K OHM J 2012
QC702 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC178 HRFT102JCA R CHIP 1/10 1K OHM J 2012
QC703 T2SA812T2B TR CHIP 2SA812-T2B RC179 HRFT102JCA R CHIP 1/10 1K OHM J 2012
QC704 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC501 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
QC706 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC502 HRFT561JCA R CHIP 1/10 560 OHM J 2012
QC707 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC503 HRFT101JCA R CHIP 1/10 100 OHM J 2012
QC708 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC504 HRFT562JCA R CHIP 1/10 5.6K OHM J 2012
QC711 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC505 HRFT270JCA R CHIP 1/10 27 OHM J 2012
QCA01 T2SA812T2B TR CHIP 2SA812-T2B RC506 HRFT681JCA R CHIP 1/10 680 OHM J 2012
QCA02 T2SA812T2B TR CHIP 2SA812-T2B RC507 HRFT182JCA R CHIP 1/10 1.8K OHM J 2012
QCA03 T2SA812T2B TR CHIP 2SA812-T2B RC508 HRFT102JCA R CHIP 1/10 1K OHM J 2012
QCA04 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC509 HRFT391JCA R CHIP 1/10 390 OHM J 2012
QCA05 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC512 HRFT331JCA R CHIP 1/10 330 OHM J 2012
QCA09 T2SA812T2B TR CHIP 2SA812-T2B RC514 HRFT241JCA R CHIP 1/10 240 OHM J 2012
QCA10 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC515 HRFT151JCA R CHIP 1/10 150 OHM J 2012
QCA11 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC516 HRFT750JCA R CHIP 1/10 75 OHM J 2012
QCA14 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC517 HRFT750JCA R CHIP 1/10 75 OHM J 2012
QCL01 TKTC3881-B TR CHIP KTC3881 RC518 HRFT750JCA R CHIP 1/10 75 OHM J 2012
QCL02 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC523 HRFT753JCA R CHIP 1/10 75K OHM J 2012
QCL20 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC524 HRFT182JCA R CHIP 1/10 1.8K OHM J 2012
QCL21 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC526 HRFT104JCA R CHIP 1/10 100K OHM J 2012
QCL22 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC528 HRFT102JCA R CHIP 1/10 1K OHM J 2012
QCL23 T2SA812T2B TR CHIP 2SA812-T2B RC529 HRFT153JCA R CHIP 1/10 15K OHM J 2012
QCL50 TKTC3881-B TR CHIP KTC3881 RC530 HRFT393JCA R CHIP 1/10 39K OHM J 2012
QCL52 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC532 HRFT103JCA R CHIP 1/10 10K OHM J 2012
QCN01 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC534 HRFT102JCA R CHIP 1/10 1K OHM J 2012
QCP01 T2SA812T2B TR CHIP 2SA812-T2B RC536 HRFT470JCA R CHIP 1/10 47 OHM J 2012
QCY01 TKTC3121-B TR CHIP KTC3121-B RC537 HRFT103JCA R CHIP 1/10 10K OHM J 2012
QCY02 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC540 HRFT303JCA R CHIP 1/10 30K OHM J 2012
QCY03 T2SA812T2B TR CHIP 2SA812-T2B RC541 HRFT103JCA R CHIP 1/10 10K OHM J 2012
QCY04 T2SA812T2B TR CHIP 2SA812-T2B RC542 HRFT273JCA R CHIP 1/10 27K OHM J 2012
QCY05 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC544 HRFT271JCA R CHIP 1/10 270 OHM J 2012
QCY06 T2SC1623T2 TR CHIP 2SC1623-L6/T2B RC548 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RC105 HRFT183JCA R CHIP 1/10 18K OHM J 2012 RC549 HRFT272JCA R CHIP 1/10 2.7K OHM J 2012
RC150 HRFT101JCA R CHIP 1/10 100 OHM J 2012 RC550 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RC154 HRFT392JCA R CHIP 1/10 3.9K OHM J 2012 RC551 HRFT112JCA R CHIP 1/10 1.1K OHM J 2012
RC156 HRFT822JCA R CHIP 1/10 8.2K OHM J 2012 RC553 HRFT561JCA R CHIP 1/10 560 OHM J 2012
RC160 HRFT242JCA R CHIP 1/10 2.4K OHM J 2012 RC554 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RC161 HRFT182JCA R CHIP 1/10 1.8K OHM J 2012 RC555 HRFT331JCA R CHIP 1/10 330 OHM J 2012
RC162 HRFT302JCA R CHIP 1/10 3K OHM J 2012 RC556 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RC164 HRFT103JCA R CHIP 1/10 10K OHM J 2012 RC557 HRFT103JCA R CHIP 1/10 10K OHM J 2012
RC165 HRFT561JCA R CHIP 1/10 560 OHM J 2012 RC558 HRFT821JCA R CHIP 1/10 820 OHM J 2012
23
SERVICE PARTS LIST
LOC PART CODE PART NAME DESCRIPTION REMARK LOC PART CODE PART NAME DECSCRIPTION REMARK
RC559 HRFT242JCA R CHIP 1/10 2.4K OHM J 2012 RCA38 HRFT391JCA R CHIP 1/10 390 OHM J 2012
RC603 HRFT362JCA R CHIP 1/10 3.6K OHM J 2012 RCA40 HRFT683JCA R CHIP 1/10 68K OHM J 2012
RC604 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 RCA41 HRFT683JCA R CHIP 1/10 68K OHM J 2012
RC605 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 RCA42 HRFT152JCA R CHIP 1/10 1.5K OHM J 2012
RC606 HRFT332JCA R CHIP 1/10 3.3K OHM J 2012 RCA44 HRFT471JCA R CHIP 1/10 470 OHM J 2012
RC607 HRFT223JCA R CHIP 1/10 22K OHM J 2012 RCA45 HRFT221JCA R CHIP 1/10 220 OHM J 2012
RC608 HRFT102JCA R CHIP 1/10 1K OHM J 2012 RCA46 HRFT221JCA R CHIP 1/10 220 OHM J 2012
RC609 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 RCA48 HRFT471JCA R CHIP 1/10 470 OHM J 2012
RC702 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 RCA49 HRFT221JCA R CHIP 1/10 220 OHM J 2012
RC703 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 RCA50 HRFT471JCA R CHIP 1/10 470 OHM J 2012
RC704 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 RCA51 HRFT750JCA R CHIP 1/10 75 OHM J 2012
RC705 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 RCA52 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RC706 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 RCA53 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RC707 HRFT182JCA R CHIP 1/10 1.8K OHM J 2012 RCA54 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RC708 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 RCA55 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RC713 HRFT103JCA R CHIP 1/10 10K OHM J 2012 RCL01 HRFT470JCA R CHIP 1/10 47 OHM J 2012
RC718 HRFT102JCA R CHIP 1/10 1K OHM J 2012 RCL02 HRFT222JCA R CHIP 1/10 2.2K OHM J 2012
RC719 HRFT102JCA R CHIP 1/10 1K OHM J 2012 RCL03 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RC721 HRFT473JCA R CHIP 1/10 47K OHM J 2012 RCL04 HRFT153JCA R CHIP 1/10 15K OHM J 2012
RC722 HRFT103JCA R CHIP 1/10 10K OHM J 2012 RCL05 HRFT751JCA R CHIP 1/10 750 OHM J 2012
RC723 HRFT103JCA R CHIP 1/10 10K OHM J 2012 RCL06 HRFT103JCA R CHIP 1/10 10K OHM J 2012
RC725 HRFT243JCA R CHIP 1/10 24K OHM J 2012 RCL07 HRFT682JCA R CHIP 1/10 6.8K OHM J 2012
RC726 HRFT103JCA R CHIP 1/10 10K OHM J 2012 RCL08 HRFT333JCA R CHIP 1/10 33K OHM J 2012
RC727 HRFT680JCA R CHIP 1/10 68 OHM J 2012 RCL24 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RC728 HRFT102JCA R CHIP 1/10 1K OHM J 2012 RCL25 HRFT333JCA R CHIP 1/10 33K OHM J 2012
RC732 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 RCL26 HRFT123JCA R CHIP 1/10 12K OHM J 2012
RC742 HRFT103JCA R CHIP 1/10 10K OHM J 2012 RCL27 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RC744 HRFT103JCA R CHIP 1/10 10K OHM J 2012 RCL28 HRFT202JCA R CHIP 1/10 2K OHM J 2012
RC751 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 RCL29 HRFT471JCA R CHIP 1/10 470 OHM J 2012
RC752 HRFT223JCA R CHIP 1/10 22K OHM J 2012 RCL30 HRFT103JCA R CHIP 1/10 10K OHM J 2012
RC753 HRFT223JCA R CHIP 1/10 22K OHM J 2012 RCL31 HRFT222JCA R CHIP 1/10 2.2K OHM J 2012
RCA02 HRFT393JCA R CHIP 1/10 39K OHM J 2012 RCL32 HRFT332JCA R CHIP 1/10 3.3K OHM J 2012
RCA03 HRFT753JCA R CHIP 1/10 75K OHM J 2012 RCL33 HRFT103JCA R CHIP 1/10 10K OHM J 2012
RCA04 HRFT824JCA R CHIP 1/10 820K OHM J 2012 RCL50 HRFT470JCA R CHIP 1/10 47 OHM J 2012
RCA05 HRFT753JCA R CHIP 1/10 75K OHM J 2012 RCL51 HRFT153JCA R CHIP 1/10 15K OHM J 2012
RCA15 HRFT223JCA R CHIP 1/10 22K OHM J 2012 RCL52 HRFT222JCA R CHIP 1/10 2.2K OHM J 2012
RCA19 HRFT223JCA R CHIP 1/10 22K OHM J 2012 RCL53 HRFT751JCA R CHIP 1/10 750 OHM J 2012
RCA20 HRFT821JCA R CHIP 1/10 820 OHM J 2012 RCL54 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCA22 HRFT124JCA R CHIP 1/10 120K OHM J 2012 RCL55 HRFT103JCA R CHIP 1/10 10K OHM J 2012
RCA23 HRFT124JCA R CHIP 1/10 120K OHM J 2012 RCL56 HRFT682JCA R CHIP 1/10 6.8K OHM J 2012
RCA24 HRFT102JCA R CHIP 1/10 1K OHM J 2012 RCL60 HRFT223JCA R CHIP 1/10 22K OHM J 2012
RCA25 HRFT124JCA R CHIP 1/10 120K OHM J 2012 RCL61 HRFT333JCA R CHIP 1/10 33K OHM J 2012
RCA26 HRFT124JCA R CHIP 1/10 120K OHM J 2012 RCL62 HRFT333JCA R CHIP 1/10 33K OHM J 2012
RCA27 HRFT102JCA R CHIP 1/10 1K OHM J 2012 RCN01 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RCA35 HRFT223JCA R CHIP 1/10 22K OHM J 2012 RCN02 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RCA36 HRFT333JCA R CHIP 1/10 33K OHM J 2012 RCN11 HRFT103JCA R CHIP 1/10 10K OHM J 2012
RCA37 HRFT153JCA R CHIP 1/10 15K OHM J 2012 RCN12 HRFT103JCA R CHIP 1/10 10K OHM J 2012
24
SERVICE PARTS LIST
LOC PART CODE PART NAME DESCRIPTION REMARK LOC PART CODE PART NAME DECSCRIPTION REMARK
RCN15 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 RCU23 HRFT470JCA R CHIP 1/10 47 OHM J 2012
RCN16 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 RCU24 HRFT223JCA R CHIP 1/10 22K OHM J 2012
RCN17 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 RCU25 HRFT103JCA R CHIP 1/10 10K OHM J 2012
RCN18 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 RCU26 HRFT103JCA R CHIP 1/10 10K OHM J 2012
RCN19 HRFT182JCA R CHIP 1/10 1.8K OHM J 2012 RCU27 HRFT103JCA R CHIP 1/10 10K OHM J 2012
RCN21 HRFT103JCA R CHIP 1/10 10K OHM J 2012 RCU31 HRFT684JCA R CHIP 1/10 680K OHM J 2012
RCN22 HRFT105JCA R CHIP 1/10 1M OHM J 2012 RCU34 HRFT153JCA R CHIP 1/10 15K OHM J 2012
RCN23 HRFT511JCA R CHIP 1/10 510 OHM J 2012 RCU37 HRFT103JCA R CHIP 1/10 10K OHM J 2012
RCN24 HRFT103JCA R CHIP 1/10 10K OHM J 2012 RCY01 HRFT223JCA R CHIP 1/10 22K OHM J 2012
RCN25 HRFT106JCA R CHIP 1/10 10M OHM J 2012 RCY06 HRFT122JCA R CHIP 1/10 1.2K OHM J 2012
RCN26 HRFT104JCA R CHIP 1/10 100K OHM J 2012 RCY08 HRFT331JCA R CHIP 1/10 330 OHM J 2012
RCN34 HRFT221JCA R CHIP 1/10 220 OHM J 2012 RCY09 HRFT272JCA R CHIP 1/10 2.7K OHM J 2012
RCN35 HRFT273JCA R CHIP 1/10 27K OHM J 2012 RCY10 HRFT201JCA R CHIP 1/10 200 OHM J 2012
RCN36 HRFT221JCA R CHIP 1/10 220 OHM J 2012 RCY11 HRFT561JCA R CHIP 1/10 560 OHM J 2012
RCN37 HRFT273JCA R CHIP 1/10 27K OHM J 2012 RCY12 HRFT561JCA R CHIP 1/10 560 OHM J 2012
RCN41 HRFT332JCA R CHIP 1/10 3.3K OHM J 2012 RCY13 HRFT152JCA R CHIP 1/10 1.5K OHM J 2012
RCN44 HRFT103JCA R CHIP 1/10 10K OHM J 2012 RCY14 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RCN45 HRFT103JCA R CHIP 1/10 10K OHM J 2012 RCY18 HRFT563JCA R CHIP 1/10 56K OHM J 2012
RCN46 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 RCY26 HRFT182JCA R CHIP 1/10 1.8K OHM J 2012
RCN47 HRFT101JCA R CHIP 1/10 100 OHM J 2012 RCY27 HRFT822JCA R CHIP 1/10 8.2K OHM J 2012
RCN48 HRFT101JCA R CHIP 1/10 100 OHM J 2012 RCY50 HRFT511JCA R CHIP 1/10 510 OHM J 2012
RCN49 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 RCY51 HRFT511JCA R CHIP 1/10 510 OHM J 2012
RCN52 HRFT474JCA R CHIP 1/10 470K OHM J 2012 RCY52 HRFT103JCA R CHIP 1/10 10K OHM J 2012
RCN53 HRFT103JCA R CHIP 1/10 10K OHM J 2012 RCY53 HRFT363JCA R CHIP 1/10 36K OHM J 2012
RCP01 HRFT391JCA R CHIP 1/10 390 OHM J 2012 RCY54 HRFT473JCA R CHIP 1/10 47K OHM J 2012
RCP04 HRFT103JCA R CHIP 1/10 10K OHM J 2012 RCY55 HRFT393JCA R CHIP 1/10 39K OHM J 2012
RCP05 HRFT182JCA R CHIP 1/10 1.8K OHM J 2012 RCY56 HRFT302JCA R CHIP 1/10 3K OHM J 2012
RCP06 HRFT562JCA R CHIP 1/10 5.6K OHM J 2012 RCY57 HRFT473JCA R CHIP 1/10 47K OHM J 2012
RCP07 HRFT103JCA R CHIP 1/10 10K OHM J 2012 RCY58 HRFT473JCA R CHIP 1/10 47K OHM J 2012
RCQ02 HRFT222JCA R CHIP 1/10 2.2K OHM J 2012 RCY59 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RCQ03 HRFT222JCA R CHIP 1/10 2.2K OHM J 2012 ZZ200 PTMPJRA668 PCB MAIN RADIAL AS DVT-14H3LA
RCU01 HRFT124JCA R CHIP 1/10 120K OHM J 2012 C102 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
RCU02 HRFT124JCA R CHIP 1/10 120K OHM J 2012 C105 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5) TP
RCU03 HRFT152JCA R CHIP 1/10 1.5K OHM J 2012 C107 CEXF1C331V C ELECTRO 16V RSS 330MF (8X11.5) TP
RCU04 HRFT103JCA R CHIP 1/10 10K OHM J 2012 C151 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP
RCU06 HRFT152JCA R CHIP 1/10 1.5K OHM J 2012 C156 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
RCU07 HRFT101JCA R CHIP 1/10 100 OHM J 2012 C157 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5) TP
RCU08 HRFT103JCA R CHIP 1/10 10K OHM J 2012 C164 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11) TP
RCU09 HRFT562JCA R CHIP 1/10 5.6K OHM J 2012 C166 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
RCU12 HRFT123JCA R CHIP 1/10 12K OHM J 2012 C173 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
RCU13 HRFT223JCA R CHIP 1/10 22K OHM J 2012 C174 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
RCU14 HRFT822JCA R CHIP 1/10 8.2K OHM J 2012 C176 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
RCU15 HRFT103JCA R CHIP 1/10 10K OHM J 2012 C177 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
RCU16 HRFT334JCA R CHIP 1/10 330K OHM J 2012 C500 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
RCU17 HRFT151JCA R CHIP 1/10 150 OHM J 2012 C503 CEXD1H229F C ELECTRO 50V RND 2.2MF (5X11) TP
RCU18 HRFT273JCA R CHIP 1/10 27K OHM J 2012 C507 CMXM2A473J C MYLAR 100V 0.047MF J (TP)
RCU22 HRFT152JCA R CHIP 1/10 1.5K OHM J 2012 C509 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
25
SERVICE PARTS LIST
LOC PART CODE PART NAME DESCRIPTION REMARK LOC PART CODE PART NAME DECSCRIPTION REMARK
C510 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP CA20 CEXF1H100A C ELECTRO 50V RSM 10MF (5X7) TP
C511 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP CA21 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP
C513 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP CA22 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP
C515 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP CA23 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C516 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP CA24 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP
C518 CMXM2A104J C MYLAR 100V 0.1MF J (TP) CA25 CEXF1H100A C ELECTRO 50V RSM 10MF (5X7) TP
C519 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP CA26 CEXF1H100A C ELECTRO 50V RSM 10MF (5X7) TP
C523 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11) TP CA60 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C531 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP CA62 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C532 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP CA63 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C534 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP CA65 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
C537 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP CA66 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
C541 CMXM2A104J C MYLAR 100V 0.1MF J (TP) CA67 CEXF1C331V C ELECTRO 16V RSS 330MF (8X11.5) TP
C542 CEXD1H109F C ELECTRO 50V RND 1MF (5X11) TP CL05 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
C544 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP CL06 CEXD1H229F C ELECTRO 50V RND 2.2MF (5X11) TP
C545 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP CL10 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C547 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP CL12 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
C549 CEXF1C331V C ELECTRO 16V RSS 330MF (8X11.5) TP CL25 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP
C551 CEXF1C331V C ELECTRO 16V RSS 330MF (8X11.5) TP CL29 CEXF1H229A C ELECTRO 50V RSM 2.2MF (4X7) TP
C552 CEXD1H229F C ELECTRO 50V RND 2.2MF (5X11) TP CL34 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP
C556 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP CL35 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
C609 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7) CL38 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
C611 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP CL54 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
C613 CMXM2A104J C MYLAR 100V 0.1MF J (TP) CL55 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C614 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP CL57 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
C615 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7) CN08 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP
C616 CEXF1C331V C ELECTRO 16V RSS 330MF (8X11.5) TP CN11 CDXF0H104K C SUPER 5.5V 0.1F F (TAPPING)
C617 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP CN15 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
C618 CMXM2A104J C MYLAR 100V 0.1MF J (TP) CN18 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP
C620 CEXF1C331V C ELECTRO 16V RSS 330MF (8X11.5) TP CN26 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP
C702 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP CN27 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP
C704 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP CN28 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP
C706 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP CN29 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C709 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP CN31 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C718 CEXF1H100A C ELECTRO 50V RSM 10MF (5X7) TP CN33 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP
C723 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP CP04 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7
C729 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP CP07 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
C731 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP CP09 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP
CA08 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP CP10 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CA09 CEXF1H100A C ELECTRO 50V RSM 10MF (5X7) TP CQ03 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
CA10 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP CU01 CEXF1H100A C ELECTRO 50V RSM 10MF (5X7) TP
CA11 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP CU02 CMXM2A153J C MYLAR 100V 0.015MF J (TP)
CA12 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP CU03 CMXM2A333J C MYLAR 100V 0.033MF J (TP)
CA13 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP CU04 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
CA14 CEXF1H100A C ELECTRO 50V RSM 10MF (5X7) TP CU05 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7
CA15 CEXF1H100A C ELECTRO 50V RSM 10MF (5X7) TP CU08 CMXM2A122J C MYLAR 100V 1200PF J (TP)
CA16 CEXF1H100A C ELECTRO 50V RSM 10MF (5X7) TP CU10 CEXF1C470A ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
