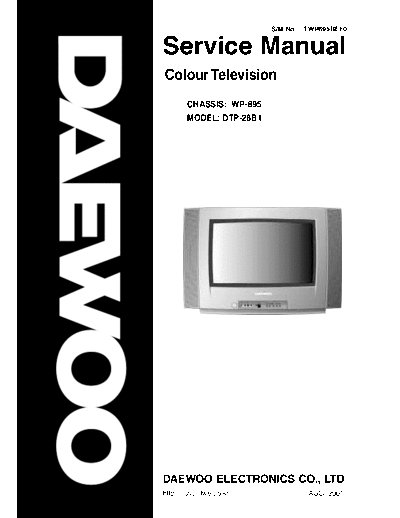

Image preview - the first page of the document
sm_dtp-28b1__e_


>> Download sm_dtp-28b1__e_ documenatation <<

Text preview - extract from the document
                          S/M No. : TWP895BEF0


Service Manual
Colour Television
        CHASSIS: WP-895
        MODEL: DTP-28B1




DAEWOO ELECTRONICS CO., LTD
http : //svc.dwe.co.kr             AUG. 2001
1- Main Features

1-1 Specifications
 TV standard           PAL - SECAM B/G D/K, PAL I/I, SECAM L/L'
 Sound system          NICAM B/G, I, D/K, L,
                       FM 2Carrier B/G, D/K
 Power consumption
                       28" 4:3, FST : 69 W approx.
                                                           .
                       28" 16:9, WIDE : 69 W approx.
 Sound Output Power
                       28": 7W x 2 (at 1kHz, 60% mod, 10%THD)
 Speaker
                       28" : 12W 8 ohm x2
 Teletext system       10 pages memory FASTEXT (FLOF or TOP)
 Aerial input          75 ohm unbalanced
 Channel coverage      Off-air channels, S-cable channels and hyperband
 Tuning system         frequency synthesiser tuning system
 Visual screen
                       28" : 66 cm

 Channel indication    On Screen Display
 Program Selection     100 programmes
 Aux. terminal         EURO-SCART 1 : Audio / Video In and Out, R/G/B In, Slow and
                       Fast switching.
                       EURO-SCART 2 : Audio / Video In and Out, SVHS In.
                       Monitor Out(option)
                       AV3 : Audio-Video Jack on front of cabinet.
                       Headphone jack (3.5 mm) on front of cabinet
                       SVHS3 (option) : Jack on front of cabinet - sound input common with AV3.
 Remote Control Unit   R-46G22




                                            -2-
Specification matrix
    CHASSIS NAME                    WP895
     VCT VERSION                     3834
 SOFTWARE VERSION                       A
  REMOTE CONTROL                   R46G22
 PCB SERIAL NUMBER               4859805093
         TUBE                       16:09
        SVHS3
  "PICTURE IMPROVE-
 MENTS, COMB FILTER,
 HORIZONTAL SCALER"
TELETEXT SPLIT SCREEN
FORMATS AVAILABLE IN    AUTO / 4:3 / 14:9 / ZOOM 14:9 /
    VIDEO MODE           ZOOM 16:9 / FULL SCREEN
 AV2 MONITOR OUTPUT
MSP VERSION (OPTION)        3410                 3411
   SOUND EFFECTS        OFF / SPATIAL       OFF / SPATIAL
                                            / PANORAMA /
                                               VIRTUAL
                                                DOLBY
 GRAPHIC EQUALIZER
   AV3 AUDIO INPUT      DEDICATED           DEDICATED
TELETEXT PAGE MEMORY               10 PAGE
    TOP TELETEXT                                       AVAILABLE : SELECTABLE IN FACTORY/SERVICE MODE BY OPTION BITS
    FLOF TELETEXT                                      AVAILABLE : SELECTABLE IN FACTORY/SERVICE MODE BY OPTION BITS
   TEXT CHARACTER                                                         "Pan-European Latin, Cyrillic, Greek"
      SUPPORT
   OSD LANGUAGES        "English, French, German, Italian, Spanish, Dutch, Danish, Finnish, Norwegian, Swedish, Greek, Polish, Hungarian, Czech, Slovakian, Roma-
                                                                                       nian, Russian."
   TUNER OPTIONS                                                                     "Philips, ALPS"




                                                                              3
21 Pin EURO-SCART 1 :

 Pin   Signal Description   Matching value
  1    Audio Output Right   0.5 Vrms, Impedance < 1 , ( RF 54% Mod )
  2    Audio Input Right    0.5 Vrms, Impedance > 10
  3    Audio Output Left    0.5 Vrms, Impedance < 1 , ( RF 54% Mod )
  4    Audio Earth
  5    Blue Earth
  6    Audio Input Left     0.5 Vrms, Impedance > 10
  7    Blue Input           0.7 Vpp
