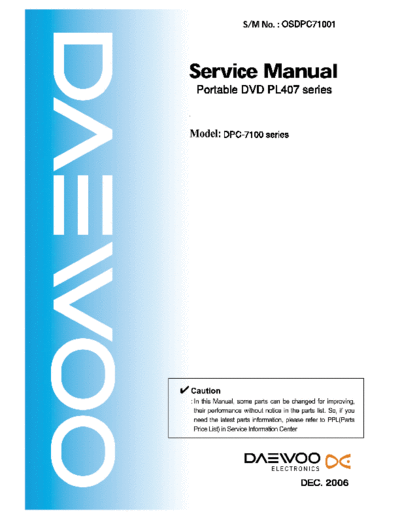

Image preview - the first page of the document
DAEWOO_PL407_series_DPC-7100


>> Download DAEWOO_PL407_series_DPC-7100 documenatation <<

Text preview - extract from the document
                 OSDPC71001




Portable DVD PL407 series


    DPC-7100 series




                      DEC. 2006
                                                          No.:
                                                          Revision:     1.1
                                                          Date:

Service Manual for


         Portable DVD PL407 series



OEM Model Name: DPC-7100 series


Name of Company           DAEWOO

Approved by




    SIGNATURE                 DATE          APPROVED BY               DATE

          /


                                            REVIEWED BY


          /

                                            PREPARED BY

          /                                   Carl Chao

Please return 1 copy for our confirmation
with your signature and comments.
                                   Revision Record

    Date                  Rev No             Section                          Description

15/ Mar./ 2004              0.1                            New edition
30/ Mar./ 2004              0.2                            Add chapter 7
3/ Sep./ 2004               1.0                            DAEWOO cosmetic
17/ Jan./ 2005              1.1                            IM Drawing modified




 Design and specifications are subject to change without notice.
 All trademarks used in the specifications are the property of their respective owners.
1 Generall Descriipttiions ....................................................................................................1
1 Genera Descr p ons                                                                                                           1
    1.1 Model Features .......................................................................................... 1
    1.2 Information................................................................................................ 2

2 Ellecttriicall Charactteriisttiics ......................................................................................3
2 E ec r ca Charac er s cs                                                                                                 3
    2.1 Optical Characteristics ............................................................................. 3
    2.2 Electrical Characteristics ......................................................................... 3
    2.3 System Block Diagram ............................................................................. 4

3 Power ....................................................................................................................................................5
3 Power                                                                                                                                                     5
    3.1 Power Supply............................................................................................. 5
    3.2 Rechargeable Battery ............................................................................... 5

4 Diimensiion & Physiicall Charactteriisttiics ............................................7
4 D mens on & Phys ca Charac er s cs                                                       7
    4.1 Outline Dimension..................................................................................... 7
    4.2 Physical Characteristics ........................................................................... 7
    4.3 IM Drawing ............................................................................................... 8

5 Regullattory Sttandards ..............................................................................................12
5 Regu a ory S andards                                                                                                  12
    5.1 Safety ........................................................................................................ 12
    5.2 EMI........................................................................................................... 12
    5.3 Ergonomics .............................................................................................. 12

6 Troublle Shootiing............................................................................................................13
6 Troub e Shoot ng                                                                                                              13
    6.1 Error Code Table..................................................................................... 13
    6.2 Debug & Trouble Shooting..................................................................... 14
1 General Descriptions


1.1 Model Features

   Video: DVD Playback, Kodak picture CD compatible & JPEG readable

   Audio: CD, CD-R, CD-RW, MP3, DVD Audio (option), WMA (option) Playback

   Slim Optical Pickup System for Disc Stability & Compatibility

   Dolby Digital & DTS (option) Decode

   7" active-matrix TFT screen, 16:9 wide aspect ratio

   Progressive Scan video output (option)

   Ultra slim dimension & light weight: 212mm(L) x 158mm(W) x 29.8mm(H) / 850g (around)

   Slim size wireless remote control

   Rechargeable battery pack

   12-volt car cigarette lighter cable

   Universal AC/DC power adapter

   Audio/video cable for TV connection

   Built-in stereo speakers

   Two Stereo headphone jack

   External NTSC or PAL TV-tuner module

   Anti Shock Protection




                                              -1-
1.2 Information

Disk Format             DVD, VCD, CD, MP3, CD-R, CD-RW, DVD-AUDIO (OPTION),
                        WMA (OPTION)
Video System            NTSC / PAL
Video Decompression     MPEG-2 (ISO/IEC-13818), MPEG-1
Video Output            1.0Vpp/75 ohm Sync, minus
Audio Characteristic    2-Channel Analog, 5.1-Channel Digital Output
Analog Output           2.0V/10k ohm
Frequency Response      DVD: 48kHz Sampling: 4Hz-22kHz; 96kHz Sampling: 4Hz-44kHz
                        CD: 4Hz-20kHz
S/N Ratio               <= -65dB
Dynamic Range           <= -85dB
Distortion              <= 0.01%
Digital Output          SPDIF
Headphone Jack          32ohm (30Mw) > 8ohm
LCD Display             7" active-matrix TFT type
Audio / Video Section   Audio input/output x1
                        Video input/output x1
                        S-Video / P-scan output x1 (option)
                        TV-tuner input x1 (option)
Audio Section           Digital Output: Coaxial x1
Headphone Jack          Headphone Jack x2
Line Voltage            AC 100-240 VAC
