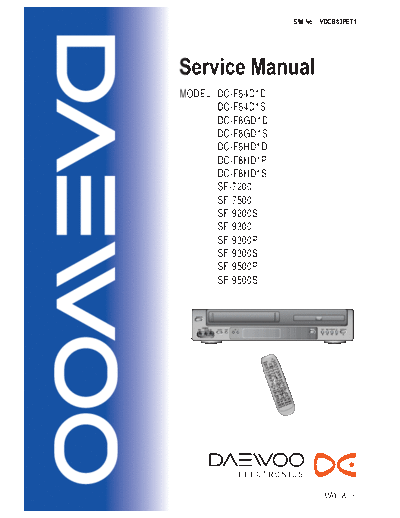

Image preview - the first page of the document
DAEWOO_DC-F84D1_F8GD1_F8HD1_SF-7200_7500_9200S_9300_9300P_9300S_9500P_9500S


>> Download DAEWOO_DC-F84D1_F8GD1_F8HD1_SF-7200_7500_9200S_9300_9300P_9300S_9500P_9500S documenatation <<

Text preview - extract from the document
                   S/M No. : VDCB83PET1




Service Manual
MODEL: DC-F84D1D
       DC-F84D1S
       DC-F8GD1D
       DC-F8GD1S
       DC-F8HD1D
       DC-F8HD1P
       DC-F8HD1S
       SF-7200
       SF-7500
       SF-9200S
       SF-9300
       SF-9300P
       SF-9300S
       SF-9500P
       SF-9500S




                            MAY. 2006
   CONTENTS

SPECIFICATIONS ...............................................................................................................2
ADVANTAGES OF THIS PRODUCT....................................................................................3
TROUBLE SHOOTING....................................................................................................................5
WAVEFORMS ................................................................................................................................23
CIRCUIT DIAGRAM.......................................................................................................................26
PCB CIRCUIT BOARD..................................................................................................................35
INSTRUMENT DISASSEMBLY .....................................................................................................39
ELECTRICAL PARTSLIST............................................................................................................45



                                                                       1
SPECIFICATIONS


Power                                            200-240V~, 50/60Hz
Consumed electricity                             20W
Weight                                           4.6kg
Dimension (W x H x D)                            435mmx93mmx255mm
Operative temperature                            +5
