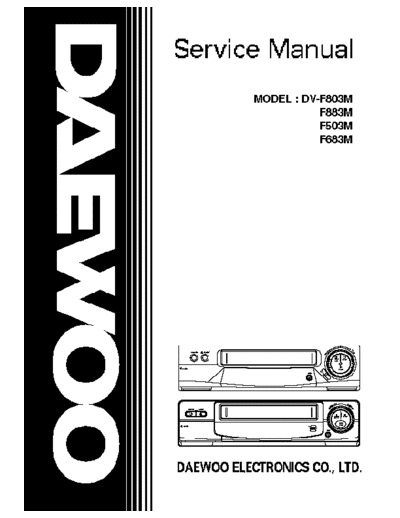

Image preview - the first page of the document



>> Download DV-F803M documenatation <<

Text preview - extract from the document

SPECIFICATIONS
SYSTEM
Video signal             NTSC/M-PAL
Channel coverage         VHF Channel 2-13
                         UHF Channel 14-69
                         CATV Channels A1-A5, A8, A-W, W+1, W+1-W+84
VHF output signal        Channel 3 or 4 (selectable)


VIDEO
Input: Video line in     Phono-type connector 1.0V (p-p)
                         75 ohms unbalanced, sync. negative
Output: Video line out   Phono-type connector 1.0V (p-p)
                         75 ohms unbalanced, sync. negative
Signal to noise ratio    More than 43dB (SP)
Horizontal resolution    220 lines


AUDIO
Input: Audio line in     Phono-type connector 47K ohms
