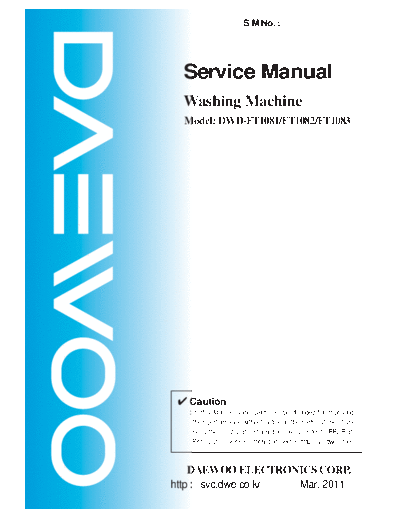

Image preview - the first page of the document
>> Download DAEWOO_DWD-FT1081_DWD-FT1082_DWD-FT1083 documenatation <<
Text preview - extract from the document
S/M No. :
Service Manual
Washing Machine
Model: DWD-FT1081/FT1082/FT1083
Caution
: In this Manual, some parts can be changed for improving,
their performance without notice in the parts list. So, if you
need the latest parts information, please refer to PPL(Parts
Price List) in Service Information Center (http://svc.dwe.co.kr).
DAEWOO ELECTRONICS CORP.
http : //svc.dwe.co.kr Mar. 2011
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER
Contents
WASHING MACHINE
1. SPECIFICATIONS....................................................................................................................2
2. INSTALLATION .......................................................................................................................3
Transit bolts.......................................................................................................................3
Removing transit bolts ......................................................................................................3
Installation place requirement...........................................................................................4
BS Plug Safety Details (For U.K. User)............................................................................4
Connecting inlet hose .......................................................................................................5
Installation of drain hose...................................................................................................6
Level adjustment...............................................................................................................7
3. MAINTENANCE .......................................................................................................................8
Cleaning your washer .......................................................................................................8
Cold condition ...................................................................................................................8
Cleaning the water inlet filter ............................................................................................9
Cleaning the drain pump filter...........................................................................................9
Cleaning the detergent case...........................................................................................10
Cleaning the washing drum ............................................................................................10
4. DIRECTION FOR DISASSEMBLY........................................................................................11
5. EXPLODE VIEW AND PARTS LIST.....................................................................................14
6. FUNCTIONS OF THE CONTROL PANEL............................................................................23
7. FUNCTIONS OF THE CONTROLLER..................................................................................24
8. FUNCTION OF THE CONVENIENT SERVICE.....................................................................27
9. TROUBLESHOOTING GUIDE ..............................................................................................28
10. WIRING DIAGRAM ..............................................................................................................32
1. SPECIFICATIONS
HOT
(OPTION) COLD
INLET HOSE
DETERGENT CASE
POWER CORD
CONTROL PANEL
DOOR
HOSE DRAIN
ADJUSTABLE LEG
LOWER COVER
MODEL DWD-FT1081/FT1082/FT1083
Dimension (mm) 595 x 590 x 850 (W x D x H)
Maximum mass of texile (kg) 8.0
Unit Weight (kg) 49(Net) / 52(Gross)
Standard Water Consumption 50
Spin Speed (RPM) 400 / 800 / 1000
Operating Water Pressure 0.03MPa ~ 0.8MPa (0.3kgf/cm2 ~ 8kgf/cm2)
Accessories
Inlet hose Manual Cap holder(3EA)
2 SPECIFICATIONS
2. INSTALLATION
Transit bolts
The appliance is fitted with transit bolts to prevent internal damage during transport.
Removing transit bolts
1. To prevent internal damage during transport, the 2. Unscrew the 3 bolts with the spanner supplied,
special 3 bolts are locked. Before operating the and take out the 3 bolts with the rubber bungs.
washer, remove the bolts along with the rubber Keep the 3 bolts and the spanner for future use.
bungs.
