Text preview - extract from the document

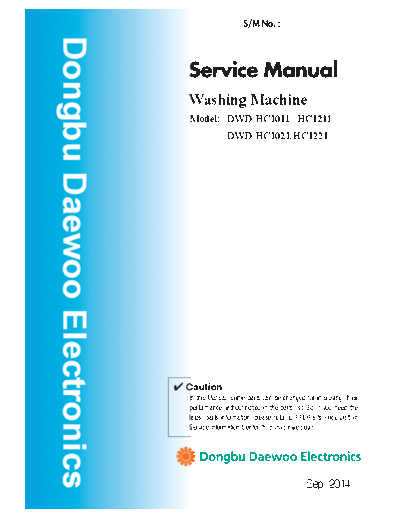

S/M No. :
Dongbu Daewoo Electronics
Service Manual
Washing Machine
Model: DWD-HC1011 / HC1211
DWD-HC1021/HC1221
Caution
: In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List) in
Service Information Center (http://svc.dwe.co.kr).
Sep. 2014
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER
Contents
WASHING MACHINE
1. SPECIFICATIONS....................................................................................................................2
2. INSTALLATION .......................................................................................................................4
Removing transit bolts ......................................................................................................4
Installation place requirement...........................................................................................5
BS Plug Safety Details (For U.K. User)............................................................................5
Connecting inlet hose .......................................................................................................6
Installation of drain hose...................................................................................................7
Level adjustment...............................................................................................................8
3. MAINTENANCE .......................................................................................................................9
Cleaning your washer .......................................................................................................9
Cold condition ...................................................................................................................9
Cleaning the water inlet filter ..........................................................................................10
Cleaning the drain pump filter.........................................................................................10
Cleaning the detergent case...........................................................................................11
Cleaning the washing drum ............................................................................................11
4. DIRECTION FOR DISASSEMBLY........................................................................................12
5. EXPLODE VIEW AND PARTS LIST.....................................................................................15
6. FUNCTIONS OF THE CONTROL PANEL............................................................................25
7. FUNCTIONS OF THE CONTROLLER..................................................................................29
8. FUNCTION OF THE CONVENIENT SERVICE.....................................................................33
9. TROUBLESHOOTING GUIDE ..............................................................................................35
10. WIRING DIAGRAM ..............................................................................................................39
1. SPECIFICATIONS
DWD-HC101* / HC121* SERIES
HOT
(OPTION) COLD
INLET HOSE
POWER CORD
DETERGENT CASE
CONTROL PANEL
HOSE DRAIN
DOOR
ADJUSTABLE LEG
LOWER COVER
MODEL DWD-HC1011 / HC1211
POWER SOURCE 220-240V, 50/60Hz
DiMENSION (WXDXH) 595 x 610 x 850 MM
WEIGHT 60.5Kg(NET) / 63.5Kg(GROSS)
WATER CONSUMPTION 50
POWER CONSUMPTION 2200W
MAXIMUM MASS WASH 9 Kg
OF TEXTILE SPIN 9 Kg
WASHER TYPE DRUM TYPE (FRONT LOADING WASHING MACHINE)
OPERATING WATER PRESSURE 0.3 ~ 8kgf/cm2 (29.4 ~ 784kPa)
Accessories
Inlet hose Manual Cap holder(3EA)
2 SPECIFICATIONS
DWD-HC102* / HC122* SERIES
HOT
(OPTION) COLD
INLET HOSE
POWER CORD
DETERGENT CASE
CONTROL PANEL
HOSE DRAIN
DOOR
ADJUSTABLE LEG
LOWER COVER
MODEL DWD-HC102*/HC122*
POWER SOURCE 220-240V, 50/60Hz
DiMENSION (WXDXH) 595 x 610 x 850 MM
WEIGHT 60.5Kg(NET) / 63.5Kg(GROSS)
WATER CONSUMPTION 55
POWER CONSUMPTION 2200W
MAXIMUM MASS WASH 9 Kg
OF TEXTILE SPIN 9 Kg
WASHER TYPE DRUM TYPE (FRONT LOADING WASHING MACHINE)
OPERATING WATER PRESSURE 0.3 ~ 8kgf/cm2 (29.4 ~ 784kPa)
Accessories
Inlet hose Manual Cap holder(3EA)
SPECIFICATIONS 3
2. INSTALLATION
Transit bolts
The appliance is fitted with transit bolts to prevent internal damage during transport.
Removing transit bolts
1. To prevent internal damage during transport, the 2. Unscrew the 3 bolts with the spanner supplied,
special 3 bolts are locked. Before operating the and take out the 3 bolts with the rubber bungs.
washer, remove the bolts along with the rubber Keep the 3 bolts and the spanner for future use.
bungs.
