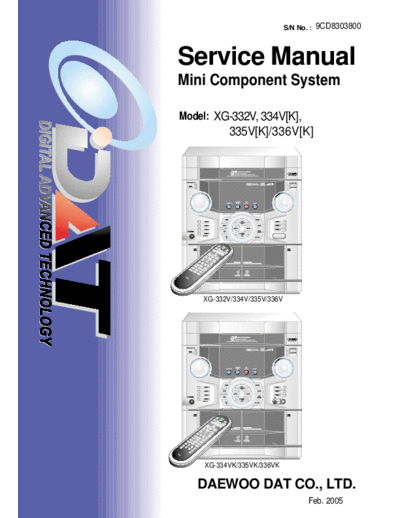

Image preview - the first page of the document
>> Download XG-332V & 334V & 335V & 336V documenatation <<
Text preview - extract from the document
S/N No. : 9CD8303800
Service Manual
Mini Component System
Model: XG-332V, 334V[K],
335V[K]/336V[K]
33xVK
XG-332V/334V/335V/336V
33xVK
MIC
MIC VOL
XG-334VK/335VK/336VK
DAEWOO DAT CO., LTD.
FEB. 2004
Feb. 2005
MINI COMPONENT SYSTEM
XG-332V
XG-334V[K]
XG-335V[K]
XG-336V[K]
Table of Contents
SAFETY PRECAUTIONS ................................................................................... 1
ADJUSTMENTS .................................................................................................. 3
EXPLODED VIEW AND PARTS LIST .............................................................. 5/6
WIRING DIAGRAM .......................................................................................... 7/8
BLOCK DIAGRAM ......................................................................................... 9/10
SCHEMATIC DIAGRAM ............................................................................... 11/20
MAIN Section ...................................................................................................... 11/12
TUNER Section .................................................................................................. 13/14
TAPE Section ...................................................................................................... 15/16
FRONT Section ........................................................................................................ 17
MP3/VCD Section .................................................................................................... 18
KARAOKE Section ................................................................................................... 19
POWER Section ...................................................................................................... 20
PCB PATTERN LAYOUT .............................................................................. 21/29
MAIN ................................................................................................................... 21/24
FRONT ..................................................................................................................... 25
MP3/VCD ................................................................................................................. 26
KARAOKE ................................................................................................................ 27
POWER .............................................................................................................. 28/29
ELECTRICAL PART LIST ...................................................................... Appendix
Safety Precautions
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE laundry tub, in a wet basement, or near a swimming pool,
THIS APPLIANCE TO RAIN OR MOISTURE. and the like.
2. Carts and Stands - The appliance
CAUTION PORTABLE CART
should be used only with a cart or
RISK OF ELECTRIC SHOCKS stand that is recommended by th
DO NOT OPEN manufacturer.
3. An appliance and cart combination
CAUTION :TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT should be moved with care. Quick
REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS stops, excessive force, and uneven
INSIDE. surfaces may cause the appliance
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. and cart combination to overturn.
Figure 2 4. Wall or Ceiling Mounting - The appli-
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSULTED "DANGEROUS VOLTAGE" ance should be mounted to a wall or
WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE ceiling only as recommended by the manufacturer.
SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF 5. Ventilation - The appliance should be situated so that its
ELECTRIC SHOCK TO PERSONS. location or position does not interfere with its proper
ventilation. For example, the appliance should not be situated
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE on a bed, sofa, rug, or similar surface that may block the
(SERVICING) INSTRUCTIONS IN THE LITERATURE ventilation openings; or, placed in a built-in installation, such
ACCOMPANYING THE APPLIANCE. as a bookcase or cabinet that may impede the flow of air
through the ventilation openings.
CAUTION 6. Heat - The appliance should be situated away from heat
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC
sources such as radiators, heat registers, stoves, or other
PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE appliances (including amplifiers) that produce heat.
EXPOSURE. 7. Power Sources - The appliance should be connected to a
power supply only of the type described in the operating
LASER SAFETY instructions or as marked on the appliance.
THIS UNIT EMPLOYS A LASER. ONLY QUALIFIED SERVICE PERSONNEL
8. Grounding or Polarization - The precautions that should be
SHOULD REMOVE THE COVER OR ATTEMPT TO SERVICE THIS DEVICE
DUE TO POSSIBLE EYE INJURY. taken so that the grounding or polarization means of an
appliance is not defeated.
CAUTION : USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES 9. Power - Cord Protection - Power-supply cords should be
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS routed so that they are not likely to be walked on or pinched
RADIATION EXPOSURE. by items placed upon or against them, paying particular
attention to cords at plugs, convenience receptacles, and the
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT. point where they exit from the appliance.
10.Protective Attachment Plug - If the appliance is equipped with
ATTENTION : POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE an attachment plug having overload protection. This is a
LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPON- safety feature. See Instruction Manual for replacement or
DANTE DE LA PRISE ET POUSSER JUSQU'AU FOND. resetting of protective device. If replacement of the plug is
required, be sure the service technician has used a
replacement plug specified by the manufacturer that has the
Important Safety Instructions same overload protection as the original plug.
- All the safety and operating instructions should be read before 11.Cleaning - The appliance should be cleaned only as
the appliance is operated. recommended by the manufacturer.
- The safety and operating instructions should be retained for 12.Power Lines - An outdoor antenna should be located away
future reference. from power lines.
- All warnings on the appliance and in the operating instructions
should be adhered to.
- All operating and use instructions should be followed.
1. Water and Moisture - The appliance should not be used near
water - for example, near a bathtub, washbowl, kitchen sink,
1
Safety Precautions
13.Outdoor Antenna Grounding - If an outside antenna is 15.Object and Liquid Entry - Care should be taken so that objects
connected to the receiver be sure the antenna system is do not fall and liquids are not spilled into the enclosure through
grounded so as to provide some protection against voltage openings.
surges and built-up static charges. Article 810 of the National 16.Damage Requiring Service - The appliance should be
Electrical Code, ANSI/NFPA 70, provides information with serviced by qualified service personnel when:
regard to proper grounding of the mast and supporting a) The power-supply cord or the plug has been damaged; or
structure, grounding of the lead-in wire to an antenna-dis b) Objects have fallen, or liquid has been spilled into the
charge unit, size of grounding conductors,location of antenna- appliance; or
discharge unit, connection to grounding electrodes and c) The appliance has been exposed to rain; or
requirements for the grounding electrode. See Figure 1. d) The appliance does not appear to operate normally or
exhibits a marked change in performance; or
e) The appliance has been dropped, or the enclosure
EXAMPLE OF ANTENNA
GROUNDING ANTENNA LEAD
damaged.
IN WIRE
17.Servicing - The user should not attempt to service the
appliance beyond that described in the operating instructions.
GROUND CLAMP All other servicing should be referred to qualified service
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20) personnel.
GROUNDING CONDUCTORS
ELECTRIC (NEC SECTION 810-21)
SERVICE
EQUIPMENT
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
NEC - NATIONAL ELECTRICAL CODE (NEC ART 250 PART H)
14.Non-use Periods - The power cord of the appliance should be
unplugged from the outlet when left unused for a long period
of time.
2
Adjustments
3
Adjustments
4
Exploded View and Mechanical Parts List
5
Exploded View and Mechanical Parts List
No. Part Name Part Code Description Q'ty Remark No. Part Name Part Code Description Q'ty Remark
1 WINDOW DOOR A 9CD16206A0 ACRYL 1 41 HOLDER AC CORD 9CD2303300 ABS 1 334/335/336
2 WINDOW DOOR B 9CD16206B0 ACRYL 1 42 COVER ANT 9CD0410400 ABS 1 option
3 DOOR CASS A 9CD18141A0 HIPS 1 43-1 HEAT SINK 10 9CD4404500 AL 1 332
4 DOOR CASS B 9CD18141B0 HIPS 1 43-2 HEAT SINK N30 9CD4406200 AL 1 334
5 SRING DOOR EJECT L 9CD30080L0 STS 0.9 1 43-3 HEAT SINK N50 9CD4405800 AL 1 335
6 SRING DOOR EJECT R 9CD30080R0 STS 0.9 1 43-4 HEAT SINK N65 9CD4408200 AL 1 336
7 DOOR FRAME A 9CD18113A0 MIPS 1 44 BRACKET HEAT TR 9CD2414600 SECC 1.0T 2 334/335/336
8 DOOR FRAME B 9CD18113B0 MIPS 1 45 BRACKET HEAT TR 9CD2414600 SUS 0.5T 1 332
9 CUSHION FOOT 9CD4207700 URETHAN 2 46 KNOB MIC 9CD1332000 MIPS 1 option
10-A DAMPER GEAR B 9CD2603200 ACETAL 2 47 BRACKET MIC PCB 9CD2415500 SECC 1.0T 1 option
10-B DAMPER BASE B 9CD2603300 ABS 2 48 GUIDE FLT 9CD2506500 ABS 1 332/334/335/336
11-A LOCKER BASE 9CDOB01900 ABS 2
11-B LOCKER CAM 9CDOB02000 ABS 2 Q'ty
No. Screw Type Part Code Description
11-C LOCKER SPRING 9CDOB01600 STS 2 332 334 335 336
12 BRKT SIDE 9CD2412900 ABS 2 S1 SCREW TAPTTITE 7173261011 TT2 BIN 2.6 X 10 MFZN 16 16 16 16
13 KNOB POWER 9CD1350100 HIPS 1 S2 SCREW TAPTTITE 7173301011 TT2 BIN 3.0X10 MFZN 16 15 15 15
14 LENS POWER 9CD1620900 ACRYL 1 S3 SCREW TAPTTITE 7173301212 TT2 BIN 3.0X12 BK 21 21 21 21
15 KNOB OPEN 9CD1350200 HIPS 1 S4 SCREW TAPTTITE 7173301612 TT2 BIN 3.0X16 BK 2 2 2 2
16 KNOB EQ 9CD1350700 HIPS 1 S5 SCREW TAPTTITE 7173300411 TT2 BIN 3.0X6 MFZN 5 8 8 8
17 KNOB DISC 9CD1350800 HIPS 1 S6 SCREW TAPTTITE 7173301411 TT2 BIN 3.0X14 MFZN * 4 4 4
18 KNOB FUNCTION 9CD1351000 ACRYL 1 S7 SCREW TAPTTITE 7173400611 TT2 BIN 4.0X6 MFZN * 4 4 4
19 PLATE FILTER 9CD0913200 MIPS 1 S8 SCREW TAPTTITE 7173401011 TT2 BIN 4.0X10 MFZN 4 * * *
20 GUIDE FUNCTION 9CD2507800 HIPS 1 S9 WASHER SCREW 9CD3102401 TT2 BIN 3.0X8 + D12 1 * * *
21 KNOB CAP 9CD1350600 HIPS 1 S10 WASHER SCREW 9CD3102400 TT2 BIN 3.0X10 + D14 1 1 1 1
22 DECO KNOB CAP 9CD1005200 ABS 1 CR COATING W1 WASHER PLAIN 1 * * *
23 KNOB PRESET 9CD1350900 HIPS 1
24 DECO KNOB PRESET 9CD1005300 ABS 2 CR COATING No. Part Name Q'ty
25 KNOB TUNING 9CD1350400 HIPS 1 332/334/335/336 P1 PCB FRONT 1
25-1 KNOB JOG 9CD1350300 HIPS 1 option P2 PCB MAIN 1
26 DECO RING VR 9CD1005100 ACRYL 2 P3 PCB POWER 1
27 KNOB VR 9CD1350500 HIPS 1 P4 PCB CD 1
28 DECO RING PRESET 9CD1005400 ACRYL 1 P5 PCB MP3 1 option
29 WINDOW FLT 9CD1620700 ACRYL 1 P6 PCB MIC 1
30 CD DECK MECHA 9CD6012900 DCC-01DA 1 P7 PCB JACK 1 option
31 DOOR CD 9CD1814200 HIPS 1
32 WINDOW CD DOOR 9CD1620800 ACRYL 1
33 PANEL FRONT 9CD0312200 HIPS 1
34 BADGE DAEWOO 9CD1500900 ABS 1
35-A CASSETTE DECK LOGIC 9CD6010000 1 332 option
35-B CASSETTE DECK LOGIC 9CD6010100 1 334/335/336 option
36 COVER TOP 9CD0411400 MIPS 1
37 COVER SIDE L 9CD04115L0 MIPS 1
38 COVER SIDE R 9CD04115R0 MIPS 1
39-1 CHASSIS BOTTOM 9CD0607500 ABS 1 332
39-2 CHASSIS BOTTOM 9CD0607100 SECC 1.0T 1 334/335/336
40 COVER BACK 9CD0409800 MIPS 1 332/334/335/336
6
Wiring Diagram
XG-332V Model only
7
Wiring Diagram
XG-334V[K]/335V[K]/336V[K] Model only
9CD6590900
9CD6594500
8
Block Diagram
XG-332V Model only
9
Block Diagram
XG-334V[K]/335V[K]/336V[K] Model only
10
Schematic Diagram
MAIN/POWER Section : XG-332V Model only
0dB 0dB
