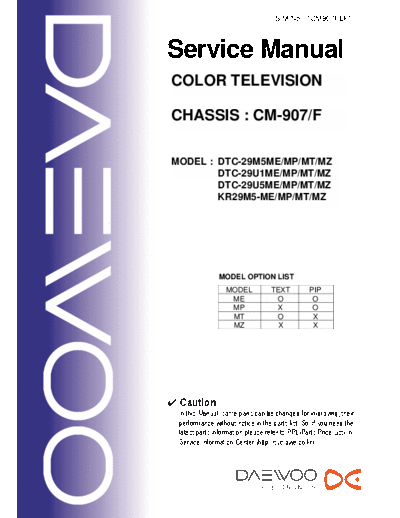

Image preview - the first page of the document
>> Download CM-907F documenatation <<
Text preview - extract from the document
S/M No : TCM907FEF0
Service Manual
COLOR TELEVISION
CHASSIS : CM-907/F
MODEL : DTC-29M5ME/MP/MT/MZ
DTC-29U1ME/MP/MT/MZ
DTC-29U5ME/MP/MT/MZ
KR29M5-ME/MP/MT/MZ
MODEL OPTION LIST
MODEL TEXT PIP
ME O O
MP X O
MT O X
MZ X X
Caution
: In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the
latest parts information,please refer to PPL(Parts Price List) in
Service Information Center (http://svc.dwe.co.kr).
TABLE OF CONTENTS
1. SPECIFICATIONS 2
2. SAFETY INSTRUCTION 3
3. CIRCUIT BLOCK DIAGRAM 4
4. ALIGNMENT INSTRUCTIONS 5
5. CM-907 TYPICAL SERVICE DATA 11
6. ELECTRICAL PARTS LIST 12
7. EACH MODEL PARTS LIST 19
8. SCHEMATIC DIAGRAM 20
9. PRINTED CIRCUIT BOARD 21
10. MECHANICAL EXPLODED VIEW AND PARTS LIST 24
APPENDIX ("Appendix is provided only by internet [http://svc.dwe.co.kr]")
11. IC DESCRIPTION 27
12. TROUBLE SHOOTING CHARTS 44
-1-
1. SPECIFICATIONS
Items Model DTC-29M5ME/MP/MT/MZ
DTC-29U1ME/MP/MT/MZ
DTC-29U5ME/MP/MT/MZ
KR29M5-ME/MP/MT/MZ
TV Standard Color system PAL/SECAM, NTSC-4.43(AV)
Sound system B/G, D/K, I
Rated Voltage AC 100~250V, 50/60Hz
Power consumption NOMAL : 130W, FLAT : 135W
Sound Output Power 7W+7W
VHF-L : IC1-S6CH (43.25MHz~140.25MHz)
Channel Coverage VHF-H : IC1-S36CH (147.25MHz~423.25MHz)
UHF : S37-C57CH(431.25MHz~863.25MHz)
Tuning System FS Tuning System
Program No. Indication ON-Screen Display
Program Selection 100 Programs
Aux. Terminal AV input 1< RCA : Input, Scart (Option) : Input, Output >
AV Input 2 < SIDE >
DVD1, DVD2
AV OUTPUT < TV Signal >
Remote Control Unit R44C07
Screen size 67.6Cm
-2-
2. SAFETY INSTRUCTION
NOTE
BEFORE SERVICING THIS CHASSIS READ THE "X-RAY RADIATION PRECAUTIONS",
"SAFETY PRECAUTIONS" AND "PRODUCT SAFETY NOTICE" BELOW.
X-RAY RADIATION PRECAUTIONS
1. Excessive high voltage can produce potentially hazard- of the high voltage recorded as a part of the service
ous X-RAY RADIATION. To avoid such hazards, the recorded as a part of the service records. It is important
high voltage must not exceed the specified limit. The to use an accurate and reliable high voltage meter.
nominal value of the high voltage of this receiver is 2. The only source of X-RAY RADIATION in this TV
25kV(21") at max beam current. The high voltage must receiver is the picture tube. For continuous RADIATION
not, under any circumstances, exceed 27kV(21"). Each protection, the replacement tube must be exactly the
time a receiver requires servicing, the high volt-age same type tube as specified in the "PART LIST".
should be checked. It is recommended the reading
SAFETY PRECAUTIONS
1. Potentials of high voltage are present when this receiver 2. If any FUSE in this TV receiver is blown, replace it will
is operating. Operation of the receiver outside the the FUSE specified in the "PART LIST".
cabinet or with the back cover removed involves a 3. When replacing a high wattage resistor (oxide metal
shock hazard from the receiver. film resistor) in circuit board, keep the resistor 10mm
1) Servicing should not be attempted by anyone who is not away from circuit board.
thoroughly familiar with the precautions necessary 4. Keep wires away from high voltage or high temperature
when working on high voltage equipment. components.
2) Always discharge the picture tube to avoid the shock 5. This receiver must operate between AC 100-240
harzard before removing the anode cap. volts,50/60Hz. NEVER connect to DC supply or any
3) Discharge the high potential of the picture tube before other power or frequency.
handling the tube. The picture tube is highly evacuated
and if broken, glass fragments will be violently
expelled.
PRODUCT SAFETY
Many electrical and mechanical parts in this chassis have ments, electrical components having such features are
special safety-related characteristics. identified by designated symbol on the "PART LIST".
These characteristics are often passed unnoticed by a Before replacing any of these components, read the
visual inspection and the X-RAY RADIATION protection "PARTLIST" in this manual carefully.
afforded by them cannot necessarily be obtained by using The use of substitute replacement part which do not have
replacement components rated for higher voltage, wattage, the same safety characteristics as specified in the "PART
etc. LIST" may created X-RAY RADIATION.
Replacement parts which have these special safety char-
acteristics are identified in this manual and its supple-
-3-
3. CIRCUIT BLOCK DIAGRAM
-4-
4. ALIGNMENT INSTRUCTIONS
1. SERVICE REMOCON & EEPROM PRESETTING DATA
1-1. SERVICE REMOCON : R-34SVC (S/N:48B3034SVC)
1-2. EEPROM PRESETTING DATA
KEY Name Details BARE NORMAL FLAT WIDE remark
PAL NTSC NT=PAL+xxx PAL NTSC PAL NTSC
S1 Heat-Run - - -
S2 Screen - - -
S3 Sound Test - - -
S4 Picture Test - - -
S5 BCL BCL THR - 200 180
BCL GAIN 12 12
WHITE PEAK ON ON
S6 Geometry V-CENTER 3930 3952 182 4170 3550 ADJUST DATA
V-SIZE 121 120 -1 147 152 164 169 ADJUST DATA
H-CENTER 82 83 1 86 88 ADJUST DATA
H-SIZE -160 -294 -134 560 410 950 800 ADJUST DATA
PARABOLA -160 -158 2 -92 -140 -71 ADJUST DATA
EW TRAPEZ 36 -3 -39 66 41
CORNER 120 120 0 90 55
H BOW 143 140 -3 -277 -2
H PARALL -2 -2 0 20 10 ADJUST DATA
V LINEAR -3 -5 +2 1 3
S CORRECT -27 -27 0 -22 -32
S7 PIP P H POS 29 33 33
P V POS 9 27 27
P R/G/B Peak 150/150/150 85/85/85 85/85/85
P CONT 04 10 10
P BRIGHT 01 15 15
S8 WHITE R/G/B DRIVE 170/170/170 195/195/195 175/175/175
BALANCE R/G/B BIAS 40/40/40 80/80/80 80/80/80
S9 SUB BRI BRM 140 140 140 For SUB-Bright Adjust Reference
S10 NORMAL BRIGHT 32 32 32
DATA CONTRAST 58 63 63
COLOR 32 32 32
SHARPNESS 48 48 48
S11 OPTION PIP ME/MP:ON, MZ/MT:OFF
DIGIT.EYE ON ON OFF
TEXT SEL.
TELETEXT ME/MT:ON, MZ/MP:OFF
LARGE OFF ON ON
VID FRAME OFF ON ON
HOTEL VOL +00000 +00000 +00000
HOTELMODE OFF OFF OFF
S12 Shipping - - -
SVC Main Menu CONT 32 32 32
IBRM 140 30 30 For Screen Adjust Reference
-5-
ALIGNMENT INSTRUCTIONS
SVC KEY EXPLAIN
(S5) BCL THD : MAX BEAM CURRENT ADJUST,DIFFERENT DATA FOR INCH.
BCL GAIN : AVERAGE BEAM ADJUST.
(S6) GEOMETRY : PAL (50Hz) adjust.
AV NTSC is auto correction.
(S10) NORMAL : PICTURE NORMAL data setting.
(SLEEP) : TXT CHECK ON LINE
(SIZE) : GAME FUNCTION CHECK ON LINE
(S11) OPTION
- HOTEL VOLUME : HOTEL MODE MAX VOL DATA SETTING
- HOTEL MODE OFF : ON--> VOL MAX SET& INSTALL DONT OPERATING
* Software option for Function Change
- ON : With PIP Models (xxxxME/MP seiese)
PIP (ON)
- OFF : Without PIP Models (xxxxMT/MZ seriese)
- ON : Enable the Digital Sensor (DTC-29M5xx, KR29M5-xx)
Digital EYE (ON)
- OFF : Disable the Digital Sensor (DTC-29U1xx, DTC-29U5xx)
- ON : For 29 inch Models CM-907/F
LARGE (OFF)
- OFF : For 14~21 inch Models CM-907S
LATIN : English,French,Swedish,Czech,German,Spanish,Italian,Estonian
EAST: English,Slovakian,Hungarian,Serbian,Albanian,Polish,Turkian,Rumanian
RUSSIA : English,Russian,Bulgaian,Ukrainian,Serbian,Montenegro
TEXT sel. (OFF) PERSIAN : English,Farsi
ARAB : English,Arabic
OFF : Teletext Language depends on OSD Language selection
Note : If OSD language & text selec. is different then Teletext depends on Text selec.
2.The confirmation of Protection circuit
Protection circuit confirmation is omitted in case of mass production in the factory
2-1. Over Current Protecor (OCP) circuit confirmation
2-1-1. Receive PAL RETMA PATTERN(signal of company:2CH., PAL-B) and adjust
STANDARD MODE in PICTURE.
2-1-2. Connect 1M 1/2W between BASE of Q801 and GND, to confirm operating of
PROTECTOR.
The next place, to confirm normal operation when the resister(1M ) is removed.
2-1-3. After Main Power Switch OFF/ON, to confirm normal operation of picture and sound
when turn the set on by remocon.
-6-
ALIGNMENT INSTRUCTIONS
3.The adjustment of SCREEN
3-1. Confirm the presetting IBRM data of EEPROM according to CRT.
3-2. Press the [S2] KEY of SVC Remocon, horizontal line will be displayed.
3-3. Adjust SCREEN V/R of FBT so that the horizontal line reach the cut-off point.
3-4 To be completed adjustment of screen. Press the [S2] key to escape screen adjustment mode.
4.The adjustment of FOCUS
4-1. Receive PAL RETMA PATTERN(signal of company:2CH., PAL-B).
4-2. Adjust the picture to best distinct picture of 350 Line by revolve Focus Volume.
5.The adjustment of WHITE BALANCE
5-1. NITSUKI Setting : Set Nitsuki to the Auto Mode , Reference to the B , and System to the PAL .
5-2. Setting the Normal Stats
5-2-1. Adjust Picture to Normal mode.
5-2-2. Adjust the Gain of Nitsuki to suitability by manual when condition is Normal.
- Adjust the standard illumination take within limit bright of Nitsuki and luminosity
of SET into acount.
- Exhortative Standard illumination, : High 70Cd/ , LOW BEAM : about 15Cd/
5-2-3. Press the [S8]key of SVC remocon to adjustment of Whit Balance.
X=0.288, Y=0.301
5-2-4. Memorize in Nitsuki after Adjustment of White Balance.
5-3. Adjustment of White Balance
5-3-1.Receive Nitsuki signal.
5-3-2.Adjust Picture to Normal mode.
5-3-3.The Adjustment of High Beam : Adjust R-DRIVE and G-DRIVE to R,G,B BAR come to center.
5-3-4.The Adjustment of Low Beam : Adjust R-BIAS and G-BIAS to R,G,B BAR come to center.
5-3-5.Repeat 5-3-3 and 5-3-4 to R,G,B BAR come to within center 1.
6.The adjustment of GEOMETRY
6-1. Press the [S-6]key on the SVC remocon to call up the Geometry mode.
And then, Geometry OSD will be displayed.
6-1-1. All adjustment is base on PAL(50Hz),
but it can be base on NTSC(60Hz) in case of need.
6-2. The adjustment of VERTICAL CENTER
6-2-1.Receive PAL RETMA pattern(signal of company:PAL-B 2CH).
6-2-2.Press the PR up/down Keys( ) to select V CENTER.
Adjust with Vol Up/Down ( ) keys so that the center mark of the CRT may be located on
the horizontal line in the middle of the pattern. In case of no center mark, adjust with
Vol Up/Down ( ) keys to obtain a vertically symmetrical pattern.
-7-
ALIGNMENT INSTRUCTIONS
6-3. The adjustment of VERTICAL SIZE
6-3-1. Receive PAL RETMA pattern(signal of company:PAL-B 2CH).
6-3-2. Press the PR up/down Keys to select V-SIZE.
Adjust with Vol Up/Down ( / ) keys so that the upper and the lower of RETMA
pattern may be located at the boundaries of the screen.
6-4. The adjustment of HORIZONTAL CENTER
6-4-1. Receive PAL RETMA pattern(signal of company:PAL-B 2CH).
6-4-2. Press the PR up/down Keys ( / ) to select V-SIZE.
Referring to the both side scales, adjust with Vol Up/Down ( / ) keys
so that RETMA pattern may be symmetrical.
6-5. The adjustment of Vertical Linearity
6-5-1. Receive PAL CROSSHATCH pattern(signal of company:PAL-B 5CH).
6-5-2. Fix adjustment of Vertical Linearity after EEPROM presetting,
but it can be adjusted in case of need.
6-5-3. Press the PR up/down Keys ( / ) to select V LINEAR.
Adjust Vertical Linearity with Vol Up/Down ( / ) keys.
6-6. The adjustment of VERTICAL S-Correction
6-6-1. Receive PAL CROSSHATCH pattern(signal of company:PAL-B 5CH).
6-6-2. Fix adjustment of Vertical S-Correction after EEPROM DATA presetting,
but it can be adjusted in case of need.
6-6-3. Press the PR up/down Keys ( / ) to select S CORRECT.
Adjust S-Corrction with Vol Up/Down ( / ) keys.
-8-
ALIGNMENT INSTRUCTIONS
7. THE ADJUSTMENT OF SUB-PICTURE (SUB-BRIGHT,SUB-CONTRAST)
7-1. Receive PAL RETMA PATTERN(signal of company:2CH., PAL-B)
7-2. Press the [S9] KEY of SVC Remocon, BRM OSD wil be displayed.
7-3. The adjustment of SUB-BRIGHT
7-3-1. Press the PR up/down Keys ( / ) to select SUB-BRIGHT in SUB-PICTURE MENU.
Adjust SUB-BRIGHT with Vol Up/Down ( / ) keys.
7-3-2. Adjust With BRM, When SUB-BRIGHT is lacking in margin of adjustment.
7-3-3. Standard of adjustment : Adjust till instant of 1, 2th cordon disappear in
RETMA CONTRAST CHART(signal of company).
7-3-4. When Sub-Picture mode was exited after SUB s adjustment, Normal vlaue is
brighter(about 18%) than adjustment-point(about 10%) of adjustment-mode because
BRIGHT is set to rise 2~3 step.
8. THE ADJUSTMENT OF PIP
8-1. Receive PAL RETMA pattern(signal of company:PAL-B 2CH) and Color Bar.
8-2. Press the [S7] KEY of SVC Remocon, PIP-Adjustment OSD wil be displayed.
8-3. Fix adjustment of PIP after EEPROM DATA presetting,
but it can be adjusted in case of need.
8-4. Adjust PIP after GEOMETRY, WHITE BALANCE and SUB-BRIGHT are adjusted.
8-5. List of adjustment
PIP H POSITON : Adjustment of H-position Sub-Picture,
(Reference : Presetting Value of EEPROM = 38)
PIP V POSITON : Adjustment of V-position of Sub-Picture,
(Reference : Presetting Value of EEPROM = 27)
PIP R/G/B Peak : Adjustment of Gain of PIP IC R,G,B Output
(Reference : Presetting Value of EEPROM = 85)
P CONTRAST : Adjustment of AC Gain(Contrast) of PIP IC RGB Output
(Reference : Presetting Value of EEPROM = 10)
P BRIGHT : Adjustment of DC Level(SUB BRIGHT) of PIP IC RGB Output
(Reference : Presetting Value of EEPROM = 15)
-9-
ALIGNMENT INSTRUCTIONS
9. REMOCON
9-1. SERVICE REMOCON 9-2. USER REMOCON
POWER
RECALL MUTE
S1 S2 S3
S4 S5 S6
S7 S8 S9
S10 S12
S11
TV/CATV ADD/ERASE TV/VIDEO
NOISE CLEAR
SOUND MODE SURROUND
CH
MENU
VOL VOL
CH
PIP POSITION M/S
PAUSE/ CH VOL
TV/VIDEO STILL
V-
POSITION SIZE SLEEP 1 2
3 4 5 6
7 8 9 0
R-34SVC
9-3. SERVICE REMOCON
1) Enter SERVICE MODE : Press keys of User Remocon, as follows.
Ch91, Sharpness 0, Skip(red), Move(green), Menu.
2) Choice SERVICE MENU : Pr-Up/Down
3) Enter SERVICE SUB MENU : Vol-Up/Down
-10-
CM-907/F CHASSIS SETTING LIST
NO CH PATTERN BAND V.FREQ. Sound SYSTEM Color SYSTEM ADJUSTMENT
2 PAL H-2CH VL 64.25 BG PAL
7 PAL H-7CH VH 182.25 BG PAL
9 PAL H-9CH VH 196.25 BG PAL
10 PAL H-10CH VH 209.25 BG PAL
28 PAL H-28CH U 527.25 BG PAL
30 PAL-40CH W/B U 623.25 AUTO W/B
31 PAL-2CH RETMA VL 48.25 BG AUTO FOCUS, V-CENTER, V-SIZE,V-SLOPE H-CENTER,SCREEN
32 PAL-47CH C/HATCH U 679.25 I AUTO " CONVERGENCE, ADJUSTMENT"
33 PAL-10CH COLOR BAR VH 210.25 BG PAL " SCREEN, AGC"
34 PAL-4CH DEM VL 62.25 BG PAL " SOUND, Teletext check"
-11-
35 PAL-12CH PHILIPS VH 224.25 BG SECAM SECAM COLOR CHECK
36 PAL-18CH RETMA U 511.25 DK AUTO SOUND
5. CM-907/F TYPICAL SERVICE DATA
6. ELECTRICAL PARTS LIST
Caution: In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)
DTC-29M5ME
LOC PART CODE PART NAME DESCRIPTION REMARK LOC PART CODE PART NAME DESCRIPTION REMARK
ZZ100 48B4844C07 TRANSMITTER REMOCON R-44C07 (AA) DC01 DLH2PR5MHS LED HOLDER AS LH-2P-R-5M-H3
ZZ110 PTACPWD703 ACCESSORY AS DTC-29M5ME F801 5F3GB6322L FUSE GLASS TUBE V/S TL 6.3A 250V MF51
00030 4850Q00810 BATTERY R6P/LN I301 PTF2SW7921 HEAT SINK ASS`Y 1LA7848--- + 7174300811
0200 48586054K1 MANUAL INSTRUCTION DTM-2082CW 00001 1LA7848--- IC VERTICAL LA7848
M821 4858213801 BAG INSTRUCTION L.D.P.E T0.05X250X400 0000A 4857027921 HEAT SINK AL EX BK
ZZ120 PTBCSHD703 COVER BACK AS DTC-29M5ME 0000B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
M211 4852161121 COVER BACK HIPS GY I401 PT82SW6900 HEAT SINK ASS'Y 1K1A7809P1 + 7174300811
M781 4857817630 CLOTH BLACK FELT 400X20X0.7 00001 1K1A7809P1 IC REGULATOR K1A7809API
ZZ130 PTPKCPD703 PACKING AS DTC-29M5ME 0000A 4857026900 HEAT SINK AL EX
10 6520010100 STAPLE PIN AUTO W65 0000B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
M801 4858057600 BOX CARTON DW-3 I501 1V3834DW08 IC MICOM MCM VCT3834F-DW08
M811 4858199100 PAD EPS 29M5 I601 1TDA7442-- IC AUDIO PROCESSOR TDA7442
M821 4858215601 BAG P.E PE FOAM t0.5x1600x1270 I602 PTB2SW8228 HEAT SINK ASS`Y 1TDA8946J- + 7174301011
ZZ131 48519A6410 CRT GROUND NET 2902S-1015-1P 00001 1TDA8946J- IC AUDIO AMP TDA8946J
ZZ132 58G0000149 COIL DEGAUSSING DC-29SF 0000A 4857028228 HEAT SINK AL EX BK
ZZ140 PTCACAD703 CABINET AS DTC-29M5ME 0000B 7174301011 SCREW TAPPTITE TT2 RND 3X10 MFZN
M201A 4856015800 SCREW CRT FIX L=27 I701 124LC16B1B IC MEMORY 24LC16B1B
M201B 4856215402 WASHER RUBBER CR T2.0 I801 PTE2SW7920 HEAT SINK ASS`Y 1STRF6656- + 7174301211
M211A 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK 00001 1STRF6656- IC POWER STR-F6656
M211B 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK 0000A 4857027920 HEAT SINK AL EX BK
M211C 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK 0000B 7174301211 SCREW TAPPTITE TT2 RND 3X12 MFZN
M231A 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK I802 1LTV817C-- IC PHOTO COUPLER LTV-817C
M541 4855419800 SPEC PLATE ART 150 I803 1DP133---- IC ERROR AMP DP133
M682 4856816300 CLAMP WIRE NYLON 6 (V0) I804 PTF2SW4902 HEAT SINK ASS`Y 1K78R05--- + 7174301011
M683 4856812001 TIE CABLE NYLON66 DA100 00001 1K78R05--- IC REGULATOR KIA78R05PI
SP01A 7172401212 SCREW TAPPTITE TT2 TRS 4X12 MFZNBK 0000A 4857024902 HEAT SINK AL EX
SP02A 7172401212 SCREW TAPPTITE TT2 TRS 4X12 MFZNBK 0000B 7174301011 SCREW TAPPTITE TT2 RND 3X10 MFZN
V901 4859626060 CRT A68QBC230X09 P38 I806 1LP295033- IC REGULATOR LP2950 3.3V
ZZ200 PTFMSJD703 MASK FRONT AS DTC-29M5ME IF01 1KRT30---- IC PREAMP KRT30
M201 4852079701 MASK FRONT HIPS GY JV01 4859111750 JACK PIN BOARD PH-JB-9515
M231A 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK JV02 4859110950 JACK PIN BOARD YS01-0001
M561 48556174SD MARK BRAND SILVER DIA-CUTTING L301 58C7070085 COIL CHOKE TLN-3062A
M781 4857821102 CLOTH BLACK FELT 340X10X1.5 L401 58H0000039 COIL H-LINEARITY TRL-200D
ZZ205 PTPCSWJ912 PANEL CONTROL AS DTQ-29M5 LF801 5PLF3143G- FILTER LINE LF-3143G
M191 4851945700 BUTTON CTRL 4951401+5545800 M371 4853747800 RETA PCB NYLON 66
M191A 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN P904 4859281320 CONN WAFER TAC-L18X-A3
M231 4852328201 PANEL DECO ABS GY PW801 4859908110 CORD POWER AS 1-L0+H03VVH2-F+HOU=2200
M481 4854861401 BUTTON POWER ABS GY Q401 PTG2SW7609 HEAT SINK ASS`Y TST2009DH1 + 7174300811
M481A 4856716000 SPRING SWPA PIE0.5 00001 TST2009DH1 TR ST2009DHI
M591 4855933401 DECO EYE ABS BLUE 0000A 4857027609 HEAT SINK AL EX
M591A 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN 0000B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
ZZ210 PTSPPWD703 SPEAKER AS DTC-29M5ME Q402 TKTC3229-- TR KTC3229
P601A 4850704S32 CONNECTOR YH025-04+YRT205+ULW900500 R801 DDC7R0M290 POSISTOR ECPCD7R0M290
R803 RX10T109KS R CEMENT 10W 1 OHM K TRIPOD SMALL
SP01 4858311110 SPEAKER 12W 8 OHM SP-58126F R807 RM02Y158J- R METAL FLAT 2W 0.15 OHM J
SP02 4858311110 SPEAKER 12W 8 OHM SP-58126F SW801 5S40101143 SW POWER PUSH PS3-22SP (P.C.B)
ZZ290 PTMPMSD703 PCB MAIN MANUAL AS DTC-29M5ME T401 50H0000251 FBT FFA64039L
10 2193102005 SOLDER BAR SN:PB=63:47 S63S-1320 T402 5TD0000018 TRANS DRIVE THD-120
30 2291050616 FLUX SOLDER JS-64T3 T801 50M5345C1- TRANS SMPS TSM-5345C1
40 2291050301 FLUX SOLVENT IM-1000 U101 4859723730 TUNER VARACTOR TMDG1-837
C306 CEYF1E332V C ELECTRO 25V RSS 3300MF (16X31.5) X501 5XE20R250E CRYSTAL QUARTZ HC-49/U 20.2500MHZ 30PPM
C310 CEYD1H689W C ELECTRO 50V RHD 6.8MF (16X35.5) ZZ200 PTMPJ0D703 PCB MAIN (RHU) AS DTC-29M5ME
C405 CMYH3C123J C MYLAR 1.6KV BUP 0.012MF J C105 CEXF1C222V C ELECTRO 16V RSS 2200MF (16X31.5) TP
C406 CMYH3C722J C MYLAR 1.6KV BUP 7200PF J C407 CMXE2G273J C MYLAR 400V PU 0.027MF J (TP)
C408 CMYE2D624J C MYLAR 200V PU 0.62MF J C419 CEXF1C471V C ELECTRO 16V RSS 470MF (8X12)TP
C801 CL1UC3474M C LINE ACROSS 0.47MF 1J(UCVSNDF/SV)+Q/O C422 CEXF2C101V C ELECTRO 160V RSS 100MF (16X25) TP
C804 CEYN2G221P C ELECTRO 400V LHS 220MF (35X30) C424 CEXF1V471V C ELECTRO 35V RSS 470MF (10X20) TP
C811 CH1BFE222M C CERA AC U/C/V AC400V 2200PF C631 CEXF1E102V C ELECTRO 25V RSS 1000MF (13X20) TP
C817 CEYF2C221V C ELECTRO 160V RSS 220MF (18X35.5) C802 CCXB3A472K C CERA 1KV B 4700PF K (TAPPING)
D402 DRGP30J--- DIODE RGP30J C803 CCXB3A472K C CERA 1KV B 4700PF K (TAPPING)
D403 DDGP30L--- DIODE DGP30L C806 CMXH3C152J C MYLAR 1.6KV BUP 1500PF J (TP)
D812 DRGP30J--- DIODE RGP30J C818 CEXF2C101V C ELECTRO 160V RSS 100MF (16X25) TP
D814 DRGP30J--- DIODE RGP30J C820 CEXF1E222V C ELECTRO 25V RSS 2200MF (16X25) TP
-12-
ELECTRICAL PARTS LIST
LOC PART CODE PART NAME DESCRIPTION REMARK LOC PART CODE PART NAME DESCRIPTION REMARK
C821 CEXF1C332V C ELECTRO 16V RSS 3300MF (16X25) TP N008 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
C837 CEXF1C222V C ELECTRO 16V RSS 2200MF (16X31.5) TP P501 485923192S CONN WAFER YW025-06 (STICK)
ZZ200 PTMPJBD703 PCB MAIN M-10 AS DTC-29M5ME P502 485923172S CONN WAFER YW025-04 (STICK)
10 2TM18006BE TAPE MASKING 6.2X500 P601 485923172S CONN WAFER YW025-04 (STICK)
E001 4856310600 EYE LET BSR T0.2 (R2.3) P602 485923182S CONN WAFER YW025-05 (STICK)
E002 4856310600 EYE LET BSR T0.2 (R2.3) P603 485923202S CONN WAFER YW025-07 (STICK)
E003 4856310600 EYE LET BSR T0.2 (R2.3) P604 485923162S CONN WAFER YW025-03 (STICK)
E004 4856310600 EYE LET BSR T0.2 (R2.3) PD01 485923162S CONN WAFER YW025-03 (STICK)
E005 4856310300 EYE LET BSR T0.2 (R1.6) R105 RS02Z512JS R M-OXIDE FILM 2W 5.1K OHM J SMALL
E006 4856310300 EYE LET BSR T0.2 (R1.6) R317 RS02Z100J- R M-OXIDE FILM 2W 10 OHM J (TAPPING)
E007 4856310300 EYE LET BSR T0.2 (R1.6) R318 RS02Z271JS R M-OXIDE FILM 2W 270 OHM J SMALL
E008 4856310300 EYE LET BSR T0.2 (R1.6) R403 RS01Z472J- R M-OXIDE FILM 1W 4.7K OHM J (TAPPING)
E009 4856310300 EYE LET BSR T0.2 (R1.6) R404 RS01Z101J- R M-OXIDE FILM 1W 100 OHM J (TAPPING)
E010 4856310300 EYE LET BSR T0.2 (R1.6) R406 RS02Z243JS R M-OXIDE FILM 2W 24K OHM J SMALL
E011 4856310300 EYE LET BSR T0.2 (R1.6) R410 RF01Z229J- R FUSIBLE 1W 2.2 OHM J (TAPPING)
E012 4856310600 EYE LET BSR T0.2 (R2.3) R413 RF01Z100J- R FUSIBLE 1W 10 OHM J (TAPPING)
E013 4856310600 EYE LET BSR T0.2 (R2.3) R414 RS02Z472JS R M-OXIDE FILM 2W 4.7K OHM J SMALL
E014 4856310300 EYE LET BSR T0.2 (R1.6) R419 RF01Z229J- R FUSIBLE 1W 2.2 OHM J (TAPPING)
E015 4856310300 EYE LET BSR T0.2 (R1.6) R805 RS02Z683JS R M-OXIDE FILM 2W 68K OHM J SMALL
E016 4856310300 EYE LET BSR T0.2 (R1.6) R813 RF02Z398K- R FUSIBLE 2W 0.39 OHM K (TAPPING)
E017 4856310300 EYE LET BSR T0.2 (R1.6) R829 RF02Z568K- R FUSIBLE 2W 0.56 OHM K (TAPPING)
E018 4856310300 EYE LET BSR T0.2 (R1.6) ZZ200 PTMPJRD703 PCB MAIN RADIAL AS DTC-29M5ME
E019 4856310300 EYE LET BSR T0.2 (R1.6) C104 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5) TP
E020 4856310300 EYE LET BSR T0.2 (R1.6) C108 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
E021 4856310600 EYE LET BSR T0.2 (R2.3) C301 CMXM2A563J C MYLAR 100V 0.056MF J (TP)
E022 4856310600 EYE LET BSR T0.2 (R2.3) C302 CMXM2A103J C MYLAR 100V 0.01MF J (TP)
E023 4856310600 EYE LET BSR T0.2 (R2.3) C303 CXSL2H100D C CERA 500V SL 10PF D (TAPPING)
E024 4856310600 EYE LET BSR T0.2 (R2.3) C304 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
E025 4856310300 EYE LET BSR T0.2 (R1.6) C305 CEXD1H109Q C ELECTRO 50V RT 1MF (6.3X11) TP
E026 4856310300 EYE LET BSR T0.2 (R1.6) C307 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5) TP
E027 4856310300 EYE LET BSR T0.2 (R1.6) C309 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
E028 4856310300 EYE LET BSR T0.2 (R1.6) C311 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
E029 4856310300 EYE LET BSR T0.2 (R1.6) C312 CCXB2H561K C CERA 500V B 560PF K (TAPPING)
E030 4856310300 EYE LET BSR T0.2 (R1.6) C313 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
E031 4856310300 EYE LET BSR T0.2 (R1.6) C314 CMXM2A332J C MYLAR 100V 3300PF J (TP)
E032 4856310300 EYE LET BSR T0.2 (R1.6) C315 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5) TP
E033 4856310300 EYE LET BSR T0.2 (R1.6) C320 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
E034 4856310300 EYE LET BSR T0.2 (R1.6) C321 CMXM2A123J C MYLAR 100V 0.012MF J (TP)
E035 4856310300 EYE LET BSR T0.2 (R1.6) C402 CCXB2H102K C CERA 500V B 1000PF K (TAPPING)
E036 4856310600 EYE LET BSR T0.2 (R2.3) C403 CCXB2H222K C CERA 500V B 2200PF K (TAPPING)
E037 4856310600 EYE LET BSR T0.2 (R2.3) C404 CCXB2H471K C CERA 500V B 470PF K (TAPPING)
E038 4856310600 EYE LET BSR T0.2 (R2.3) C409 CEXF2C339V C ELECTRO 160V RSS 3.3MF (8X16) TP
E039 4856310600 EYE LET BSR T0.2 (R2.3) C410 CCXB2H561K C CERA 500V B 560PF K (TAPPING)
E040 4856310600 EYE LET BSR T0.2 (R2.3) C411 CEXF2E229V C ELECTRO 250V RSS 2.2MF (8X11.5)TP
E041 4856310600 EYE LET BSR T0.2 (R2.3) C413 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
E042 4856310600 EYE LET BSR T0.2 (R2.3) C415 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
E043 4856310600 EYE LET BSR T0.2 (R2.3) C417 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
E049 4856310600 EYE LET BSR T0.2 (R2.3) C421 CMXM2A333J C MYLAR 100V 0.033MF J (TP)
E050 4856310600 EYE LET BSR T0.2 (R2.3) C425 CCXB2H102K C CERA 500V B 1000PF K (TAPPING)
E051 4856310600 EYE LET BSR T0.2 (R2.3) C502 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP
E054 4856310600 EYE LET BSR T0.2 (R2.3) C503 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
E055 4856310600 EYE LET BSR T0.2 (R2.3) C505 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
E056 4856310600 EYE LET BSR T0.2 (R2.3) C507 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
E057 4856310600 EYE LET BSR T0.2 (R2.3) C508 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
E058 4856310600 EYE LET BSR T0.2 (R2.3) C509 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP
E059 4856310600 EYE LET BSR T0.2 (R2.3) C510 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP
N001 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN) C511 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP
N002 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN) C512 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP
N003 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN) C514 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
N004 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN) C519 CMXL1J683J C MYLAR 63V MEU 0.068MF J
N005 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN) C522 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
N006 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN) C524 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
N007 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN) C525 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
-13-
ELECTRICAL PARTS LIST
LOC PART CODE PART NAME DESCRIPTION REMARK LOC PART CODE PART NAME DESCRIPTION REMARK
C530 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP Q512 TKSC2330Y- TR KSC2330Y (TP)
C542 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP Q513 TKSC2330Y- TR KSC2330Y (TP)
C544 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP Q514 TKTC3198Y- TR KTC3198Y
C545 CEXF1H339V C ELECTRO 50V RSS 3.3MF (5X11) TP Q515 TKTC3198Y- TR KTC3198Y
C548 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP Q581 TKTC3198Y- TR KTC3198Y
C550 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11) TP Q582 TKTC3198Y- TR KTC3198Y
C551 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP Q583 TKTC3198Y- TR KTC3198Y
C562 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP Q601 TKTC3198Y- TR KTC3198Y
C581 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP Q602 TKTC3198Y- TR KTC3198Y
C582 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP Q801 TKSA1013Y- TR KSA1013Y (TP)
C583 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP QF01 TKTC3198Y- TR KTC3198Y
C585 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP R111 RN02B200JS R METAL FILM 2W 20 OHM J SMALL
C601 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP R308 RN02B331JS R METAL FILM 2W 330 OHM J SMALL
C606 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP R309 RN02B121JS R METAL FILM 2W 120 OHM J SMALL
C608 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP R310 RN02B200JS R METAL FILM 2W 20 OHM J SMALL
C609 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP R312 RN01B913JS R METAL FILM 1W 91K OHM J SMALL
C610 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP R314 RN02B103JS R METAL FILM 2W 10K OHM J SMALL
C611 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP R315 RN01B562JS R METAL FILM 1W 5.6K OHM J SMALL
C612 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP R407 RN02B102JS R METAL FILM 2W 1K OHM J SMALL
C615 CCXB1H152K C CERA 50V B 1500PF K (TAPPING) R420 RN02B101JS R METAL FILM 2W 100 OHM J SMALL
C617 CCXB1H682K C CERA 50V B 6800PF K (TAPPING) R422 RN02B159JS R METAL FILM 2W 1.5 OHM J SMALL
C618 CCXB1H682K C CERA 50V B 6800PF K (TAPPING) R426 RN02B333JS R METAL FILM 2W 33K OHM J SMALL
C619 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP R429 RN02B681JS R METAL FILM 2W 680 OHM J SMALL
C622 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP R824 RN01B102JS R METAL FILM 1W 1K OHM J SMALL
C623 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP R825 RN02B202JS R METAL FILM 2W 2K OHM J SMALL
C624 CMXM2A224J C MYLAR 100V 0.22MF J R828 RN02B132JS R METAL FILM 2W 1.3K OHM J SMALL
C625 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP SW701 5S50101090 SW TACT THVH472GCA
C626 CEXF1H339V C ELECTRO 50V RSS 3.3MF (5X11) TP SW702 5S50101090 SW TACT THVH472GCA
C627 CMXM2A224J C MYLAR 100V 0.22MF J SW703 5S50101090 SW TACT THVH472GCA
C628 CMXM2A224J C MYLAR 100V 0.22MF J SW704 5S50101090 SW TACT THVH472GCA
C629 CMXM2A224J C MYLAR 100V 0.22MF J SW705 5S50101090 SW TACT THVH472GCA
C633 CMXM2A682J C MYLAR 100V 6800PF J (TP) SW706 5S50101090 SW TACT THVH472GCA
C634 CMXM2A682J C MYLAR 100V 6800PF J (TP) ZZ200 PTMPJAD703 PCB MAIN AXIAL AS DTC-29M5ME
C805 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP 10 2TM14006LB TAPE MASKING 3M #232 6.0X2000M
C807 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP 20 2TM10006LB TAPE MASKING 3M #232-MAP-C 6.2X2000M
C808 CCXB1H152K C CERA 50V B 1500PF K (TAPPING) A001 4859806793 PCB MAIN 330X246 D1B
C809 CCXB3A471K C CERA 1KV B 470PF K (T) C103 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
C810 CCXB1H152K C CERA 50V B 1500PF K (TAPPING) C308 CZCH1H200J C CERA 50V CH 20PF J (AXIAL)
C812 CCXB3A471K C CERA 1KV B 470PF K (T) C501 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C813 CCXB3A471K C CERA 1KV B 470PF K (T) C504 CCZF1H473Z C CERA 50V F 0.047MF Z
C814 CCXB3A271K C CERA 1KV B 270PF K (TAPPING) C506 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C819 CEXF2A100V C ELECTRO 100V RSS 10MF (6.3X11) TP C513 CCZF1H103Z C CERA 50V F 0.01MF Z
C825 CMXL1J224J C MYLAR 63V MEU 0.22MF J (TP) C515 CCZF1H223Z C CERA 50V F 0.022MF Z
C826 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11) TP C516 CCZF1H223Z C CERA 50V F 0.022MF Z
C827 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP C517 CCZF1H223Z C CERA 50V F 0.022MF Z
C828 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP C520 CCZB1H151K C CERA 50V B 150PF K (AXIAL)
C833 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP C523 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C836 CMXM2A103J C MYLAR 100V 0.01MF J (TP) C526 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
F801A 4857415001 CLIP FUSE PFC5000-0702 C527 CZCH1H309C C CERA 50V CH 3PF C (AXIAL)
F801B 4857415001 CLIP FUSE PFC5000-0702 C528 CZCH1H309C C CERA 50V CH 3PF C (AXIAL)
I702 1K1A7025AP IC RESET KIA7025AP C529 CCZB1H221K C CERA 50V B 220PF K (AXIAL)
L601 58CX430599 COIL CHOKE AZ-9004Y 940K TP C531 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
L812 58CX430599 COIL CHOKE AZ-9004Y 940K TP C532 CCZB1H221K C CERA 50V B 220PF K (AXIAL)
Q101 TKTC3198Y- TR KTC3198Y C534 CCZF1H103Z C CERA 50V F 0.01MF Z
Q301 TKTC3198Y- TR KTC3198Y C538 CCZB1H221K C CERA 50V B 220PF K (AXIAL)
Q403 TKTC3198Y- TR KTC3198Y C539 CCZB1H221K C CERA 50V B 220PF K (AXIAL)
Q502 TKTA1266Y- TR KTA1266Y (TP) C540 CCZB1H221K C CERA 50V B 220PF K (AXIAL)
Q503 TKTA1266Y- TR KTA1266Y (TP) C543 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
Q504 TKTA1266Y- TR KTA1266Y (TP) C546 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
Q505 TKTC3198Y- TR KTC3198Y C584 CCZF1H473Z C CERA 50V F 0.047MF Z
Q507 TKTA1266Y- TR KTA1266Y (TP) C586 CCZF1H473Z C CERA 50V F 0.047MF Z
Q508 TKTC3198Y- TR KTC3198Y C602 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
Q509 TKTC3198Y- TR KTC3198Y C603 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
-14-
ELECTRICAL PARTS LIST
LOC PART CODE PART NAME DESCRIPTION REMARK LOC PART CODE PART NAME DESCRIPTION REMARK
C604 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z J009 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C605 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z J010 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C607 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z J011 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C613 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z J012 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C614 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z J013 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C616 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z J014 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C630 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z J015 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C642 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z J016 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C643 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z J017 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C823 CCZF1H103Z C CERA 50V F 0.01MF Z J018 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C830 CCZF1H103Z C CERA 50V F 0.01MF Z J019 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C832 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z J020 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C834 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z J021 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D101 DUZ33B---- DIODE ZENER UZ-33B J022 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D102 DUZ5R6BM-- DIODE ZENER UZ-5.6BM J023 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D301 D1N4004S-- DIODE 1N4004S J024 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D304 DUZ33B---- DIODE ZENER UZ-33B J025 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D306 D1N4004S-- DIODE 1N4004S J026 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D307 D1N4004S-- DIODE 1N4004S J027 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D401 D1N4937G-- DIODE 1N4937G (TAPPING) J028 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D405 DUZ9R1BM-- DIODE ZENER UZ-9.1BM J029 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D406 D1N4937G-- DIODE 1N4937G (TAPPING) J031 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D407 D1N4937G-- DIODE 1N4937G (TAPPING) J032 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D410 D1N4937G-- DIODE 1N4937G (TAPPING) J033 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D411 DUZ12BM--- DIODE ZENER UZ-12BM (UNIZON) J034 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D412 D1N4148--- DIODE 1N4148 (TAPPING) J035 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D501 D1N4148--- DIODE 1N4148 (TAPPING) J036 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D502 D1N4148--- DIODE 1N4148 (TAPPING) J037 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D503 DUZ5R1B--- DIODE ZENER UZ-5.1B J038 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D504 DUZ5R1B--- DIODE ZENER UZ-5.1B J039 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D505 DUZ5R1B--- DIODE ZENER UZ-5.1B J040 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D506 D1N4148--- DIODE 1N4148 (TAPPING) J041 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D507 D1N4148--- DIODE 1N4148 (TAPPING) J042 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D508 D1N4148--- DIODE 1N4148 (TAPPING) J043 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D509 DUZ2R7B--- DIODE ZENER UZ-2.7B J044 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D511 DUZ7R5BM-- DIODE ZENER UZ-7.5BM J045 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D512 DUZ7R5BM-- DIODE ZENER UZ-7.5BM J046 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D513 DUZ7R5BM-- DIODE ZENER UZ-7.5BM J047 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D581 DUZ5R6BM-- DIODE ZENER UZ-5.6BM J048 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D601 D1N4148--- DIODE 1N4148 (TAPPING) J049 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D602 D1N4148--- DIODE 1N4148 (TAPPING) J050 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D802 DLT2A05G-- DIODE LT2A05G (TP) J051 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D803 DLT2A05G-- DIODE LT2A05G (TP) J052 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D804 DLT2A05G-- DIODE LT2A05G (TP) J053 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D805 DLT2A05G-- DIODE LT2A05G (TP) J054 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D806 D1N4937G-- DIODE 1N4937G (TAPPING) J055 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D807 D1N4937G-- DIODE 1N4937G (TAPPING) J056 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D808 D1N4937G-- DIODE 1N4937G (TAPPING) J058 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D809 D1N4937G-- DIODE 1N4937G (TAPPING) J059 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D810 D1N4004S-- DIODE 1N4004S J060 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D811 DUZ3R3B--- DIODE ZENER UZ-3.3B J061 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D813 D1N4937G-- DIODE 1N4937G (TAPPING) J062 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D816 DRGP15J--- DIODE RGP15J J063 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
DF01 DUZ5R1B--- DIODE ZENER UZ-5.1B J064 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
DF02 DUZ5R1B--- DIODE ZENER UZ-5.1B J065 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J001 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J067 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J002 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J068 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J003 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J069 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J004 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J070 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J005 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J071 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J006 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J072 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J007 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J073 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J008 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J074 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
-15-
ELECTRICAL PARTS LIST
LOC PART CODE PART NAME DESCRIPTION REMARK LOC PART CODE PART NAME DESCRIPTION REMARK
J075 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L405 5CPZ109M02 COIL PEAKING 1UH M (AXIAL 3.5MM)
J076 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L501 5CPZ101K02 COIL PEAKING 100UH K (AXIAL 3.5MM)
J077 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L502 5CPZ220K02 COIL PEAKING 22UH K (AXIAL 3.5MM)
J078 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L503 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)
J079 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L504 5CPZ101K02 COIL PEAKING 100UH K (AXIAL 3.5MM)
J080 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L505 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)
J081 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L566 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)
J082 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L577 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)
J083 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L581 5CPZ470K02 COIL PEAKING 47UH K (AXIAL 3.5MM)
J084 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L582 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5MM)
J085 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L599 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)
J086 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L602 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J087 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L801 5MC0000100 COIL BEAD HC-3550
J088 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING LD01 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5MM)
J089 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R103 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
J090 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R107 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
J091 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R108 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
J092 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R109 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
J093 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R110 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
J094 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R301 RN-AZ3601F R METAL FILM 1/6 3.60K OHM F
J095 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R302 RN-4Z2002F R METAL FILM 1/4 20.0K OHM F
J096 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R303 RN-4Z1003F R METAL FILM 1/4 100K OHM F
J097 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R304 RN-4Z1102F R METAL FILM 1/4 11K OHM F
J098 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R305 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
J099 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R306 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
J100 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R307 RD-AZ113J- R CARBON FILM 1/6 11K OHM J
J101 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R311 RD-AZ473J- R CARBON FILM 1/6 47K OHM J
J102 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R313 RD-4Z103J- R CARBON FILM 1/4 10K OHM J
J103 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R316 RD-4Z101J- R CARBON FILM 1/4 100 OHM J
J104 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R319 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
J105 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R320 RD-AZ479J- R CARBON FILM 1/6 4.7 OHM J
J106 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R321 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
J107 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R322 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
J108 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R323 RD-4Z101J- R CARBON FILM 1/4 100 OHM J
J109 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R324 RD-2Z109J- R CARBON FILM 1/2 1 OHM J
J110 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R326 RD-AZ391J- R CARBON FILM 1/6 390 OHM J
J111 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R327 RN-4Z2701F R METAL FILM 1/4 2.70K OHM F
J112 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R328 RN-AZ3301F R METAL FILM 1/6 3.3K OHM F
J113 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R401 RD-4Z121J- R CARBON FILM 1/4 120 OHM J
J114 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R402 RD-4Z122J- R CARBON FILM 1/4 1.2K OHM J
J115 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R405 RD-4Z330J- R CARBON FILM 1/4 33 OHM J
J116 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R408 RD-4Z102J- R CARBON FILM 1/4 1K OHM J
J117 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R409 RD-4Z103J- R CARBON FILM 1/4 10K OHM J
J118 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R411 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
J119 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R412 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
J120 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R418 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J121 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R421 RD-4Z914J- R CARBON FILM 1/4 910K OHM J
J122 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R424 RD-4Z101J- R CARBON FILM 1/4 100 OHM J
J123 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R501 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
J124 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R502 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
J125 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R503 RD-AZ203J- R CARBON FILM 1/6 20K OHM J
J126 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R504 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
J127 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R505 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
J128 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R506 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
J129 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R507 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
J130 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R510 RD-AZ912J- R CARBON FILM 1/6 9.1K OHM J
J131 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R511 RD-AZ511J- R CARBON FILM 1/6 510 OHM J
J132 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R512 RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J
J133 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R513 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
J134 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R514 RD-AZ271J- R CARBON FILM 1/6 270 OHM J
J135 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATI◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
