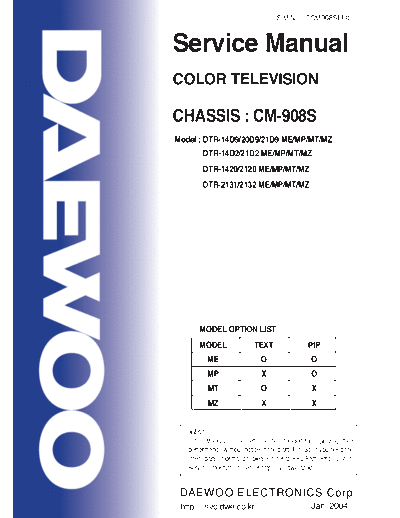

Image preview - the first page of the document
>> Download CM-908S documenatation <<
Text preview - extract from the document
S/M No. : TCM908SEF0
Service Manual
COLOR TELEVISION
CHASSIS : CM-908S
Model : DTR-14D9/20D9/21D9 ME/MP/MT/MZ
DTR-14D2/21D2 ME/MP/MT/MZ
DTR-1420/2120 ME/MP/MT/MZ
DTR-2131/2132 ME/MP/MT/MZ
MODEL OPTION LIST
MODEL TEXT PIP
ME O O
MP X O
MT O X
MZ X X
Caution
: In this Manual, some parts can be changed for improving. their
performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List)in
Service Information Center(http://svc.dwe.co.kr)
DAEWOO ELECTRONICS Corp.
http : //svc.dwe.co.kr Jan. 2004
TABLE OF CONTENTS
1. SPECIFICATIONS 2
2. SAFETY INSTRUCTION 3
3. ALIGNMENT INSTRUCTIONS 5
4. ELECTRICAL PARTS LIST (Different Parts) 13
5. DIFFERENT PARTS
5-1. CRT INCH DIFFERENT PARTS OF CM-908S 18
5-2. FUNCTION DIFFERENT PARTS OF CM-908S 20
6. SCHEMATIC DIAGRAM 21
7. PRINTED CIRCUIT BOARD 22
8. MECHANICAL EXPLODED VIEW AND PARTS LIST 23
APPENDIX ("Appendix is provided only by internet [http://svc.dwe.co.kr]")
9. IC DESCRIPTION 26
10. TROUBLE SHOOTING CHARTS 55
-1-
1. SPECIFICATIONS
Items Model DTR-14D9/20D9/21D9 ME/MP/MT/MZ
DTR-14D2/21D2 ME/MP/MT/MZ
DTR-1420/2120 ME/MP/MT/MZ
DTR-2131/2132 ME/MP/MT/MZ
TV Standard Color system PAL/SECAM, NTSC-4.43(AV)
Sound system B/G, D/K, I
Rated Voltage AC 110~250V, 50/60Hz
Power consumption 14"=57W, 20"=69W, 21"=72W, 21"(Flat)=74W
Sound Output Power 5W+5W(14",20"), 7W+7W(21",21"flat)
VHF-L : IC1-S6CH (43.25MHz~140.25MHz)
Channel Coverage VHF-H : IC1-S36CH (147.25MHz~423.25MHz)
UHF : S37-C57CH(431.25MHz~863.25MHz)
Tuning System FS Tuning System
Program No. Indication ON-Screen Display
Program Selection 100 Programs
Aux. Terminal AV input AV1(Rear) : RCA or Euro-Scart
AV2(Front) : RCA
DVD(Rear) : RCA -> Y, Cr, Cb, or CVBS input
AV output Monitor Out : Rear RCA
TV out : Rear Scart (Optional)
Remote Control Unit R44C07
14" : 37Cm (Diagonal)
Screen size 20" : 48Cm (Diagonal)
21", 21"flat : 51Cm (Diagonal)
-2-
2. SAFETY INSTRUCTION
NOTE
BEFORE SERVICING THIS CHASSIS READ THE "X-RAY RADIATION PRECAUTIONS",
"SAFETY PRECAUTIONS" AND "PRODUCT SAFETY NOTICE" BELOW.
X-RAY RADIATION PRECAUTIONS
1. Excessive high voltage can produce potentially hazard- of the high voltage recorded as a part of the service
ous X-RAY RADIATION. To avoid such hazards, the recorded as a part of the service records. It is important
high voltage must not exceed the specified limit. The to use an accurate and reliable high voltage meter.
nominal value of the high voltage of this receiver is 2. The only source of X-RAY RADIATION in this TV
25kV(21") at max beam current. The high voltage must receiver is the picture tube. For continuous RADIATION
not, under any circumstances, exceed 27kV(21"). Each protection, the replacement tube must be exactly the
time a receiver requires servicing, the high volt-age same type tube as specified in the "PART LIST".
should be checked. It is recommended the reading
SAFETY PRECAUTIONS
1. Potentials of high voltage are present when this receiver 2. If any FUSE in this TV receiver is blown, replace it will
is operating. Operation of the receiver outside the the FUSE specified in the "PART LIST".
cabinet or with the back cover removed involves a 3. When replacing a high wattage resistor (oxide metal
shock hazard from the receiver. film resistor) in circuit board, keep the resistor 10mm
1) Servicing should not be attempted by anyone who is not away from circuit board.
thoroughly familiar with the precautions necessary 4. Keep wires away from high voltage or high temperature
when working on high voltage equipment. components.
2) Always discharge the picture tube to avoid the shock 5. This receiver must operate between AC 100-240
harzard before removing the anode cap. volts,50/60Hz. NEVER connect to DC supply or any
3) Discharge the high potential of the picture tube before other power or frequency.
handling the tube. The picture tube is highly evacuated
and if broken, glass fragments will be violently
expelled.
PRODUCT SAFETY
Many electrical and mechanical parts in this chassis have ments, electrical components having such features are
special safety-related characteristics. identified by designated symbol on the "PART LIST".
These characteristics are often passed unnoticed by a Before replacing any of these components, read the
visual inspection and the X-RAY RADIATION protection "PARTLIST" in this manual carefully.
afforded by them cannot necessarily be obtained by using The use of substitute replacement part which do not have
replacement components rated for higher voltage, wattage, the same safety characteristics as specified in the "PART
etc. LIST" may created X-RAY RADIATION.
Replacement parts which have these special safety char-
acteristics are identified in this manual and its supple-
-3-
4. ALIGNMENT INSTRUCTIONS
BARE 14 inch 20 inch 21 inch 21" (FLAT)
SVC KEY ITEM REMARK
DATA (CPT/1489DY) (OHPT/2050DY) (CPT) (LGPD/OEC)
S1 Heat-Run - - - - -
S2 SCREEN - - - - - Screen Adjust
S3 SOUND TEST - - - - -
S4 PICTURE TEST - - - - -
BCL THR +00080 +00080 +00125 +00125 +00115 FIXED, Maximum Beam Current Limit
S5 BCL GAIN +00015 +00015 +00015 +00015 +00015 FIXED, Average Beam Current
WHITE PEAK ON ON ON ON ON FIXED
H-CENTER +00098 +00098 +00094 +00070 +00074
V-CENTER +03940 +03940 +03920 +03920 +03900 Adjust for
V-SIZE +00088 +00088 +00097 +00115 +00148 Geometry
H-SIZE +01520 +01520 +01520 +01520 +01520
PARABOLA -00122 Don't Care Don't Care (For Large CRT)
S6 V-LINEARITY +00016 +00000 +00000 +00000 +00000
FIXED
S-CORRECT +00011 -00006 -00018 -00028 -00029
CORNER +00120 Don't Care
H-BOW -00517 Don't Care
Don't Care (For Large CRT)
H-PARALL +00020 Don't Care
EW-PRAPEZ +00121 Don't Care
P H POS +00046 +00046 +00046 +00041 +00041
P V POS +00028 +00028 +00028 +00028 +00028 FIXED
P R PEAK +00130 +00130
S7 P G PEAK +00130 +00130
P B PEAK +00130 +00130
P-CONTRAST +00003 +00003
P-BRIGHT +00003 +00003
R-Drive +00170 +00160 +00160 +00180 +00180
G-Drive +00170 +00160 +00160 +00180 +00180
B-Drive +00170 +00160 +00160 +00180 +00180
S8
R-Bias +00120 +00130 +00130 +00130 +00130
G-Bias +00120 +00130 +00130 +00130 +00130
B-Bias +00120 +00130 +00130 +00130 +00130
S9 BRM +00120 +00130 +00130 +00130 +00130 For Sub-Brightness
NOR BRIGHT +00032 +00032 +00032
NOR CONTRAST +00060 +00060 +00060
S10 NOR COLOR +00032 +00032 +00032
NOR SHARPNESS +00048 +00048 +00048
CORING +00008 +00008 +00008
PIP ON ON ON
DIGI EYE ON ON
TEXT SEL OFF OFF
TELETEXT ON ON
S11
LARGE OFF OFF
VID FRAME ON ON
HOTEL VOL +00020 +00020
HOTEL MODE OFF OFF
SVC CONTRAST 32 32 don't care
MENU SCREEN IBRM 400 420 420 420 430 For Screen adjusting
Main B + 133V 133V 123V 123V
4
ALIGNMENT INSTRUCTIONS
SVC KEY EXPLAIN
(S5) BCL THD : MAX BEAM CURRENT ADJUST,DIFFERENT DATA FOR INCH.
BCL GAIN : AVERAGE BEAM ADJUST.
(S6) GEOMETRY : PAL (50Hz) adjust.
AV NTSC is auto correction.
---> H-CENTER(-1),V-SIZE(0),V-CENTER(+600),V-LINEARITY(-6)
S-CORRECTION(0),H-PALLEL(0)
(S10) NORMAL : PICTURE NORMAL data setting.
(SLEEP) : TXT CHECK ON LINE
(SIZE) : GAME FUNCTION CHECK ON LINE
(S11) OPTION
- HOTEL VOLUME : HOTEL MODE MAX VOL DATA SETTING
- HOTEL MODE OFF : ON--> VOL MAX SET& INSTALL DONT OPERATING
* Software option for Function Change
- ON : With PIP Models (DTC-xxxxME seiese)
PIP (ON)
- OFF : Without PIP Models (DTC-xxxxMT seriese)
- ON : Enable the Digital Sensor (for all Model)
Digital EYE (ON)
- OFF : Disable the Digital Sensor
- ON : For 29 inch Models CM-907
LARGE (OFF)
- OFF : For 14~21 inch Models CM-907S
LATIN : English,French,Swedish,Czech,German,Spanish,Italian,Estonian
EAST: English,Slovakian,Hungarian,Serbian,Albanian,Polish,Turkian,Rumanian
RUSSIA : English,Russian,Bulgaian,Ukrainian,Serbian,Montenegro
TEXT sel. (OFF) PERSIAN : English,Farsi
ARAB : English,Arabic
OFF : Teletext Language depends on OSD Language selection
* Note : If OSD language & text selec. is different then Teletext depends on Text selec.
2. Heat-Run
- Press the "S1" button of Service Remote controller for `HEAT-RUN'
(The CRT must be heated up at least 30min. before adjusting.)
- Press the "S1" button again to release `HEAT-RUN' mode.
3. Screen (G2) Alignment
3-1. Screen Alignment will be performed after sufficient Heat-Run of Set.
3-2. Please check the right EEPROM DATA
- Press S11 and `MENU' button in sequence,
then the Service Main Menu will be appeared.
- Please check the right SCR BRM data in the SVC Main Menu.
-5-
ALIGNMENT INSTRUCTIONS
- If you decrease the SCR BRM value,
the adjusted Screen Voltage will be increase.
- Recommended SCR BRM Value : 420 20 (It will be changed for some particular CRT)
3-3. Press the "S2" button without any signal,
then the Screen OSD bar is appeared with Blue-Back screen.
3-4. Preparatory Focus (G1) Alignmet
- You must try to Focus Alignment roughly for exact SCREEN alignmet.
3-5. Adjust the Screen Volume of FBT in order that
the `RED' OSD indicating Bar change to `BLACK'
(the numeric indicator must be 28~36)
FACTORY FACTORY
+ 00016 G2-SCREEN + 00032 G2-SCREEN
(Before Screen Adjustment) (After Screen Adjustment)
3-6. Press the "S2" button again to release SCREEN Adjust mode.
-6-
ALIGNMENT INSTRUCTIONS
4.The adjustment of FOCUS
4-1. Receive PAL RETMA PATTERN(signal of company:2CH., PAL-B).
4-2. Adjust the picture to best distinct picture of 350 Line by revolve Focus Volume.
5.The adjustment of WHITE BALANCE
5-1. NITSUKI Setting : Set Nitsuki to the `Auto Mode', Reference to the `B', and System to the `PAL'.
5-2. Setting the Normal Stats
5-2-1. Adjust Picture to Normal mode.
5-2-2. Adjust the Gain of Nitsuki to suitability by manual when condition is Normal.
- Adjust the standard illumination take within limit bright of Nitsuki and luminosity
of SET into acount.
- Exhortative Standard illumination, : High 70Cd/m2, LOW BEAM : about 15Cd/m2
5-2-3. Press the [S8]key of SVC remocon to adjustment of Whit Balance.
X=0.288, Y=0.301
5-2-4. Memorize in Nitsuki after Adjustment of White Balance.
5-3. Adjustment of White Balance
5-3-1.Receive Nitsuki signal.
5-3-2.Adjust Picture to Normal mode.
5-3-3.The Adjustment of High Beam : Adjust R-DRIVE and G-DRIVE to R,G,B BAR come to center.
5-3-4.The Adjustment of Low Beam : Adjust R-BIAS and G-BIAS to R,G,B BAR come to center.
5-3-5.Repeat 5-3-3 and 5-3-4 to R,G,B BAR come to within center 1.
6.The adjustment of GEOMETRY
6-1. Press the [S-6]key on the SVC remocon to call up the Geometry mode.
And then, Geometry OSD will be displayed.
6-1-1. All adjustment is base on PAL(50Hz),
but it can be base on NTSC(60Hz) in case of need.
6-2. The adjustment of VERTICAL CENTER
6-2-1.Receive PAL RETMA pattern(signal of company:PAL-B 2CH).
6-2-2.Press the PR up/down Keys( ) to select V CENTER.
Adjust with Vol Up/Down ( ) keys so that the center mark of the CRT may be located on
the horizontal line in the middle of the pattern. In case of no center mark, adjust with
Vol Up/Down ( ) keys to obtain a vertically symmetrical pattern.
-7-
ALIGNMENT INSTRUCTIONS
6-3. The adjustment of VERTICAL SIZE
6-3-1. Receive PAL RETMA pattern(signal of company:PAL-B 2CH).
6-3-2. Press the PR up/down Keys ( ) to select V-SIZE.
Adjust with Vol Up/Down ( ) keys so that the upper and the lower of RETMA
pattern may be located at the boundaries of the screen.
6-4. The adjustment of HORIZONTAL CENTER
6-4-1. Receive PAL RETMA pattern(signal of company:PAL-B 2CH).
6-4-2. Press the PR up/down Keys ( ) to select V-SIZE.
Referring to the both side scales, adjust with Vol Up/Down ( ) keys
so that RETMA pattern may be symmetrical.
6-5. The adjustment of Vertical Linearity
6-5-1. Receive PAL CROSSHATCH pattern(signal of company:PAL-B 5CH).
6-5-2. Fix adjustment of Vertical Linearity after EEPROM presetting,
but it can be adjusted in case of need.
6-5-3. Press the PR up/down Keys ( ) to select V LINEAR.
Adjust Vertical Linearity with Vol Up/Down ( ) keys.
6-6. The adjustment of VERTICAL S-Correction
6-6-1. Receive PAL CROSSHATCH pattern(signal of company:PAL-B 5CH).
6-6-2. Fix adjustment of Vertical S-Correction after EEPROM DATA presetting,
but it can be adjusted in case of need.
6-6-3. Press the PR up/down Keys ( ) to select S CORRECT.
Adjust S-Corrction with Vol Up/Down ( ) keys.
-8-
ALIGNMENT INSTRUCTIONS
7. THE ADJUSTMENT OF SUB-PICTURE (SUB-BRIGHT,SUB-CONTRAST)
7-1. Receive PAL RETMA PATTERN(signal of company:2CH., PAL-B)
7-2. Press the [S9] KEY of SVC Remocon, BRM OSD wil be displayed.
7-3. The adjustment of SUB-BRIGHT
7-3-1. Press the PR up/down Keys ( ) to select SUB-BRIGHT in SUB-PICTURE MENU.
Adjust SUB-BRIGHT with Vol Up/Down ( ) keys.
7-3-2. Adjust With BRM, When SUB-BRIGHT is lacking in margin of adjustment.
7-3-3. Standard of adjustment : Adjust till instant of 1, 2th cordon disappear in
RETMA CONTRAST CHART(signal of company).
7-3-4. When Sub-Picture mode was exited after SUB's adjustment, Normal vlaue is
brighter(about 18%) than adjustment-point(about 10%) of adjustment-mode because
BRIGHT is set to rise 2~3 step.
8. THE ADJUSTMENT OF PIP
8-1. Receive PAL RETMA pattern(signal of company:PAL-B 2CH) and Color Bar.
8-2. Press the [S7] KEY of SVC Remocon, PIP-Adjustment OSD wil be displayed.
8-3. Fix adjustment of PIP after EEPROM DATA presetting,
but it can be adjusted in case of need.
8-4. Adjust PIP after GEOMETRY, WHITE BALANCE and SUB-BRIGHT are adjusted.
8-5. List of adjustment
1 PIP H POSITON : Adjustment of H-position Sub-Picture,
(Reference : Presetting Value of EEPROM = 45)
2 PIP V POSITON : Adjustment of V-position of Sub-Picture,
(Reference : Presetting Value of EEPROM = 30)
3 PIP R/G/B Peak : Adjustment of Gain of PIP IC R,G,B Output
(Reference : Presetting Value of EEPROM = 130)
4 P CONTRAST : Adjustment of AC Gain(Contrast) of PIP IC RGB Output
(Reference : Presetting Value of EEPROM = 04)
5 P BRIGHT : Adjustment of DC Level(SUB BRIGHT) of PIP IC RGB Output
(Reference : Presetting Value of EEPROM = 00)
-9-
ALIGNMENT INSTRUCTIONS
9. REMOCON
9-1. SERVICE REMOCON 9-2. USER REMOCON
POWER
RECALL MUTE
S1 S2 S3
S4 S5 S6
S7 S8 S9
S10 S12
S11
TV/CATV ADD/ERASE TV/VIDEO
NOISE CLEAR
SOUND MODE SURROUND
CH
MENU
VOL VOL
CH
PIP POSITION M/S
PAUSE/ CH VOL
TV/VIDEO STILL
V-
POSITION SIZE SLEEP 1 2
3 4 5 6
7 8 9 0
R-34SVC
9-3. SERVICE REMOCON
1) Enter SERVICE MODE : Press keys of User Remocon, as follows.
Ch91, Sharpness 0, Skip(red), Move(green), Menu.
2) Choice SERVICE MENU : Pr-Up/Down
3) Enter SERVICE SUB MENU : Vol-Up/Down
4) Adjust SERVICE MENU : Vol-Up/Down
-10-
6. ELECTRICAL PA RT L S
S IT
DTC-21D9ME
LOC PART CODE PART NAME DESCRIPTION QTY LOC PART CODE PART NAME DESCRIPTION QTY
ZZ100 TRANSMITTER REMOCON 48B4844C13 R-44C13 (AA) 1 CC302 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1
0100 BATTERY 4850Q00810 R6P/LN 2 CC304 C CHIP CERA HCBK103KBA 50V X7R 0.01MF K 1608 1
ZZ131 CRT GROUND NET 48519A5310 2101S-1015-1P 1 CC306 C CHIP CERA HCBK103KBA 50V X7R 0.01MF K 1608 1
ZZ132 COIL DEGAUSSING 58G0000147 DC-21SF 1 CC310 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1
V901 CRT 4859640860 A51AEZ90X27 P38 1 CC414 C CHIP CERA HCQK101JBA 50V CH 100PF J 1608 1
P601A CONNECTOR 4850704S31 YH025-04+YRT205+ULW800400 1 CC505 C CHIP CERA HCBK473KBA 50V X7R 0.047MF K 1608 1
SP01 SPEAKER 4858311110 12W 8 OHM SP-58126F 1 CC508 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1
SP02 SPEAKER 4858311110 12W 8 OHM SP-58126F 1 CC515 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1
C403 C MYLAR CMYH3C722J 1.6KV BUP 7200PF J 1 CC521 C CHIP CERA HCQK151JBA 50V CH 150PF J 1608 1
C407 C MYLAR CMYE2D274J 200V PU 0.27MF J 1 CC523 C CHIP CERA HCBH104KBA 25V X7R 0.1MF K 1608 1
C801 C LINE ACROSS CL1UC3474M 0.47MF 1J(UCVSNDF/SV)+Q/O 1 CC525 C CHIP CERA HCBH104KBA 25V X7R 0.1MF K 1608 1
C804 C ELECTRO CEYD2W151D 450V FHS 150MF (25X40) 1 CC530 C CHIP CERA HCBH104KBA 25V X7R 0.1MF K 1608 1
C811 C CERA AC CH1BFE222M U/C/V AC400V 2200PF 1 CC531 C CHIP CERA HCQK309CBA CH 50V 3PF C 1608 1
D809 DIODE DRGP30J--- RGP30J DO-201AD 600V 3A 1 CC532 C CHIP CERA HCQK309CBA CH 50V 3PF C 1608 1
D813 DIODE DRGP30J--- RGP30J DO-201AD 600V 3A 1 CC533 C CHIP CERA HCQK221JBA 50V CH 220PF J 1608 1
D817 DIODE DRGP30J--- RGP30J DO-201AD 600V 3A 1 CC534 C CHIP CERA HCQK221JBA 50V CH 220PF J 1608 1
DE01 LED HOLDER AS DLH2PR5MH3 LH-2P-R-5M-H3 1 CC535 C CHIP CERA HCBK103KBA 50V X7R 0.01MF K 1608 1
HP01 JACK EARPHONE 4859102130 YSC-1537 1 CC546 C CHIP CERA HCBH104KBA 25V X7R 0.1MF K 1608 1
I301 IC VERTICAL 1LA78041-- LA78041 1 CC607 C CHIP CERA HCBH104KBA 25V X7R 0.1MF K 1608 1
I301A HEAT SINK 4857027100 SPCC T1.0+SN 1 CC608 C CHIP CERA HCBH104KBA 25V X7R 0.1MF K 1608 1
I301B SCREW TAPPTITE 7174300811 TT2 RND 3X8 MFZN 1 CC609 C CHIP CERA HCBH104KBA 25V X7R 0.1MF K 1608 1
I501 IC MICOM 1DW3832GB1 VCT3832-GB1 1 CC611 C CHIP CERA HCBH104KBA 25V X7R 0.1MF K 1608 1
I601 IC AUDIO AMP 1TDA8946J- TDA8946J 1 CC612 C CHIP CERA HCBH104KBA 25V X7R 0.1MF K 1608 1
I601A HEAT SINK 4857028217 AL EX 1 CC613 C CHIP CERA HCBK562KBA X7R 50V 5600PF K 1608 1
I601B SCREW TAPPTITE 7174301011 TT2 RND 3X10 MFZN 2 CC614 C CHIP CERA HCBK562KBA X7R 50V 5600PF K 1608 1
I602 IC AUDIO PROCESSOR 1TDA7442-- TDA7442 1 CC618 C CHIP CERA HCBK562KBA X7R 50V 5600PF K 1608 1
I701 IC MEMORY 1CAT24C32P CAT24WC32P 1 CC619 C CHIP CERA HCBK562KBA X7R 50V 5600PF K 1608 1
I801 IC POWER 1STRW6754- STR-W6754 1 CC623 C CHIP CERA HCBK103KBA 50V X7R 0.01MF K 1608 1
I801A HEAT SINK 4857026120 AL EX BK 1 CC624 C CHIP CERA HCFF224ZBA 16V Y5V 0.22MF Z 1608 1
I801B SCREW TAPPTITE 7174300811 TT2 RND 3X8 MFZN 1 CC625 C CHIP CERA HCFF224ZBA 16V Y5V 0.22MF Z 1608 1
I804 IC REGULATOR 1L7805CV-- L7805CV 1 CC626 C CHIP CERA HCFF224ZBA 16V Y5V 0.22MF Z 1608 1
I901 IC VIDEO AMP 1TDA6107Q- TDA6107Q 1 CC628 C CHIP CERA HCFF224ZBA 16V Y5V 0.22MF Z 1608 1
I901A HEAT SINK 4857031300 A1050P-H24 T1.6 1 CC637 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1
I901B SCREW TAPPTITE 7174301011 TT2 RND 3X10 MFZN 1 CC638 C CHIP CERA HCBK472KBA 50V X7R 4700PF K 1608 1
ID01 IC PHOTO SENSOR 1PNA4603H- PNA4603H 1 CC639 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1
IF01 IC PREAMP 1TS0P1238W TS0P1238WI1 1 CC640 C CHIP CERA HCBK472KBA 50V X7R 4700PF K 1608 1
JP01 JACK PIN BOARD 4859110950 YS01-0001 1 CCA01 C CHIP CERA HCQK221JBA 50V CH 220PF J 1608 1
JP02 JACK PIN BOARD 4859108450 YSC03P-4120-14A 1 CCA02 C CHIP CERA HCQK221JBA 50V CH 220PF J 1608 1
JP03 JACK PIN BOARD 4859111750 PH-JB-9515 1 CCA04 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1
L401 COIL H-LINEARITY 58H0000020 L-76(76.5UH) 1 CCA05 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1
LF801 FILTER LINE 5PLF24A1-- LF-24A1 1 CCA08 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1
P401 CONN WAFER 4859240120 YFW500-06 1 CCA10 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1
P901 CONNECTOR 4850708N08 BIC-08T-25T+C-20T+ULW=400 1 CCA12 C CHIP CERA HCQK221JBA 50V CH 220PF J 1608 1
PD01A CONNECTOR 4850703S18 YH025-03+YBNH250+ULW=200 1 CCA14 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1
PW801 CORD POWER AS 4859903110 KKP-419J-H03VVH2+H0U=2200 1 CCA16 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1
Q402 TR HORI TST1803DH- ST1803DHI 1 CCA17 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1
Q402A HEAT SINK 4857027200 AL T1.0 1 CCA20 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1
Q402B SCREW TAPPTITE 7174301011 TT2 RND 3X10 MFZN 1 CCD01 C CHIP CERA HCBH104KBA 25V X7R 0.1MF K 1608 1
R801 POSISTOR DDC7R0M290 ECPCD7R0M290 1 CCP01 C CHIP CERA HCQK240JBA 50V CH 24PF J 1608 1
R802 R CEMENT RX07B229JP 7W 2.2 OHM J BEN 15MM 4P 1 CCP02 C CHIP CERA HCQK240JBA 50V CH 24PF J 1608 1
SCT01 SOCKET CRT 4859304130 ISHG93S 1 CCP05 C CHIP CERA HCBK103KBA 50V X7R 0.01MF K 1608 1
SW801 SW POWER PUSH 5S40101143 PS3-22SP (P.C.B) 1 CCP12 C CHIP CERA HCBK103KBA 50V X7R 0.01MF K 1608 1
T401 FBT 50H0000256 FFA69023M 1 CCP14 C CHIP CERA HCQK561JBA 50V CH 560PF J 1608 1
T402 TRANS DRIVE 50D10A3--- TD-10A3 1 CCP16 C CHIP CERA HCBK103KBA 50V X7R 0.01MF K 1608 1
T801 TRANS SMPS 50M4042B3- TSM-4042B3 1 CCP20 C CHIP CERA HCBK103KBA 50V X7R 0.01MF K 1608 1
U100 TUNER VARACTOR 4859723730 TMDG1-837 1 CCP22 C CHIP CERA HCQK561JBA 50V CH 560PF J 1608 1
X501 CRYSTAL QUARTZ 5XE20R250E HC-49/U 20.2500MHZ 30PPM 1 I802 IC CHIP PHOTO COUPLER1LTV817C-Q LTV-817C TRAY 1
XP01 CRYSTAL QUARTZ 5XE20R250E HC-49/U 20.2500MHZ 30PPM 1 IP01 IC CHIP PIP 1SDA9488XE SDA9488X 1
CC105 C CHIP CERA HCQK221JBA 50V CH 220PF J 1608 1 RC102 R CHIP HRFT101JBA 1/10 100 OHM J 1608 1
CC106 C CHIP CERA HCQK221JBA 50V CH 220PF J 1608 1 RC103 R CHIP HRFT101JBA 1/10 100 OHM J 1608 1
CC301 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1 RC106 R CHIP HRFT102JBA 1/10 1K OHM J 1608 1
-11-
ELECTRICAL PA RT L S
S IT
LOC PART CODE PART NAME DESCRIPTION QTY LOC PART CODE PART NAME DESCRIPTION QTY
RC107 R CHIP HRFT512JBA 1/10 5.1K OHM J 1608 1 RCP07 R CHIP HRFT221JBA 1/10 220 OHM J 1608 1
RC108 R CHIP HRFT221JBA 1/10 220 OHM J 1608 1 ZZ200 PCB MAIN (RHU) AS PTMPJ0D837 DTR-21D9ME 1
RC109 R CHIP HRFT331JBA 1/10 330 OHM J 1608 1 C103 C ELECTRO CEXF1C222V 16V RSS 2200MF (16X31.5) TP 1
RC111 R CHIP HRFT221JBA 1/10 220 OHM J 1608 1 C311 C ELECTRO CEXF1E471V 25V RSS 470MF (10X16) TP 1
RC112 R CHIP HRFT331JBA 1/10 330 OHM J 1608 1 C312 C ELECTRO CEXF1E471V 25V RSS 470MF (10X16) TP 1
RC114 R CHIP HRFT330JBA 1/10 33 OHM J 1608 1 C410 C ELECTRO CEXF2E100V 250V RSS 10MF (10X20) TP 1
RC127 R CHIP HRFT101JBA 1/10 100 OHM J 1608 1 C522 C ELECTRO CEXF1C471V 16V RSS 470MF (8X12)TP 1
RC305 R CHIP HRFT471JBA 1/10 470 OHM J 1608 1 C545 C ELECTRO CEXF1C471V 16V RSS 470MF (8X12)TP 1
RC306 R CHIP HRFT152JBA 1/10 1.5K OHM J 1608 1 C805 C CERA CCXR3D681K 2KV R 680PF K 125C 1
RC503 R CHIP HRFT101JBA 1/10 100 OHM J 1608 1 C812 C CERA SEMI CBXB3D471K 2KV BL(N) 470PF K (T) 1
RC506 R CHIP HRFT203JBA 1/10 20K OHM J 1608 1 C813 C ELECTRO CEXF2C101V 160V RSS 100MF (16X25) TP 1
RC508 R CHIP HRFT103JBA 1/10 10K OHM J 1608 1 C814 C ELECTRO CEXF2C101V 160V RSS 100MF (16X25) TP 1
RC511 R CHIP HRFT122JBA 1/10 1.2K OHM J 1608 1 C816 C ELECTRO CEXF1C222V 16V RSS 2200MF (16X31.5) TP 1
RC512 R CHIP HRFT223JBA 1/10 22K OHM J 1608 1 C817 C ELECTRO CEXF1C222V 16V RSS 2200MF (16X31.5) TP 1
RC515 R CHIP HRFT472JBA 1/10 4.7K OHM J 1608 1 C818 C ELECTRO CEXF1E222V 25V RSS 2200MF (16X25) TP 1
RC516 R CHIP HRFT682JBA 1/10 6.8K OHM J 1608 1 C823 C ELECTRO CEXF1C471V 16V RSS 470MF (8X12)TP 1
RC518 R CHIP HRFT103JBA 1/10 10K OHM J 1608 1 C826 C ELECTRO CEXF1C471V 16V RSS 470MF (8X12)TP 1
RC519 R CHIP HRFT471JBA 1/10 470 OHM J 1608 1 C827 C ELECTRO CEXF1C471V 16V RSS 470MF (8X12)TP 1
RC520 R CHIP HRFT271JBA 1/10 270 OHM J 1608 1 C902 C CERA SEMI CBXB3D102K 2KV BL(N) 1000PF K (T) 1
RC522 R CHIP HRFT472JBA 1/10 4.7K OHM J 1608 1 ZZ200 PCB MAIN M-10 AS PTMPJBD837 DTR-21D9ME 1
RC528 R CHIP HRFT562JBA 1/10 5.6K OHM J 1608 1 10 TAPE MASKING 2TM18006BE 6.2X500 0.38
RC533 R CHIP HRFT102JBA 1/10 1K OHM J 1608 1 E401 EYE LET 4856310600 BSR T0.2 (R2.3) 1
RC534 R CHIP HRFT220JBA 1/10W 22 OHM J 1608 1 E402 EYE LET 4856310600 BSR T0.2 (R2.3) 1
RC547 R CHIP HRFT182JBA 1/10 1.8K OHM J 1608 1 E403 EYE LET 4856310600 BSR T0.2 (R2.3) 1
RC548 R CHIP HRFT223JBA 1/10 22K OHM J 1608 1 E404 EYE LET 4856310600 BSR T0.2 (R2.3) 1
RC602 R CHIP HRFT431JBA 1/10 430 OHM J 1608 1 E405 EYE LET 4856310600 BSR T0.2 (R2.3) 1
RC603 R CHIP HRFT562JBA 1/10 5.6K OHM J 1608 1 E406 EYE LET 4856310600 BSR T0.2 (R2.3) 1
RC604 R CHIP HRFT102JBA 1/10 1K OHM J 1608 1 E407 EYE LET 4856310600 BSR T0.2 (R2.3) 1
RC611 R CHIP HRFT133JBA 1/10 13K OHM J 1608 1 E409 EYE LET 4856310300 BSR T0.2 (R1.6) 1
RC612 R CHIP HRFT133JBA 1/10 13K OHM J 1608 1 E410 EYE LET 4856310300 BSR T0.2 (R1.6) 1
RC614 R CHIP HRFT223JBA 1/10 22K OHM J 1608 1 E411 EYE LET 4856310300 BSR T0.2 (R1.6) 1
RC615 R CHIP HRFT221JBA 1/10 220 OHM J 1608 1 E412 EYE LET 4856310300 BSR T0.2 (R1.6) 1
RC619 R CHIP HRFT829JBA 1/10 8.2 OHM J 1608 1 E413 EYE LET 4856310300 BSR T0.2 (R1.6) 1
RC620 R CHIP HRFT829JBA 1/10 8.2 OHM J 1608 1 E414 EYE LET 4856310300 BSR T0.2 (R1.6) 1
RC621 R CHIP HRFT829JBA 1/10 8.2 OHM J 1608 1 E415 EYE LET 4856310300 BSR T0.2 (R1.6) 1
RC698 R CHIP HRFT102JBA 1/10 1K OHM J 1608 1 E416 EYE LET 4856310300 BSR T0.2 (R1.6) 1
RC699 R CHIP HRFT102JBA 1/10 1K OHM J 1608 1 E417 EYE LET 4856310300 BSR T0.2 (R1.6) 1
RC814 R CHIP HRFT103JBA 1/10 10K OHM J 1608 1 E601 EYE LET 4856310600 BSR T0.2 (R2.3) 1
RC815 R CHIP HRFT102JBA 1/10 1K OHM J 1608 1 E602 EYE LET 4856310600 BSR T0.2 (R2.3) 1
RC819 R CHIP HRFT103JBA 1/10 10K OHM J 1608 1 E801 EYE LET 4856310600 BSR T0.2 (R2.3) 1
RC820 R CHIP HRFT103JBA 1/10 10K OHM J 1608 1 E802 EYE LET 4856310600 BSR T0.2 (R2.3) 1
RC832 R CHIP HRFT222JBA 1/10 2.2K OHM J 1608 1 E803 EYE LET 4856310300 BSR T0.2 (R1.6) 1
RC835 R CHIP HRFT561JBA 1/10 560 OHM J 1608 1 E804 EYE LET 4856310300 BSR T0.2 (R1.6) 1
RC838 R CHIP HRFT331JBA 1/10 330 OHM J 1608 1 E805 EYE LET 4856310300 BSR T0.2 (R1.6) 1
RC843 R CHIP HRFT471JBA 1/10 470 OHM J 1608 1 E806 EYE LET 4856310600 BSR T0.2 (R2.3) 1
RC844 R CHIP HRFT221JBA 1/10 220 OHM J 1608 1 E807 EYE LET 4856310600 BSR T0.2 (R2.3) 1
RC845 R CHIP HRFT102JBA 1/10 1K OHM J 1608 1 E808 EYE LET 4856310300 BSR T0.2 (R1.6) 1
RC899 R CHIP HRFT301JBA 1/10 300 OHM J 1608 1 E809 EYE LET 4856310600 BSR T0.2 (R2.3) 1
RC902 R CHIP HRFT101JBA 1/10 100 OHM J 1608 1 E810 EYE LET 4856310600 BSR T0.2 (R2.3) 1
RC903 R CHIP HRFT101JBA 1/10 100 OHM J 1608 1 E811 EYE LET 4856310300 BSR T0.2 (R1.6) 1
RCA01 R CHIP HRFT820JBA 1/10 82 OHM J 1608 1 E812 EYE LET 4856310600 BSR T0.2 (R2.3) 1
RCA03 R CHIP HRFT820JBA 1/10 82 OHM J 1608 1 E813 EYE LET 4856310600 BSR T0.2 (R2.3) 1
RCA05 R CHIP HRFT820JBA 1/10 82 OHM J 1608 1 E814 EYE LET 4856310600 BSR T0.2 (R2.3) 1
RCA07 R CHIP HRFT102JBA 1/10 1K OHM J 1608 1 E815 EYE LET 4856310600 BSR T0.2 (R2.3) 1
RCA09 R CHIP HRFT820JBA 1/10 82 OHM J 1608 1 E816 EYE LET 4856310600 BSR T0.2 (R2.3) 1
RCA15 R CHIP HRFT101JBA 1/10 100 OHM J 1608 1 E817 EYE LET 4856310600 BSR T0.2 (R2.3) 1
RCD01 R CHIP HRFT511JBA 1/10 510 OHM J 1608 1 N801 TERM PIN 4857417500 DA-IB0214(D2.3/DY PIN) 1
RCD02 R CHIP HRFT222JBA 1/10 2.2K OHM J 1608 1 N802 TERM PIN 4857417500 DA-IB0214(D2.3/DY PIN) 1
RCF71 R CHIP HRFT102JBA 1/10 1K OHM J 1608 1 N803 TERM PIN 4857417500 DA-IB0214(D2.3/DY PIN) 1
RCF75 R CHIP HRFT152JBA 1/10 1.5K OHM J 1608 1 N804 TERM PIN 4857417500 DA-IB0214(D2.3/DY PIN) 1
RCF76 R CHIP HRFT822JBA 1/10 8.2K OHM J 1608 1 P601 CONN WAFER 485923172S YW025-04 (STICK) 1
-12-
ELECTRICAL PA RT L S
S IT
LOC PART CODE PART NAME DESCRIPTION QTY LOC PART CODE PART NAME DESCRIPTION QTY
PD01 CONN WAFER 485923162S YW025-03 (STICK) 1 C802 C CERA CCXF3A472Z 1KV F 4700PF Z (T) 1
R308 R M-OXIDE FILM RS02Z221JS 2W 220 OHM J SMALL 1 C803 C CERA CCXF3A472Z 1KV F 4700PF Z (T) 1
R313 R M-OXIDE FILM RS02Z229JS 2W 2.2 OHM J SMALL 1 C806 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1
R314 R M-OXIDE FILM RS02Z229JS 2W 2.2 OHM J SMALL 1 C807 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1
R403 R M-OXIDE FILM RS02Z102JS 2W 1K OHM J SMALL 1 C808 C CERA CCXB1H471K 50V B 470PF K (TAPPING) 1
R405 R M-OXIDE FILM RS02Z102JS 2W 1K OHM J SMALL 1 C815 C ELECTRO CEXF2A100V 100V RSS 10MF (6.3X11) TP 1
R406 R M-OXIDE FILM RS02Z103JS 2W 10K OHM J SMALL 1 C819 C MYLAR CMXL2E104K 250V MEU 0.1MF K 1
R408 R M-OXIDE FILM RS02Z100JS 2W 10 OHM J SMALL 1 C820 C MYLAR CMXM2A104J 100V 0.1MF J (TP) 1
R411 R M-OXIDE FILM RS02Z309JS 2W 3 OHM J SMALL 1 C822 C ELECTRO CEXF1C221V 16V RSS 220MF (8X11.5) TP 1
R805 R M-OXIDE FILM RS02Z228JS 2W 0.22 OHM J SMALL 1 C825 C ELECTRO CEXF1C221V 16V RSS 220MF (8X11.5) TP 1
R828 R M-OXIDE FILM RS02Z220JS 2W 22 0HM J SMALL 1 C901 C MYLAR CMXL2E104K 250V MEU 0.1MF K 1
R831 R M-OXIDE FILM RS02Z100JS 2W 10 OHM J SMALL 1 CA06 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1
R839 R M-OXIDE FILM RS02Z240JS 2W 24 0HM J SMALL 1 CA07 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1
R840 R M-OXIDE FILM RS02Z240JS 2W 24 0HM J SMALL 1 CA09 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1
ZZ200 PCB MAIN RADIAL AS PTMPJRD837 DTR-21D9ME 1 CA11 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1
C101 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1 CA21 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1
C303 C MYLAR CMXM2A223J 100V 0.022MF J TP 1 CD02 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 1
C305 C CERA CXSL2H100D 500V SL 10PF D (TAPPING) 1 CF01 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 1
C307 C ELECTRO CEXF1H101V 50V RSS 100MF (8X11.5) TP 1 CP06 C ELECTRO CEXF1H470V 50V RSS 47MF (6.3X11) TP 1
C308 C MYLAR CMXM2A104J 100V 0.1MF J (TP) 1 CP07 C CERA CCXB1H103K 50V B 0.01MF K 1
C401 C MYLAR CMXM2A104J 100V 0.1MF J (TP) 1 CP08 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1
C402 C CERA CCXB2H102K 500V B 1000PF K (TAPPING) 1 CP10 C CERA CCXB1H103K 50V B 0.01MF K 1
C405 C CERA CCXB2H561K 500V B 560PF K (TAPPING) 1 CP11 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1
C406 C ELECTRO CEXF2C229V 160V RSS 2.2MF (8X11.5)TP 1 CP13 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1
C411 C CERA CXSL2H470J 500V SL 47PF J (TAPPING) 1 CP17 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP 1
C412 C MYLAR CMXM2A104J 100V 0.1MF J (TP) 1 CP21 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP 1
C501 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP 1 F801 FUSE 5FWPS4022L WIDE TL 250V 4A CASE 1
C504 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1 G901 SPARK GAP 4SG0DX0001 SSG-102-A1(1.0KV) TAP 1
C506 C ELECTRO CEXF1C221V 16V RSS 220MF (8X11.5) TP 1 G902 SPARK GAP 4SG0DX0001 SSG-102-A1(1.0KV) TAP 1
C509 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 G903 SPARK GAP 4SG0DX0001 SSG-102-A1(1.0KV) TAP 1
C510 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 G904 SPARK GAP 4SG0DX0001 SSG-102-A1(1.0KV) TAP 1
C511 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 I803 IC REGULATOR 1H431CA--- H431CA 0.5% TO-92 1
C512 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 L802 COIL CHOKE 58CX430599 AZ-9004Y 940K TP 1
C513 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 Q102 TR TKTC3198Y- KTC3198Y 1
C514 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 Q103 TR TKTC3198Y- KTC3198Y 1
C517 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP 1 Q401 TR TKTC3207-- KTC3207 (TP) 1
C526 C ELECTRO CEXF1H339V 50V RSS 3.3MF (5X11) TP 1 Q403 TR TKTA1266Y- KTA1266Y (TP) 1
C527 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP 1 Q502 TR TKTA1266Y- KTA1266Y (TP) 1
C528 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP 1 Q503 TR TKTA1266Y- KTA1266Y (TP) 1
C529 C ELECTRO CEXF1H220V 50V RSS 22MF (5X11) TP 1 Q504 TR TKTA1266Y- KTA1266Y (TP) 1
C537 C ELECTRO CEXF1C221V 16V RSS 220MF (8X11.5) TP 1 Q505 TR TKTC3198Y- KTC3198Y 1
C538 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 1 Q507 TR TKTA1266Y- KTA1266Y (TP) 1
C539 C CERA CCXB1H471K 50V B 470PF K (TAPPING) 1 Q510 TR TKTA1266Y- KTA1266Y (TP) 1
C540 C CERA CCXB1H471K 50V B 470PF K (TAPPING) 1 Q514 TR TKTC3198Y- KTC3198Y 1
C541 C CERA CCXB1H471K 50V B 470PF K (TAPPING) 1 Q515 TR TKTC3198Y- KTC3198Y 1
C601 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 Q516 TR TKTC3198Y- KTC3198Y 1
C602 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 Q601 TR TKTC3198Y- KTC3198Y 1
C603 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 Q603 TR TKTC3198Y- KTC3198Y 1
C604 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 Q802 TR TKTC3198Y- KTC3198Y 1
C605 C ELECTRO CEXF1H479V 50V RSS 4.7MF (5X11) TP 1 Q803 TR TKTC3198Y- KTC3198Y 1
C606 C ELECTRO CEXF1H479V 50V RSS 4.7MF (5X11) TP 1 Q804 TR TKTA1266Y- KTA1266Y (TP) 1
C615 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1 Q805 TR TKTC3198Y- KTC3198Y 1
C616 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 1 Q806 TR TKTA1281Y- KTA1281Y 1
C620 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 Q807 TR TKTC3198Y- KTC3198Y 1
C621 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 Q808 TR TKTC3205Y- KTC3205Y (TP) 1
C622 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 1 Q809 TR TKTC3205Y- KTC3205Y (TP) 1
C627 C ELECTRO CEXF1H220V 50V RSS 22MF (5X11) TP 1 Q810 TR TKTC3198Y- KTC3198Y 1
C630 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1 Q811 TR TKTC3198Y- KTC3198Y 1
C631 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1 Q812 TR TKTC3198Y- KTC3198Y 1
C636 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1 Q813 TR TKTA1270Y- KTA1270Y (TP) 1
C701 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1 Q814 TR TKTC3198Y- KTC3198Y 1
-13-
ELECTRICAL PA RT L S
S IT
LOC PART CODE PART NAME DESCRIPTION QTY LOC PART CODE PART NAME DESCRIPTION QTY
Q899 TR TKTC3198Y- KTC3198Y 1 D803 DIODE DLT2A05G-- LT2A05G (TP) 1
QA01 TR TKTC3198Y- KTC3198Y 1 D804 DIODE DLT2A05G-- LT2A05G (TP) 1
QE01 TR TKTC3198Y- KTC3198Y 1 D805 DIODE D1N4937G-- 1N4937G (TAPPING) 1
R824 R METAL FILM RN02B390JS 2W 39 OHM J SMALL 1 D806 DIODE D1N4937G-- 1N4937G (TAPPING) 1
R825 R METAL FILM RN02B390JS 2W 39 OHM J SMALL 1 D807 DIODE D1N4937G-- 1N4937G (TAPPING) 1
R826 R METAL FILM RN02B390JS 2W 39 OHM J SMALL 1 D808 DIODE ZENER DUZ6R2BM-- UZ-6.2BM 1
R827 R METAL FILM RN02B390JS 2W 39 OHM J SMALL 1 D811 DIODE D1N4937G-- 1N4937G (TAPPING) 1
R829 R METAL FILM RN02B569JS 2W 5.6 OHM J SMALL 1 D814 DIODE ZENER DUZ5R1B--- UZ-5.1B 1
R904 R METAL FILM RN01B101JS 1W 100 OHM J SMALL 1 D815 DIODE D1N4148--- 1N4148 (TAPPING) 1
SW701 SW TACT 5S50101090 THVH472GCA 1 D816 DIODE ZENER DUZ2R7B--- UZ-2.7B 1
SW702 SW TACT 5S50101090 THVH472GCA 1 D818 DIODE ZENER DUZ5R6BM-- UZ-5.6BM 1
SW703 SW TACT 5S50101090 THVH472GCA 1 D819 DIODE D1N4937G-- 1N4937G (TAPPING) 1
SW704 SW TACT 5S50101090 THVH472GCA 1 D820 DIODE ZENER DUZ2R7B--- UZ-2.7B 1
SW705 SW TACT 5S50101090 THVH472GCA 1 D898 DIODE D1N4148--- 1N4148 (TAPPING) 1
SW706 SW TACT 5S50101090 THVH472GCA 1 D899 DIODE ZENER DUZ9R1BM-- UZ-9.1BM 1
ZZ200 PCB MAIN AXIAL AS PTMPJAD837 DTR-21D9ME 1 J001 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
10 TAPE MASKING 2TM14006LB 3M #232 6.0X2000M 3.89 J002 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
20 TAPE MASKING 2TM10006LB 3M #232-MAP-C 6.2X2000M 3.89 J003 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
A001 PCB MAIN 4859804896 330X246 C1B 1 J004 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
C408 C CERA SEMI CBZF1H104Z 50V F 0.1MF Z 1 J005 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
C518 C CERA CCZF1H473Z 50V F 0.047MF Z 1 J006 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
C519 C CERA CCZF1H473Z 50V F 0.047MF Z 1 J007 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
C520 C CERA CCZF1H473Z 50V F 0.047MF Z 1 J008 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
C610 C CERA SEMI CBZF1H104Z 50V F 0.1MF Z 1 J009 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
C632 C CERA SEMI CBZF1H104Z 50V F 0.1MF Z 1 J010 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
C633 C CERA SEMI CBZF1H104Z 50V F 0.1MF Z 1 J012 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
C634 C CERA SEMI CBZF1H104Z 50V F 0.1MF Z 1 J015 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
C635 C CERA SEMI CBZF1H104Z 50V F 0.1MF Z 1 J016 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
C809 C CERA CCZF1H473Z 50V F 0.047MF Z 1 J017 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
C810 C CERA CCZB1H821K 50V B 820PF K AXIAL 1 J018 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
CA03 C CERA CCZB1H221K 50V B 220PF K (AXIAL) 1 J019 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
CA13 C CERA CCZB1H221K 50V B 220PF K (AXIAL) 1 J020 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
CA15 C CERA CCZB1H102K 50V B 1000PF K (AXIAL) 1 J021 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
CP15 C CERA CCZF1H473Z 50V F 0.047MF Z 1 J022 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
CP18 C CERA CCZB1H561K 50V B 560PF K 1 J023 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
CP19 C CERA CCZF1H473Z 50V F 0.047MF Z 1 J025 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
CP23 C CERA CCZF1H473Z 50V F 0.047MF Z 1 J026 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
D101 DIODE ZENER DUZ33B---- UZ-33B 1 J027 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
D301 DIODE D1N4004S-- 1N4004S 1 J028 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
D302 DIODE D1N4937G-- 1N4937G (TAPPING) 1 J029 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
D303 DIODE D1N4937G-- 1N4937G (TAPPING) 1 J030 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
D304 DIODE D1N4148--- 1N4148 (TAPPING) 1 J031 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
D305 DIODE D1N4148--- 1N4148 (TAPPING) 1 J032 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
D401 DIODE D1N4937G-- 1N4937G (TAPPING) 1 J033 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
D402 DIODE D1N4148--- 1N4148 (TAPPING) 1 J034 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
D403 DIODE D1N4148--- 1N4148 (TAPPING) 1 J035 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
D404 DIODE D1N4937G-- 1N4937G (TAPPING) 1 J036 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
D501 DIODE D1N4148--- 1N4148 (TAPPING) 1 J037 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
D502 DIODE ZENER DUZ2R7B--- UZ-2.7B 1 J038 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
D503 DIODE D1N4148--- 1N4148 (TAPPING) 1 J039 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
D504 DIODE D1N4148--- 1N4148 (TAPPING) 1 J040 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
D505 DIODE ZENER DUZ5R6BM-- UZ-5.6BM 1 J041 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
D506 DIODE D1N4148--- 1N4148 (TAPPING) 1 J042 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
D507 DIODE D1N4148--- 1N4148 (TAPPING) 1 J043 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
D508 DIODE D1N4148--- 1N4148 (TAPPING) 1 J044 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
D511 DIODE D1N4148--- 1N4148 (TAPPING) 1 J045 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
D512 DIODE D1N4148--- 1N4148 (TAPPING) 1 J046 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
D513 DIODE D1N4148--- 1N4148 (TAPPING) 1 J047 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
D514 DIODE D1N4148--- 1N4148 (TAPPING) 1 J048 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
D801 DIODE DLT2A05G-- LT2A05G (TP) 1 J049 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
D802 DIODE DLT2A05G-- LT2A05G (TP) 1 J050 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
-14-
ELECTRICAL PA RT L S
S IT
LOC PART CODE PART NAME DESCRIPTION QTY LOC PART CODE PART NAME DESCRIPTION QTY
J051 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J217 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J052 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J218 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J053 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J219 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J054 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J230 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J055 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J231 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J056 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J232 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J057 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J233 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J058 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J234 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J059 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J235 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J060 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J236 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J061 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J237 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J062 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J238 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J063 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J239 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J064 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J240 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J065 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J241 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J066 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J242 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J067 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J243 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J068 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J244 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J069 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J245 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J070 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J246 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J071 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J247 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J072 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J248 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J073 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J249 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J074 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J250 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J075 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J251 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J076 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J252 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J077 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J253 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J078 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J255 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J079 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J256 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J080 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J257 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J081 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J258 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J082 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J259 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J083 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J260 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J084 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J261 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J085 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J262 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J086 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J263 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J087 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J401 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J088 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J402 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J089 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J403 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05
J090 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J404 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.0◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
