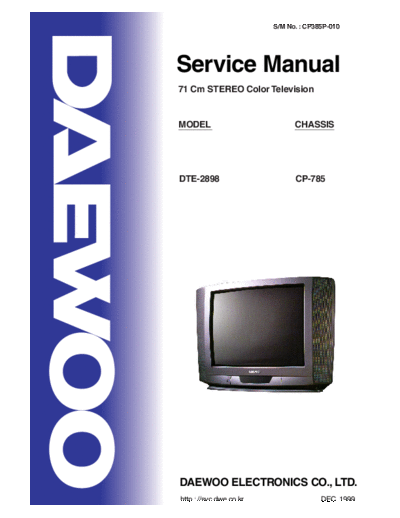

Image preview - the first page of the document



>> Download CP-785 documenatation <<

Text preview - extract from the document

                         S/M No. : CP385P-010




Service Manual
71 Cm STEREO Color Television


MODEL                          CHASSIS




DTE-2898                       CP-785




DAEWOO ELECTRONICS CO., LTD.
http : //svc.dwe.co.kr                 DEC. 1999
1-1 Specifications


TV standard                 PAL - SECAM B/G D/K, PAL I/I, SECAM L/L'
Sound system                NICAM B/G, I, D/K, L,
                            FM 2Carrier B/G, D/K
Power consumption
                            28" : 75 W approx.
Sound Output Power
                            28" : 7W x 2 (at 60% mod, 10%THD)
Speaker
                            28" : 12W 8 ohm x2
Teletext system             10 pages memory FASTEXT (FLOF or TOP)
Aerial input                75 ohm unbalanced
Channel coverage            Off-air channels, S-cable channels and hyperband
Tuning system               frequency synthesiser tuning system
Visual screen size


                            28" : 66cm
Channel indication          On Screen Display
Program Selection           100 programmes
Aux. terminal               EURO-SCART 1 : Audio / Video In and Out, R/G/B In, Slow and
                            Fast switching.
                            EURO-SCART 2 : Audio / Video In, SVHS In.
                            Audio-Video Jack on front of cabinet in common connection with
                            EURO-SCART 2.
                            Headphone jack (3.5 mm) on front of cabinet
Remote Control Unit         R-40A01


21 Pin EURO-SCART 1 :

Pin    Signal Description     Matching value
1      Audio Output Right     0.5 Vrms, Impedance < 1 k, ( RF 54% Mod )
2      Audio Input Right      0.5 Vrms, Impedance > 10 k
3      Audio Output Left      0.5 Vrms, Impedance < 1 k, ( RF 54% Mod )
4      Audio Earth
5      Blue Earth
6      Audio Input Left       0.5 Vrms, Impedance > 10 k
7      Blue Input             0.7 Vpp
