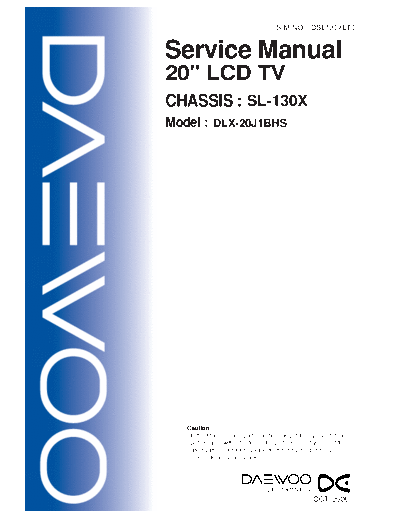

Image preview - the first page of the document
>> Download SL-130X documenatation <<
Text preview - extract from the document
S/M NO. : DSL130XEF0
Service Manual
20" LCD TV
CHASSIS : SL-130X
Model : DLX-20J1BHS
Caution
: In this Manual, some parts can be changed for improving. their
performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List)in
Service Information Center.
OCT. 2006
Contents
I. Parts with the exception of MODULE
1. Safety Precaution 3
2. Product Specification 4
3. Block Diagram 5
4. Description of video circuit 8
5. Schematic Diagram 9
6. PCB Data 15
7. Trouble Shooting 17
8. Service Part List 25
8-1 Service Part List 25
9. Power 30
10. Inverter 31
11. Exploded View 33
11-1 DLX-20J1 33
SOFTWARE INSTALL & UPGRADE
-2-
1. Safety Precautions
(1) When moving or laying down a LCD Set, at least two people must work together. Avoid any
impact towards the LCD Set.
(2) Do not leave a broken LCD Set on for a long time. To prevent any further damages, after
checking the condition of the broken Set, make sure to turn the power (AC) off.
(3) When opening the BACK COVER, you must turn off power (AC) to prevent any electric
shock.
(4) When loosening screws, check the position and type of the screw. Sort out the screws and
store them separately for reassembling. Because screws holding PCBs are working as
electric circuit grounding, make sure to check if any screw is missing when assembling /
reassembling. Do not leave any screws inside the set.
(5) A LCD Set contains different kinds of connector cables. When connecting or disconnecting
cables, check the direction and position of the cable beforehand.
(6) Connect/disconnect the connectors slowly with care especially FFC (film) cables and FPC
cables. Do not connect or disconnect connectors instantaneously with force, and handle
them carefully for reassembling.
(7) Connectors are designed so that if the number of pins or the direction does not match,
connectors will not fit. When having problem in plugging the connectors, check their kind,
position, and direction.
-3-
2. Product Specification
-4-
3. Block Diagram
-5-
10 9 8 7 6 5 4 3 2 1
Block Diagram
LCD_ON
15V
LCD_ON GND GND
5V 9V
ON_OFF I820 I820
ON_OFF IRF7316 IRF7316
I820 I801 ON_OFF I801 I851
IRF7316 IRF7316 IRF7316 APW1172 15V_SW
LG PANEL
+5V_SW +3V3S_SW OPTION
+5V_PANEL +9V_SW I816
LM317 ADJ
U100 I803 I852 12V
20"AUO I807
RF TUNER AP1117E33 I401 KIA78L08F
PANEL BA6161 +12V_PANEL
LA42032 I809 8V
AP1117E18
S/B_3V3
-6-
I405
PI5V330 +8V_SW 20"LG
+1V8_SW 33V_TU
PANEL
I508 I503
I504 U100
I502 DTC34LF SST39VF
TDA9178T RF TUNER
24LC32A 86 020
I501
LOC-1 (TDA15501E)
Block Diagram
-7-
4.Description of Video Circuit
SL-130X video circuit:
Process input signals to produce Output signal
for LCD panel.(J1/D7 : 640 x 480 , W2 : 1366 x 768)
Introduction for main IC
4-1. I501(TDA15521E)
The LCD One Chip 1(LOC 1)series combines the functionsof a Video Signal
Processor(VSP) together with aFLASH embedded main microcontroller(doing TEXT and
TV control)and an LCD
panel controller.In addition the following functions are available:
-Adaptive digital(4H/2H)PAL/NTSC comb filter
-Teletext decoder with 10 page text memory
-Multi-standard stereo decoder
Microconroller
-80C51 microcontroller core standard instruction set and timing
-256k x 8bit program ROM
-8k x 8bitauxiliary RAM
-8bit ADC with 4 multiplexed inputs.
-I2C byte level bus interface
-8-
5. Schematic Diagram
-9-
Schematic Diagram
-10-
Schematic Diagram
-11-
Schematic Diagram
-12-
Schematic Diagram
-13-
Schematic Diagram
-14-
6. PCB Data
TOP
-15-
PCB Data
BOTTOM
-16-
7. Trouble Shooting
* Facts you must know at trouble diagnosis or repairing
(1) The trouble diagnosis and repairing of set means Module .
In other words, find out which PCB modules are not working and replace them with normal
PCB modules.
(2) This TROUBLE SHOOTING list only contains representative and simple PCB trouble
diagnosis and Module Exchange method. Therefore, if you find Sets which are difficult to
diagnose or to repair, contact Daewoo Electronics.
(3) Basic TROUBLE SHOOTING procedure :
Check Trouble Symptoms Detach Back Cover Trouble Diagnosis Replace broken
PCB module Heat-run (for at least 30 minutes, input Test pattern full white) Adjust
white balance Function Check Repair Complete.
(4) Required equipments for trouble diagnosis
- Digital Multi-meter (measure Dc voltage, measure Diode Voltage, Short-Open test)
- Screwdriver (or electric screwdriver), plastic adjusting tool
(5) Before assemble/disassemble PCBs, check to see if AC Switch is OFF.
(6) After Back cover is closed, redo Heat-run for at least one hour by inputting Full white
pattern.
Symptoms of LIPS, power, inverter, panel Trouble
Not even weak discharge (luminescence) shows on screen.
Discharge (luminescence) on screen is unstable
Set is producing unusual noise
Symptoms of VIDEO or JACK PCB Trouble
Only weak discharge (luminescence) shows on screen, but No Data is on
screen
Screen DATA is abnormal
Particular input signal (Video, etc.) does not operate
No SOUND
Remote Control or KEY does not operate
-17-
Trouble Shooting
7-1. When LED doesn't lit.
Check start
Y
Is the AC power cord N Confirm power cord
correctly connected? connection.
Y
N
Is power S/W ON? Confirm Power S/W ON.
Y
Is output voltage of N
Check the power connection.
Power module correct?
Exchange the power module.
(or LIPS)
Y
Check the Main PCB.
-18-
Trouble Shooting
7-2. When TV doesn't turn on in red LED.
Check start
Y
N Is output voltage of N Check the power connection.
Does TV turn on
Power module correct? Exchange the Power module.
pushing the CH key?
(or LIPS)
Y
Y
Check the connection to IR PCB.
Confirm Power S/W ON.
Check the operation of Remote
Controller.
7-3. When "white screen".
Check start
Y
Is P902(TTL) correctly N
Check the connection
connected? Of Panel
Y
N
Is R751,J301(BOE,AUO)
Check the Main PCB
R752,J302 are normal?
Y
Check the connector or Main PCB
-19-
Trouble Shooting
7-4. When "No picture" in TV mode.
Check start
Y
N
Does LED turn on in GREEN? Go to chap 7 - 2
Y
Confirm AC connection.
N Is this weak discharge N Confirm Power SW ON.
Does raster appear? On the screen? Check the power,
Inverter and panel
Y
Y
Does auto - tuning N
Function operate Is input of YUV normal?
Check I504
normally? (I501, A15, B14, B15)
Y Y
Tune the channel N
Is input of RGB normal? Check RA80,81,82
(R203, R207, R211)
N
Check the tuner
Y
N
Is input of sync normal? Check I402
(I501, Y1, Y2)
Y
Check I501
-20-
Trouble Shooting
7-5. When "No picture" in External input mode.
Check start
Y
Confirm AC connection.
Does OSD menu N N Confirm Power SW ON.
Is this weak discharge
Screen appear? On the screen? Check the power,
Inverter and panel
Y Y
Go to 7 - 4
N Check the
Is the signal jack
Correctly connected? Connection of Jack
Y
N
Does input source Operate AV device
operate?
Y
Is input selection N
Confirm input selection
In used mode?
Y
Check the main PCB
and sub - JACK PCB
-21-
Trouble Shooting
7-6. When No Sound in External input mode.
Check start
Y
N
Does Screen appear? Go to 7 - 5
Y
N Check the
Is the sound input jack
Correctly connected? Connection of sound Jack
Y
Is the speaker jack N Check the
Correctly connected? Connection of speaker
Y
Is the I601 output N Check the AUDIO AMP(I601)
Normal? And I501
Y
Exchange speaker or
speak cable
-22-
Trouble Shooting
7-7. When Key does not operate.
Check start
Y
Does remote N
Check the I501
Controller operate?
Y
N
Is 2th PIN of P504A
Exchange Key PCB
Correctly operate?
Y
Check Key cable and I501
-23-
Trouble Shooting
7-8. When Remote Controller does not operate.
Check start
Y
N
Does input of key operate? Check the I501
Y
Does remote N
Check the battery of
Controller operate? remote controller
Y
Whenever push the button of N
Remote controller, does the 2nd pin Exchange the Key PCB
Of P501A output normal?
Y
Check IR cable and I501
Output of 2nd pin of P501A (IR) : PCB for Remote Control EX) Push "PR DOWN" button.
-24-
8. Service part list
8-1. Service part list
LOC PART CODE PART NAME DESCRIPTION REMARK LOC PART CODE PART NAME DESCRIPTION REMARK
PA902 4859005960 CABLE FFC 0.50P-50N-100L-T5 C257 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
V901 485LD12202 LCD PANEL HT201V01-101(5992) C258 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
V902 485AS00600 POWER LIPS IPB-6015N02 C259 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
SP01 4858318310 SPEAKER SP-5090F01C C260 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
SP01A 4850703S78 CONNECTOR YH025-03+YRT205+YRT110+USW=500 C264 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
SP02 4858318310 SPEAKER SP-5090F01C C276 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
SP02A 4850703S77 CONNECTOR YH025-03+YRT205+YRT110+USW=300 C277 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
C825 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP C502 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C828 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP C505 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608
D602 D1N4148--- DIODE 1N4148 (TAPPING) C507 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608
FLT1 5PX4M50C00 FILTER CERA TPSRA4M50C00-B0 (BULK) C509 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608
I502 124LC32A-P IC EEPROM 24LC32A-I/P 32K 8 PIN DIP STICK C511 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
I601 PTB2SW7724 HEAT SINK ASS`Y 1LA42032E- + 7174300851 C512 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
00001 1LA42032E- IC AUDIO AMP LA42032-E C513 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608
0000A 4857027724 HEAT SINK AL EX C514 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
IC12 1TS0P34838 IC PREAMP TSOP34838SJ C515 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608
J301 85801060GY WIRE COPPER 1/0.6 TIN COATING C516 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608
LED1 DSPR39MVW- LED SPR-39MVW (DUAL) C519 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608
P103 4859295520 CONN WAFER 4602-02MV2-60-1 PLUG 2P ST C522 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
P201 485923202S CONN WAFER YW025-07 (STICK) C523 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
P501 4859236220 CONN WAFER YAW025-05 C532 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
P501A 4859236220 CONN WAFER YAW025-05 C539 HCBK392KBA C CHIP CERA 50V X7R 3900PF K 1608
P502 4859231820 CONN WAFER YW025-05 C540 HCBK473KBA C CHIP CERA 50V X7R 0.047MF K 1608
P504 4859236120 CONN WAFER YAW025-04 C541 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
P504A 4859236120 CONN WAFER YAW025-04 C544 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
P601 4859236020 CONN WAFER YAW025-03 C546 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
P602 4859236020 CONN WAFER YAW025-03 C549 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608
P701 485923172S CONN WAFER YW025-04 (STICK) C551 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
P803 4859236720 CONN WAFER YAW025-10 C552 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608
PA03 4859112750 JACK PIN DPSE-0375 5PIN STR C555 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
PA04 4859102130 JACK EARPHONE YSC-1537 C556 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
PA06 4859105340 JACK S-VHS DSW-10 (STRAIGHT) C562 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
PA07 4859112850 JACK PIN DPSS-0173 3PIN STR C564 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
PA09 4859236320 CONN WAFER YAW025-06 C565 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
PA09A 4859236320 CONN WAFER YAW025-06 C566 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
PA501 4850705S26 CONNECTOR YH025-05+YH025-05+ULW=350 C568 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
PA502 4850705N39 CONNECTOR YH025-05+YH025-05+ULW=100 C570 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
PA504 4850704N40 CONNECTOR YH025-04+YH025-04+ULW=350 C574 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608
PA803 4850710S32 CONNECTOR YH025-10+YH025-10+ULW=500 C575 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
PAA09 4850706S41 CONNECTOR YH025-06+YH025-06+ULW=200 C576 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608
SW8 5S40101012 SW PUSH PS-22E06 NL C578 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
U100 4859729830 TUNER VARACTOR TAEA-H071D C579 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
U101 4850A23740 ANT SHIELD BOX PAXNF02FA (NTSC) C581 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608
X201 5XJ24R576E CRYSTAL QUARTZ HC-49/S 24.576MHZ 30PPM C589 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
X501 5XJ24R576E CRYSTAL QUARTZ HC-49/S 24.576MHZ 30PPM C590 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
Z101 5PTSB6221C FILTER SAW TSB6221C C592 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
C103 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 C593 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
C107 HCQK470JBA C CHIP CERA 50V CH 47PF J 1608 C598 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C108 HCQK470JBA C CHIP CERA 50V CH 47PF J 1608 C599 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C202 HCBK333KBA C CHIP CERA 50V X7R 0.033MF K 1608 C605 HCBK472KBA C CHIP CERA 50V X7R 4700PF K 1608
C203 HCBK333KBA C CHIP CERA 50V X7R 0.033MF K 1608 C607 HCBK472KBA C CHIP CERA 50V X7R 4700PF K 1608
C206 HCBK333KBA C CHIP CERA 50V X7R 0.033MF K 1608 C637 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C207 HCBK333KBA C CHIP CERA 50V X7R 0.033MF K 1608 C638 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C210 HCBK333KBA C CHIP CERA 50V X7R 0.033MF K 1608 C639 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C211 HCBK333KBA C CHIP CERA 50V X7R 0.033MF K 1608 C640 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C213 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 C701 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C224 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 C805 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C226 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 C818 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C227 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 C820 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C231 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 C829 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C233 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 C831 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C236 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 C833 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C239 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 C843 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C243 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 C848 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C244 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 C849 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C246 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 C862 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C247 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 C865 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C251 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 C891 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
-25-
Service part list
LOC PART CODE PART NAME DESCRIPTION REMARK LOC PART CODE PART NAME DESCRIPTION REMARK
C904 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 R605 HRFT242JBA R CHIP 1/10 2.4K OHM J 1608
C908 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 R606 HRFT333JBA R CHIP 1/10 33K OHM J 1608
C910 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 R607 HRFT103JBA R CHIP 1/10 10K OHM J 1608
C911 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 R608 HRFT153JBA R CHIP 1/10 15K OHM J 1608
C913 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 R609 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
C914 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 R610 HRFT242JBA R CHIP 1/10 2.4K OHM J 1608
C918 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 R642 HRFT479JBA R CHIP 1/10 4.7 OHM J 1608
CA16 HCQK271JBA C CHIP CERA 50V CH 270PF J 1608 R643 HRFT479JBA R CHIP 1/10 4.7 OHM J 1608
CA23 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608 R644 HRFT479JBA R CHIP 1/10 4.7 OHM J 1608
CA24 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608 R645 HRFT479JBA R CHIP 1/10 4.7 OHM J 1608
CA26 HCQK271JBA C CHIP CERA 50V CH 270PF J 1608 R751 HRFT000-BA R CHIP 1/10 0 OHM 1608
CA31 HCQK271JBA C CHIP CERA 50V CH 270PF J 1608 R784 HRFT101JBA R CHIP 1/10 100 OHM J 1608
CA36 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 R785 HRFT101JBA R CHIP 1/10 100 OHM J 1608
R106 HRFT101JBA R CHIP 1/10 100 OHM J 1608 R786 HRFT101JBA R CHIP 1/10 100 OHM J 1608
R107 HRFT101JBA R CHIP 1/10 100 OHM J 1608 R788 HRFT101JBA R CHIP 1/10 100 OHM J 1608
R134 HRFT000-BA R CHIP 1/10 0 OHM 1608 R801 HRFT122JBA R CHIP 1/10 1.2K OHM J 1608
R208 HRFT123JBA R CHIP 1/10 12K OHM J 1608 R810 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
R249 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 R811 HRFT123JBA R CHIP 1/10 12K OHM J 1608
R257 HRFT103JBA R CHIP 1/10 10K OHM J 1608 R843 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
R258 HRFT000-BA R CHIP 1/10 0 OHM 1608 R844 HRFT123JBA R CHIP 1/10 12K OHM J 1608
R270 HRFT103JBA R CHIP 1/10 10K OHM J 1608 R851 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
R271 HRFT103JBA R CHIP 1/10 10K OHM J 1608 R852 HRFT123JBA R CHIP 1/10 12K OHM J 1608
R290 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608 R853 HRFT103JBA R CHIP 1/10 10K OHM J 1608
R291 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608 R860 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
R501 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608 R861 HRFT123JBA R CHIP 1/10 12K OHM J 1608
R502 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608 R863 HRFT103JBA R CHIP 1/10 10K OHM J 1608
R503 HRFT101JBA R CHIP 1/10 100 OHM J 1608 R912 HRFT101JBA R CHIP 1/10 100 OHM J 1608
R510 HRFT103JBA R CHIP 1/10 10K OHM J 1608 R913 HRFT103JBA R CHIP 1/10 10K OHM J 1608
R511 HRFT102JBA R CHIP 1/10 1K OHM J 1608 R915 HRFT103JBA R CHIP 1/10 10K OHM J 1608
R517 HRFT101JBA R CHIP 1/10 100 OHM J 1608 R918 HRFT101JBA R CHIP 1/10 100 OHM J 1608
R537 HRFT183JBA R CHIP 1/10 18K OHM J 1608 R921 HRFT101JBA R CHIP 1/10 100 OHM J 1608
R546 HRFT681JBA R CHIP 1/10 680 OHM J 1608 R925 HRFT101JBA R CHIP 1/10 100 OHM J 1608
R547 HRFT104JBA R CHIP 1/10 100K OHM J 1608 R928 HRFT101JBA R CHIP 1/10 100 OHM J 1608
R548 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RA32 HRFT103JBA R CHIP 1/10 10K OHM J 1608
R549 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RA58 HRFT103JBA R CHIP 1/10 10K OHM J 1608
R550 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RA62 HRFT103JBA R CHIP 1/10 10K OHM J 1608
R551 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RA63 HRFT224JBA R CHIP 1/10 220K OHM J 1608
R557 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RA64 HRFT224JBA R CHIP 1/10 220K OHM J 1608
R558 HRFT152JBA R CHIP 1/10 1.5K OHM J 1608 RA68 HRFT750JBA R CHIP 1/10 75 OHM J 1608
R562 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RA74 HRFT102JBA R CHIP 1/10 1K OHM J 1608
R563 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RA75 HRFT102JBA R CHIP 1/10 1K OHM J 1608
R564 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RA80 HRFT000-BA R CHIP 1/10 0 OHM 1608
R571 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RA800 HRFT000-BA R CHIP 1/10 0 OHM 1608
R572 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RA801 HRFT000-BA R CHIP 1/10 0 OHM 1608
R573 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RA81 HRFT000-BA R CHIP 1/10 0 OHM 1608
R575 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RA82 HRFT000-BA R CHIP 1/10 0 OHM 1608
R578 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RA94 HRFT000-BA R CHIP 1/10 0 OHM 1608
R579 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RA97 HRFT000-BA R CHIP 1/10 0 OHM 1608
R580 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RA98 HRFT000-BA R CHIP 1/10 0 OHM 1608
R581 HRFT101JBA R CHIP 1/10 100 OHM J 1608 C102 CEXF1E470V C ELECTRO RSS 25V 47MF 5X11 P5.0 TA
R582 HRFT101JBA R CHIP 1/10 100 OHM J 1608 C121 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
R583 HRFT101JBA R CHIP 1/10 100 OHM J 1608 C145 CEXF1E101C C ELECTRO 25V RUS 100MF (6.3X11) TP
R584 HRFT101JBA R CHIP 1/10 100 OHM J 1608 C205 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7)
R585 HRFT000-BA R CHIP 1/10 0 OHM 1608 C230 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7)
R586 HRFT000-BA R CHIP 1/10 0 OHM 1608 C232 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7)
R587 HRFT000-BA R CHIP 1/10 0 OHM 1608 C238 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7)
R588 HRFT101JBA R CHIP 1/10 100 OHM J 1608 C249 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7)
R589 HRFT101JBA R CHIP 1/10 100 OHM J 1608 C261 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7)
R590 HRFT101JBA R CHIP 1/10 100 OHM J 1608 C501 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
R593 HRFT102JBA R CHIP 1/10 1K OHM J 1608 C503 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
R594 HRFT181JBA R CHIP 1/10 180 OHM J 1608 C508 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
R595 HRFT331JBA R CHIP 1/10 330 OHM J 1608 C510 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
R596 HRFT471JBA R CHIP 1/10 470 OHM J 1608 C517 CEXF1C101A C ELECTRO 16V RSM 100MF 6X7 TP
R597 HRFT102JBA R CHIP 1/10 1K OHM J 1608 C520 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
R598 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 C524 CMXM2A682J C MYLAR 100V 6800PF J (TP)
R599 HRFT101JBA R CHIP 1/10 100 OHM J 1608 C525 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
R603 HRFT333JBA R CHIP 1/10 33K OHM J 1608 C527 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
R604 HRFT223JBA R CHIP 1/10 22K OHM J 1608 C529 CMXL1J334J C MYLAR 63V MEU 0.33MF J (TP)
-26-
Service part list
LOC PART CODE PART NAME DESCRIPTION REMARK LOC PART CODE PART NAME DESCRIPTION REMARK
C534 CEXF1H229A C ELECTRO 50V RSM 2.2MF (4X7) TP A001 4859817592 PCB MAIN 234X189 C4V
C542 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C201 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C543 CEXF1H229A C ELECTRO 50V RSM 2.2MF (4X7) TP C204 HCQK100JBA C CHIP CERA 50V CH 10PF J 1608
C545 CEXF1H229A C ELECTRO 50V RSM 2.2MF (4X7) TP C208 HCQK100JBA C CHIP CERA 50V CH 10PF J 1608
C547 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C209 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608
C548 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C212 HCQK100JBA C CHIP CERA 50V CH 10PF J 1608
C558 CEXF1C101A C ELECTRO 16V RSM 100MF 6X7 TP C221 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C559 CEXF1C101A C ELECTRO 16V RSM 100MF 6X7 TP C237 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C563 CEXF1C101A C ELECTRO 16V RSM 100MF 6X7 TP C240 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C567 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C242 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C569 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7 C245 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C577 CEXF1C101A C ELECTRO 16V RSM 100MF 6X7 TP C254 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C583 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C256 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C597 CEXF1C101A C ELECTRO 16V RSM 100MF 6X7 TP C272 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
C601 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7 C273 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
C602 CEXE1C471E C ELECTRO 16V RM 470MF (8X11.5) TP C504 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
C603 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP C506 HCQK479CBA C CHIP CERA 50V CH 4.7PF C 1608
C604 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP C518 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C606 CEXF1E470V C ELECTRO RSS 25V 47MF 5X11 P5.0 TA C521 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C608 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP C526 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608
C631 CEXE1C471E C ELECTRO 16V RM 470MF (8X11.5) TP C528 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608
C703 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7 C535 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608
C802 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7 C536 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608
C815 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7 C550 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C821 CEXE1C471E C ELECTRO 16V RM 470MF (8X11.5) TP C553 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608
C826 CEXE1C471E C ELECTRO 16V RM 470MF (8X11.5) TP C554 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608
C827 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7 C557 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C830 CEXF1H330V C ELECTRO 50V RSS 33MF (6.3X11) TP C571 HCQK470JBA C CHIP CERA 50V CH 47PF J 1608
C832 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP C572 HCQK470JBA C CHIP CERA 50V CH 47PF J 1608
C841 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7 C573 HCQK470JBA C CHIP CERA 50V CH 47PF J 1608
C842 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7 C591 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C844 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11) TP C594 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C850 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7 C595 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C851 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7 C596 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C860 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7 C702 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C861 CEXE1C471E C ELECTRO 16V RM 470MF (8X11.5) TP C704 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C880 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7) C804 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C881 CEXE1C471E C ELECTRO 16V RM 470MF (8X11.5) TP C812 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C890 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7 C845 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C903 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7 C882 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
C905 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7 C883 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
C909 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7 C884 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C917 CEXF1E470V C ELECTRO RSS 25V 47MF 5X11 P5.0 TA CA01 HCQK120JBA C CHIP CERA 50V CH 12PF J 1608
CA04 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7 CA02 HCQK120JBA C CHIP CERA 50V CH 12PF J 1608
CA05 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7 CA03 HCQK120JBA C CHIP CERA 50V CH 12PF J 1608
CA06 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7 CA10 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
CA25 CEXF1C101A C ELECTRO 16V RSM 100MF 6X7 TP CA12 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
CA30 CEXF1C101A C ELECTRO 16V RSM 100MF 6X7 TP CA14 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
CA60 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7 CA20 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CA61 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7 CA21 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CA67 CEXF1C101A C ELECTRO 16V RSM 100MF 6X7 TP CA22 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
L502 5CPX150J-- COIL PEAKING 15UH J (RADIAL) CA29 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
L601 58C0000116 COIL BEAD HC-3550R CA40 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
LA03 5PXF1B471M FILTER EMI CFI 06 B 1H 470PF CA44 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608
LA04 5PXF1B471M FILTER EMI CFI 06 B 1H 470PF CA49 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608
LA32 5PXF1B471M FILTER EMI CFI 06 B 1H 470PF CA50 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608
LA33 5PXF1B471M FILTER EMI CFI 06 B 1H 470PF CA51 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608
LA41 5PXF1B471M FILTER EMI CFI 06 B 1H 470PF CA98 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
LA42 5PXF1B471M FILTER EMI CFI 06 B 1H 470PF D805 DBAV70---B DIODE CHIP BAV70
Q813 T2SA1980Y- TR 2SA1980(N)Y D850 DM2FM3---C DIODE CHIP SCHOTTKY M2FM3 M2F TYPE
Q814 T2SC5343Y- TR 2SC5343(N)Y DA01 DZ02W5R6VA DIODE CHIP ZENER Z02W5.6V
Q815 T2SA1980Y- TR 2SA1980(N)Y DA02 DZ02W5R6VA DIODE CHIP ZENER Z02W5.6V
Q816 T2SC5343Y- TR 2SC5343(N)Y DA03 DZ02W5R6VA DIODE CHIP ZENER Z02W5.6V
SW701 5S50101Z90 SW TACT THVV502GDA DA07 DZ02W5R6VA DIODE CHIP ZENER Z02W5.6V
SW702 5S50101Z90 SW TACT THVV502GDA DA08 DZ02W5R6VA DIODE CHIP ZENER Z02W5.6V
SW703 5S50101Z90 SW TACT THVV502GDA DA41 DZ02W5R6VA DIODE CHIP ZENER Z02W5.6V
SW704 5S50101Z90 SW TACT THVV502GDA DA42 DZ02W5R6VA DIODE CHIP ZENER Z02W5.6V
SW705 5S50101Z90 SW TACT THVV502GDA DA43 DZ02W5R6VA DIODE CHIP ZENER Z02W5.6V
-27-
Service part list
LOC PART CODE PART NAME DESCRIPTION REMARK LOC PART CODE PART NAME DESCRIPTION REMARK
DA44 DZ02W5R6VA DIODE CHIP ZENER Z02W5.6V Q802 T2SC2412KB TR CHIP 2SC2412K-T146-BR
DA45 DZ02W5R6VA DIODE CHIP ZENER Z02W5.6V Q804 T2SC2412KB TR CHIP 2SC2412K-T146-BR
I403 1P15V330-D IC CHIP VIDEO SWITCH PI5V330 Q805 T2SC2412KB TR CHIP 2SC2412K-T146-BR
I501 1N1FC00AAQ IC CHIP MULTIMEDIA TDA15511E N1F C0 0AA Q820 T2SC2412KB TR CHIP 2SC2412K-T146-BR
I503 129LV040AQ IC CHIP FLASH MEMORY EN29LV040A-70SCP Q850 T2SC2412KB TR CHIP 2SC2412K-T146-BR
I504 1TDA9178TE IC CHIP PICTURE IMPROVEMENT TDA9178TE QA01 T2SC2412KB TR CHIP 2SC2412K-T146-BR
I508 1DTC34LF86 IC CHIP RECEIVER DTC34LF86A QA02 T2SC2412KB TR CHIP 2SC2412K-T146-BR
I801 TFDS4953-C FET CHIP FDS4953 SO-8 -30V -5A REEL QA03 T2SC2412KB TR CHIP 2SC2412K-T146-BR
I803 1AP117E33C IC CHIP REGULATOR AP1117E33A 3.3V SOT-223 QA04 T2SC2412KB TR CHIP 2SC2412K-T146-BR
I807 1BA6161F-C IC CHIP SW REG BA6161F 30~35V 100KHZ SOP8 REEL QA08 T2SC2412KB TR CHIP 2SC2412K-T146-BR
I809 1S111718QC IC CHIP REGULATOR S1117-18Q 1.8V SOT-223 QA21 T2SC2412KB TR CHIP 2SC2412K-T146-BR
I820 TFDS4953-C FET CHIP FDS4953 SO-8 -30V -5A REEL R103 HRFT393JBA R CHIP 1/10 39K OHM J 1608
I851 1APW1172-D IC CHIP DC-DC CONVERTER APW1172 R104 HRFT683JBA R CHIP 1/10 68K OHM J 1608
I852 1K1A78L08C IC CHIP REGULATOR KIA78L08F R105 HRFT103JBA R CHIP 1/10 10K OHM J 1608
L101 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R135 HRFT101JBA R CHIP 1/10 100 OHM J 1608
L203 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R140 HRFT101JBA R CHIP 1/10 100 OHM J 1608
L204 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R141 HRFT101JBA R CHIP 1/10 100 OHM J 1608
L205 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R143 HRFT102JBA R CHIP 1/10 1K OHM J 1608
L206 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R203 HRFT100JBA R CHIP 1/10 10 OHM J 1608
L207 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R204 HRFT470JBA R CHIP 1/10 47 OHM J 1608
L208 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R206 HRFT470JBA R CHIP 1/10 47 OHM J 1608
L209 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R207 HRFT100JBA R CHIP 1/10 10 OHM J 1608
L210 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R211 HRFT100JBA R CHIP 1/10 10 OHM J 1608
L213 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R212 HRFT470JBA R CHIP 1/10 47 OHM J 1608
L214 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R247 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
L501 HLC100K02A L CHIP COIL 10UH MLF 2012 R248 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
L505 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R250 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
L506 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R251 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
L507 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R253 HRFT101JBA R CHIP 1/10 100 OHM J 1608
L508 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R254 HRFT101JBA R CHIP 1/10 100 OHM J 1608
L509 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R255 HRFT000-BA R CHIP 1/10 0 OHM 1608
L510 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R296 HRFT000-BA R CHIP 1/10 0 OHM 1608
L512 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R297 HRFT000-BA R CHIP 1/10 0 OHM 1608
L513 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R298 HRFT000-BA R CHIP 1/10 0 OHM 1608
L514 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R302 HRFT224JBA R CHIP 1/10 220K OHM J 1608
L515 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R303 HRFT224JBA R CHIP 1/10 220K OHM J 1608
L516 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R33 HRFT101JBA R CHIP 1/10 100 OHM J 1608
L517 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R34 HRFT101JBA R CHIP 1/10 100 OHM J 1608
L518 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R422 HRFT103JBA R CHIP 1/10 10K OHM J 1608
L519 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R504 HRFT152JBA R CHIP 1/10 1.5K OHM J 1608
L523 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R505 HRFT101JBA R CHIP 1/10 100 OHM J 1608
L531 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R507 HRFT000-BA R CHIP 1/10 0 OHM 1608
L806 HLC472M01D L CHIP COIL 4.7MH M SLF7045 R509 HRFT101JBA R CHIP 1/10 100 OHM J 1608
L807 HLC100K02A L CHIP COIL 10UH MLF 2012 R514 HRFT100JBA R CHIP 1/10 10 OHM J 1608
L850 HLC100K01E L CHIP COIL 10UH K 120120 R515 HRFT153JBA R CHIP 1/10 15K OHM J 1608
L851 HLC479K03C L CHIP COIL 4.7UH K NLC5650T R516 HRFT153JBA R CHIP 1/10 15K OHM J 1608
L902 HFF600C01A F CHIP FERRITE BEAD 60 OHM PBY 2012 R518 HRFT101JBA R CHIP 1/10 100 OHM J 1608
L903 HFF600C01A F CHIP FERRITE BEAD 60 OHM PBY 2012 R519 HRFT750JBA R CHIP 1/10 75 OHM J 1608
L904 HFF600C01A F CHIP FERRITE BEAD 60 OHM PBY 2012 R529 HRFT101JBA R CHIP 1/10 100 OHM J 1608
L905 HFF600C01A F CHIP FERRITE BEAD 60 OHM PBY 2012 R530 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
L906 HFF600C01A F CHIP FERRITE BEAD 60 OHM PBY 2012 R532 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
L920 HFRMZA600A F CHIP BEAD ARRARY 60 OHM MZA 3216Y R533 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
L921 HFRMZA600A F CHIP BEAD ARRARY 60 OHM MZA 3216Y R534 HRFT221JBA R CHIP 1/10 220 OHM J 1608
L922 HFRMZA600A F CHIP BEAD ARRARY 60 OHM MZA 3216Y R535 HRFT221JBA R CHIP 1/10 220 OHM J 1608
L923 HFRMZA600A F CHIP BEAD ARRARY 60 OHM MZA 3216Y R538 HRFT473JBA R CHIP 1/10 47K OHM J 1608
L924 HFRMZA600A F CHIP BEAD ARRARY 60 OHM MZA 3216Y R540 HRFT100JBA R CHIP 1/10 10 OHM J 1608
L925 HFRMZA600A F CHIP BEAD ARRARY 60 OHM MZA 3216Y R541 HRFT393JBA R CHIP 1/10 39K OHM J 1608
LA23 HFF102C00A F CHIP FERRITE BEAD 1000 OHM PBY 2012 R552 HRFT103JBA R CHIP 1/10 10K OHM J 1608
LA43 HLC100K02A L CHIP COIL 10UH MLF 2012 R553 HRFT103JBA R CHIP 1/10 10K OHM J 1608
LA44 HLC100K02A L CHIP COIL 10UH MLF 2012 R554 HRFT103JBA R CHIP 1/10 10K OHM J 1608
P902 4859297320 CONN WAFER 05002HR-50A01(G) R555 HRFT103JBA R CHIP 1/10 10K OHM J 1608
Q506 T2SC2412KB TR CHIP 2SC2412K-T146-BR R556 HRFT101JBA R CHIP 1/10 100 OHM J 1608
Q507 T2SC2412KB TR CHIP 2SC2412K-T146-BR R559 HRFT101JBA R CHIP 1/10 100 OHM J 1608
Q511 T2SA1037KB TR CHIP 2SA1037AKT146-R R560 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
Q512 T2SC2412KB TR CHIP 2SC2412K-T146-BR R561 HRFT101JBA R CHIP 1/10 100 OHM J 1608
Q602 T2SA1037KB TR CHIP 2SA1037AKT146-R R565 HRFT101JBA R CHIP 1/10 100 OHM J 1608
Q701 T2SC2412KB TR CHIP 2SC2412K-T146-BR R566 HRFT103JBA R CHIP 1/10 10K OHM J 1608
Q702 T2SC2412KB TR CHIP 2SC2412K-T146-BR R567 HRFT103JBA R CHIP 1/10 10K OHM J 1608
-28-
Service part list
LOC PART CODE PART NAME DESCRIPTION REMARK
R568 HRFT103JBA R CHIP 1/10 10K OHM J 1608
R569 HRFT103JBA R CHIP 1/10 10K OHM J 1608
R574 HRFT103JBA R CHIP 1/10 10K OHM J 1608
R577 HRFT273JBA R CHIP 1/10 27K OHM J 1608
R591 HRFT101JBA R CHIP 1/10 100 OHM J 1608
R592 HRFT102JBA R CHIP 1/10 1K OHM J 1608
R704 HRFT100JBA R CHIP 1/10 10 OHM J 1608
R705 HRFT223JBA R CHIP 1/10 22K OHM J 1608
R706 HRFT102JBA R CHIP 1/10 1K OHM J 1608
R708 HRFT104JBA R CHIP 1/10 100K OHM J 1608
R709 HRFT100JBA R CHIP 1/10 10 OHM J 1608
R710 HRFT202JBA R CHIP 1/10 2K OHM J 1608
R712 HRFT102JBA R CHIP 1/10 1K OHM J 1608
R715 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
R720 HRFT122JBA R CHIP 1/10 1.2K OHM J 1608
R721 HRFT181JBA R CHIP 1/10 180 OHM J 1608
R722 HRFT241JBA R CHIP 1/10 240 OHM J 1608
R723 HRFT331JBA R CHIP 1/10 330 OHM J 1608
R724 HRFT471JBA R CHIP 1/10 470 OHM J 1608
R725 HRFT151JBA R CHIP 1/10 150 OHM J 1608
R726 HRFT681JBA R CHIP 1/10 680 OHM J 1608
R787 HRFT101JBA R CHIP 1/10 100 OHM J 1608
R803 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
R804 HRFT123JBA R CHIP 1/10 12K OHM J 1608
R805 HRFT103JBA R CHIP 1/10 10K OHM J 1608
R807 HRFT103JBA R CHIP 1/10 10K OHM J 1608
R812 HRFT473JBA R CHIP 1/10 47K OHM J 1608
R813 HRFT473JBA R CHIP 1/10 47K OHM J 1608
R814 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
R815 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
R845 HRFT100JBA R CHIP 1/10 10 OHM J 1608
R846 HRFT103JBA R CHIP 1/10 10K OHM J 1608
R880 HRFT362FBA R CHIP 1/10 3.6K OHM F 1608
R881 HRFT202FBA R CHIP 1/10 2K OHM F 1608
R885 HRFT512JBA R CHIP 1/10 5.1K OHM J 1608
R931 HRFT101JBA R CHIP 1/10 100 OHM J 1608
R932 HRFT101JBA R CHIP 1/10 100 OHM J 1608
R933 HRFT101JBA R CHIP 1/10 100 OHM J 1608
R934 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RA02 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RA03 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RA04 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RA05 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RA06 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RA07 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RA08 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RA09 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RA10 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RA11 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RA12 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RA21 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RA54 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RA55 HRFT131JBA R CHIP 1/10 130 OHM J 1608
RA56 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RA57 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RA59 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RA60 HRFT131JBA R CHIP 1/10 130 OHM J 1608
RA61 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RA72 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RA73 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RA76 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RA77 HRFT131JBA R CHIP 1/10 130 OHM J 1608
RA78 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RA79 HRFT750JBA R CHIP 1/10 75 OHM J 1608
-29-
9. Power
9-1. IPB-6015N01/02( LIPS for DLX-20J1)
Input Requirements.
Input Voltage Range Voltage Range:AC180V to 270V Normal Voltage:AC 240V
Frequency Range Frequency Range:47 To 63Hz Normal Frequency:50 To 60Hz
Input Current 0.35 Arms at 240 Vac input
Inrush Current 240V 30A peak
Earth Leakage Current 3.5mA MAX(250AC)
Hi-Pot Test Primary to GND:3000VAC for 1 minute
Cutoff Current 10mA 3.6KVAC for 3 seconds (mass production)
Insulation resistance shall be more then 4M at 500Vdc
Insulation Resistance
between primary Live Neutral line and secondary.
Input AC surge The power supply withstand 300Vrms input for 10 seconds.
Primary inlet F.G to secondary GND 25A for 3second 80m MAX
Output Requirements
Output Minimum Maximum Output Current
Board Condition
Voltage output voltage output voltage MIN NOR MAX
+15Vdc +14.0Vdc +16.5Vdc 0A 2A 2A
+9Vdc +7.75Vdc +9.8Vdc 0A 0.5A 1A
+5Vdc +5.00Vdc +5.5Vdc 130mA 0.5A 1A
This is the voltage for a signal.
DEP When attaching the product which is by the set,
+10V voltage became +8.5Vdc~+11.00Vdc.
When the product does not attach from the set,
+10V outputs are identical from 'output +15Vdc'
LAMP
VOLTAGE 600Vdc 880Vdc 4.0mA 5.5mA 7.5mA
(LPL 700V)
-30-
10. Inverter
10-1. Feature
- Drive 6 lamps with one module
- Norminal current 6.5mArms for each lamp
- 21.6~26.4V input voltage operation
- Automatically balancing of lamp current
- Long lamp life with soft start
- Protection against lamp open or failure
- Built-in fuse
- Low EMI and spurious noise
10-2. Recommended operating conditions.
Recommendation
Parameter Symbol Units
Min R.C. Max
Input supply voltage VIN 21.6 24.0 26.4 V
Full bright lamp current IO(MAX) 4.0 6.5 7.5 mArms
Brightness control voltage range VBRT 0 5.0 V
Lamp on/off control voltage VSLEEP 3.0 5.0 7.0 V
Lamp operating voltage(reference) VO 850 Vrms
Operating ambient temperature range TA 0 50 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
