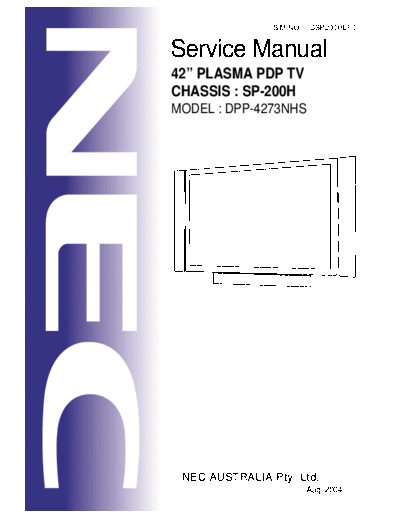

Image preview - the first page of the document
>> Download SP-200H documenatation <<
Text preview - extract from the document
S/M NO. : DSP200HEF0
Service Manual
42" PLASMA PDP TV
CHASSIS : SP-200H
MODEL : DPP-4273NHS
NEC AUSTRALIA Pty. Ltd.
Aug. 2004
Contents
I. Parts with the exception of MODULE
1. Safety Precautions 2
2. Product Specification 3
2-1. SPECIFICATION 3
2-2. Available Input Signal 5
3. BLOCK DIAGRAM 6
4. Description Of A/V and power 7
4-1. Block Diagram of main IC and TP 7
4-2. Overview 8
4-3. POWER PCB 16
4-4. Interface with PDP module 18
5. SERVICE MODE 19
5-1. Checking initial menu data 19
5-2. Entering SERVICE MODE 20
5-3. Description Of SERVICE MODE Items 22
6. Adjusting Method 25
6-1. Adjusting WHITE BALANCE 25
6-2. Adjusting POWER PCB 26
7. SOFTWARE UPGRADE Method 28
8. Main PCB Trouble Diagnosis 31
8-1. MAIN & SUB PCB Trouble Diagnosis 31
8-2. POWER PCB Trouble Diagnosis 38
9. TROUBLE DIAGNOSIS 39
9-1. Facts You Must Know When Diagnosing And Repairing 39
9-2. Typical Symptoms of PCB problem or bad Connection 39
9-3. Trouble Diagnosis and Repairing Method for Representative Symptoms 40
10. ASSEMBLY LIST 45
11. STRUCTURE OF PDP SET 46
12. EXPLODED VIEW 51
II. Parts of MODULE
1. Confirmation Manual
2. Repair Manual
-1-
I. Parts with the exception of MODULE
1. Safety Precautions
1. Safety Precautions
(1) When moving or laying down a PDP Set, at least two people must work together. Avoid
any impact towards the PDP Set.
(2) Do not leave a broken PDP Set on for a long time. To prevent any further damages, after
checking the condition of the broken Set, make sure to turn the power (AC) off.
(3) When opening the BACK COVER, you must turn off power (AC) to prevent any electric
shock. When PDP is operating, high voltage and high current inside the Set can cause
electric shocks.
(4) When loosening screws, check the position and type of the screw. Sort out the screws and
store them separately for reassembling. Because screws holding PCBs are working as
electric circuit GROUNDING, make sure to check if any screw is missing when
assembling/reassembling. Do not leave any screws inside the set.
(5) If you open the BACK COVER, you will see a
Panel Gas Exhaust Tube (Picture. 1-1) inside
the bracket. If this part is damaged, the entire
PDP PANEL must be replaced. Therefore,
when working with the set, be careful not to
damage this part.
Picture 1-1. Panel Gas Exhaust Tube
(6) A PDP Set contains different kinds of
connector cables. When connecting or disconnecting cables, check the direction and
position of the cable beforehand.
(7) Connect/disconnect the connectors slowly with care especially FFC (film) cables and FPC
cables. Do not connect or disconnect connectors instantaneously with force, and handle
them carefully for reassembling.
(8) Connectors are designed so that if the number of pins or the direction does not match,
connectors will not fit. When having problem in plugging the connectors, check their kind,
position, and direction.
-2-
2. Product Specification
2-1. SPECIFICATION
ITEM SPECIFICATION REMARK
1. GENERAL
1-1. MODEL NO PXT-42S11S
1-2. CHASSIS NO SP-200H
1-3. SCREEN SIZE 42" (16:9)
1-4. COUNTRY Australia
1-5. RESOLUTION 853(H) X 480(V)
1-6. REMOCON TYPE RDP-421
1-7. SAFETY STANDARD C-Tick
1-8 .TUNIG METHOD FS
1-9. MEMORY CHANNEL 100CH
2. MECHANICAL
2-1. APPEARANCE
1) WITHOUT STAND WxHxD =1039 x 628 x 89 mm
2) WITH STAND WxHxD =1039 x 725 x 320 mm
2-2. WEIGHT
1) WITHOUT STAND 29.9Kg
2) WITH STAND 36.8Kg
3. ELECTRICAL
3-1. VIDEO INPUT COMPOSITE(NTSC, PAL, SECAM, PAL-M/N, NTSC4.43) &
S-VHS(50/60Hz Y/C) 2 sets
3-2. DTV/DVD INPUT 1080 i, 720P, 480P , 480i, 576P, 576i
(Y, Pb/Cb, Pr/Cr COMPONENT SIGNAL) 2 sets
3-3. PC INPUT VGA ~ SXGA(Dot clock : 120MHz), 15 PIN D-SUB 1 set
3-4. DVI INPUT DVI-D INPUT(DVI Jack) 1 set
3-5. TV INPUT
1) COLOR STANDARD PAL B/G+I/I+D/K, L-SECAM, L'-SECAM
2) ANTENNA IN ONE INPUT 75W Unbalanced (DIN Standard)
3) RECEPTION CHANNEL
VHF LOW : E2 ~ S6 Ch.
VHF HIGH : S7 ~ S36 Ch.
UHF : S37 ~ E69 Ch.
L'-SECAM : FB, FC1, FC
4) IF & SUBCARRIER PIF : 38.90MHz(PAL B/G+I/I+D/K, L-SECAM
33.9MHz (L'-SECAM)
SIF : 33.40MHz(B/G), 32.90MHz(I/I),
32.4MHz(D/K, L-SECAM), 40.4MHz (L'-SECAM)
3-6. SOUND INPUT VIDEO 1set, DTV/DVD 2sets, PC 1set,DVI 1set
3-7. SPEAKER OUTPUT 10W(R) + 10W(L)
3-8. POWER REQUIREMENT AC 100V~240V, 50/60Hz
3-9. POWER CONSUMPTION 260W
3-10. RS-232 CONTROL RS-232 Communication(For Firmware UPGRADE)
3-11. AV OUTPUT CVBS1set, SOUND R/L 1set
-3-
Product Specification
ITEM SPECIFICATION REMARK
3-11. FUNCTION
1) SCALING DVI : H/V SIZE
PC: H/V SIZE, POSITION, PHASE, FREQUENCY
VIDEO/DVD(480i/576i) : 16:9, 4:3, EnlargeLB,
EnlargeLBS, PANORAMA
DTV/DVD(480P or Higher resolution) : 16:9, 4:3
2) ZOOM 20 STEP ZOOM and PANING
3) OSD Language 11 Languages (English, French, German, Spanish, Italian, Danish,
Dutch, Norwegian, Polish, Czech, Finnish)
4) OTHERS STILL, SLEEP MODE, SOUND MODE
TIMER, SCREEN MODE, TELETEXT(LEVEL 2.5)
4. OPTICAL
4-1. SCREEN SIZE 42" (106Cm) DIAGONAL
4-2. ASPECT RATIO 16 : 9
4-3. NUMBER OF PIXELS 853(H)X480(V)
4-4. DISPLAY COLOR 1,677 Million Colors ( 8BITs for each RGB)
4-5. CELL PITCH 1.08(H)X1.08(V)mm (1 Pixel = a Set of RGB Cells )
4-6. PEAK LUMINANCE 400cd/m2(WITH FILTER GLASS)
4-7. CONTRAST RATIO 1500:1 (Dark Room)
4-8. VIEWING ANGLE 160 degree(VERTICAL/HORIZONTAL)
5. USERCONTROL & ACCESSORIES
5-1 CONTROL BUTTON(SET) PUSH-PULL S/W : AC POWER BUTTON
SOFT S/W : MOVE/PR(UP, DOWN), VOLUME(LEFT, RIGHT),
MENU, INPUT SELECT
5-2. REMOTE CONTROL 10KEY(0~10), Recall, Menu, TV/VIDEO,
MULTIMEDIA, Still, Previous Channel, Sound Off, Channel
(UP/DOWN), Volume(UP/DOWN), SCREEN MODE/MIX,
SCREEN SIZE, ZOOM-, ZOOM+, Sleep Timer, Multilingual/
CYAN, Sound Mode/INDEX, RED, GREEN, YELLOW, TEXT,
REVEAL, UPDATE, EXPAND, SUBPAGE, HOLD
5-3. ACCESSORIES REMOCON, BATTERY, User Manual, A/V CABLE, RF CABLE
5-4. OPTIONAL PARTS STAND, WALL HANGER, SPEAKER R/L
-4-
Product Specification
2-2. Available Input Signal
(1) PC & DVI
Resolution H Freq. (KHz) V Freq. (Hz) Remark DVI PC
640x400 37.861 85.080 VESA O
640x480 31.469 59.940 DOS O O
37.861 72.809 VESA O O
37.500 75.000 VESA O O
43.269 85.061 VESA O O
720x400 31.469 70.087 IBM O O
37.927 85.039 VESA O
800x600 35.156 56.250 VESA O O
37.879 60.317 VESA O O
48.077 72.188 VESA O O
46.875 75.000 VESA O O
53.674 85.061 VESA O O
1024x768 48.363 60.004 VESA O O
56.476 70.069 HP&VESA O O
60.023 75.029 VESA O O
68.677 84.997 VESA O
1152x864 67.500 75.000 VESA O O
1280x960 60.000 60.000 VESA O O
(2) DTV
-1080i/ 60 Hz
-720P / 60 Hz
-480P / 60 Hz
(3) VIDEO
-PAL, PAL-M, PAL-N
-NTSC , NTSC4.43
- SECAM
-5-
DPP-4273NHS BLOCK DIAGRAM 3. BLOCK DIAGRAM
-6-
4. Description of A/V(MAIN and SUB PCB) and POWER
4-1. Block Diagram of main IC and TP
PA102 TP116 PC102
P100
TP117
KEY
IC112 TO PDP
TP204 TP205
TP130 MODULE
TP128
IC149
TP187
IC114 TP184
TP181
TP188
IC140
IC102 IC134
TP261
IC121
IC126
TP136
TP135
TP134
IC156
PC103 TO PWR
TP143 IC132
IC104
PC101
TP145 JP118 JP117
PC102
JA110 JA109
PC901 LED
TUNER
TP_AUDIO
IC903 IC904
IC901 PC900
TO PWR Top
Bottom
-7-
Description of A/V(MAIN and SUB PCB) and POWER
4-2. Overview
A/V block (Main and Sub PCB) is Multi Media circuit board that can process various input signals
such as video, component, PC, DVI, and analog TV signal. It is mainly composed of switching,
sync processing, decoding, analog TV, digital image processing, and system control part.
4-2-1. Composite video, Y/C(S-Video) and composite video
Y/C(S-Video) and composite have similar signal paths, IC102 receives these signals and
swithes out a selected signal. Then the signal goes into IC132 for video processing.
The output of IC132 goes through IC134 and IC140 for deinterlacing and digital image
processing respectively.
- Main IC
A. IC102: Switching IC (Input: analog inputs Output: an analog output)
B. IC126: Teletext IC
C. IC132: Video processor (Input: Y/C, CVBS Output: 16bit digital, HV)
D. IC134: Deinterlacer (Input: 16bit digital, HV Output: 24bit digital RGB, HV)
E. IC140: Image Processor (Input: 24bit digital RGB, HV Output: 24bit digital RGB, HV)
- Main TP (Input: Color Bar Pattern)
TP145: Brightness signal (input to IC132)
TP143: Color signal (input to IC132)
-8-
Description of A/V(MAIN and SUB PCB) and POWER
TP181: Data enable (output of IC140)
TP184: Horizontal sync (output of IC140)
TP187: Vertical sync (output of IC140)
-9-
Description of A/V(MAIN and SUB PCB) and POWER
TP188: Clock for display (output of IC140)
4-2-2. TV signal
Tuner(PC901) receives antenna signal and outputs CVBS and sound signal. IC102 switches out the
CVBS and the rest of the signal flow is same as composite video signal flow mentioned earlier.
- Main IC
A. PC901: Tuner (Input: antenna signal Output: CVBS)
B. IC102: Switching IC (Input: CVBS Output: CVBS)
C. IC126: Teletext IC
D. IC132: Video processor (Input: Y/C Output: 16bit digital, HV)
E. IC134: Deinterlacer (Input: 16bit digital, HV Output: 24bit digital RGB, HV)
F. IC140: Image Processor (Input: 24bit digital RGB, HV Output: 24bit digital RGB, HV)
- Main TP (Input: Color Bar Pattern)
TP143, 145
TP181, 184, 187, 188
4-2-3. DTV/DVD signal
Both DTV(Y, Pb, Pr) and DVD(Y, Cb, Cr) share same jack and signal path. IC102 switches out
signal and also detects type of signal so that IC121 can convert the analog signal to digital. Then
the signal goes through IC134(deinterlacer) and IC140 for digital image processing.
- Main IC
A. IC102: Switching IC (Input: Component Output: Component, HV)
B. IC121: A/D converter (Input: Component, HV Output: 24bit digital RGB, HV)
C. IC134: Deinterlacer (Input: 24bit digital RGB, HV Output: 24bit digital RGB, HV)
D. IC140: Image Processor (Input: 24bit digital RGB, HV Output: 24bit digital RGB, HV)
-10-
Description of A/V(MAIN and SUB PCB) and POWER
- Main TP (Input: 480P, Color Bar Pattern)
TP261: Y signal (Input to IC121)
TP134: Clock (output to IC121)
TP135: Horizontal sync (output of IC121)
-11-
Description of A/V(MAIN and SUB PCB) and POWER
TP136: Vertical sync (output of IC121)
4-2-4. PC (Personal Computer)signal
PC signal is switched out by IC109 and input to IC114 for A/D conversion. Then the signal goes
through IC140 for digital image processing.
- Main IC
A. IC109: Switching IC (Input: Analog RGB, H, V Output: Analog RGB, H, V)
B. IC114: A/D converter (Input: Analog RGB, H, V Output: 24bit digital RGB, H, V)
C. IC140: Image Processor (Input: 24bit digital RGB, H, V Output: 24bit digital RGB, H, V)
- Main TP (Input: Color Bar Pattern)
TP130: Vertical sync (output of IC114)
-12-
Description of A/V(MAIN and SUB PCB) and POWER
TP128: SYNC for PLL (output of IC114)
TP127: Output clock (output of IC114)
4-2-5. DVI(Digital Visual Interface) signal
To process DVI signal, graphic card of AV device reads EDID data from IC101(ROM). Then DVI
signal is directly inputted to IC112, which outputs digital 24bit RGB and H, V. The output goes
through IC140 for digital image processing.
- Main IC
A. IC101: ROM containing EDID data (EDID: display capabilities such as resolution, aspect ratio
etc.)
B. IC112: DVI signal processor (Input: TMDS Output: 24bit digital RGB, H, V)
-13-
Description of A/V(MAIN and SUB PCB) and POWER
- Main TP (Input: Color Bar Pattern)
TP116: Horizontal sync (output of IC112)
TP117: Vertical sync (output of IC112)
4-2-6. Video Enhancer and LVDS transmitter (for all inputs)
Outputs of IC140 are inputted to IC149(video signal enhancer) which improves picture quality greatly.
Outputs of IC149 are inputted to IC150 which is a LVDS transmitter. The converted LVDS signal is
transmitted to the digital board.
- Main IC
A. IC149: Video enhancer (Input: 24bit digital RGB, H, V Output: 24bit digital RGB, H, V)
B. IC150: LVDS transmitter (Input: 24bit digital RGB, H, V Output: LVDS signal)
- Main TP (Input: Color Bar Pattern)
TP204: Horizontal sync (output of IC149), refer to TP184
TP205: Vertical sync (output of IC149), refer to TP187
-14-
Description of A/V(MAIN and SUB PCB) and POWER
4-2-7. Audio signal processing, KEY, and LED
IC104 switches Audio signals and passes a switched signal to IC904 for audio signal processing.
IC904 controls sound parameters such as Volume, Balance, and Equalize. The outputs of IC904 are
passed to IC901(left), and IC903(right) respectively to amplify the signals. KEY and LED PCBs send
signals received from key buttons and LED to IC140 for command processing.
- Main IC
A. IC104
B. IC904
C. IC901, IC903
- Main TP (Input: Sound wave 400Hz)
TP_AUDIO: AUDIO SIGNAL that goes into MSP3420 before AUDIO PROCESSING
RIGHT (LEFT) : AMP input signal before 30dB amplification
-15-
Description of A/V(MAIN and SUB PCB) and POWER
Remote control signal
4-3. POWER PCB
Rating: AC100V ~ AC240V (Variable Range- AC85V~ AC276V)
Regulation Method: Transistor & Switching Method
Input Frequency: 50~60Hz (Variable Range- 45Hz ~ 66Hz)
Inrush Current: Below 30A at AC264V
Output Voltage is shown below.
No. Output Voltage Variable Voltage Current Ripple/Noise
Rating Range Accuracy Rating (mVp-p)*2
(V) (V) (%)*1 (A)
1 Vs 175 160-190 5V 0.4~1.5 500/500
*3
2 Va 60 50-65 2V 0.01~2.5 300/300
3 5Vcntl 5.1 4.75~5.25 5% 1.2~4 30/200
4 5V 5.1 4.75~5.25 5% 0.5~4.5 50/200
5 V3 17 - 7% 0~0.7 100/400
(SOUND) -17 - 7% 0~0.7 100/400
6 33VT 33 - 7% 1.5 100/400
7 12V 12 - 5% 0.6 100/400
8 Vstb 5 - 5% 1.5 50/200
-16-
Description of A/V(MAIN and SUB PCB) and POWER
Connector
Connector number CN806 CN805
Model name B10P-VH B4P-VH
Maker JST JST
The number of pins 10 4
1 ALARM (LVP) 5Vcntl
2 GND 5Vcntl
3 GND GND
4 GND GND
Pin 5 GND
number 6 Vd
7 Vd
8 NC
9 Vs
10 Vs
Connector number CN803 CN804 (NOT USED) CN801
Model name YMW025-10R YMW025-05R YMW025-04R
Maker YEONHO YEONHO YEONHO
The number of pins 10 5 6
1 5V Stand-by 3.3V 33VT
2 Power 3.3V GND
3 GND GND +17V
4 GND GND GND
Pin 5 5V 2.5V GND
number 6 GND 2.5V -17V
7 GND GND
8 12V GND
9 12V
10 NC
* CN806 is connected to CN301 of HIGH VOLTAGE PCB.
CN805 is connected to CN302 of HIGH VOLTAGE PCB.
CN803 is connected to PC103 of MAIN PCB.
CN801 is connected to PC900 of SUB PCB.
-17-
Description of A/V(MAIN and SUB PCB) and POWER
4-4. Interface with PDP Module
A/V
POWER
< PDP Module >
-18-
5. SERVICE MODE
5.1 Checking initial menu data
(1) Check initial data of User Menu
1) Picture
- Mode : Normal
BRIGHTNESS : 32
CONTRAST : 48
COLOR : 32
Tint : 32 (CENTER) * Not displayed when input signal is PAL or SECAM
Sharpness : 32
- Colour Temp. : Normal
2) Sound
- Balance : 0 (CENTER)
- Effect : Off
- Mode : Normal
120 Hz : 0 (CENTER)
500 Hz : 0 (CENTER)
1.5 KHz : 0 (CENTER)
5 KHz : 0 (CENTER)
10 KHz : 0 (CENTER)
3) Screen Mode : 16:9
4) Features
- Background : Opaque
- Language : English
- Child Lock : Off
- Enhancer : On
- Auto Power : Off
- Time Setting
Clock : -- --:--
Off Timer : Off
Off Time : AM 12:00
Wake Timer : Off
Wake Time : AM 12:00
Wake Pro. : 1
Wake Vol. : 20
- ISM
Pixel Shift : Off
Low Bright : Off
- Initialize
-19-
SERVICE MODE
5) Install(TV input only)
- Auto Setup
- Edit
- Manual Setup
5-2 Entering SERVICE MODE
To enter SERVICE MODE
Press " VOL" => "MUTE" => "RECALL" => "MUTE" BUTTON of Remote Controller
(1) Check initial data of Service mode
1) PW 181-1
[Note] Initial data of Service Mode can be different depending on Micom(firmware) version.
The actual data applied to each set is equal to the data of when executing "Service
Mode->Reset->Level 1"
- Sub Brt : 24
- Sub Cont : 8
- Bias R : 32
- Bias G : 32
- Bias B : 32
- Gain R : 14
- Gain G : 16
- Gain B : 16
2) PW 181-2
- DVI Brt : 16
- DVI Cont : 0
- Sharp Filter : Normal
3) VPC 3230
- Comm Brt : 139
- Comm Cont : 43
- Comm Peak : 2
- CVBS Color : 112
- CVBS Tint : 128
- Comp Brt : 196
- Comp Cont : 28
- Comp Cb : 23
- Comp Cr : 29
- Comp Tint : 32
4) 9883_G
- Bias R : 64
- Bias G : 64
- Bias B : 64
- Gain R : 128
- Gain G : 128
- Gain B : 128
5) 9883_V
- Bias Cr : 64
-20-
SERVICE MODE
- Bias Y : 60
- Bias Cb : 64
- Gain Cr : 128
- Gain Y : 128
- Gain Cb : 128
6) MDIN 150
- Bright : 128
- Contrast : 64
- Color : 64
- NR : Off
7) Enhncr
- B&W : ON
- FCT : ON
- ACR : ON
- Gamma : ON
- Dither : ON
- SEISAI : ON
8) MSP 34xx
- Sc pScale : 21
- FM pScale : 25
- NC pScale : 51
9) M2
- Contrast :1
- H Posi Full : 30
- Language : 0
- Option : 2
- CIK Full C40 : 0
- CIK Full C56 : 0
- Vposi Full : 132
10) Misc
- Tst Ptrn : AT
- Tst Ptrn : MA
- AT Search : ON
- TV AT OFF : ON
11) Info (firmware version information)
12) Reset
- Level 1
- Level 2
- Factory
13) Panel (NEC 42" SD)
- 50Hz Mode : STD1
- 60Hz Mode : STD1
- Frame Conv : Off
- Long Life : Off
- Gamma : On
- ED : On
-21-
SERVICE MODE
5-3. Description of SERVICE MODE Items
1) PW181-1 : Image processor control values. Mainly used to adjust White balance.
[Note] These values need to be adjusted only after replacing MAIN PCB. These values
may vary from set to set. Therefore if these values are recorded before replacing MAIN
PCB, you do not need to adjust WHITE BALANCE additionally.
(1) Sub Brt : For BRIGHTNESS adjustment (All inputs)
(2) Sub Cont : For CONTRAST adjustment (All inputs)
(3) Bias R : For R BRIGHTNESS adjustment (All inputs)
(4) Bias G : For G BRIGHTNESS adjustment (All inputs)
(5) Bias B : For B BRIGHTNESS adjustment (All inputs)
(6) Gain R : For R CONTRAST adjustment (All inputs)
(7) Gain G : For G CONTRAST adjustment (All inputs)
(8) Gain B : For B CONTRAST adjustment (All inputs)
2) PW181-2 : Additional PW181 control values
[Note] The following values do not need to be adjusted after replacing MAIN PCB.
Therefore you do not need to change initial values..
(1) DVI Brt : For BRIGHTNESS adjustment (DVI)
(2) DVI Cont : For CONTRAST adjustment (DVI)
(3) Sharp Filter : For SHARPNESS adjustment (Video, S-video)
3) VPC3230 : VIDEO DECODER control values. Used to adjust picture quality of VIDEO/S-
VIDEO inputs.
[Note] The following values do not need to be adjusted after replacing MAIN PCB.
Therefore you do not need to change initial values.
(1) Comm Brt : For BRIGHTNESS adjustment (Video, S-video, Caption)
(2) Comm Cont : For CONTRAST adjustment (Video, S-video, Caption)
(3) Comm Peak : For SHARPNESS adjustment (Video, S-video, Caption)
(4) CVBS Color : For COLOR adjustment (Video, S-video)
(5) CVBS Tint : For TINT adjustment (Video, S-video)
(6) Comp Brt : For BRIGHTNESS adjustment (Caption only)
(7) Comp Cont : For CONTRAST adjustment (Caption only)
(8) Comp Cb : For Color (Cb) adjustment (Caption only)
(9) Comp Cr : For Color (Cr) adjustment (Caption only)
(10) Comp Tint : For TINT adjustment (Caption only)
4) 9883_G : Graphic port A/D converter control values. Used to adjust picture quality of PC
input.
[Note] The following values do not need to be adjusted after replacing MAIN PCB.
Therefore you do not need to change initial values.
-22-
SERVICE MODE
(1) Bias R : For R BRIGHTNESS adjustment (PC)
(2) Bias G : For G BRIGHTNESS adjustment (PC)
(3) Bias B : For B BRIGHTNESS adjustment (PC)
(4) Gain R: For R CONTRAST adjustment (PC)
(5) Gain G: For G CONTRAST adjustment (PC)
(6) Gain B: For B CONTRAST adjustment (PC)
5) 9883_V : Video port A/D converter control values. Used to adjust picture quality of Component
inputs.
[Note] The following values do not need to be adjusted after replacing MAIN PCB. Therefore
you do not need to change initial values.
(1) Bias Cr : For Cr BRIGHTNESS adjustment (Component)
(2) Bias Y : For Y BRIGHTNESS adjustment (Component)
(3) Bias Cb : For Cb BRIGHTNESS adjustment (Component)
(4) Gain Cr : For Cr CONTRAST adjustment (Component)
(5) Gain Y : For Y CONTRAST adjustment (Component)
(6) Gain Cb : For Cb CONTRAST adjustment (Component)
6) MDIN150 : Used to adjust DEINTERLACE performance. Affect component & video input.
[Note] The following values do not need to be adjusted after replacing MAIN PCB. Therefore
you do not need to change initial values.
(1) Bright : For BRIGHTNESS adjustment (Video, S-video, Component)
(2) Contrast : For CONTRAST adjustment (Video, S-video, Component)
(3) Color : For COLOR adjustment (Video, S-video, Component)
(4) NR : Noise Reduction Filter adjustment (Video, S-video, Component)
7) Enhncr : Picture Quality Enhancer. Used to adjust picture quality for all inputs.
[Note] The following values do not need to be adjusted after replacing MAIN PCB. Therefore
you do not need to change initial values.
(1) B&W : Black & White Stretch ( ON: enables B Emph, W Emph, and G Emph)
(2) FCT : Favorite Color Technology
(3) ACR : Accurate Color Reproduction
(4) Gamma : Video Inverse Gamma(=1.47) Correction
(5) Dither : Error Diffusion
(6) SEISAI : Random dither pattern masking
8) MSP34xx : Sound processor
[Note] The following values do not need to be adjusted after replacing MAIN PCB. Therefore
you do not need to change initial values.
(1) Sc pScale : Prescale adjustment for external input(Video, Component, PC, DVI etc.)
(2) FM pScale : FM/AM prescale adjustment
(3) NC pScale : NICAM prescale adjustment
9) M2 : Teletext decoder
(1) Contrast : Text Contrast
(2) H Posi Full : Adjust H position in Full Text
(3) Language
Teletext Language Group Table
0 West Europe(England/France/Sweden/Czech/Germany/Spain/Italy)
1 East Europe(Poland/France/Sweden/Czech/Germany/Slovenia/Italy/Romania)
2 Turkish/Greek(England/France/Sweden/Turkey/Germany/Spain/Italy/Greece)
3 Cyrillic
4 ARAB/HEBREW
5 FARSI ALL
-23-
SERVICE MODE
(4) Option
0 : Top
1 : Flop
2 : Top & Flop
(5) CIK Full C40 : Adjust pixel clock in half text 40 column text
(6) CIK Full C56 : Adjust pixel clock in half text 56 column text
(7) Vposi Full : Adjust V position in Full Text
10) MISC
(1) TST PTRN AT : Cycled patterns from R G B WH every 1 minute automatically.
(2) TST PTRN MA : Cycled patterns from BK WH R G B by pressing volume up key
(3) AT Search : Auto program search and sorting.
(4) TV AT OFF : When in TV mode and no signal is detected for 30 min, the set is turned
off automatically.
11) INFOR : MICOM(firmware) version information
(year 4 digits, month 2 digits, date 2 digits and time 4 digits : e.g. 200409221030 )
12) RESET
(1) LEVEL 1: Reset all values (service mode & user menu).
(2) LEVEL 2: Reset all except PW181-1 values
(3) FACTORY: Reset user menu values
13) PANEL
(1) 50Hz Mode :
- STD1 : Standard Mode 1 (Peak Luminance 100%, False Contour Good)
- STD2: Standard Mode 2 (Peak Luminance 100%, False Contour Bad)
- HIQ1: High Image Quality Mode 1 (Peak Luminance 70%, False Contour Very Good)
- HIQ2: High Image Quality Mode 2 (Peak Luminance 70%, False Contour Good)
(2) 60Hz Mode :
- STD1: Standard Mode 1 (Peak Luminance 100%, False Contour Good)
- STD2: Standard Mode 2 (Peak Luminance 100%, False Contour Bad)
- HIQ1: High Image Quality Mode 1 (Peak Luminance 70%, False Contour Very Good)
- HIQ2: High Image Quality Mode 2 (Peak Luminance 70%, False Contour Good)
(3) Frame Conv :
- Off: Input Vsync Frequency = Panel Display Vsyinc Frequency
- On: Panel Display Vsync Frequency Fixed (=60Hz)
(4) Long Life : Safety Mode(Low Peak Luminance)
(5) GAMMA : Panel Inverse Gamma Correction
(6) ED : Panel Error Diffusion
-24-
6. Adjusting Method
6-1. WHITE BALANCE Adjustment
1) Apply 5 Step Gray Scale pattern to Video input terminal (Pattern generator: MIK 7253S)
Figure 6-1 Step Gray Scale Pattern
2) Check initial data from USER CONTROL (refer to 5-1)
3) In order to start Service mode, press button in following order " Vol -> Mute -> Recall
(Display) -> Mute" of the remote control. And then select PW181-1 for checking initial data of
the SERVICE MODE (refer to 5-2).
4) Attach the sensor of White Balance Meter (CA-100) to the 80% white level of the screen.
5) Adjust White Balance by controlling R, G, B GAIN.
. Control R, G, B GAIN values so that the ranges are within DP (Default Value) 10. If the gains
are deviated from the range, the SET is disqualified.
. Set color coordinate to x=0.285 0.005, y=0.275 0.005, and the Color Temperature to greater
than 10,000 K.
6) Attach the sensor of White Balance Meter to 40% of white level on the screen
7) Adjust White Balance by varying the values of R,G, B BIAS.
. Control R, G, B BIAS values so that the ranges are within "Default Value" 5. If deviate from
the range, classify the SET disqualified.
. Set color coordinate to x=0.285 0.005, y=0.285 0.005.
8) Repeat from 4) to 7) until color coordinate is correctly set, and then adjust Sub Contrast for that
the luminance is above or equal to 100 Cd/m2 when the sensor of White Balance Meter is
attached to 100% of white level on the screen.
9) To exit the Service mode, press Menu button of the remote control.
-25-
Adjusting Method
6-2. POWER ADJUSTMENTS
Video pattern condition: 100 IRE Full White Pattern
Power Adjustment is controlling the panel values set by module maker previously. If there is
problem after power adjustment, classify as a defect and contact PDP module maker.
1. Vs (Vsus Voltage): Sustain Voltage
Measurement equipment : Digital Volt Meter ( DC Volt mode )
Adjusting TP : TP204 (See Picture 6-2)
Adjusting Voltage : The voltage which is written at upper center of DATA BAR in PDP Module.
(Typical Voltage: 175 V, See Picture 6-1)
Picture 6-1. Power Connection and Voltage Adjustment Label
-26-
Adjusting Method
2. Vd (Vadd Voltage) : DATA Input Voltage
Measurement equipment : Digital Volt Meter ( DC Volt mode )
Adjusting TP : TP206 (See Picture. 6-2)
Adjusting VOLUME:
Adjusting Voltage : The voltage which is written at upper center of DATA BAR in PDP Module.
(Typical Voltage: Picture - Picture. 6-2)
Picture. 6-2 Power Adjustment Points
< Note >
1. Auto & Normal S/W
This switch is used to test power board therefore for normal operation always set it to "NORMAL".
Do not touch while operating
2. High voltage S/W
Do not touch while operating
3. When replacing a power board make sure to check these switches.
. High voltage S/W -> "HIGH"
. Auto & Normal S/W -> "NORMAL"
-27-
7. SOFTWARE UPGRADE Method
1. Check whether MAIN PCB is connected to SUB PCB(JP117 to JA109).
2. Connect 9-PIN serial cable to the serial port of the computer.
3. Connect the opposite end of the serial cable to RS-232C port of SUB PCB.
4. Run Flashupgrader.exe in the PC to excute the program as shown below.
5. Select current Upgrade file
- Click "Choose..." button to select the file you want to upgrade.
- Select the file (pwSDK.inf) that you want to upgrade.
-28-
SOFTWARE UPGRADE Method
6. Select correct COM Port and Baud Rate(115200) as shown below. Then press Flash button to finish
setup.
7. Turn on the ac power and then upgrade program will start the download as shown below.
-29-
SOFTWARE UPGRADE Method
8. When the upgrading is complete, a window (below) will be opened. Press "Finish" button to complete
the process.
-30-
8. Main PCB Trouble Diagnosis
8-1. MAIN & SUB PCB Trouble Diagnosis
[NOTE] Refer to "PDP MODULE" section for trouble diagnosis other than MAIN, SUB and POWER
PCB.
1. Common checking process when "No signal" or "No raster"
(No signal: OSD is working but no images are displaying, No raster: Not even OSD is displaying)
Ch eck start
Y
N Is a weak N 1.Check AC connection
Does "No si gn al " screen discharge detected 2. Check Power S/W ON
appear ? in the screen? 3. Check other PCBs
Y
Y
Is LVDS connecti on
N Check LVDS connection
N N correctly connected? CN101 of Digital PCB &
Is the signal input Jack Check the connectio n of P100 of Main PCB
properly connected? Jack(PDP and AV device)
Y
Y
Is waveform of DVS,DHS,
N
N DCLK in the Main PCB normal?
Replace Main PCB
Does input source (AV Check AV device TP(187,184,181) and/or Sub PCB
device) work ?
Y Y
N 1. Check other PCBs and connectors
Is input selection in the Check input (Refer to PDP Module section)
Correct mode ? mode
Y
Replace Main PCB
and/or Sub PCB
2. When "No signal" in Video, S-VIDEO, and Component modes.
(1) First check if PC input is working.
If PC is not working replace MAIN PCB.
For detail examination, with an oscilloscope check TP188, TP184 and TP187 signal explained
in A/V block section.
If TP188, TP184 or TP187 signal does not appear, replace MAIN PCB.
(2) Checking waveforms with COLOR BAR pattern(for detail examination only)
-31-
Main PCB Trouble Diagnosis
When Y Cb Cr input : TP261 located in the center of the PCB near IC121.
COMPOSITE Input : Check Positive polarity of CE203 located near IC132.
S- VHS input : Check Negative polarity of CE284 located near IC159.
If above signals do not appear, MAIN PCB needs to be replaced.
(3) With Video or S-Video inputs
Check TP138(V sync), TP139(H sync)
If signals do not appear, replace MAIN PCB.
-32-
Main PCB Trouble Diagnosis
(4) With Component inputs
Check TP136(V sync), TP135(H sync)
If signals do not appear, replace MAIN PCB.
3. When DTV (1080i, 720P, 480P) signal do not appear on screen
(1) Input PC or VIDEO signal and see if PC or VIDEO images are displaying.
If "no signal", check TP188, 187 and 184.
If DCLKB, DHS and DVS signal do not appear, replace MAIN PCB.
(2) Check TP136(V sync), TP135(H sync)
If above signals do not appear, replace MAIN PCB.
4. When PC signal do not appear on screen
(1) Input DTV or VIDEO signal and see if DTV or VIDEO images are displaying.
If "No signal", check TP188, 184 and 187.
If TP188, 184 and 187 signal do not appear, replace MAIN PCB.
(2) Check TP124 (V SYNC), TP125 (H SYNC) (when 800 X 600).
-33-
Main PCB Trouble Diagnosis
If above signal do not appear, replace MAIN PCB.
-34-
Main PCB Trouble Diagnosis
5. When No Sound
Check start
Y
N 1. Check AC connection
Do images display on 2. Check Power S/W ON
screen? 3. Check MAIN or other PCBs
Y
N
Is the Sound input Jack Check the connection of
properly connected? Jack(PDP and AV device)
Y
N Check the connection of
Is the Speaker connection
correctly connected? Speaker
Y
1. Check connection between
With a Video input(video&sound) Outputs
N MAIN and SUB PCB
of 4th and 19th of JA109 ok? 2. Or IC104's problem.
Replace MAIN PCB.
Y
N IC 904's problem.
Check 11th pin of IC901 & 903? Replace SUB PCB.
Y
N
IC901 or IC903 Problems.
Is the sound output of JP901 in JACK
Replace SUB PCB.
PCB normal?
Y
Problem of SPEAKER or SOUND CABLE.
So, replace SPEAKER or SOUND CABLE
-35-
Main PCB Trouble Diagnosis
6. When Key does not operate
Check start
Y
1. Check AC connection
N 2. Check Power S/W ON
Does LED next to Power S/W 3. Check other PCBs
turn on (red light)?
Y
N
Does LED turn on (green light)? Check the connection of KEY
PCB toMAIN PCB
Y
N
Is 5th pin from the top of PC102 output normal? 1. Replace the CONNCETOR.
2. Replace Key PCB.
Y
Check MAIN PCB
-36-
Main PCB Trouble Diagnosis
7. When Remote Controller does not operate
Check start
Y
N 1. Check AC connection
Does LED next to Power S/W 2. Check Power S/W ON
turn on (red light)? 3. Check other BLOCKs
Y
N Check the Battery of
Is Remote Controller Remote Controller
working?
Y
Does Set turn on by N Check the connection of LED PCB
pressing a key button? to MAIN PCB
Y
Using an oscilloscope
check TP113 near PC101. N
Does it output a signal whenever a remote Replace LED PCB.
controller button is pressed?
Y
1. IR Receiving BLOCK of MAIN PCB is not
working.
2. Replace MAIN PCB
-37-
Main PCB Trouble Diagnosis
8-2. POWER PCB Trouble Diagnosis
After checking High Voltage Board / Scan Relay Board / Data Relay Board (refer to II. PDP
MODULE), and the set still does not operate, then check if the following Power PCB's Trouble
Symptoms appear.
After unplugging Power Connectors of Power PCB (CN806 and CN805) and checking
remaining voltage, there still exist several tens of remaining voltage.
When output condition of Power PCB is set to low-voltage, output voltage table lists 3~7 are
NOT normal. Or when set to high-voltage, output voltage table list 1~2 are NOT normal. (Refer
to 4-3)
When output condition of Power PCB is set to low-voltage, output voltage table lists 3~7 are
normal. But when set to high-voltage, output voltage table list 1~2 are NOT normal. (Refer to
4-3)
After turning on the PDP set with Remote Controller when output condition of Power Module is
set to high-voltage, the LED turn "Green" but the "Power Shut Down" happens after 2~3
seconds.
If high voltage (Vsus, Vadd) measured from Power PCB is different from that of optimum
adjusting voltage label, re-adjust the voltages referring to "I. 6-2. POWER Adjustments"
-38-
9. TROUBLE DIAGNOSIS
[NOTE] Refer to "PDP MODULE" section for module diagnosis.
* Refer to Chapter II for Symptoms of other parts with exception of MAIN, SUB PCB and POWER
PCB Trouble.
9-1. Facts you must know when trouble diagnosing or repairing
(1) Trouble diagnosing and repairing of set mean find out which PCBs or blocks are not working and
replace them with new PCBs. Repairing the broken PCBs are not necessary. Keep the broken
PCBs and return them to service center or R&D center.
(2) This TROUBLE DIAGNOSIS list only contains representative and simple PCB trouble diagnosis
and Module Exchange method. Therefore, if you find Sets that are difficult to diagnose or to
repair, contact R&D center.
(3) Basic TROUBLE DIAGNOSIS procedure
Check problem Symptoms -> Open BACK COVER -> Trouble Diagnosis e Replace broken PCB
-> Adjust new PCB module -> HEATRUN (for at least 30 minutes, input TEST PATTERN FULL
WHITE), full FUNCTION test -> Repair Complete.
(4) Required equipments for trouble diagnosis
- DIGITAL MULTIMETER (User Mode : measure DC VOLTAGE, measure DIODE VOLTAGE,
SHORT-OPEN TEST )
- Screwdriver (or electric screwdriver), plastic adjusting tool
- Oscilloscope (for detailed examination only)
(5) Each BLOCK operations explained in this manual include OSCILLOSCOPE waveforms, but these
are for reference only and utilizing them to repair PCBs is not necessary.
(6) Before replacing PCBs, you MUST turn the AC Switch "OFF".
(7) After replacing High Voltage Board, POWER, and MAIN & SUB PCB, extra adjustment might be
needed. (Refer to I. 6. Adjusting Method)
(8) After the set is repaired, leave BACK COVER open for followings. Run HEATRUN for at least
30 minutes by displaying TEST PATTERN (FULL WHITE) of SERVICE MODE (Refer to
Service Manual I.5. Service Mode). Check the screen conditions and basic functions (remote
control operation etc.).
(9) After BACK COVER is closed, redo HEATRUN for at least one hour with FULL WHITE input
using TEST PATTERN of SERVICE MODE. Check the screen conditions and basic functions.
9-2. Typical Symptoms of PCB problem or bad Connection
(1) Symptoms of POWER PCB Trouble
Not even a weak discharge detected on the screen.
Discharge on the screen is unstable
Set is making unusual noise
POWER SHUT DOWN occur (refer to Service Manual I. 9-3)
-39-
TROUBLE DIAGNOSIS
(2) Symptoms of MAIN or SUB PCB Trouble
Only a weak discharge shows on the screen, but it is displaying No images.
Images are abnormal
Particular input signal (Video, PC or Component etc.) does not work.
No SOUND
Occasionally, set does not operate normally. Turning off and on the AC power make
the set to operate normal again.
Remote Control or KEY does not work.
POWER SHUT DOWN occur (refer to Service Manual I. 9-3 )
(3) Representative Symptoms caused by bad Connection between PCBs.
[Note] Dust or extraneous materials may cause bad connections. Most of the time, applying soft
brush, AIR FRESHER, or breath to clean dust or extraneous materials can solve it. And
then reassemble the Connector.
9-3. Trouble Diagnosis and Repairing Method for Representative Symptoms
(1) When POWER SHUT DOWN occurs
<1> Definition of "SHUT DOWN"
- While LED color is green, POWER PCB does not make any operating noise. (Red: STAND
BY, Green: Operating)
- When the set is turned on power relay does not operate normally, and POWER PCB does not
make any operating noise.
<2> Trouble Repairing Procedure
- As shown in Fig. 5, first check whether "LOW VOLTAGE" part or "HIGH VOLTAGE" part has
problems.
- If "LOW VOLTAGE" part's problem is detected, diagnose and repair the SET as shown in Fig. 6.
- If "HIGH VOLTAGE" part's problem is detected, diagnose and repair the SET as shown in Fig. 6.
- When disconnecting/connecting connectors, you MUST turn "OFF" the AC power
and check the direction and position of the connectors before working.
- Whenever you reassemble connectors connecting High Voltage Board and
POWER PCB(CN805, CN806), remaining voltage still exists in the POWER PCB
could cause electric shock and damage the set. Therefore always reassemble the
connectors several minutes after AC power is off. To be more careful, using a
MULTIMETER you should check to see if Vsus is less than 10V and then connect
connectors.
-40-
TROUBLE DIAGNOSIS
(2) When weak Discharge exists on screen but "OSD screen" can not be seen
<1> Definition of this symptom
- When the set is turned on, screen is BLACK but Weak Discharge (luminescence) exists.
- OSD does not show on screen and the set does not respond to remote controller or KEY panel
buttons.
<2> PCB CHECK PRIORITY
- MAIN PCB, SUS PCB
<3> Repairing Procedure
- Check LVDS cable (MAIN PCB to DIGITAL PCB) first and then other connectors connecting
MAIN PCB. If this does not fix the problem replace MAIN PCB.
-41-
TROUBLE DIAGNOSIS
Turn AC power OFF
Open BACK COVER
Disconnect CN801, CN803, CN805, CN806
of POWER PCB and set AUTO & NORMAL
S/W of Power PCB to AUTO
"SHUT DOWN"
occur?
YES NO
Set POWER PCB'S VOLTAGE SWITCH
Replace POWER PCB to LOW (refer to Fig. 4)
Turn AC power ON (STAND BY)
Turn ON the SET
YES "SHUT DOWN" NO
occur?
* LOW VOLTAGE part is problem. * HIGH VOLTAGE part is problem.
* Related PCBs
* Related PCBs High Voltage, SCAN, DATA
DIGITAL, MAIN, SUB
* Trouble Diagnosis in order
* Trouble Diagnosis in order shown as Fig. 7
shown as Fig. 6
Fig. 5 Trouble Diagnosis Flow when "SHUT DOWN" occurs
-42-
TROUBLE DIAGNOSIS
Turn AC PWR OFF
Set VOLTAGE SWITCH of POWER
PCB to LOW (Picture 6-2)
Unplug Connectors connecting High
Voltage and POWER PCB(CN806)
AC PWR "ON" =>
PWR "ON" with Remote Controller
YES "SHUT DOWN" NO
occur?
AC PWR "OFF" AC PWR "OFF" =>
Unplug Connectors connecting High
Unplug Connectors connecting SUB Voltage and DIGITAL PCB(CN601)
and POWER PCB(CN801) Unplug Connectors connecting High
Unplug Connectors connecting High Voltage and DATA PCB(CN7)
Voltage and POWER PCB(CN805)
Unplug Connectors connecting SUB
and MAIN PCB(JP117)
AC PWR "ON" =>
PWR "ON" with Remote Controller
AC PWR "ON" =>
PWR "ON" with Remote Controller
"SHUT DOWN"
occur?
NO
"SHUT DOWN"
occur?
NO
YES
YES
Replace High Replace DIGITAL
Voltage Or Or DATA PCB
SCAN PCB
Replace MAIN Replace SUB
PCB PCB
Fig. 6 Trouble Diagnosis Flow when LOW VOLTAGE "SHUT DOWN" occurs
-43-
TROUBLE DIAGNOSIS
AC PWR "OFF"
Do DIODE TEST
On High Voltage, Scan Relay Board NO
Tests Passed?
YES
Replace failed PCB
Replace Scan Relay Board
AC PWR "ON" =>
PWR "ON" with Remote Controller
YES "SHUT DOWN" NO
accur?
Replac8High Diagnosis Complete
Voltage8xoard
Fig. 7 Trouble Diagnosis Flow when HIGH VOLTAGE "SHUT DOWN" occurs
-44-
10. ASSEMBLY LIST
No. PCB ASS'Y NAME ASS'Y CODE ASS'Y DESCRIPTION
1 PCB MAIN MANUAL AS PTMPMSG059 DPP-4273NHS
2 PCB SUB MANUAL AS PTSBMSG059 DPP-4273NHS
3 CABINET AS PTCACAG059 DPP-4273NHS
4 COVER BACK AS PTBCSHG047 DPP-4272NHS
5 MODULE PDP 4850M07610 NP42B3MF01
6 MODULE POWER 4850M07910 1H217W
7 HIGH Voltage PKG 485AS06490 PKG42B3G1-01D
8 Common Bypass PKG 485AS06590 PKG42B3J4/42D2J4/35B2J4-01A
9 Common Relay PKG 485AS06690 PKG42B3J3-01A
10 Data Relay PKG(L) 485AS06790 PKG42B3J1-02B
11 Data Relay PKG(R) 485AS06890 PKG42B3J2-02B
12 Scan Relay PKG-T 485AS06990 PKG42B3E1-01B
13 Scan Relay PKG-B 485AS07090 PKG42B3E2-01B
14 Digital PKG 485AS07290 PKG42B3C1-01D-06
15 GLASS FILTER 485A101180 42L4-MESH
16 CONNECTOR 4850705N31 12505HS-05+12505TS+ULW=650
17 CONNECTOR 4850706N23 12505HS-06+12505TS+ULW=500
18 CONNECTOR 4850710N16 YMH025-10R+YMT025R+ULW=250
19 CONNECTOR 4850732N01 YDH200-32 50MM
20 CONNECTOR 4850724N01 YDH200-24 50MM
21 CONNECTOR 4850704S56 YH396-04V+YT396+ULW=600
22 CONNECTOR 4850710N15 YH396-10V+YT396+ULW=600
23 CONNECTOR 4850706S25 YMH025-06R+YMH025-06R+ULW=300
24 CONNECTOR 4850702S27 YFH800-02+4272NH+ULW=450/400/600
25 PLATE INLET FILTER 4855217100 A5052 T1.0
26 SPEC PLATE 4955400100 P.E FILM 91.5X63
27 SCREW SPECIAL 4856017100 WAS M5X14
28 BRKT POWER MODULE 4853220100 SECC T1.0
29 BRACKET POWER SW 4953201000 SECC T0.8
30 MASK FRONT 4952002351 FR ABS GY
31 FILTER EMI 5P06GEEW3E 06GEEW3ES
32 SW PUSH 5S40101005 KDC-A04-10(B)-A1-G
-45-
11. STRUCTURE OF PDP SET
-46-
STRUCTURE OF PDP SET
COMPONENTS PICTURE REMARK
1) PDP MODULE
(with F/SUPPORT)
1a) HIGH
VOLTAGE
PKG
1b) Common
Bypass
PKG
1c) Common
Relay
PKG(R)
-47-
STRUCTURE OF PDP SET
COMPONENTS PICTURE REMARK
1d) Data
Relay
PKG(L)
1e) Data
Relay
PKG(R)
1f) Scan
Relay
PKG-T
1g) Scan
Relay
PKG-B
-48-
STRUCTURE OF PDP SET
COMPONENTS PICTURE REMARK
1h) Digital
PKG
2) MAIN BOARD
3) SUB BOARD
4) POWER BOARD
-49-
STRUCTURE OF PDP SET
COMPONENTS PICTURE REMARK
5) FRONT MASK
6) FILTER ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
