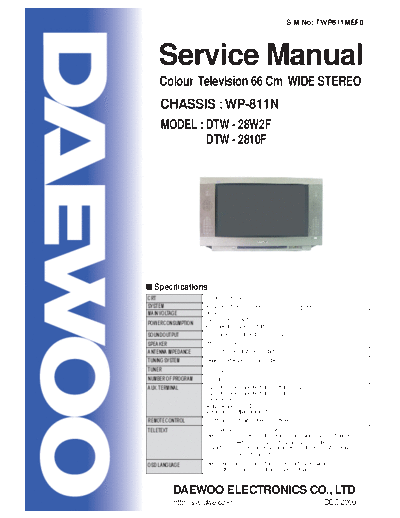

S/M No: TWP811MEF0
Service Manual
Colour Television 66 Cm WIDE STEREO
CHASSIS : WP-811N
MODEL : DTW - 28W2F
DTW - 2810F
Specifications
CRT 28" : W66ECK001X44
SYSTEM PAL / SECAM-B/K, PAL-I/I', SECAM-L/L', NTSC-3.58/4.43 (Play back)
MAIN VOLTAGE 230V AC, 50Hz
Stand-by mode : 2.0 Watts
POWER CONSUMPTION
Normal operating mode : 100 Watts
SOUND OUTPUT 10 + 10 Watts, 10% THD at RF 60% mod. (1 kHz )
SPEAKER 12W 8 ohm x 2 EA
ANTENNA IMPEDANCE 75 ohm unbalanced input ( Din Standard )
TUNING SYSTEM Frequency Systhesize (FS) Tuning System
TUNER DT5-BF14D
NUMBER OF PROGRAM 100 program
AUX. TERMINAL 21 pin EURO-SCART jack (AV input, TV output, RGB input)
21 pin EURO-SCART jack (AV input, S-VHS input)
RCA type AV input jack
Headphone jack (3.5 mm )
JACK AUDIO TERMINAL (AUDIO OUT L, R)
REMOTE CONTROL R-22D05(or R-23D05) with 2 "AAA" type batteries
TELETEXT TOP(5 Page memory) & FLOF(7 Page memory)
- West option : English, German/Dutch/Flemish, French, Italian, Spanish/Portuguese,
Swedish/Finnish/Danish, Hungarian, Rumanian, Turkish
- East option : Polish, Czech/Slovak, Rumanian, Servo-croat, German/Dutch/Flemish,
French, Estonian, Lettish
OSD LANGUAGE - West : English, German, French, Italian, Spanish, Nethelands, Swedish
- East : English, Russian, Polish, Rumanian, Czech, Hungarian
DAEWOO ELECTRONICS CO., LTD
http://svc.dwe.co.kr DEC.2000
TABLE OF CONTENTS
SAFETY INSTRUCTION .................................................................................................................. 2
SPECIFICATIONS ............................................................................................................................ 3
CIRCUIT BLOCK DIAGRAM ........................................................................................................... 4
ALIGNMENT INSTRUCTION ........................................................................................................... 5
SCHEMATIC DIAGRAM .................................................................................................................. 11
EXPLODED VIEW ............................................................................................................................ 13
PRINTED CIRCUIT BOARD ............................................................................................................ 15
SERVICE PARTS LIST .................................................................................................................... 16
APPENDIX (" Appendix is provided only by internet [http://svc.dwe.co.kr] ")
IC DESCRIPTION ............................................................................................................................. 1
IC DC VOLTAGE CHARTS .............................................................................................................. 18
1
SAFETY INSTRUCTION
WARNING : Only competent service personnel may carry out work involving the testing or repair of this equipment
X-RAY RADIATION PRECAUTION
1. Excessive high voltage can prodece potentially haz- 2. The only source of X-RAY Radiation in this TV receiver
ardous X-RAY RADIATION. To avoid such hazards, is the picture tube. For continued X-RAY RADIATION
the high voltage must not exceed the specified limit. protection, the replacement tube must be exactly the
The nominal value of the high voltage of this receiver is same type tube as specified in the parts list.
25-27kv at max beam current. The high voltage must
not, under any circumstances, exceed 30kv.
Each time a receiver require servicing, the high volt-
age should be checked. It is imprortant to use an accu-
rate and reliable high voltage meter.
SAFETY PRECAUTION
1. Potentials of high voltage are present when this 2. If any Fuse in this TV receiver is blown, replace it with
receiver is operating. Operation of the receiver outside the FUSE specified in the Replacement Parts List.
the cabinet or with the back board removed involves a 3. When replacing a high wattage resistor ( oxide metal
shock hazard from the receiver. film resistor ) in circuit board, keep the resistor 10mm
1) Servicing should not be attempted by anyone who is away from circuit board.
not thoroughly familiar with the precautions neces- 4. Keep wires away from high voltage or high tempera-
sary when working on high-voltage equipment. ture components.
2) Dischange the high potential of the picture tube 5. This receiver must operate under AC230 volts, 50Hz.
before handling the tube. The picture tube is highly NEVER connect to DC supply or any other power or
evacuated and if broken, glass fragments will be frequency.
violently expelled.
PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in this have nents having such features are identified designated
special safety-related characteristics. These charac- symbol on the parts list.
teristics are often passed unnoticed by a visual Before replacing any of these components, read the
inspection and the X-RAY RADIATION protection parts list in this manual carefully. The use of substitute
afforded by them cannot necessarily be obtained by replacement parts which do not have the same safety
using replacement components rated for higher volt- characterisitics as specifide in the parts list may create
age, wattage, etc. Replacement parts which have X-RAY Radiation.
these special safety characteristics are identified in
this manual and its supplements, electrical compo-
2
SPECIFICATIONS
PIN Signal Designation Matching Value
1 Audio Out (linked with 3) 0.5Vrms, Imp < 1 k (RF 60% MOD)
2 Audio In (linked with 6) 0.5Vrms, Imp < 10 k
3 Audio Out (linked with 1) 0.5Vrms, Imp < 1 k (RF 60% MOD)
4 Audio Earth
5 Blue Earth
6 Audio in (linked with 2) 0.5Vrms, Imp < 10 k (RF 60% MOD)
7 Blue in 0.7Vpp + 2dB, Imp 75
-
8 Slow (Function) Switching TV : 0-2V, PERI : 9.5 - 12V, Imp > 10 k
9 Green Earth
10 NC
11 Green In 0.7Vpp + 2dB, Imp 75
-
12 NC
13 Red Earth
14 Rapid(Blanking) Switching Earth
15 Red In, C In 0.7Vpp + 2dB, Imp 75
-
16 Rapid(Blanking) switching Logic 0 : 0 - 0.4V, Logic 1 : 1 - 3V, Imp 75
17 Video Earth
18 Rapid Blanking Earth
19 Video Out 1Vpp + 2dB, Imp 75
-
20 Video In, Y In 1Vpp + 2dB, Imp 75
-
21 Common Earth
3
CIRCUIT BLOCK DIAGRAM
4
ALIGNMENT INSTRUCTIONS
User Remocon
1. R-22D05
5
ALIGNMENT INSTRUCTIONS
2. R-23D05
6
ALIGNMENT INSTRUCTIONS
* How to Enter the "Service Mode "with user remocon.
1) Set the TV Pr 91
2) Sharpness "MIN "control.
3) Red, Green, Yellow buttons in regular sequency within 5 seconds after setting TV power off.
4) You can see the Menu of "service mode "on the screen.
5) The PR UP/DOWN buttons on the remote controller are used to move the selection bar up or down the Menus.
6) The VOL UP/DOWN buttons on the remote controller are used to adjust levels.
7) If you want to exit from "Service Mode "then power the TV off.
V. Slope 005
V. Center 995
V. Size 220
S. Curve 019
H. Center -190
H. Width 510
SVC v1 EW. Para 382
EW. Cor T 028
EW. CB 500
EW.Sym 021
R. b 370
G. b 311
B. b 311
R. d 330
G. d 315
B. d 330
G2 330
Sub Bri 021
DT 048
Wide Yes
- You can see the SVC Menu by OSD in TV set.
7
ALIGNMENT INSTRUCTIONS
AFT
Standard B/G, D/K, I and L
1) Set a Signal Generator with
- RF FREQUENCY = 38.9 MHz,
- RF OUTPUT LEVEL = 80 + 5dBuV
-
- Pattern = Color Bar
- System = PAL-B/G
2) Connect the Signal Generator RF Output to TP2 (Tuner IF Output).
There must be no signal input to the tuner.
3) Set the L109 to TP1(I101, #22) with DC Voltage to 2.5V +0.1V
-
AGC
1) Set a Pattern Generator with RF LEVEL 60 + 3dBuV, RF Frequency 210. 25MHz(10CH), Pattern Color Bar.
-
2) Connect a OSCILLOSCOPE PROBE to P101 (TUNER AGC INPUT).
3) Set the RBOI to P101(Tuner AGC Input) with DC Voltage to 2.8V + 0.2V
-
SCREEN (G2)
1) Set a Pattern Generator with - RF Frequency : 210.25MHz (10CH)
- Pattern : RETMA
2) Select the " in Menu
G2"
3) And a Horizontal Line will appear on the screen.
4) Adjust the SCREEN VOLUME on FBT barely to see the Horizontal Line.
5) Press the PR UP/DOWN keys to finish the SCREEN adjustment.
FOCUS
1) Apply a RETMA PATTERN signal.
2) Adjust the FOCUS VOLUME on FBT to obtain optimal resolution.
GEOMETRY
1. VERTICAL SLOPE ( Fixed : Adjust if need be )
1) Apply a RETMA PATTERN Signal.
2) Set the TV to Normal I mode.
3) Adjust the higher semicircle and the lower semicircle to be the same, with the V.Slope
by volume Up/Down keys.
2. VERTICAL CENTER
1) Apply a RETMA PATTERN Signal.
2) Set the TV to Normal I mode.
3) Adjust the center of the picture with the V.Center by volume Up/Down keys.
8
ALIGNMENT INSTRUCTIONS
3. VERTICAL SIZE
* The VERTICAL CENTER adjustment has to be done in advance.
1) Apply a RETMA PATTERN Signal.
2) Set the TV to Normal I mode.
3) Adjust the VERTICAL SIZE of the picture with the select V.size by
volume UP/DOWN keys.
4. VERTICAL S-CORRECTION ( Fixed : Adjust if need be )
1) Apply a CROSSHATCH PATTERN Signal.
2) Adjust the S-CORRECTION to obtain the same distance between
horizontal lines with the S.Curve by volume UP/DOWN keys.
5. HORIZONTAL CENTER
1) Apply a RETMA PATTERN Signal.
2) Adjust picture centering with the select H.Center by volume UP/DOWN keys.
EW
1. WIDTH
1) Apply a RETMA PATTERN Signal.
2) Adjust the horizontal width to make a perfect circle with the select H.Width
by volume UP/DOWN keys.
2. PARA
1) Apply a CROSSHATCH PATTERN Signal.
2) Adjust the vertical line to straight with the select E.W Para by volume
UP/DOWN keys.
3. CORNER ( Fixed : Adjust if need be )
1) Apply a CROSSHATCH PATTERN Signal.
2) Adjust the vertical line to straight with the select EW.Cor T by volume
UP/DOWN keys.
4. SYMMETRY ( Fixed : Adjust if need be )
1) Apply a CROSSHATCH PATTERN Signal.
2) Adjust the symmetrical balance to be suitable with the select EW Sym by
volume UP/DOWN keys.
9
ALIGNMENT INSTRUCTIONS
WHITE BALANCE
1. RGB Reference R
2
2. Beam Reference LOW ( 288, 301 : 10Cd/ m )
HIGH ( 288, 301 : 10Cd/ m2)
3. Adjust G, B Gain with select Menu G,B of BIAS, DRIVE of select Menu so that R, G, B Bars
are on the center position of the analog meter. If R Analog meter is not on center, control
the Brightness +/- of user Remocon so as R Analog meter to be on the center position.
SUB BRIGHT
1. Pattern : Retma
2. Adjust the SUB BRIGHT with the select Sub Bri by volume UP/DOWN keys.
so that only H-Center parts of picture can be seen.
DOUBLE TEXT CENTER
1. Pattern : Pattern RED
2. Select Menu
3. Select DT in SVC menu time to see the Double Text Picture.
( Left : RF Picture, Right : Text Picture )
4. Change the Double Text control keys volume UP/DOWN keys so that the left edge of text
picture concur with the right edge of RF picture.
WIDE MODE
1. Locate the cursor on `
Wide'in SVC Menu.
2. `
Yes'changes the display to 16:9 mode.
3. ` change the display to 4:3 mode.
No'
10
SCHEMATIC DIAGRAM
11
12
36
42
35 41 46
34 DTW-28W2F
30
33
29 32
28
31 43
27
2 45
26
44
25
EXPLODED VIEW
19
46 4858180700 PAD 1 EPS 28W3
18 45 4858215600 BAG P.E. 1 PE FOAM t0.5X1600X1270
16 17 44 485805085K BOX CARTON 1 DW-3
7 6 43 7172401612 SCREW TAPPTITE 8 TT2 TRS 4X16 MFZN BK
42 4855415800 SPEC PLATE 1 150ART P/E FILM (C/TV)
40
41 97P4602700 CLAMP CORD 1 NYLON 66 BLK 5280N
40 4857817630 CLOTH BLACK 4 FELT 400X20X0.7
3 4856015820 SCREW CRT FIX 4 SWRM+SK5 L=35
39
38 4856215402 WASHER RUBBER 4 CR T2.0
37 4859630260 CRT 1 W66ECK001X44
36 7172401412 SCREW TAPPTITE 1 TT2 TRS 4X14 MFZN BK
35 7172401612 SCREW TAPPTITE 1 TT2 TRS 4X16 MFZN BK
39
13
34 7172401612 SCREW TAPPTITE 4 TT2 TRS 4X16 MFZN BK
38 33 7178301212 SCREW TAPPTITE 2 TT2 WAS 3X12 MFZN BK
32 4853631102 TERMINAL ANT 1 FR HIPS GY (778A)
37 31 7172401412 SCREW TAPPTITE 3 TT2 TRS 4X14 MFZN BK
30 7178301212 SCREW TAPPTITE 4 TT2 WAS 3X12 MFZN BK
29 4859803193 PCB MAIN 1 WP-811
28 4853529903 HOLDER CORD 1 FR HIPS GY (778A)
27 97P2316600 HOLDER AC CORD 1 NYLON66 UL/CSA
26 B/POWER PCB 1 FR HIPS BK
21 25 4853817500 FRAME MAIN PCB 1 FR HIPS BK
20 24 4855933601 DECO AV 1 PVC T0.5
23 4855540600 DECO SENSOR 1 PC GY
22 48556174SD MARK BRAND 1 SILVER DIA-CUTTING
21 4856716000 SPRING 1 SWPA PIE0.5
20 4854856002 BUTTON POWER 1 ABS GY (503A)
19 7172401612 SCREW TAPPTITE 8 TT2 TRS 4X16 MFZN BK
18 SPEAKER 2
22 24 4 5 1 12 11 8 14
23 17 7178301212 SCREW TAPPTITE 2 TT2 WAS 3X12 MFZN BK
13 9 15 16 PREAMP PCB 1
10 15 7178301212 SCREW TAPPTITE 2 TT2 WAS 3X12 MFZN BK
14 AV JACK PCB 1
13 7178301212 SCREW TAPPTITE 4 TT2 WAS 3X12 MFZN BK
12 CTRL PCB 1
11 4854944601 BUTTON 1 ABS BK
10 7172401612 SCREW TAPPTITE 2 TT2 TRS 4X16 MFZN BK
9 4857818500 CLOTH BLACK 2 CLOTH 60X10X0.5
8 4852326302 PANEL CTRL 1 HIPS GY (503A)
7 4857821103 CLOTH BLACK 2 FELT 180X10X1.5
6 4857821101 CLOTH BLACK 2 FELT 415X10X1.5
5 4855930700 DECO MARK 1 A1050P-H24
4 4852534201 GRILL SPKR R/L 1 PS T0.5 28W2(L)
3 4852534200 GRILL SPKR R/L 1 PS T0.5 28W2(R)
2 4852155102 COVER BACK 1 HIPS GY
1 4852073102 MASK FRONT 1 HIPS GY (503A)
NO PART CODE PART NAME QTY MATERIAL REMARKS
53 54 55 56 56 97P4602700 CLAMP CORD 1 NYLON 66 BLK 5280N
DTW-2810F
55 4855415800 SPEC PLATE 1 150ART P/E FILM(C/TV)
EXPLODED VIEW
54 7172401612 SCREW TAPPTITE 8 TT2 TRS 4X16 MFZN BK 1+52
53 4852154602 COVER BACK 1 FR HIPS GY
52 97P2316600 HOLDER AC CORD 1 NYLON 66 UL/CSA
51 7174300811 SCREW TAPPTITE 1 TT2 RND 3X8 MFZN
50 4857027800 HEAT SINK 1 AL EX
49 7174301011 SCREW TAPPTITE 1 TT2 RND 3X10 MFZN
48 4857026900 HEAT SINK 1 AL EX
47 7174301011 SCREW TAPPTITE 1 TT2 RND 3X10 MFZN
46 4857026900 HEAT SINK 1 AL EX
13 14 15
45 7174301011 SCREW TAPPTITE 1 TT2 RND 3X10 MFZN
44 4857026900 HEAT SINK 1 AL EX
43 7174300811 SCREW TAPPTITE 1 TT2 RND 3X8 MFZN
42 4857028205 HEAT SINK 1 AL EX BK
41 7174300811 SCREW TAPPTITE 1 TT2 RND 3X8 MFZN
40 4857025403 HEAT SINK 1 AL050P-H24 T=2
39 7174300811 SCREW TAPPTITE 1 TT2 RND 3X8 MFZN
1 2 3 4 5 6 7 8 9 10 11 12 38 4857031000 HEAT SINK 1 AL EX
37 7174300811 SCREW TAPPTITE 1 TT2 RND 3X8 MFZN
36 4857027910 HEAT SINK 1 AL EX
35 7174300811 SCREW TAPPTITE 1 TT2 RND 3X8 MFZN
34 4857027710 HEAT SINK 1 AL EX
33 7174300811 SCREW TAPPTITE 1 TT2 RND 3X8 MFZN
32 4857027534 HEAT SINK 1 AL EXBK
31 4857415001 CLIP FUSE 2 PFC5000-0702
30 7128301011 SCREW TAPPTITE 1 T2S WAS 3X10 MFZN 28+52
52 29 7128301011 SCREW TAPPTITE 4 T2S WAS 3X10 MFZN 24+28
28 CHASSIS 1 WP-811
14
30
27 7172401212 SCREW TAPPTITE 5 TT2 TRS 4X12 MFZNCK 26+52
26 4853631002 TERM ANT 1 FR HIPS GY
31 32 36 40 44 48
25 7172401212 SCREW TAPPTITE 2 TT2 TRS 4X12 MFZNCK 24+26
33 37 41 45 49 24 4853817400 FRAME M/PCB 1 FR HIPS BK
23 4853529903 HOLDER CORD 1 FR HIPS GY(778A)
34 38 42 46 50
22 7172401212 SCREW TAPPTITE 1 TT2 TRS 4X12 MFZNCK 23+24
35 39 43 47 51 21 7172401212 SCREW TAPPTITE 1 TT2 TRS 4X12 MFZNCK 23+52
20 48556174SD MARK BRAND 1 SILVER DIA-CUTTING
19 4855526502 DECO SENSOR 1 PC GY
18 4856716000 SPRING 1 SWPA PIE 0.5
17 4854857903 BUTTON POWER 1 HIPS GY
16 4852530501 GRILL 2 PS SHEET T=0.4
15 CRT 1 PHILIPS 28"WIDE
14 4856015820 SCREW CRT FIX 4 SWRM+SK5 L=35 1+15
13 4856215402 WASHER RUBBER 4 CR T2.0
12 7128301011 SCREW TAPPTITE 2 T2S WAS 3X10 MFZN 1+10+11
11 SUB-PCB 1 Button
10 4854929903 BUTTON 1 HIPS GY
9 7128301011 SCREW TAPPTITE 2 T2S WAS 3X10 MFZN 1+8
8 9570151
48527160:9570151 :
SUB-PCB 1 PRE-AMP
7 7128301011 SCREW TAPPTITE 2 T2S WAS 3X10 MFZN 1+6
6 SUB-PCB 1 A/V Jack
5 7128301011 SCREW TAPPTITE 2 T2S WAS 3X10 MFZN 1+4
4 SUB-PCB 1 Switch
3 4856013600 SCREW SPKR FIX 4 SWRM + SECC 1+2
SPKR SYSTEM 2
16 17 18 19 20 21 22 23 24 25 26 27 28 29 4852072703 MASK FRONT 1 HIPS GY
PRINTED CIRCUIT BOARD
15
SERVICE PARTS LIST
Caution R is a recommendable part for stock.
is safety component, so it must be used the same component.
LOC. PART CODE PART NAME DESCRIPTION LOC. PART CODE PART NAME DESCRIPTION
TRANSMITTER IF01 1SR5HP---- IC PREAMP SR-5HP
ZZ100 R 48B3822D05 R-22D05
REMOCON JPF01 4859105450 JACK PIN BOARD YSC03P-4120-9S
ZZ110 PTACPWD228 ACCESSORY AS DTJ-28G6F YH025-
P502A 4850706S02 CONNECTOR
10 4850Q00910 BATTERY R03/NN 06+YST025+ULW=400
20 4859102620 JACK ANT 3104.308.73221 YH025-
P603A 4850704S04 CONNECTOR
M821 4858213800 BAG INSTRUCTION L.D.P.E T0.05X250X400 04+YST025+ULW=400
ZZ120 PTBCSHD359 COVER BACK AS DTW-28W2F YH025-
P702A 4850703S21 CONNECTOR
M211 4852155102 COVER BACK HIPS GY (778A) 03+YST025+ULW=600
M211D 4857817630 CLOTH BLACK FELT 400X20X0.7 YH025-
P703A 4850705S04 CONNECTOR
M541 4855415800 SPEC PLATE 150ART P/E FILM (C/TV) 05+YST025+ULW=400
ZZ130 PTPKCPD359 PACKING AS DTW-28W2F BL102NG+MXH40058-
P803A 4850702S09 CONNECTOR
M681 4856812400 BAND 18MM X 3M 02=300
M801 485805085K BOX CARTON DW-3 SWF01 5S40202142 SW POWER PUSH ME-7 (70063-072)
M811 4858180700 PAD EPS 28W3 PCB UNION RADIAL
ZZ200 PTU1JRD359 DTW-28W2F
M822 4858215600 BAG P.E PE FOAM t0.5x1600x1270 AS
ZZ131 58G0000151 COIL DEGAUSSING DC-28SFW SWF02 5S50101Z90 SW TACT SKHV10910A
ZZ132 4851902110 CRT GROUND NET 24/5/0.12-1560+4850702029 SWF03 5S50101Z90 SW TACT SKHV10910A
ZZ140 PTCACAD359 CABINET AS DTW-28W2F SWF04 5S50101Z90 SW TACT SKHV10910A
M201A 4857821103 CLOTH BLACK FELT 180X10X1.5 SWF05 5S50101Z90 SW TACT SKHV10910A
M201B 4857821101 CLOTH BLACK FELT 415X10X1.5 SWF06 5S50101Z90 SW TACT SKHV10910A
M201C 4856215402 WASHER RUBBER CR T2.0 PCB UNION AXIAL
ZZ200 PTU1JAD359 DTW-28W2F
M201D 4856015820 SCREW CRT FIX SWRM+SK5 L=35 AS
M201E 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK CF01 CCZF1H103Z C CERA 50V F 0.01MF Z
M201F 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK CF02 CCZF1H103Z C CERA 50V F 0.01MF Z
M211A 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK DF02 DUZ5R6BM-- DIODE ZENER UZ-5.6BM(TAPPING)
M211B 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK DF03 DUZ5R6BM-- DIODE ZENER UZ-5.6BM(TAPPING)
M211C 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK DF04 DUZ5R6BM-- DIODE ZENER UZ-5.6BM(TAPPING)
M231 4852326302 PANEL CTRL HIPS GY (503A) JF01 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
M231A 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK JF02 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
M231B 4857818500 CLOTH BLACK CLOTH 60X10X0.5 JF04 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
M352 97P4602700 CLAMP CORD NYLON 66 BLK 5280N LF01 5CPZ569K02 COIL PEAKING 5.6UH K (AXIAL 3.5MM)
M481 4854856002 BUTTON POWER ABS GY (503A) LF02 5CPZ569K02 COIL PEAKING 5.6UH K (AXIAL 3.5MM)
M481A 4856716000 SPRING SWPA PIE0.5 RF02 RD-4Z132J- R CARBON FILM 1/4 1.3K OHM J
M491 4854944601 BUTTON ABS BK RF03 RD-4Z182J- R CARBON FILM 1/4 1.8K OHM J
M491A 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK RF04 RD-4Z392J- R CARBON FILM 1/4 3.9K OHM J
M511 4855540600 DECO SENSOR PC GY RF05 RD-4Z153J- R CARBON FILM 1/4 15K OHM J
M561 48556174SD MARK BRAND SILVER DIA-CUTTING ZZ220 R PTSPPWD359 SPEAKER AS DTW-28W2F
M562 4855930700 DECO MARK A1050P-H24 P601A 4850704S30 CONNECTOR YH025-04+35098+ULW=700
M681 4856812001 TIE CABLE NYLON66 DA100 PCB MAIN MANUAL
ZZ290 R PTMPMSD359 DTW-28W2F
M682 4856816300 CLAMP WIRE NYLON 6 (V0) AS
P405 4850704N07 CONNECTOR SE100J+172792+USW=500 C402 CMYH3C432J C MYLAR 1.6KV BUP 4300PF J
SP01A 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK C404 CMYH3C822J C MYLAR 1.6KV BUP 8200PF J
SP02A 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK C405 CMYE2J153J C MYLAR 630V PU 0.015MF J
V901 R 4859630260 CRT W66ECK001X44 C408 CMYE2G334J C MYLAR 400V PU 0.33MF J
ZZ200 R PTFMSJD359 MASK FRONT AS DTW-28W2F C418 CEYD1H689W C ELECTRO 50V RHD 6.8MF (16X35.5)
M201 4852073102 MASK FRONT HIPS GY (503A) AC250V 0.47MF U/C/SNDF/
C801 CL1JB3474K C LINE ACROSS
M251 4852534202 GRILL SPKR R PS T0.5 28W2 (R) SV
M252 4852534203 GRILL SPKR L PS T0.5 28W2 (L) AC250V 0.47MF U/C/SNDF/
C802 CL1JB3474K C LINE ACROSS
M591 4855933601 DECO AV PVC T0.5 SV
PCB UNION-1 C809 CEYN2G181P C ELECTRO 400V LHS 180MF (25X35)
ZZ202 PTU1MSD359 DTW-28W2F
MANUAL AS C810 CBYB3D152K C CERA SEMI 2KV BL(N) 1500PF K
DF01 DSD50RH51B LED SD50-RH51BGRW C815 CEYF2D101V C ELECTRO 200V RSS 100MF (16X31.5)
HPF01 4859105240 JACK PHONO LGT1516-0100 C816 CEYF2D101V C ELECTRO 200V RSS 100MF (16X31.5)
16
SERVICE PARTS LIST
LOC. PART CODE PART NAME DESCRIPTION LOC. PART CODE PART NAME DESCRIPTION
C822 CH1AFE472M C CERA AC 4KV 4700PF M KX DE1610 L103 5.80E+42 COIL AFT TRF-A005
D401 DDTV32F--- DIODE DTV32F L401 58H0000054 COIL H-LINEARITY TRL-040F
D809 DRGP30J--- DIODE RGP30J L403 58C0000118 COIL CHOKE CH-191A
D812 PTP2SW6900 HEAT SINK ASS`Y DFMLG12S-- + 7174301011 L821 5PLF24A1-- FILTER LINE LF-24A1
1 DFMLG12S-- DIODE FML-G12S M351 4853529903 HOLDER CORD FR HIPS GY(778A)
0000A 4857026900 HEAT SINK AL EX M351A 7172401412 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK
0000B 7174301011 SCREW TAPPTITE TT2 RND 3X10 MFZN M361 4853631102 TERMINAL ANT FR HIPS GY (778A)
D814 PTP2SW6900 HEAT SINK ASS`Y DFMLG12S-- + 7174301011 M361A 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK
1 DFMLG12S-- DIODE FML-G12S M361B 7172401412 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK
0000A 4857026900 HEAT SINK AL EX M361C 7172401412 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK
0000B 7174301011 SCREW TAPPTITE TT2 RND 3X10 MFZN M381 4853817500 FRAME MAIN PCB FR HIPS BK
D820 PTP2SW6900 HEAT SINK ASS`Y DFMLG12S-- + 7174301011 M381A 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK
1 R DFMLG12S-- DIODE FML-G12S M951B 97P2316600 HOLDER AC CORD NYLON66 UL/CSA
0000A 4857026900 HEAT SINK AL EX YH025-
P401A 4850704S04 CONNECTOR
0000B 7174301011 SCREW TAPPTITE TT2 RND 3X10 MFZN 04+YST025+ULW=400
F801 5FSCB4022R FUSE CERA SEMKO F4AH 4A 250V MF51 YH025-
P501A 4850707S02 CONNECTOR
G901 4SG0D00103 SPARK GAP S-23 900V-1.5KV 07+YST025+ULW=400
G902 4SG0D00103 SPARK GAP S-23 900V-1.5KV P503 4859281320 CONN WAFER TAC-L18X-A1
G903 4SG0D00103 SPARK GAP S-23 900V-1.5KV P504 4859281320 CONN WAFER TAC-L18X-A1
I101 1TDA4470M- IC IF TDA4470-M P801 4859242220 CONN WAFER YFW800-02
I301 PTB2SW8205 HEAT SINK ASS`Y 1TDA8172-- + 7174300811 P802 4859242220 CONN WAFER YFW800-02
I301 R 1TDA8172-- IC V-OUT TDA8172 P803 4859242220 CONN WAFER YFW800-02
I301A 4857028205 HEAT SINK AL EX BK P903 4859238620 CONN WAFER YPW500-02
I301B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN YH025-
PD03A 4850703S29 CONNECTOR
I601 PTA2SW7534 HEAT SINK ASS`Y 1TDA7269-- + 7174300811 03+YST025+USW=300
I601 R 1TDA7269-- IC AUDIO TDA7269 CORD POWER 906111+HOUS-
PWC1 PTWBSW7410
I601A 4857027534 HEAT SINK AL EXBK ASS`Y ING+TUBE+17700
I601B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN PW000 4859906111 CORD POWER M5206+H03VVH2-F=2250
I605 R 1KA4558--- IC AMP KA4558 PW001 4857417700 TERM CLAMP PT-01-T3
I606 R 1MSP3410C5 IC AUDIO MSP3410-PP-C5 Q401 PTB3SW1000 HEAT SINK ASS`Y DDMU32F5-- + 7174300811
I701 R 1ST195EPM- IC MICOM OTP ST92T195B1/EPM D404 DDMV32F5-- DIODE DMV32F5
I702 1AT24C16PC IC AT24C16-10PC D404A 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
I801 PTA2SW7910 HEAT SINK ASS`Y 1STRF6654- + 7171300811 Q401 T2SC5446-- TR 2SC5446(AS)
I801 R 1STRF6654- IC SMPS STR-F6654 Q401A 4857031000 HEAT SINK AL EX
I801A 4857027910 HEAT SINK AL EX Q401B R 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
I801B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN Q402 T2SC2238-- TR 2SC2238
I802 1LTV817C-- IC PHOTO COUPLER LTV-817C Q403 PTQ2SW7800 HEAT SINK ASS`Y TKTD2058Y-+ 7174300811
I803 R 1SE140N--- IC AMP SE140N Q403 R TKTD2058Y- TR KTD 2058-Y
I804 R 1KA7805--- IC REGULATOR KA7805 Q403A 4857027800 HEAT SINK AL EX
I805 PTA2SW7710 HEAT SINK ASS`Y 1K78R05--- + 7174300811 Q403B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
I805 1K78R05--- IC REGULATOR KIA78R05PI R306 RW01Y228F- R WIRE WOUND 1W 0.22 OHM F
I805A 4857027710 HEAT SINK AL EX R417 RF-4Y228K- R FUSIBLE 1/4 0.22 OHM K
I805B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN R801 DPC7R0M290 POSISTOR 2322 662 96709
I807 R 1MC7812--- IC REGULATOR MC7812 12V 1A (KA7812) R819 R RX10T339J- R CEMENT 10W 3.3 OHM J TRIPOD
I808 R 1KA7808--- IC REGULATOR KA7808 SCT1 4859302930 SOCKET CRT ISHS-09S
I810 TX0202DA-- THYRISTOR X0202DA1BA2 SF01 5PG3962M-- FILTER SAW G 3962-M
I901 PTB2SW5403 HEAT SINK ASS`Y 1TEA5101B- + 7174300811 SF02 5PK9650M-- FILTER SAW K9650M
I901 R 1TEA5101B- IC VIDEO AMP TEA5101B SW601 5S30202033 SW SLIDE KSA-2273S
I901A 4857025403 HEAT SINK AL050P-H24 T=2 T401 R 50D25A1--- TRANS DRIVE TD-25A1
I901B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN T402 R 50H0000200 FBT 1372.0036
JPA01 4859200401 SOCKET RGB YRS21-R1 T801 R 50M4936A9- TRANS SMPS TSM-4936A9
JPA02 4859200401 SOCKET RGB YRS21-R1 TU01 R 4859719930 TUNER VARACTOR DT5-BF18D
JACK AUDIO W101 4851900130 GROUND TUNER AS DS-W1015-S
JPA05 4859100680 SI-T55220P 4P
TERMINAL
17
SERVICE PARTS LIST
LOC. PART CODE PART NAME DESCRIPTION LOC. PART CODE PART NAME DESCRIPTION
HC-49/U 18.43200MHZ CC702 HCFK103ZCA C CHIP CERA 50V Y5V 0.01MF Z 2012
X601 5XE18R432E CRYSTAL QUARTZ
30PPM CC704 HCBK472KCA C CHIP CERA 50V X7R 4700PF K 2012
Y801 5SC0101003 SW RELAY DG12D1-0(M)-II 1C-1P CC705 HCBK222KCA C CHIP CERA 50V X7R 2200PF K 2012
Z101 5PMKT40MA- FILTER CERA MKT40MA100P CC707 HCFK103ZCA C CHIP CERA 50V Y5V 0.01MF Z 2012
PCB CHIP MOUNT B CC708 HCFK474ZCA C CHIP CERA Y5V 50V 0.47MF Z 2012
ZZ200 PTMPJ2D359 DTW-28W2F
AS CC709 HCQK820JCA C CHIP CERA 50V CH 82PF J 2012
CC101 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012 CC710 HCBK222KCA C CHIP CERA 50V X7R 2200PF K 2012
CC102 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012 CC711 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012
CC103 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012 CC713 HCQK820JCA C CHIP CERA 50V CH 82PF J 2012
CC104 HCQK220JCA C CHIP CERA 50V CH 22PF J 2012 CC715 HCFK103ZCA C CHIP CERA 50V Y5V 0.01MF Z 2012
CC106 HCFK103ZCA C CHIP CERA 50V Y5V 0.01MF Z 2012 CC716 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012
CC107 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012 CC717 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012
CC108 HCFK103ZCA C CHIP CERA 50V Y5V 0.01MF Z 2012 CC720 HCFK105ZCA C CHIP CERA 50V Y5V 1MF Z 2012
CC109 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012 CC721 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012
CC110 HCFK103ZCA C CHIP CERA 50V Y5V 0.01MF Z 2012 CC801 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CC112 HCFK103ZCA C CHIP CERA 50V Y5V 0.01MF Z 2012 CC802 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CC114 HCFK103ZCA C CHIP CERA 50V Y5V 0.01MF Z 2012 CC803 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CC115 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012 CC804 HCBK152KCA C CHIP CERA 50V X7R 1500PF K 2012
CC118 HCFK474ZCA C CHIP CERA Y5V 50V 0.47MF Z 2012 CC834 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CC120 HCFK103ZCA C CHIP CERA 50V Y5V 0.01MF Z 2012 CC904 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012
CC302 HCBK223KCA C CHIP CERA 50V X7R 0.022MF K 2012 CC905 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012
CC303 HCBK223KCA C CHIP CERA 50V X7R 0.022MF K 2012 CC906 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012
CC306 HCBK333KCA C CHIP CERA 50V X7R 0.033MF K 2012 CC907 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CC401 HCBK223KCA C CHIP CERA 50V X7R 0.022MF K 2012 CCA10 HCBK331KCA C CHIP CERA 50V X7R 330PF K 2012
CC601 HCQK470JCA C CHIP CERA 50V CH 47PF J 2012 CCA20 HCBK331KCA C CHIP CERA 50V X7R 330PF K 2012
CC603 HCFK105ZCA C CHIP CERA 50V Y5V 1MF Z 2012 JC103 HRFT000-CA R CHIP 1/10 0 OHM 2012
CC604 HCFK103ZCA C CHIP CERA 50V Y5V 0.01MF Z 2012 JC107 HRFT000-CA R CHIP 1/10 0 OHM 2012
CC609 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012 JC108 HRFT000-CA R CHIP 1/10 0 OHM 2012
CC610 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012 JC110 HRFT000-CA R CHIP 1/10 0 OHM 2012
CC612 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012 JC120 HRFT000-CA R CHIP 1/10 0 OHM 2012
CC614 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012 JC123 HRFT000-CA R CHIP 1/10 0 OHM 2012
CC617 HCFK105ZCA C CHIP CERA 50V Y5V 1MF Z 2012 JC306 HRFT000-CA R CHIP 1/10 0 OHM 2012
CC618 HCFK105ZCA C CHIP CERA 50V Y5V 1MF Z 2012 JC702 HRFT000-CA R CHIP 1/10 0 OHM 2012
CC619 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012 JC704 HRFT000-CA R CHIP 1/10 0 OHM 2012
CC620 HCBK223KCA C CHIP CERA 50V X7R 0.022MF K 2012 JC705 HRFT000-CA R CHIP 1/10 0 OHM 2012
CC621 HCQK509DCA C CHIP CERA 50V CH 5PF D 2012 JC706 HRFT000-CA R CHIP 1/10 0 OHM 2012
CC622 HCQK509DCA C CHIP CERA 50V CH 5PF D 2012 JC803 HRFT000-CA R CHIP 1/10 0 OHM 2012
CC623 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012 JC806 HRFT000-CA R CHIP 1/10 0 OHM 2012
CC624 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012 JCA02 HRFT000-CA R CHIP 1/10 0 OHM 2012
CC634 HCBK472KCA C CHIP CERA 50V X7R 4700PF K 2012 JCA03 HRFT000-CA R CHIP 1/10 0 OHM 2012
CC635 HCBK472KCA C CHIP CERA 50V X7R 4700PF K 2012 QC101 T2SC2412KB TR CHIP 2SC2412K-T146-BR
CC638 HCFK105ZCA C CHIP CERA 50V Y5V 1MF Z 2012 QC102 T2SC2412KB TR CHIP 2SC2412K-T146-BR
CC639 HCFK105ZCA C CHIP CERA 50V Y5V 1MF Z 2012 QC103 T2SC2412KB TR CHIP 2SC2412K-T146-BR
CC640 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012 QC104 T2SC2412KB TR CHIP 2SC2412K-T146-BR
CC641 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012 QC107 T2SC2412KB TR CHIP 2SC2412K-T146-BR
CC644 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012 QC108 T2SC2412KB TR CHIP 2SC2412K-T146-BR
CC645 HCFK103ZCA C CHIP CERA 50V Y5V 0.01MF Z 2012 QC401 T2SC2412KB TR CHIP 2SC2412K-T146-BR
CC646 HCFK103ZCA C CHIP CERA 50V Y5V 0.01MF Z 2012 QC402 T2SC2412KB TR CHIP 2SC2412K-T146-BR
CC660 HCBK333KCA C CHIP CERA 50V X7R 0.033MF K 2012 QC405 T2SA812T2B TR CHIP 2SA812-T2B
CC663 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012 QC501 T2SC2412KB TR CHIP 2SC2412K-T146-BR
CC665 HCFK105ZCA C CHIP CERA 50V Y5V 1MF Z 2012 QC502 T2SC2412KB TR CHIP 2SC2412K-T146-BR
CC666 HCFK105ZCA C CHIP CERA 50V Y5V 1MF Z 2012 QC601 T2SC2412KB TR CHIP 2SC2412K-T146-BR
CC701 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012 QC602 T2SC2412KB TR CHIP 2SC2412K-T146-BR
18
SERVICE PARTS LIST
LOC. PART CODE PART NAME DESCRIPTION LOC. PART CODE PART NAME DESCRIPTION
QC610 T2SC2412KB TR CHIP 2SC2412K-T146-BR RC544 HRFT102JCA R CHIP 1/10 1K OHM J 2012
QC611 T2SA812T2B TR CHIP 2SA812-T2B RC546 HRFT202JCA R CHIP 1/10 2K OHM J 2012
QC612 T2SC2412KB TR CHIP 2SC2412K-T146-BR RC603 HRFT512JCA R CHIP 1/10 5.1K OHM J 2012
QC613 T2SA812T2B TR CHIP 2SA812-T2B RC604 HRFT512JCA R CHIP 1/10 5.1K OHM J 2012
QC701 T2SC2412KB TR CHIP 2SC2412K-T146-BR RC605 HRFT303JCA R CHIP 1/10 30K OHM J 2012
QC703 T2SC2412KB TR CHIP 2SC2412K-T146-BR RC606 HRFT303JCA R CHIP 1/10 30K OHM J 2012
QC704 T2SA812T2B TR CHIP 2SA812-T2B RC607 HRFT272JCA R CHIP 1/10 2.7K OHM J 2012
QC801 T2SC2412KB TR CHIP 2SC2412K-T146-BR RC608 HRFT332JCA R CHIP 1/10 3.3K OHM J 2012
QC802 T2SC2412KB TR CHIP 2SC2412K-T146-BR RC621 HRFT103JCA R CHIP 1/10 10K OHM J 2012
QC803 T2SC2412KB TR CHIP 2SC2412K-T146-BR RC622 HRFT103JCA R CHIP 1/10 10K OHM J 2012
QC804 T2SC2412KB TR CHIP 2SC2412K-T146-BR RC623 HRFT153JCA R CHIP 1/10 15K OHM J 2012
QC805 T2SC2412KB TR CHIP 2SC2412K-T146-BR RC624 HRFT561JCA R CHIP 1/10 560 OHM J 2012
QC806 T2SA812T2B TR CHIP 2SA812-T2B RC625 HRFT561JCA R CHIP 1/10 560 OHM J 2012
QC807 T2SA812T2B TR CHIP 2SA812-T2B RC628 HRFT183JCA R CHIP 1/10 18K OHM J 2012
RC101 HRFT103JCA R CHIP 1/10 10K OHM J 2012 RC701 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RC102 HRFT103JCA R CHIP 1/10 10K OHM J 2012 RC702 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RC103 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 RC703 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RC108 HRFT153JCA R CHIP 1/10 15K OHM J 2012 RC704 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RC109 HRFT222JCA R CHIP 1/10 2.2K OHM J 2012 RC705 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RC110 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 RC706 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RC111 HRFT103JCA R CHIP 1/10 10K OHM J 2012 RC707 HRFT471JCA R CHIP 1/10 470 OHM J 2012
RC112 HRFT562JCA R CHIP 1/10 5.6K OHM J 2012 RC708 HRFT222JCA R CHIP 1/10 2.2K OHM J 2012
RC113 HRFT563JCA R CHIP 1/10 56K OHM J 2012 RC709 HRFT222JCA R CHIP 1/10 2.2K OHM J 2012
RC116 HRFT223JCA R CHIP 1/10 22K OHM J 2012 RC712 HRFT562JCA R CHIP 1/10 5.6K OHM J 2012
RC120 HRFT102JCA R CHIP 1/10 1K OHM J 2012 RC714 HRFT223JCA R CHIP 1/10 22K OHM J 2012
RC128 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 RC715 HRFT153JCA R CHIP 1/10 15K OHM J 2012
RC129 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 RC716 HRFT103JCA R CHIP 1/10 10K OHM J 2012
RC130 HRFT151JCA R CHIP 1/10 150 OHM J 2012 RC717 HRFT103JCA R CHIP 1/10 10K OHM J 2012
RC131 HRFT153JCA R CHIP 1/10 15K OHM J 2012 RC719 HRFT562JCA R CHIP 1/10 5.6K OHM J 2012
RC132 HRFT153JCA R CHIP 1/10 15K OHM J 2012 RC720 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RC133 HRFT102JCA R CHIP 1/10 1K OHM J 2012 RC722 HRFT332JCA R CHIP 1/10 3.3K OHM J 2012
RC136 HRFT751JCA R CHIP 1/10 750 OHM J 2012 RC727 HRFT103JCA R CHIP 1/10 10K OHM J 2012
RC137 HRFT101JCA R CHIP 1/10 100 OHM J 2012 RC728 HRFT124JCA R CHIP 1/10 120K OHM J 2012
RC138 HRFT682JCA R CHIP 1/10 6.8K OHM J 2012 RC729 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RC139 HRFT222JCA R CHIP 1/10 2.2K OHM J 2012 RC730 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RC140 HRFT470JCA R CHIP 1/10 47 OHM J 2012 RC731 HRFT161JCA R CHIP 1/10 160 OHM J 2012
RC141 HRFT470JCA R CHIP 1/10 47 OHM J 2012 RC732 HRFT151JCA R CHIP 1/10 150 OHM J 2012
RC142 HRFT470JCA R CHIP 1/10 47 OHM J 2012 RC733 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RC303 HRFT752JCA R CHIP 1/10 7.5K OHM J 2012 RC734 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RC304 HRFT912JCA R CHIP 1/10 9.1K OHM J 2012 RC735 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RC305 HRFT682JCA R CHIP 1/10 6.8K OHM J 2012 RC802 HRFT103JCA R CHIP 1/10 10K OHM J 2012
RC306 HRFT471JCA R CHIP 1/10 470 OHM J 2012 RC804 HRFT100JCA R CHIP 1/10 10 OHM J 2012
RC401 HRFT102JCA R CHIP 1/10 1K OHM J 2012 RC901 HRFT821JCA R CHIP 1/10 820 OHM J 2012
RC402 HRFT202JCA R CHIP 1/10 2K OHM J 2012 RC902 HRFT821JCA R CHIP 1/10 820 OHM J 2012
RC404 HRFT◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
