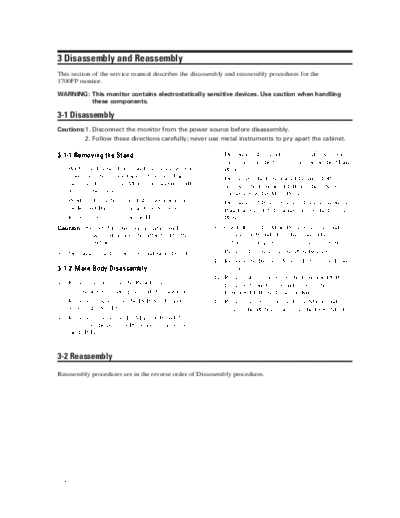

Image preview - the first page of the document



>> Download 20030125151045333_1700FP_A[1].SG061.E.06 documenatation <<

Text preview - extract from the document

3 Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the
1700FP monitor.

WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling
         these components.

3-1 Disassembly
Cautions:1. Disconnect the monitor from the power source before disassembly.
         2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.

3-1-1 Removing the Stand                                5. Disconnect the interface wire (31P) between
                                                           the Panel and the CN2 connector on the Main
1. With a pad beneath it, stand the monitor on its         PCB.
   front with the screen facing downward and            6. Disconnect the Function PCB wire (10P)
   the base close to you. Make sure nothing will           between the Function PCB and the CN10
   damage the screen.                                      connector on the Main PCB.
2. Working from the back of the monitor remove          7. Disconnect 2 Inverter wires (12P) between the
   the Round Hinge Cover and the Stand Cover.              Panel and the CN1 connectors on the Inverter
3. Remove the 6 screws on the Hinge.                       PCB.
Caution: Be careful. The signal cable and               8. Carefully lift the Main PCB Assembly and
         power cable are still attached to the             Inverter PCB and place them on a flat, level
         monitor.                                          surface that is protected from static electricity.
5. Disconnect the Power Cord and Signal Cable.          9. Remove 10 screws on the PCB Bracket.
                                                        10. Remove the Bracket Assembly from the Front
3-1-2 Main Body Disassembly                                 Cover.
                                                        11. Remove the 2 screws on the Function PCB
1. Remove 4 screws on the Rear Cover.                       from the Front Cover and remove the
2. Pull the Rear Cover up and off the monitor.              Function PCB and Function Knob.
3. Remove 19 screws on the PCB Shield and               12. Remove 4 screws on the Front Shield and
   remove the Shield.                                       remove the PCB Bracket and the Front Shield.
4. Remove 5 screws on the Main PCB and 2
   screws on the Inverter PCB and 2 screws on
   the 10P Harness.


3-2 Reassembly

Reassembly procedures are in the reverse order of Disassembly procedures.




1700FP                                                                                                     3-1
3 Disassembly and Reassembly

Memo




3-2                            1700FP
