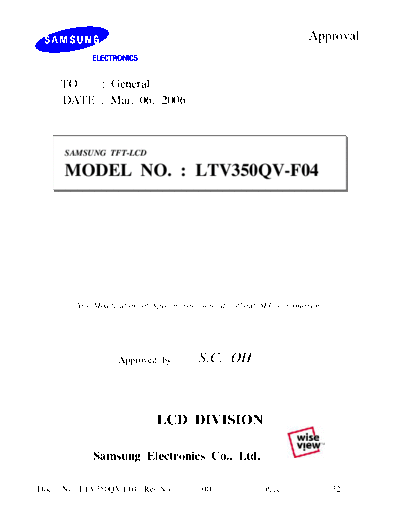

Image preview - the first page of the document
>> Download LTV350QV-F04_General Approval_060306 documenatation <<
Text preview - extract from the document
Approval
TO : General
DATE : Mar. 06. 2006
SAMSUNG TFT-LCD
MODEL NO. : LTV350QV-F04
Any Modification of Spec is not allowed without SEC's permission.
Approved by : S.C. OH
LCD DIVISION
Samsung Electronics Co., Ltd.
Doc . No LTV350QV-F04 Rev.No 000 Page /32
Approval
Revision History
Date Rev. No. Page Summary
Mar.06.2006 000 Rev.000 was issued.
Doc . No LTV350QV-F04 Rev.No 000 Page /32
Approval
Contents
General Description --------------------------- (4)
1. Absolute Maximum Ratings --------------------------- (5)
1.1 Absolute Ratings Of Environment
1.2 Electrical Absolute Ratings
2. Optical Characteristics --------------------------- (7)
3. Electrical Characteristics ------------------------- (11)
3.1 TFT-LCD Module
3.2 Back-light Unit
4. Block Diagram ------------------------- (13)
4.1 TFT-LCD Module with Back Light Unit
5. Input Terminal Pin Assignment ------------------------- (14)
5.1 Input Signal & Power
5.2 Input Signal, Basic Display Colors and Gray Scale of Each Colors
6. Operation Specifications ------------------------- (16)
6.1 Serial Peripheral Interface
6.2 Data Format for 24bit RGB Interface
6.3 24bit RGB Interface Timing
6.4 Electrical Specifications
7. Command List & Instruction Descriptions -------------------------- (21)
7.1 Command List
7.2 Instruction Descriptions
8. Power On/Off Sequence -------------------------- (22)
8.1 Power On Sequence
8.2 Power Off Sequence
9. Reliability Test Result --------------------------- (26)
9.1 Condition
9.2 Judgement
10. Outline Dimension -------------------------- (28)
11. Packing -------------------------- (29)
12. Marking & Others -------------------------- (30)
13. General Precaution -------------------------- (31)
13.1 Handling
13.2 Storage
13.3 Operation
13.4 Others
Doc . No LTV350QV-F04 Rev.No 000 Page /32
Approval
General Description
* Description
LTV350QV-F04 is a TMR(Transmissive with Micro Reflective) type color active matrix
TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT
as a switching devices. This model is composed of a TFT-LCD module, a driver circuit
and a back-light unit.
The resolution of a 3.5" contains 320RGBx240 dots and can display up to 16.7M colors.
* Features
- Transmissive with Micro Reflective type and back-light with six LEDs are available.
- TN(Twisted Nematic) mode.
- Line inversion mode with stripe type.
- 24bit RGB Interface + Serial Peripheral Interface(SPI)
- SYNC(Vsync, Hsync, Dotclk) mode
- Gate Driver IC embeded on Panel(Double ASG)
* Applications
- Display terminals for DSC(Digital Still Camera), PMP(Portable Multimedia Player)
application products.
* General information
Items Specification Unit Note
Display area 70.08(H) x 52.56(V) mm -
Driver element a-Si TFT active matrix - -
Display colors 16.7M colors -
Number of pixels 320RGB(H) x 240(V) dot -
Pixel arrangement stripe type - -
Pixel pitch 0.219(H) x 0.219(V) mm -
Display mode Normally White - -
Viewing direction 6 o'clock -
* Mechanical information
Item Min. Typ. Max. Unit Note
Horizontal(H) 76.70 76.90 77.10 mm -
Module
Vertical(V) 63.70 63.90 64.10 mm (1)
size
Depth(D) 2.95 3.15 3.35 mm (1)
Weight - 32 37 g -
Note (1) Not include FPC
Refer to the Outline Dimension in the "10.Outline Dimension" for further information.
Doc . No LTV350QV-F04 Rev.No 000 Page /32
Approval
1. Absolute Maximum Ratings
Doc . No LTV350QV-F04 Rev.No 000 Page /32
Approval
1.2 Electrical Absolute Ratings
(1) TFT-LCD Module
(Ta = 25 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
