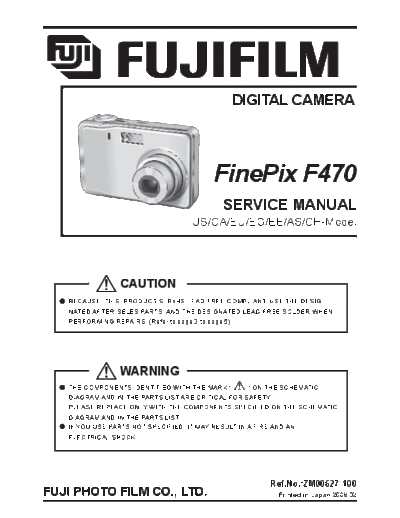

                                           DIGITAL CAMERA




                                       FinePix F470
                                         SERVICE MANUAL
                                 US/CA/EU/EG/EE/AS/CH-Model




               CAUTION
   BECAUSE THIS PRODUCTIS RoHS LEAD-FREE COMPLIANT, USE THE DESIG-
   NATED AFTER-SELES PARTS AND THE DESIGNATED LEAD-FREE SOLDER WHEN
   PERFORMING REPAIRS. (Refer to page 3 to page 5)




               WARNING
   THE COMPONENTS IDENTIFIED WITH THE MARK "        " ON THE SCHEMATIC
   DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR SAFETY.
   PLEASE REPLACE ONLY WITH THE COMPONENTS SPECIFIED ON THE SCHEMATIC
   DIAGRAM AND IN THE PARTS LIST.
   IF YOU USE PARTS NOT SPECIFIED, IT MAY RESULT IN A FIRE AND AN
   ELECTRICAL SHOCK.




                                                     Ref.No.:ZM00627-100
FUJI PHOTO FILM CO., LTD.                              Printed in Japan 2006.02
                                                                                               FinePix F470 Service Manual



                                  SAFETY CHECK-OUT
                           After correcting the original problem, perform the following
                           safety check before return the product to the customer.


    1. Check the area of your repair for unsoldered or poorly       7.                           CAUTION: FOR CONTINUED
       soldered connections. Check the entire board surface                                      PROTECTION AGAINST FIRE
       for solder splasher and bridges.                                                          HAZARD, REPLACE ONLY WITH
                                                                                                 SAME TYPE 2.5 AMPERES 125V
    2. Check the interboard wiring to ensure that no wires are                                   FUSE.
       "pinched" or contact high-wattage resistors.
                                                                    2.5A 125V
                                                                                 RISK OF FIRE-   ATTENTION: AFIN D'ASSURER
                                                                                 REPLACE FUSE
    3. Look for unauthorized replacement parts, particularly                     AS MARKED       UNE PROTECTION
                                                                    2.5A 125V
       transistors, that were installed during a previous repair.                                PERMANENTE CONTRE LES
       Point them out to the customer and recommend their                                        RISQUES D'INCENDIE,
       replacement.                                                                              REMPLACER UNIQUEMENT
                                                                                                 PAR UN FUSIBLE DE MEME,
    4. Look for parts which, though functioning, show obvious                                    TYPE 2.5 AMPERES, 125 VOLTS.
       signs of deterioration. Point them out to the customer
       and recommend their replacement.                             8.                           WARNING:
                                                                                                 TO REDUCE THE ELECTRIC
    5. Check the B + voltage to see it is at the values                                          SHOCK, BE CAREFUL TO
       specified.                                                                                TOUCH THE PARTS.
                                                                                WARNING!
    6. Make leakage - current measurements to determine                         HIGH VOLTAGE

       that exposed parts are acceptably insulated from the
       supply circuit before returning the product to the
       customer.




2
FinePix F470 Service Manual


RoHS lead-free compliance
Because this product is RoHS lead-free compliant, use the designated after-sales parts and the designated lead-free solder
when performing repairs.



With the exception of parts and materials expressly excluded from the RoHS directive (*1), all the internal connections and
component parts and materials used in this product are lead-free compliant (*2) under the European RoHS directive.

  *1: Excluded items (list of the main lead-related items)
