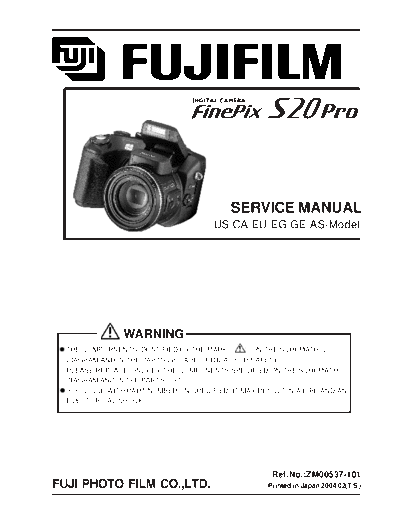

Image preview - the first page of the document
>> Download FUJIFILM_FinePix_S20_PRO documenatation <<
Text preview - extract from the document
SERVICE MANUAL
US/CA/EU/EG/GE/AS-Model
WARNING
THE COMPORNENTS IDENTIFIED BY THE MARK " " ON THE SCHEMATHIC
DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR SAFETY.
PLEASE REPLACE ONLY BY THE COMPONENTS SPECIFIED ON THE SCHEMATHIC
DIAGRAM AND IN THE PARTS LIST.
IF YOU USE WITH PART NUMBER UN-SPECIFIED, IT MAY RESULT IN A FIRE AND AN
ELECTORICAL SHOCK.
Ref.No.:ZM00537-101
FUJI PHOTO FILM CO.,LTD. Printed in Japan 2004.02(T.S.)
FinePix S20Pro Service Manual
SAFETY CHECK-OUT
After correcting the original problem, perform the following
safety check before returning the product to the customer.
1. Check the area of your repair for unsoldered or 5. Caution:
poorly soldered connections. Check the entire For continued protection against fire
board surface for solder splasher and bridges. hazard, replace only with same
RISK OF FIRE-
2.5A 125/250V
REPLACE FUSE type 2.5 amperes 125/250 volts
2. Check the interboard wiring to ensure that no 2.5A 125/250V AS MARKED fuse.
wires are "pinched" or contact high-wattage Attention:
resistors. Afin d'assurer une protection
permanente contre les risques
3. Look for unauthorized replacement parts, particu- d'incendie, remplacer uniquement
larly transistors, that were installed during a par un fusible de meme, type 2.5
previous repair. Point them out to the customer amperes, 125/250 volts.
and recommend their replacement.
6. Warning:
4. Look for parts which, though functioning, show To reduce the electric shock, be
obvious signs of deterioration. Point them out to WARNING! careful to touch the parts.
HIGH VOLTAGE
the customer and recommend their replacement.
2
FinePix S20Pro Service Manual TABLE OF CONTENTS
TABLE OF CONTENTS
Page Page
1.General 4. Adjustments
1-1. Product specification ......................................................... 4 4-1. Adjustment Procedure of Parts Replacement ............. 52
1-2. Names of External Components ...................................... 8 4-2. Measuring Devices ......................................................... 53
4-3. Jigs .................................................................................... 53
4-5. Adjustment environment ................................................ 54
2. Disassembly 4-4. Jig Connections ............................................................... 54
2-1. Names of Internal Components ..................................... 10 4-4. Calibration method of pattern box ................................ 54
2-2. How to remove R CABI CONST .................................... 11 4-7. Installing and Starting the Adjustment Software ....... 57
2-3. Decomposition of R CABI CONST ................................. 12 4-8. Initializing the Adjustment Software ............................ 57
2-4. How to remove LCD ASSY ........................................... 13 4-6. Installing the Jig Drivers on the PC ............................... 57
2-5. How to remove TOP CABI CONST ................................ 14 4-9. Starting the Adjustment Software ............................... 60
2-6. Decomposition of TOP CABI CONST ............................ 18 4-10. [R] : Flash memory reset ............................................. 63
2-7. How to remove LCD FRAME CONST ............................ 20 4-11. [F9]: AF Sensor Adjustment ........................................ 65
2-8. Decomposition of LCD FRAME CONST ........................ 21 4-12. [F4] : CCD data input .................................................... 70
2-9. Decomposition of MAIN PWB ASY ............................... 21 4-13. [F5] : Camera adjustment ............................................. 72
2-10. How to remove SHEET FRAME ................................... 22 4-14. [F6] : AF adjustment ..................................................... 75
2-11. How to remove BATTERY LID .................................... 22 4-15. [F7] : Flash adjustment ................................................. 78
2-12. How to remove BATTERY HOLDER UNIT .................. 23 4-16. [F1] : Battery voltage adjustment ............................... 80
2-13. How to remove CAM PWB ASSY ............................... 23 4-17. [F11] : VIDEO Adjustment ............................................ 83
2-14. How to remove LENS FRAME ..................................... 24 4-18. [F8] : Firmware Download ........................................... 85
2-15. How to remove LENS CONST ..................................... 24 4-19. [F12] : End Setting ........................................................ 87
2-16. How to remove LENS CABI ASSY ............................. 25
2-17. How to remove SIDE MODULE UNIT ........................... 26
2-18. How to remove AF SENSOR UNIT .............................. 27 5. Inspection
5-1. Required Measuring Equipment .................................... 92
5-2. Connection of Measuring Equipment ........................... 92
3. Schematics 5-3. Inspection and Factory Settings .................................. 92
3-1. Cautions ........................................................................... 28
3-2. Basic Block Names and Functions ............................... 28
3-3. Functions of Primary Blocks ......................................... 29 6. Parts List
3-3-1. Technical Outline ................................................. 29 6-1. Packing and Accessories .............................................. 94
3-3-2. CAM Board Block Functions .............................. 29 6-1-1. For US model ........................................................ 94
3-3-3. MAIN Board Block Functions ............................. 29 6-1-2. For CA model ........................................................ 95
3-3-4. DCST Board Block Functions ............................. 29 6-1-3. For EU model ........................................................ 96
3-4. Block Diagram .................................................................. 30 6-1-4. For EG model ........................................................ 97
3-5. Overall connection Diagram .......................................... 31 6-1-5. For GE model ........................................................ 98
3-6. CCD BLOCK Schematic Diagram .................................. 32 6-1-6. For AS model ........................................................ 99
3-7. CAMERA BLOCK Schematic Diagram .......................... 33 6-2. Cabinet F block (ALL-MODEL) .................................... 100
3-8. PROCESS BLOCK Schematic Diagram ......................... 34 6-3. Internal parts (ALL-MODEL) ........................................ 101
3-9. DCDC BLOCK Schematic Diagram ................................ 35 6-4. Cabinet R block (ALL-MODEL) .................................... 102
3-10. LCD-EVF BLOCK Schematic Diagram ........................ 36 6-5. External Parts ................................................................ 103
3-11. KEY SW BLOCK Schematic Diagram ......................... 37 6-5-1. External Parts (US/CA-MODEL) ....................... 103
3-12. MOTOR BLOCK Schematic Diagram ........................... 38 6-5-2. External Parts (EU/EG/GE/AS-MODEL) ........... 104
3-13. POWER ON BLOCK Schematic Diagram .................... 39 6-6. Electrical parts .............................................................. 105
3-14. FLASH BLOCK Schematic Diagram ............................ 40
3-15. USB2.0 BLOCK Schematic Diagram ........................... 41
3-16. IEEE1394 BLOCK Schematic Diagram ........................ 42 7. Appendix
3-17. AUDIO BLOCK Schematic Diagram ............................ 43 7-1. Function of display for Firmware Version ............... 106
3-18. MAIN I/F BLOCK Schematic Diagram .......................... 44 7-2. List of Related Technical Updates Issued ................ 107
3-19. MC-FPC BLOCK Schematic Diagram .......................... 45
3-20. BL BLOCK Schematic Diagram ................................... 45
3-21. CCD FPC ASSY Component Locations ...................... 46
3-22. CAM PWB ASSY Component Locations .................... 46
3-23. KEY PWB ASSY Component Locations .................... 47
3-24. MAIN PWB ASSY Component Locations ................... 48
3-25. DCST PWB ASSY Component Locations .................. 50
3
1. General FinePix S20Pro Service Manual
1.General
1-1. Product specification
System
Model Digital camera FinePix S20Pro
Effective pixels 6.2 million (S-pixel: 3.1million, R-pixel: 3.1million) pixels
CCD 1/1.7-inch Super CCD SR
Total 6.7 million (S-pixel: 3.35 million, R-pixel: 3.35 million) pixels
Storage media xD-Picture Card (16/32/64/128/256/512 MB)
Microdrive (340 MB/1 GB)
File format Still image: DCF-compliant
Compressed: Exif Ver.2.2 JPEG, DPOF-compatible
* Design rule for Camera File System compliant DPOF compatible
Uncompressed: CCD-RAW (RAF)
Movie: AVI format, Motion JPEG
Audio: WAVE format, Monaural sound
Number of recorded pixels Still image: 2832 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
