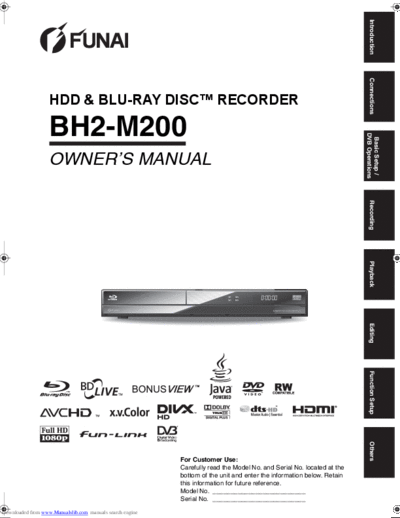

Image preview - the first page of the document
>> Download BH2-M200 Инструкция documenatation <<
Text preview - extract from the document
Introduction
Connections
HDD & BLU-RAY DISCTM RECORDER
BH2-M200
DVB Operations
Basic Setup /
OWNER'S MANUAL
Recording
Playback
Editing
Function Setup
Others
For Customer Use:
Carefully read the Model No. and Serial No. located at the
bottom of the unit and enter the information below. Retain
this information for future reference.
Model No. __________________________
Serial No. __________________________
EN 1
Downloaded from www.Manualslib.com manuals search engine
.
Introduction
Safety Precautions
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
The lightning flash with arrowhead
CAUTION symbol, within an equilateral triangle, is
intended to alert the user to the presence
RISK OF ELECTRIC SHOCK of uninsulated "dangerous voltage" within
DO NOT OPEN the product's enclosure that may be of
sufficient magnitude to constitute a risk of
CAUTION:
electric shock to persons.
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT The exclamation point within an
REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS equilateral triangle is intended to alert the
INSIDE. REFER SERVICING TO QUALIFIED SERVICE user to the presence of important
PERSONNEL. operating and maintenance (servicing)
instructions in the literature
The important note and rating are located on the rear or bottom of accompanying the appliance.
the cabinet.
The symbol for CLASS II (Double Insulation)
Laser Safety Caution
This apparatus is classified as a CLASS 1 LASER PRODUCT. 1. Do not attempt to open the cabinet. There are no parts
This unit employs a laser. Only a qualified service personnel inside you can service. Refer all servicing to qualified
should remove the cover or attempt to service this unit, due to service personnel.
the possibility of eye injury. 2. Slots and openings in the cabinet at the sides and
CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR underneath are provided for ventilation. To ensure reliable
operation and to protect the unit from overheating, these
PERFORMANCE OF PROCEDURES OTHER
openings must not be blocked or covered.
THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION Avoid installation in enclosed spaces such as bookcases
unless suitable ventilation is provided.
EXPOSURE.
3. Keep the unit away from radiators and other heat sources.
CAUTION: CLASS 2 VISIBLE AND INVISIBLE LASER
4. Avoid use near strong magnetic fields.
RADIATION WHEN OPEN.
5. Do not push objects of any kind into the unit through the
DO NOT STARE INTO THE BEAM.
cabinet slots or openings as they could touch electrically
LOCATION: INSIDE, NEAR THE DECK MECHANISM.
live parts or short circuit parts resulting in a fire or electric
shock.
Power Supply 6. To prevent fire or shock hazard, do not expose this
The power supply is connected and the unit is live when the apparatus to dripping or splashing, no objects filled with
mains cable is plugged into a 220 - 240 V~, 50 Hz AC outlet. liquids, such as vases, should be placed on the
To operate the unit, press [STANDBY\ON Q]. apparatus.
7. Do not stand the unit vertically. Use the unit in a horizontal
WARNING: LIVE PARTS INSIDE. (flat) position only.
DO NOT REMOVE ANY SCREWS. 8. Before attempting to operate the unit, make sure that the
timer recording mode is off.
9. This product is in Stand-by mode when turned off while
the mains cable is connected.
10. Do not place any combustible objects on the device
(candles, etc.).
11. Before moving the unit, be sure to remove any media and
unplug the mains cable from the AC outlet.
12. Disconnect the mains plug to shut off when find troubles
or not in use.
13. The mains plug shall remain readily operable.
14. Read both manual instructions to ensure correct and safe
installation and interconnection of the unit in multimedia
systems.
15. Keep the distances 20 cm around apparatus of ventilation
openings.
2 EN
Downloaded from www.Manualslib.com manuals search engine
Introduction
A NOTE ABOUT RECYCLING Installation Location
This product's packaging materials are recyclable and can For safety and optimum performance of this unit:
