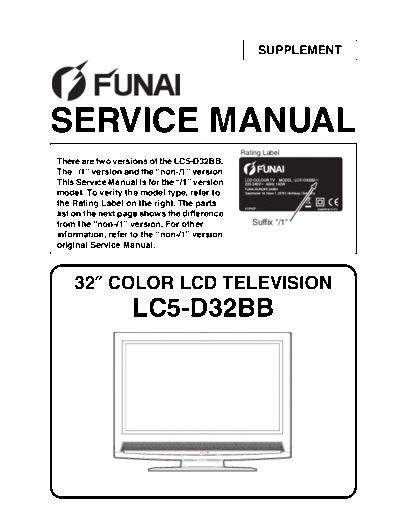

Image preview - the first page of the document
LC-5-D32BB Supplement


>> Download LC-5-D32BB Supplement documenatation <<

Text preview - extract from the document
                                                   SUPPLEMENT




SERVICE MANUAL
                                              Rating Label
There are two versions of the LC5-D32BB.
The "/1" version and the "non-/1" version.
This Service Manual is for the "/1" version
model. To verify the model type, refer to
the Rating Label on the right. The parts
list on the next page shows the difference
from the "non-/1" version. For other             Suffix "/1"
information, refer to the "non-/1" version
original Service Manual.



    32 COLOR LCD TELEVISION
                   LC5-D32BB
Different parts from the non-/1 version model (LC5-D32BB)

       Ref. No.                   Description              Part No.
      ELECTRICAL PARTS
                 LCD MODULE ASSEMBLY                   UF320ED
                 T-CON CBA                             1FSA10445

                  MUT CBA                              1FSA10472
                  INVERTER CBA                         ----------
      CN1050      CONNECTOR PRINT OSU KW05-120-02-00   J30502KET001
      CN1100      CONNECTOR PRINT OSU KW05-120-02-00   J30502KET001
      CN1150      CONNECTOR PRINT OSU KW05-120-02-00   J30502KET001
      CN1200      CONNECTOR PRINT OSU KW05-120-02-00   J30502KET001
      CN1250      CONNECTOR PRINT OSU KW05-120-02-00   J30502KET001
      CN1300      CONNECTOR PRINT OSU KW05-120-02-00   J30502KET001




       Ref. No.                   Description              Part No.
      MECHANICAL PARTS
      A6!       RATING LABEL A73F6EP                   ----------
      S1        CARTON A73F6EP                         1EM324202




                                                                      LC5-D32BB
                                                                        A73F6EP
                                                                      2008-03-05
