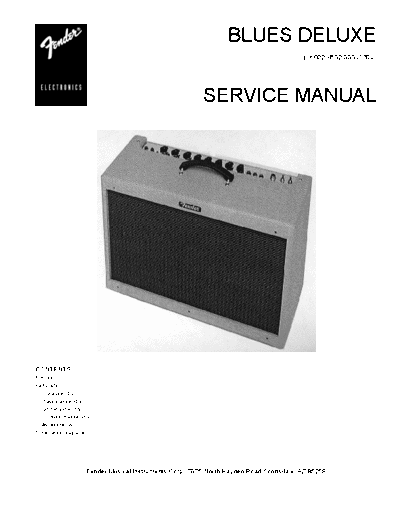

Image preview - the first page of the document
>> Download Blues Deluxe Reissue PR 246 documenatation <<
Text preview - extract from the document
BLUES DELUXE
p/n 022-4502-000 (120V)
SERVICE MANUAL
CONTENTS:
Notices
Parts lists:
PCB assembly
Chassis assembly
Cabinet assembly
Footswitch assembly
Miscellaneous
Schematics/diagrams
Fender Musical Instruments Corp. 7975 North Hayden Road Scottsdale, AZ 85258
BLUES DELUXE
(This is the model name for warranty claims)
SERVICE MANUAL
FEBRUARY 1994 REV A
IMPORTANT NOTICE:
The information contained herein is CONFIDENTIAL and PROPRIETARY to Fender Musical Instruments Corp. It is
disclosed solely for use by qualified technicians for purposes of equipment maintenance and service. It is not to be
disclosed to others without the expressed permission of Fender Musical Instruments Co. All specifications subject to
change without notice.
For warranty repair service, only Fender specified part numbers are to be used. It is recommended they also be used
for post-warranty maintenance and repair.
Parts marked with an asterisk (*) indicate the required use of that specific part. This is necessary for RELIABILITY
and SAFETY requirements. DO NOT USE A SUBSTITUTE!
A coded naming convention is used in the description of certain parts. The codes and what they mean are as follows:
CAPACITOR CODES HARDWARE CODES
CAP AE = Aluminum Electrolytic BLX = Black Oxide
CAP CA = Ceramic Axial CR = Chrome Plated
CAP CD = Ceramic Disk HWH = Hex Washer Head
CAP MPF = Metalized Polyester Film M = Machine Screw
CAP MY = Mylar NI = Nickel Plated
CAP PFF = Polyester Film/Foil OHP = Oval Head Phillips
PB = Particle Board
RESISTOR CODES PHP = Pan Head Phillips
PHPS = Pan Head Phillips Sems
RES CC = Carbon Comp SMA = Sheet Metal "A" Point
RES CF = Carbon Film SMB = Sheet Metal "B" Point
RES FP = Flame Proof SS = Stainless Steel
RES MF = Metal Film TF = Thread Forming
RES WW = Wire Wound ZI = Zinc Plated
BLUES DELUXE
.PARTS LIST
PRINTED CIRCUIT BOARD ASSEMBLY
QTY PART # DESCRIPTION REFERENCE DESIGNATION
1 047022 PCB ASSY BLUES DELUXE (STUFFED)
2 028104 BUTTON PUSH SWITCH BLACK (@S1,2)
1 025722 CABLE ASSY REVERB 1100MM (@P1-4)
3 038856 CABLE JUMPER 6 CKT .1X4.0 (@P5-11)
2 038689 CAP AE AX .47uF 100V C11,19
2 038692 CAP AE AX 10uF 35V R30,31
4 009512 CAP AE AX 22uF 25V 20% R1,8,13,16
2 024819 CA[ AE AX 22uF 500V C45,46
3 036954 CA[ AE RD; 22uF 63V 20% C40
4 028953 CAP AE AX 100uF 350V+50%-10% R34,35,41,42
3 031040 CAP AE RDL 100uF 100V 20% C37-39
2 028494 CAP AE RDL 1000uF 35V 20% C43,44
1 020909 CAP CD 47PF 1000V 10% C12
1 020917 CAP CD 250PF 1000V 10% C5
2 039261 CAP CA 330PF 100V C15,18
1 038874 CAP CA 560PF 50V C20
2 025951 CAP CD 750PF 1000V 10% C3,4
1 039264 CAP CA 1500PF 100V C50
1 033580 CAP PFF RDL .0022uF 100V 10% C17
1 033583 CAP PFF RDL .0047uF C49
1 024823 CAP MPF RDL .01uF 400V 10% C2
1 036234 CAP PFF RDL .015uF 100V 10% C21
3 024833 CAP MPF RDL .022uF 400V 10% C7,9,23
1 033591 CAP PFF RDL .033uF 100V 10% C28
1 024839 CAP MPF .033uF 400V C14
1 027272 CAP MPF .047uF 63V C10
1 033592 CAP PFF RDL .047uF 100V 10% C32
2 024853 CAP MPF RDL .1uF 250V 10% C22,24
1 024854 CAP MPF RDL .1uF 400V 10% C6
2 024855 CAP MPF RDL .1uF 630V 10% C25,26
1 027286 CAP MPF .47uF 63V C27
1 041510 CONTROL SNAPIN 25K B R14
1 047031 CONTROL SNAPIN 25K 30C TAPER R42
1 037600 CONTROL SNAPIN 100K B R38
2 047540 CONTROL SNAPIN 250K 15A R7,17
1 037597 CONTROL SNAPIN 250K 30A R12
2 041507 CONTROL SNAPIN 1M 10A R13,21
8 006260 DIODE 1N4448/1N914B SIGNAL CR1,5,6,7,9,10,11,12,13
4 026730 DIODE 1N4006/1N5062 800PRV 1A CR14-17
3 064089 DIODE 1N4003 CR19-21
2 029690 DIODE HV 3KV 200MA CR24,25
2 028119 DIODE ZEN 1N5353V 16V 5W CR22,23
2 031019 DIODE ZEN 1N5245B 15V .5W 5% CR2,3
23 025802 FSTN TB MALE .250X.032 PCBMT CP1-23
2 016795 IC DUAL OP AMP TL072 U1,2
2 031611 IC DUAL OP AMP PC4560 U3,4
1 031570 JACK PHONE PCB STEREO PREMIUM J3
4 037036 JACK PHONE PCB MONOCA PREMIUM J1,2,4,5
43 020888 JUMPER WIRE 22GA.5X.175 Q1-43
6 026043 JUMPER WIRE 18GA.8X.175 JP1-3, 5-7
1 028039 LED RED 5X5MM SLB-55VR3 LD1
1 047006 PCB FAB BLUES DLX/DVL (RAW BOARD)
2 031901 PIN MALE PCB .093 SP1,2
2 036613 RELAY DPDT DIP 24 VOLT 8.3mA RY1,2
1 025818 RES CF 1/4W 5% 4.7 R92
1 024947 RES CF 1/4W 5% 47 R31
1 024961 RES CF 1/4W 5% 470 R49
2 024962 RES CF 1/4W 5% 560 R72,74
1 024965 RES CF 1/4W 5% 1K R61
10 024969 RES CF 1/4W 5% 1.5K R5,10,19,28,36,39,41,55,56
BLUES DELUXE
PRINTED CIRCUIT BOARD ASSEMBLY (CONT)
QTY PART # DESCRIPTION REFERENCE DESIGNATION
1 024973 RES CF 1/4W 5% 3.3K R84
3 024977 RES CF 1/4W 5% 4.7K R32,43,96
1 024979 RES CF 1/4W 5% 6.8K R16
1 026510 RES CF 1/4W 5% 9.1K R50
8 024981 RES CF 1/4W 5% 10K R34,60,62,65,68,71,77,78
1 024987 RES CF 1/4W 5% 22K R25
1 024988 RES CF 1/4W 5% 27K R87
1 024993 RES CF 1/4W 5% 47K R23
3 024995 RES CF 1/4W 5% 68K R1,2,93
3 024997 RES CF 1/4W 5% 100K R6,11,27
6 025059 RES CF 1/4W 5% 220K R15,24,29,35,53,54
2 025061 RES CF 1/4W 5% 330K R20,26
2 025065 RES CF 1/4W 5% 470K R33,40
1 028018 RES CF 1/4W 5% 510K R8
11 025069 RES CF 1/4W 5% 1M R3,22,30,47,48,63,69,70,76,79,95
2 025075 RES CF 1/4W 5% 2.2M R37,94
2 041741* RES MOX FP 1/2W 47 R80,81
4 025116 RES CF 1/2W 5% 100K R4,9,18,52
4 025117 RES CF 1/4W 5% 220K R82,83,88,89
1 028861 RES CF 1/4W 5% 3.3K R75
1 031065 RES CF 1/4W 5% 91K R51
2 036468* RES MOX FP 1W 5% 470 R57,58
1 027346 RES FILM 1W 5%1.2K R59
1 036621 RES FILM 1W 5% 6.8K R46
1 041739* RES MOX FP 1W 5% 6.8K R90
1 036470* RES MOX FP 1W 5% 10K R91
2 028037 RES WW BT 5W 10% 330 R85,86
4 014999 SCRW M 6-32X1/4 PHP BLX (8 PIN TUBE SOCKET MOUNT)
10 039367 SCRW 6-32X3/8 PHPS SS (PCB TO STANDOFF MOUNT)
3 029167 SOCKET TUBE 9 PIN PCB MOUNT (V1-3)
2 029343 SOCKET TUBE 8 PIN PCB MOUNT (@V4-5)
1 027337 SPACER LED .76X.1 RED (@LD1)
10 016440 STNDOFF RND AL 6-32X1X1/4 (PCB TO CHASSIS MOUNT)
2 028091 SWITCH [ISJ S;F;L SJPRTSTRPLE S1,2
1 028503* THERMISTOR 10 5A C60-11 TH1
1 014689 XSTR N-CH JFET J111 TO-92 Q1
CHASSIS ASSEMBLY
QTY PART # DESCRIPTION REFERENCE DESIGNATION
1 047412 CHS ASSY 120V BLUES DELUXE
1 026038 BUSHING SR .625X.062X37/64 B;L (@ PWR CABLE 100/120/240 AUST.)
1 010401 BUSHING SR .625X.125X37/64 WHT (@ PWR CABLE 230/240V U.K.)
1 026116 BUSHING SR .500X.063X7/16 BLK (@ REVERB CABLE)
2 0028069 BUSHING SNAP 3/4X1-1/8 WHT (@ OUTPUT XFMR WIRES)
1 018022 BUSHING SNAP 5/16X17/32 BLK (@ L1 INDUCTOR WIRES)
1 026541 CABLE ASSY PWR W/.250 TAB 120V (100/120V ONLY)
1 033331 CABLE ASSY PWR 220/240V (230V EXPORT ONLY)
1 038602 CABLE ASSY PWR AUST .250 TAB (240V AUST ONLY)
1 040993 CABLE ASSY PWR 5A U.K. .250 TAB (240 V UK ONLY)
1 022707 CHOKE FILTER L1
1 047017 CHS BLUES DELUXE (RAW CHASSIS STEEL ONLY)
2 031091 CLAMP TUBE (277H-1) (OUTPUT TUBE MOUNT)
1 032219 COLLAR PILOT LIGHT
1 036702 FUSEHOLDER 3AG FINGER GRIP XF1 (100/120V ONLY)
1 036703 FUSEHOLDER 5MM FINGER GRIP XF1 (230/240V EXPORT ONLY)
1 077982 FUSE QA 1-1/4X1/4 250V 3AMP F1 (100/120V ONLY)
1 020793 FUSE QA 20mmX5mm 250V 1.6AMP F1 (230/240V EXPORT ONLY)
1 021741 HOLDER DIAL LITE ASSY PILOT (SOCKET)
1 021550 JACK PHONE TIP SHUNT 12A J6 (SPEAKER MOUNT)
1 025718 JEWEL #20 PILOT LITE (@ POWER INDICATOR)
8 036620 KNOB POINTED ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
