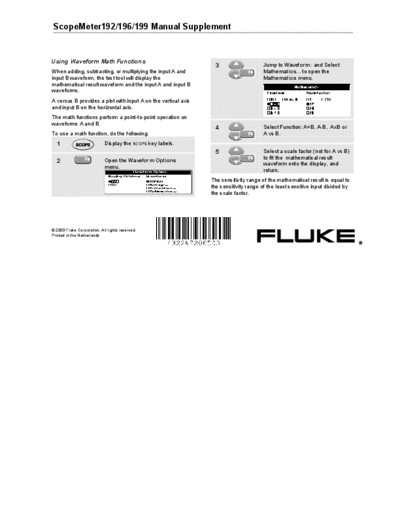

Image preview - the first page of the document
>> Download FLUKE 192_252C 196_252C 199 Supplement documenatation <<
Text preview - extract from the document
ScopeMeter192/196/199 Manual Supplement
Using Waveform Math Functions
3 Jump to Waveform: and Select
When adding, subtracting, or multiplying the input A and Mathematics... to open the
input B waveform, the test tool will display the Mathematics menu.
mathematical result waveform and the input A and input B
waveforms.
A versus B provides a plot with input A on the vertical axis
and input B on the horizontal axis.
The math functions perform a point-to-point operation on
waveforms A and B.
4 Select Function: A+B, A-B, AxB or
To use a math function, do the following: A vs B.
1 Display the SCOPE key labels.
5 Select a scale factor (not for A vs B)
to fit the mathematical result
2 Open the Waveform Options
waveform onto the display, and
menu.
return.
The sensitivity range of the mathematical result is equal to
the sensitivity range of the least sensitive input divided by
the scale factor.
