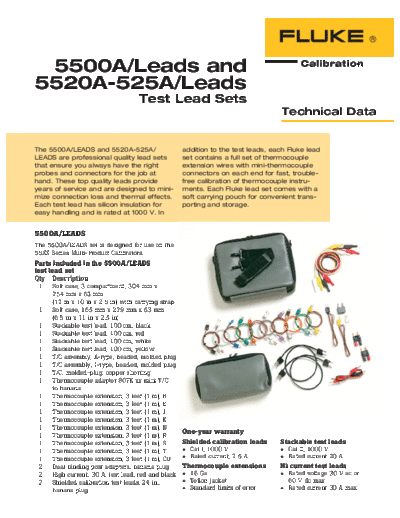

5500A/Leads and
5520A-525A/Leads
Test Lead Sets
Technical Data
The 5500A/LEADS and 5520A-525A/ addition to the test leads, each Fluke lead
LEADS are professional quality lead sets set contains a full set of thermocouple
that ensure you always have the right extension wires with mini-thermocouple
probes and connectors for the job at connectors on each end for fast, trouble-
hand. These top quality leads provide free calibration of thermocouple instru-
years of service and are designed to mini- ments. Each Fluke lead set comes with a
mize connection loss and thermal effects. soft carrying pouch for convenient trans-
Each test lead has silicon insulation for porting and storage.
easy handling and is rated at 1000 V. In
5500A/LEADS
The 5500A/LEADS set is designed for use on the
55XX Series Multi-Product Calibrators.
Parts included in the 5500A/LEADS
test lead set
Qty Description
1 Soft case, 3 compartment, 304 mm x
254 mm x 63 mm
(12 in x 10 in x 2.5 in) with carrying strap
1 Soft case, 165 mm x 279 mm x 63 mm
(6.5 in x 11 in x 2.5 in)
1 Stackable test lead, 100 cm, black
1 Stackable test lead, 100 cm, red
1 Stackable test lead, 100 cm, white
1 Stackable test lead, 100 cm, yellow
1 T/C assembly, K-type, beaded, molded plug
1 T/C assembly, J-type, beaded, molded plug
1 T/C, molded-plug, copper shorting
1 Thermocouple adapter 80PK xx mini T/C
to banana
1 Thermocouple extension, 3 feet (1 m), B
1 Thermocouple extension, 3 feet (1 m), E
1 Thermocouple extension, 3 feet (1 m), J
1 Thermocouple extension, 3 feet (1 m), K
1 Thermocouple extension, 3 feet (1 m), N
One-year warranty
1 Thermocouple extension, 3 feet (1 m), R
1 Thermocouple extension, 3 feet (1 m), S Shielded calibration leads Stackable test leads
