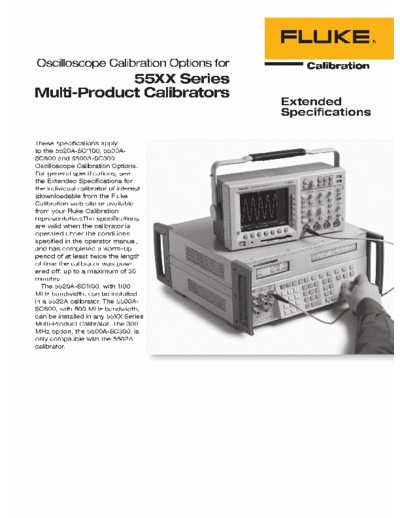

Image preview - the first page of the document



>> Download 1265775G_w documenatation <<

Text preview - extract from the document

Oscilloscope Calibration Options for
            55XX Series
Multi-Product Calibrators
                                        Extended
                                        Specifications

These specifications apply
to the 5520A-SC1100, 5500A-
SC600 and 5500A-SC300
Oscilloscope Calibration Options.
For general specifications, see
the Extended Specifications for
the individual calibrator of interest
(downloadable from the Fluke
Calibration web site or available
from your Fluke Calibration
representative).The specifications
are valid when the calibrator is
operated under the conditions
specified in the operator manual,
and has completed a warm-up
period of at least twice the length
of time the calibrator was pow-
ered off, up to a maximum of 30
minutes.
  The 5520A-SC1100, with 1100
MHz bandwidth, can be installed
in a 5522A calibrator. The 5500A-
SC600, with 600 MHz bandwidth,
can be installed in any 55XX Series
Multi-Product Calibrator. The 300
MHz option, the 5500A-SC300, is
only compatible with the 5502A
calibrator.
Voltage Function Specifications

5520A-SC1100 and 5500A-SC600
                   Volt Function                                       DC Signal                                  Square Wave Signal1
                        Load                               Into 50 W               Into 1 MW                Into 50 W            Into 1 MW
                                                             Amplitude Characteristics
