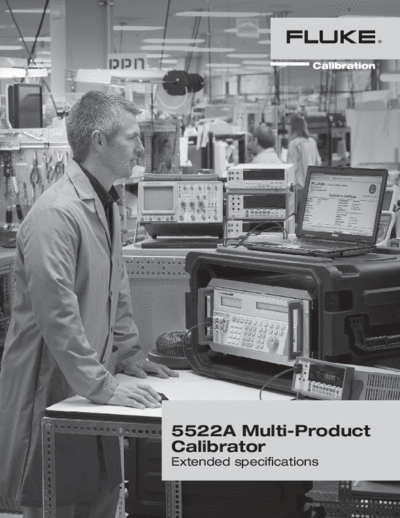

Image preview - the first page of the document
>> Download 3931295E_w documenatation <<
Text preview - extract from the document
5522A Multi-Product
Calibrator
Extended specifications
General Specifications
The following tables list the 5522A specifications. All specifications are valid after allowing a warm-up period of
30 minutes, or twice the time the 5522A has been turned off. (For example, if the 5522A has been turned off for
5 minutes, the warm-up period is 10 minutes.)
All specifications apply for the temperature and time period indicated. For temperatures outside of tcal 5 C (tcal is the
ambient temperature when the 5522A was calibrated), the temperature coefficient as stated in the General Specifications
must be applied.
The specifications also assume the Calibrator is zeroed every seven days or whenever the ambient temperature changes
more than 5 C. The tightest ohms specifications are maintained with a zero cal every 12 hours within 1 C of use.
Also see additional specifications later in this chapter for information on extended specifications for ac voltage and
current.
Warmup Time .....................................................Twice the time since last warmed up, to a maximum of 30 minutes.
Settling Time ......................................................Less than 5 seconds for all functions and ranges except as noted.
Standard Interfaces ............................................IEEE-488 (GPIB), RS-232
Temperature
Operating .........................................................0 C to 50 C
Calibration (tcal) ..............................................15 C to 35 C
Storage ............................................................-20 to +70 C; The DC current ranges 0 to 1.09999 A and 1.1 A to
2.99999 A are sensitive to storage temperatures above 50 C. If
the 5522A is stored above 50 C for greater than 30 minutes,
these ranges must be re-calibrated. Otherwise, the 90 day and 1
year uncertainties of these ranges double.
Temperature Coefficient ....................................Temperature coefficient for temperatures outside tcal 5 C is
10 % of the stated specification per C.
Relative Humidity
Operating .........................................................<80 % to 30 C, <70 % to 40 C, <40 % to 50 C
Storage ............................................................<95 %, non-condensing. After long periods of storage at high
humidity, a drying-out period (with power on) of at least one week
may be required.
Altitude
Operating .........................................................3,050 m (10,000 ft) maximum at 120 V line operation
2000 m (6,500 ft) maximum at 120 V line operation
Non-operating .................................................12,200 m (40,000 ft) maximum
Safety ..................................................................IEC 61010-1: Overvoltage CATII, Pollution Degree 2
Output Terminal Electrical Overload Protection Provides reverse-power protection, immediate output
disconnection, and/or fuse protection on the output terminals for
all functions. This protection is for applied external voltages up
to 300 V peak.
Analog Low Isolation .........................................20 V normal operation, 400 V peak transient
Electromagnetic Environment ...........................IEC 61326-1: Controlled
Electromagnetic Compatibility ..........................If used in areas with Electromagnetic fields of 1 to 3 V/m from
0.08-1GHz, resistance outputs have a floor adder of 0.508
Performance not specified above 3 V/m. This instrument may be
susceptible to electro-static discharge (ESD) to the binding posts.
Good static awareness practices should be followed when
handling this and other pieces of electronic equipment.
Additionally this instrument may be susceptible to electrical fast
transients on the mains terminals. If any disturbances in
operation are observed, it is recommended that the rear panel
chassis ground terminal be connected to a known good earth
ground with a low inductance ground strap. Note that a mains
power outlet while providing a suitable ground for protection
against electric shock hazard may not provide an adequate ground
to properly drain away conducted rf disturbances and may in fact
be the source of the disturbance. This instrument was certified for
EMC performance with data I/O cables not in excess of 3m.
2 Fluke Calibration 5522A Multi-Product Calibrator Extended Specifications
Line Power ......................................................... Line Voltage (selectable): 100 V, 120 V, 220 V, 240 V
Line Frequency: 47 Hz to 63 Hz
Line Voltage Variation: 10 % about line voltage setting
For optimal performance at full dual outputs (e.g. 1000 V, 20 A)
choose a line voltage setting that is 7.5 % from nominal.
Power Consumption .......................................... 600 VA
Dimensions (HxWxL) ........................................... 17.8 cm x 43.2 cm x 47.3 cm (7 in x 17 in x 18.6 in) Standard rack
width and rack increment, plus 1.5 cm (0.6 in) for feet on bottom
of unit.
Weight (without options) .................................... 22 kg (49 lb)
Absolute Uncertainty Definition ....................... The 5522A specifications include stability, temperature
coefficient, linearity, line and load regulation, and the traceability
of the external standards used for calibration. You do not need to
add anything to determine the total specification of the 5522A for
the temperature range indicated.
Specification Confidence Level ........................ 99 %
Detailed Specifications
DC Voltage
Absolute Uncertainty, tcal 5 C Stability
(ppm of output +V)
[1]
Range 90 days 1 year 24 hours, 1 C Resolution V Max Burden
(ppm of output
+V)
0 to 329.9999 mV 15 + 1 20 + 1 3+1 0.1 65
0 to 3.299999 V 9+2 11 + 2 2 + 1.5 1 10 mA
0 to 32.99999 V 10 + 20 12 + 20 2 + 15 10 10 mA
30 to 329.9999 V 15 + 150 18 + 150 2.5 + 100 100 5 mA
100 to 1020.000 V 15 + 1500 18 + 1500 3 + 300 1000 5 mA
[2]
Auxiliary Output (dual output mode only)
0 to 329.9999 mV 300 + 350 400 + 350 30 + 100 1 5 mA
0.33 to 3.299999 V 300 + 350 400 + 350 30 + 100 10 5 mA
3.3 to 7 V 300 + 350 400 + 350 30 + 100 100 5 mA
[3]
TC Simulate and Measure in Linear 10 V/C and 1 mV/C modes
0 to 329.9999 mV 40 + 3 50 + 3 5+2 0.1 10
[1] Remote sensing is not provided. Output resistance is <5 m for outputs 0.33 V. The AUX output has an output resistance
of <1 . TC simulation has an output impedance of 10 1 .
[2] Two channels of dc voltage output are provided.
[3] TC simulating and measuring are not specified for operation in electromagnetic fields above 0.4 v/m.
3 Fluke Calibration 5522A Multi-Product Calibrator Extended Specifications
Noise
Range Bandwidth 0.1 Hz to 10 Hz p-p
(ppm of output + floor) Bandwidth 10 Hz to 10 kHz rms
0 to 329.9999 mV 0 + 1 V 6 V
0 to 3.299999 V 0 + 10 V 60 V
0 to 32.99999 V 0 + 100 V 600 V
30 to 329.9999 V 10 + 1 mV 20 mV
100 to 1020.000 V 10 + 5 mV 20 mV
[1]
Auxiliary Output (dual output mode only)
0 to 329.9999 mV 0 + 5 V 20 V
0.33 to 3.299999 V 0 + 20 V 200 V
3.3 to 7 V 0 + 100 V 1000 V
[1] Two channels of dc voltage output are provided.
DC Current
Absolute Uncertainty, tcal 5 C
(ppm of output +A) Max Compliance Max Inductive
Range Resolution Voltage V Load mH
90 days 1 year
0 to 329.999 A 120 + 0.02 150 + 0.02 1 nA 10
0 to 3.29999 mA 80 + 0.05 100 + 0.05 0.01 A 10
0 to 32.9999 mA 80 + 0.25 100 + 0.25 0.1 A 7
0 to 329.999 mA 80 + 2.5 100 + 2.5 1 A 7
0 to 1.09999 A 160 + 40 200 + 40 10 A 6 400
1.1 to 2.99999 A 300 + 40 380 + 40 10 A 6
0 to 10.9999 A
(20 A Range) 380 + 500 500 + 500 100 A 4
[1] [2] [2]
11 to 20.5 A 800 + 750 1000 + 750 100 A 4
[1] Duty Cycle: Currents <11 A may be provided continuously. For currents >11 A, see Figure 1. The current may be provided
Formula 60-T-I minutes any 60 minute period where T is the temperature in C (room temperature is about 23 C) and I is
the output current in amperes. For example, 17 A, at 23 C could be provided for 60-23-17 = 20 minutes each hour. When
the 5522A is outputting currents between 5 and 11 amps for long periods, the internal self-heating reduces the duty
cycle. Under those conditions, the allowable "on" time indicated by the formula and Figure 1 is achieved only after the
5522A is outputting currents <5 A for the "off" period first.
[2] Floor specification is 1500 A within 30 seconds of selecting operate. For operating times >30 seconds, the floor
specification is 750 A.
Noise
Range
Bandwidth 0.1 Hz to 10 Hz p-p Bandwidth 10 Hz to 10 kHz rms
0 to 329.999 A 2 nA 20 nA
0 to 3.29999 mA 20 nA 200 nA
0 to 32.9999 mA 200 nA 2.0 A
0 to 329.999 mA 2000 nA 20 A
0 to 2.99999 A 20 A 1 mA
0 to 20.5 A 200 A 10 mA
4 Fluke Calibration 5522A Multi-Product Calibrator Extended Specifications
50 80%
