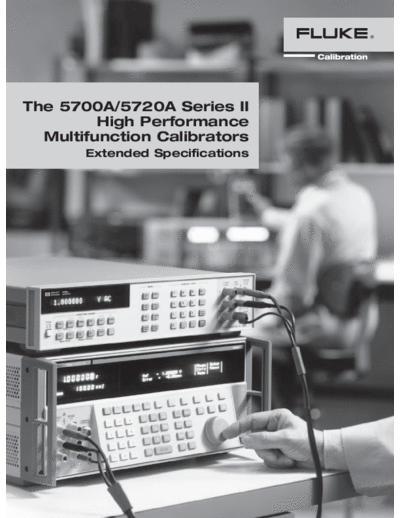

Image preview - the first page of the document
>> Download 1268275G_w documenatation <<
Text preview - extract from the document
The 5700A/5720A Series II
High Performance
Multifunction Calibrators
Extended Specifications
5720A Calibrator
43.2 cm (17 in)
17.8 cm (7 in)
6.35 cm (2.5 in)
63 cm (24.8 in)
For cable access
2 Fluke Calibration The 5700A/5720A Series II High Performance Multifunction Calibrators Extended Specifications
General Specifications
Warm-Up Time .............................................................. Twice the time since last warmed up, to a maximum of 30 minutes.
System Installation ...................................................... Rear output configuration and rack- mount kit available.
Standard Interfaces...................................................... IEEE-488, RS-232, 5725A, 5205A or 5215A, 5220A, phase lock in
(BNC), phase reference out (BNC).
Temperature Performance
Operating .................................................................... 0 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
