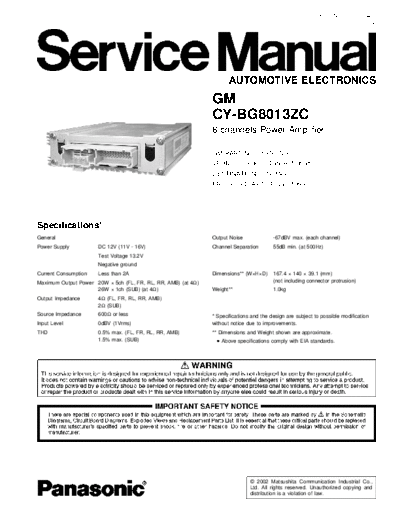

Image preview - the first page of the document
>> Download CY-BG8013 documenatation <<Text preview - extract from the document ORDER No.AED02100465
I0
AUTOMOTIVE ELECTRONICS
GM
CY-BG8013ZC
6-channels Power Amplifier
GM PART No. : 15762536
VEHICLE : Yukon, Tahoe, Suburban
DESTINATION : US /Mexico
PRODUCED AFTER: Jul., 1999
Specifications*
General Output Noise -67dBV max. (each channel)
Power Supply DC 12V (11V - 16V) Channel Separation 55dB min. (at 500Hz)
Test Voltage 13.2V
Negative ground
Current Consumption Less than 2A Dimensions** (W
