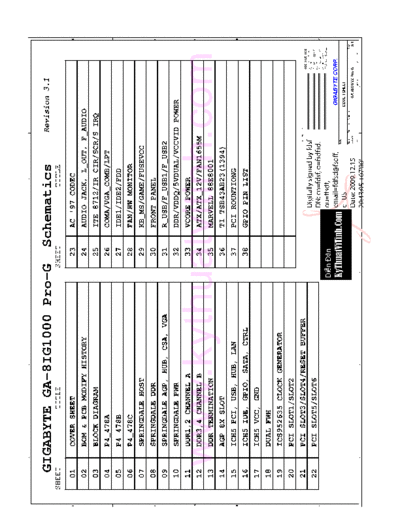

Image preview - the first page of the document
>> Download GIGABYTE GA-8IG1000 Pro-G - REV 3.1 documenatation <<
Text preview - extract from the document
5 4 3 2 1
GIGABYTE GA-8IG1000 Pro-G Schematics Revision 3.1
SHEET TITLE SHEET TITLE
D
01 COVER SHEET 23 AC '97 CODEC D
02 BOM & PCB MODIFY HISTORY 24 AUDIO JACK, L_OUT, F_AUDIO
03 BLOCK DIAGRAM 25 ITE 8712/IR_CIR/SCR/S_IRQ
04 P4_478A 26 COMA/VGA_COMB/LPT
05 P4_478B 27 IDE1/IDE2/FDD
06 P4_478C 28 FAN/HW MONITOR
07 SPRINGDALE HOST 29 KB_MS/GAME/FUSEVCC
C 08 SPRINGDALE DDR 30 FRONT PANEL C
09 SPRINGDALE AGP, HUB, CSA, VGA 31 R_USB/F_USB1/F_USB2
www.kythuatvitinh.com
10 SPRINGDALE PWR 32 DDR/VDDQ/5VDUAL/VCCVID POWER
11 DDR1,2 CHANNEL A 33 VCORE POWER
12 DDR3,4 CHANNEL B 34 ATX/ATX_12V/FAN1655M
13 DDR TERMINATION 35 MARVELL 88E8001
14 AGP 8X SLOT 36 TI TSB43AB23(1394)
B
15 ICH5 PCI, USB, HUB, LAN 37 PCI ROUNTIONG B
16 ICH5 IDE, GPIO, SATA, CTRL 38 GPIO PIN LIST
17 ICH5 VCC, GND
18 DUAL FWH
19 ICS952635 CLOCK GENERATOR
20 PCI SLOT1/SLOT2
21 PCI SLOT3/SLOT4/RESET BUFFER PROCESS:C
COMPONENT SIDE
Digitally signed by fdsf (0.5 oz. Copper)
VCC SIDE
22 PCI SLOT5/SLOT6 (1 oz. Copper)
A DN: cn=fdsf, o=fsdfsd, GND SIDE
(1 oz. Copper)
SOLDER SIDE
A
ou=ffsdf, (0.5 oz. Copper)
email=fdfsd@fsdff, Title
GIGABYTE CORP.
c=US Size Document Number
COVER SHEET
Rev
Date: 2009.12.15 Custom
Date:
GA-8IG1000 Pro-G
Sheet 1 of 39
3.1
5 4 3
20:43:05 +07'00'
2 1
5 4 3 2 1
Model Name: GA-8IG1000 Pro-G
Circuit or PCB layout history
D Component history Date Change Item Reason D
2.0A RELEASE
2.0B FANIO1,2 -◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
