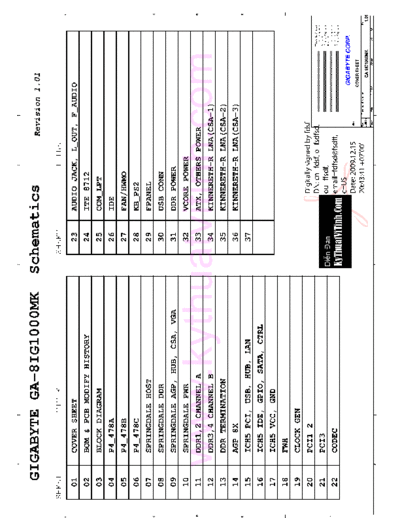

Image preview - the first page of the document
>> Download GIGABYTE GA-8IG1000MK - REV 1.01 documenatation <<
Text preview - extract from the document
5 4 3 2 1
GIGABYTE GA-8IG1000MK Schematics Revision 1.01
SHEET TITLE SHEET TITLE
D D
01 COVER SHEET 23 AUDIO JACK, L_OUT, F_AUDIO
02 BOM & PCB MODIFY HISTORY 24 ITE 8712
03 BLOCK DIAGRAM 25 COM_LPT
04 P4_478A 26 IDE
05 P4_478B 27 FAN/HWMO
06 P4_478C 28 KB_PS2
C
07 SPRINGDALE HOST 29 FPANEL C
08 SPRINGDALE DDR 30 USB CONN
09 SPRINGDALE AGP, HUB, CSA, VGA 31 DDR POWER
www.kythuatvitinh.com
10 SPRINGDALE PWR 32 VCORE POWER
11 DDR1,2 CHANNEL A 33 ATX, OTHERS POWER
12 DDR3,4 CHANNEL B 34 KINNERETH-R LNA(CSA-1)
13 DDR TERMINATION 35 KINNERETH-R LNA(CSA-2)
14 AGP 8X 36 KINNERETH-R LNA(CSA-3)
B B
15 ICH5 PCI, USB, HUB, LAN 37
16 ICH5 IDE, GPIO, SATA, CTRL
17 ICH5 VCC, GND
18 FWH
19 CLOCK GEN
20 PCI1_2 Digitally signed by fdsf
DN: cn=fdsf, o=fsdfsd, COMPONENT SIDE
(1 oz. Copper)
21 PCI3 ou=ffsdf,
VCC SIDE
(1 oz. Copper)
GND SIDE
A A
email=fdfsd@fsdff,
(1 oz. Copper)
22 CODEC SOLDER SIDE
(1 oz. Copper)
c=US GIGABYTE CORP.
Date: 2009.12.15 Title
COVER SHEET
20:43:41 +07'00' Size
Custom
Document Number
GA-8IG1000MK
Rev
1.01
