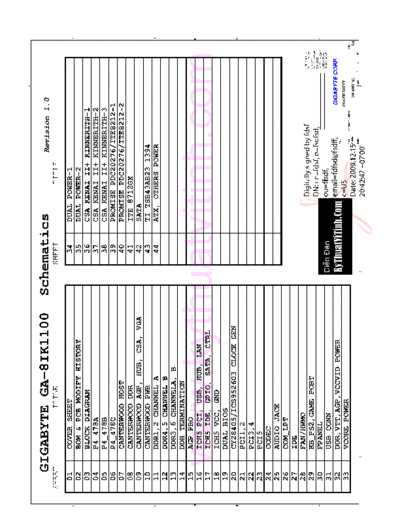

Image preview - the first page of the document
>> Download GIGABYTE GA-8IK1100 - REV 1.0 documenatation <<
Text preview - extract from the document
5 4 3 2 1
GIGABYTE GA-8IK1100 Schematics Revision 1.0
SHEET TITLE SHEET TITLE
D
01 COVER SHEET 34 DUAL POWER-1 D
02 BOM & PCB MODIFY HISTORY 35 DUAL POWER-2
03 BLOCK DIAGRAM 36 CSA KENAI II+ KINNERITH-1
04 P4_478A 37 CSA KENAI II+ KINNERITH-2
05 P4_478B 38 CSA KENAI II+ KINNERITH-3
06 P4_478C 39 PROMISE PDC20276/ITE8212-1
07 CANTERWOOD HOST 40 PROMISE PDC20276/ITE8212-2
08 CANTERWOOD DDR 41 ITE 8712GX
09 CANTERWOOD AGP, HUB, CSA, VGA 42 SATA
10 CANTERWOOD PWR 43 TI TSB43AB23 1394
C
11 DDR1,2 CHANNEL A 44 ATX, OTHERS POWER C
12 DDR4,5 CHANNEL B
13 DDR3,6 CHANNELA, B
www.kythuatvitinh.com
14 DDR TERMINATION
15 AGP PRO
16 ICH5 PCI, USB, HUB, LAN
17 ICH5 IDE, GPIO, SATA, CTRL
18 ICH5 VCC, GND
19 DUAL BIOS
B
20 CY28405/ICS952603 CLOCK GEN B
21 PCI1,2
22 PCI3,4
23 PCI5
24 CODEC
25 AUDIO JACK
26 COM_LPT
27 IDE
28 FAN/HWMO
Digitally signed by fdsf COMPONENT SIDE
(1 oz. Copper)
29 KB_PS2,GAME PORT VCC SIDE
A
30 FPANEL DN: cn=fdsf, o=fsdfsd, (1 oz. Copper)
GND SIDE
(1 oz. Copper) A
ou=ffsdf,
SOLDER SIDE
(1 oz. Copper)
31 USB CONN
32 DDR,VTT,AGP,VCCVID POWER email=fdfsd@fsdff, GIGABYTE CORP.
Title
33 VCORE POWER c=US Size Document Number
COVER SHEET
Rev
Date: 2009.12.15 Custom
Date:
GA-8IK1100
Sheet 1 of 44
1.0
5 4 3
20:42:47 +07'00'
2 1
5 4 3 2 1
Model Name: GA-8IK1100
Version : 1.0
Component history
D D
