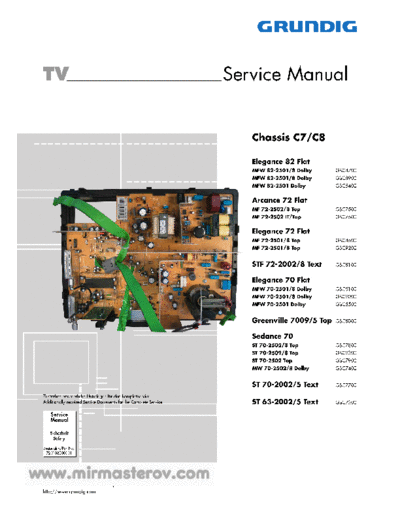

Image preview - the first page of the document
>> Download Chassis-C7 & C8 documenatation <<
Text preview - extract from the document
TV Service Manual
Chassis C7/C8
Elegance 82 Flat
MFW 82-2501/8 Dolby GBC4700
MFW 82-2501/8 Dolby GBC8900
MFW 82-2501 Dolby GBC5400
Arcance 72 Flat
MF 72-2502/8 Top GBC7500
MF 72-2502 IT/Top GBC7600
Elegance 72 Flat
MF 72-2501/8 Top GBC4600
MF 72-2501/8 Top GBC9200
STF 72-2002/8 Text GBC8100
Elegance 70 Flat
MFW 70-2501/8 Dolby GBC5100
MFW 70-2501/8 Dolby GBC9000
MFW 70-2501 Dolby GBC5500
Greenville 7009/5 Top GBC8000
Sedance 70
ST 70-2502/8 Top GBC7800
ST 70-2502/8 Top GBC9300
ST 70-2502 Top GBC7900
MW 70-2502/8 Dolby GBC7400
ST 70-2002/5 Text GBC7700
