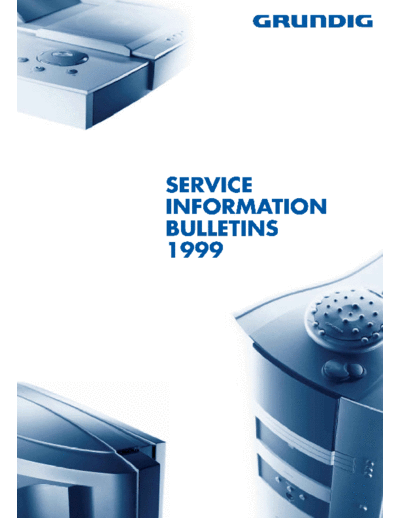

Image preview - the first page of the document
SI-1999GB


>> Download SI-1999GB documenatation <<

Text preview - extract from the document
                                                               Table of Contents
AUDIO
Serial no. 1/99 ...................................................................................................................................... 4
   RR 430 CD

Serial no. 2/99 ...................................................................................................................................... 6
   RR 630 CD, RR 660 CD, RR 720 CD, RR 760 CD


CAR AUDIO
Serial no. 1/99 ...................................................................................................................................... 7
   WKC 3300 RDS, WKC 3301 RDS, SCD 3390 RDS


DVD
Serial no. 1/99 ...................................................................................................................................... 8
   Changed version of DVD Player GDV 100 D


TV
Sorted by type of Chassis .................................................................................................................... 3

Serial no. 1/99 ...................................................................................................................................... 9
   New type of picture for 72 cm colour television receivers with chassis CUC 6365/6331

Serial no. 2/99 .................................................................................................................................... 10
   Colour television receivers with Digi Basic++ chassis - CUC 1806, 1828, 1830, 1836, 1929
   e.g. ST 70-869 IDTV/LOG, M 70-281 IDTV/LOG, M 63-281 IDTV/LOG, ST 70-270 IDTV/LOG

Serial no. 3/99 .................................................................................................................................... 11
   1. Colour television receivers ST 84-796/9 TOP/LOG, M 84-210/8 IDTV/LOG, M 84-210/8 A IDTV/LOG
   2. Satellite Retrofit Kit SER 150 ET for chassis CUC 1805, 1825 , 1826, 1827 (Digi Basic),
      1806, 1828, 1829, 1830, 1836 (Digi Basic++), 1929, 1952, 1983, 1984, 1894 und 1842 (Digi 6)

Serial no. 4/99 .................................................................................................................................... 12
   1. Colour television sets with chassis CUC 7303 and 45 cm Samsung or
      51 cm Samsung /Videocolor picture tubes - e.g. P 45-830 text, P 45-847 FR/text, T 51-720 text,
      T 51-731 text, T 51-071, T 51-732/4 text, T 51-732/5 text

     2. Colour television sets with chassis CUC 7303 - e.g. P 37-071, P 37-731 text, P 45-731 text,
        T 51-720 text, T 51-732/5 text

Serial no. 5/99 .................................................................................................................................... 13
   Colour television receivers with Digi Basic++ chassis, e.g. Sydney 100 SE 7020,
   Sydney 100 SE 7021, MW 82-50/8, M 70-290 IDTV Davio, M 84-211/8 IDTV


SAT
Serial no. 1/99 .................................................................................................................................... 14
   Satellite Receiver STR 622 Twin

Serial no. 2/99 .................................................................................................................................... 15
   1. Satellite Receiver STR 7100
   2. Correction of Service Information Sat 1/98

Serial no. 3/99 .................................................................................................................................... 16
   New Generation of Cassettes for the Head Stations STC 880/80, STC 1200 and STC 332
TV
Sorted by type of chassis

CUC 1805 (Digi Basic)                                                       CUC 1842 (Digi 6)
  Serial no. 3/99 .................................................... 11     Serial no. 3/99 .................................................... 11

CUC 1806 (Digi Basic++)                                                     CUC 1894 (Digi 6)
  Serial no. 2/99 .................................................... 10     Serial no. 3/99 .................................................... 11
  Serial no. 3/99 .................................................... 11
                                                                            CUC 1929 (Digi Basic++)
CUC 1825 (Digi Basic)                                                         Serial no. 2/99 .................................................... 10
  Serial no. 3/99 .................................................... 11     Serial no. 3/99 .................................................... 11
                                                                              Serial no. 5/99 .................................................... 13
CUC 1826 (Digi Basic+)
  Serial no. 3/99 .................................................... 11   CUC 1952 (Digi 6)
                                                                              Serial no. 3/99 .................................................... 11
CUC 1827 (Digi Basic+)
  Serial no. 3/99 .................................................... 11   CUC 1983 (Digi 6)
                                                                              Serial no. 3/99 .................................................... 11
CUC 1828 (Digi Basic++)
  Serial no. 2/99 .................................................... 10   CUC 1984 (Digi 6)
  Serial no. 3/99 .................................................... 11     Serial no. 3/99 .................................................... 11
  Serial no. 5/99 .................................................... 13
                                                                            CUC 6365
CUC 1829 (Digi Basic++)                                                       Serial no. 1/99 ...................................................... 9
  Serial no. 3/99 .................................................... 11
  Serial no. 5/99 .................................................... 13   CUC 6331
                                                                              Serial no. 1/99 ...................................................... 9
CUC 1830 (Digi Basic++)
  Serial no. 2/99 .................................................... 10   CUC 7303
  Serial no. 3/99 .................................................... 11     Serial no. 4/99 .................................................... 12
  Serial no. 5/99 .................................................... 13

CUC 1836 (Digi Basic++)
  Serial no. 2/99 .................................................... 10
  Serial no. 3/99 .................................................... 11
  Serial no. 5/99 .................................................... 13
          Service Information


Product   RR 430 CD




                                                                                                AUDIO / HIFI
          Possible complaint:
          The contacts (7-5) of switch SW 201B become charred so that they do no longer
          contact.

          Reason:
          The switching contact provides the voltage for both the CD servo system and the
          audio power amplifier.

          Cure:
          Connect the emitter of Q 201 directly to the voltage supply. The switch is only
          used for controlling the base current which is much lower than the emitter current.
          Fig. 1 (see page 2)

          Introduction at the factory:
          White version: from serial number        037000
          Green version: from serial number        026000
          Yellow Sina:     from serial number      000001
          Blue Kenta:      from serial number      000001

          Workshop:
          For repair: Fig. 2 (see page 2)
          a) Replace the slide switch.
          b) Disconnect the emitter of Q 201 from the circuit board using a wire cutter (or
             soldering iron).
          c) Solder a stranded wire (length=50 mm) to the emitter of Q 201 and insulate
             the solder joint with a piece of tube.
          d) Solder the other end to the jumper JP 208.
          e) Check the radio receiver and re-assemble it.

          Stores:
          SW 201, part no. 75955 010 0500
                                                                                                      Serial No. 1/99




                                                                             Central
          46469000 (8002/8012, 8005/8015)                                    After-Sales Service
                                                                             1/2
           -2/2-




Figure 1




Figure 2
          Service Information


Product   RR 630 CD, RR 660 CD, RR 720 CD, RR 760 CD




                                                                                               AUDIO / HIFI
          Possible complaint:
          Cassette compartment door jams or does not open.

          Reason:
          1. When applying too much pressure when closing the cassette compartment
             door, the door may get jammed at the lower edge of the cabinet front below the
             display window.
          2. Due to the tolerable differences in the length of the Play button lever it may
             happen that the lever slips out of its guide thus blocking the eject mechanism.
             All other functions work correctly.

          Cure:
          To 1: Modification of the cabinet front.
          To 2: Lengthened Play button lever by putting a metal clip on it.

          Introduction in the factory:
          1 and 2: at the end of August/99

          Workshop:
          To 1: Replace the cabinet front if necessary.
          To 2: 1. Open the cabinet on the back.
                2. Undo the screws of the tape deck.
                3. Take the tape deck out.
                4. Put the metal clip on the Play button lever.
                5. Re-assemble the receiver.

          Stores:
          Cabinet front parts:
          Strato silver,    part no. 75955 005 4400
          Green metallic, part no. 75955 007 5800
          Blue metallic,    part no. 75955 007 5100

          Metal clip,       part no. 75955 007 8800
                                                                                                     Serial No. 2/99




                                                                              Central
          46499000 (8002/8012, 8005/8015)                                     After-Sales Service
                                                                              1/1
           Service Information

Product:   WKC 3300 RDS, WKC 3301 RDS, SCD 3390 RDS




                                                                                                        CAR AUDIO
           Possible complaint:
           Occasionally no sound from the rear loudspeakers.

           Reason:
           The above mentioned types of car radios switch the output stages off automatically
           when reaching a certain temperature threshold to avoid thermal damage.
           The period of time after which the output stages are switched off depends mainly
           on the volume setting and the temperature within the car.
           As soon as the car radio has cooled down, e.g. by reducing the volume level, the
           rear channels are automatically switched on again.

           Cure:
           Since this behaviour of the radios is not a fault but a built-in safety function, we
           would ask you to inform your customers accordingly when complaints are received.

           Workshop:
           Please note when complaints are received.




                                                                                                            Serial No. 1/99




   44419000 (9033)
                                                                                                  1/1
                                                                                            1/1
Service Information


GDV 100 D




                                                                                              DVD
Changed version of DVD Player GDV 100 D

Both versions of the GDV 100 D Player are identifiable outside only by the label (on the
rear side).


                                      earlier version GDV 100 D
                                      new version GDV 100 D/002




Important:
The two versions of the GDV 100 D Player work internally with different operating voltages.
This is especially critical because the modules of both versions fit mechanically into each
other.
                                                                                               Serial No. 1/99

When replacing modules take care to use only the appropriate modules for the version.

Stores:
Service Manual GDV 100 D             part no. 72010 531 9500
Service Manual GDV 100 D/002         part no. 72010 531 9600




                                                                       Central
43189000 (8002/8012) (8005/8015)                                       After-Sales Service
                                                                       1/1         1/1
Service Information


New type of picture tube for 72cm colour television receivers with chassis




                                                                                      TV
CUC 6365 / 6331

The picture tubes A 68 ESF 002X11, A 68 ESF 002X011 (without coating) and A
68 ESF 202X11, A 68 ESF 202X011 (with coating) fitted into television receivers
with above mentioned chassis are no longer available. These picture tubes are
not fully compatible with the replacement tubes A 68 ESF 002X111 / A 68 ESF
202X111.

- changed yoke connections:
  The figure below shows the connections of the deflection unit for the new
  picture tubes A 68 ESF 002X111 and A 68 ESF 202X111.


                  L1    L2    L3    L4             F5 F6 F7




                   L1 - red yoke connecting lead (horizontal)
                   L2 - black yoke connecting lead (horizontal)
                   F5 - green yoke connecting lead (vertical)
                   F7 - white yoke connecting lead (vertical)


The different types of chassis require additionally the following changes:


 CRT fitted in the TV set          Changes when fitting the replacement tube
                                                                                           Serial No. 1/99
 A 68 ESF 002X11                   A 68 ESF 002X111
 A 68 ESF 202X11                   A 68 ESF 202X111
                                   An existing seagull correction board is to be
                                   removed. The yoke connecting leads are
                                   soldered directly to the deflection unit (see
                                   figure).

 A 68 ESF 002X011                  A 68 002X111
 A 68 ESF 202X011                  A 68 202X111
                                   No change. Connect the picture tube as
                                   shown in the figure.




                                                                          Central
5202900000, 8002/8012                                                     After-Sales Service
                                                                         1
Service Information


Colour television receivers with Digi Basic++ chassis - CUC 1806, 1828, 1830, 1836,




                                                                                      TV
1929
e.g. ST 70-869 IDTV/LOG, M 70-281 IDTV/LOG, M 63-281 IDTV/LOG, ST 70-270 IDTV



Possible complaint:
Pronounced rattling noise.

Reason:
1. Magnetic radiation from the deflection yoke to the AF branch circuit.
2. The line interference suppression chokes may be in contact with the
   metal screen causing vibrations.

Cure:
to point 1
Change the following resistors within the AF output stage:

Picture tube                 CR 40013 (0805)     CR 40023 (1206)      CR 40012/
                                                                      CR40022(0805)
55cm (21") PHI               to 150              to 180               to 2.2 k each
63cm (25") PHI               to 150              to 180               to 2.2 k each
70cm (28") PHI               to 150              to 180               to 2.2 k each
72cm (29") PHI               to 150              to 180               to 2.2 k each
82cm (33") PHI 16:9 PHI      to 150              to 180               to 2.2 k each

to point 2
Unsolder the metal screen and the line interference suppression choke and insert a
suppression choke with part no. 29500 834 9700. Since this choke is fitted with an
additional compensating coil, the metal screen is no longer necessary.

Stores:
Line interference suppression choke part no. 29500 834 9700
                                                                                        Serial No. 2/99




                                                                       Central
52079S0399, 8002/8012                                                  After-Sales Service
                                                                      1
Service Information


1. Colour television receivers ST 84-796/9 TOP/LOG, M 84-210/8 IDTV/LOG,




                                                                                                     TV
   M 84-210/8 A IDTV/LOG

The picture tubes A80 EFF 002X11 (ST 84-796/9 TOP/LOG) and A80 EFF 002X42
(M 84-210/8 IDTV/LOG, M 84-210/8 A IDTV/LOG) fitted to a.m. models are no longer
available. These tubes are mechanically not fully compatible with the replacement tubes
A80 EFF 272X11 / A80 EFF 272X43.
Due to the slightly larger overall dimension, the picture tube touches the fixing ribs within
the cabinet. Consequently, when changing the tube, these ribs must be cut by about 2mm
(see figure).




                                                         2 mm




Stores:
CRT A80 EFF 272X11        part no. 8300 0208 0500 (50Hz version)
CRT A80 EFF 272X43        part no. 8300 0208 0600 (100Hz version)


2. Satellite Retrofit Kit SER 150 ET for chassis CUC 1805, 1825, 1826, 1827 (Digi
   Basic), 1806, 1828, 1829, 1830, 1836 (Digi Basic++), 1929, 1952, 1983, 1984, 1894                  Serial No. 3/99
   and 1842 (Digi 6)

From now on, the SER 150 ET Retrofit Kit will be delivered without the EPROMs previously
enclosed with the delivery for TV sets with Digi 6 and Digi Basic TV chassis.
The TV sets have already been provided with a software covering all the functions of the
SER 150 ET since 4/97. As a result, the EPROM of the currently delivered TV sets needs
not to be exchanged. Should you receive a TV set manufactured before 1997 for
retrofitting, check the software version (call up the version pressing the buttons ,,i" -> ,,OK" -
> ,,AUX"). If the version for the chassis:
CUC 1805, 1825, 1826 and 1827 (Digi Basic) is lower than 19798-300.20, and for the
chassis Digi 6 CUC 1842, 1894, 1984, 1952 and 1983 is lower than 19798-311.20, the
EPROM needs to be replaced. The EPROM of TV sets with Digi Basic++ needs not to be
replaced.
The required IC is available from the Central After-Sales Service under part number 19798
300 2400 (Digi Basic) or 19798 311 4700 (Digi 6).

                                                                            Central
4121900000 (8002/8012) (8005/8015)                                          After-Sales Service
                                                                            1
Service Information


1.   Colour television sets with chassis CUC 7303 and 45 cm Samsung or




                                                                                                TV
     51 cm Samsung/Videocolor picture tubes - e.g. P 45-830 text, P 45-847
     FR/text, T 51-720 text, T 51-731 text, T 51-071, T 51-732/4 text, T 51-732/5
     text

Possible complaint:
No operation - failure of the switched mode power supply (transistor / drive-IC / other
components).

Cause:
Due to tolerances of the mains transformer 29201 513 9700 the collector current of
transistor T 665 (MJF 1800) may reach limit values and consequently cause the power
supply to fail.

Cure:
On replacement of the defective components change additionally the resistor R 666 from
0.82 Ohm to 0.91 Ohm. As a result limitation of the collector current is activated earlier so
that the limit values will not be exceeded.

Workshop:
Carry out this change when the power supply unit fails.

Stores:
Resistor 0.91 Ohm         part no. 8765 0980 0000


2.   Colour television sets with chassis 7303 - e.g. P 37-071, P 37-731 text,
     P 45-731 text, T 51-720 text, T 51-732/5 text

Possible complaint:
Failure of vertical output IC TDA 3653.

Reason:
Static discharges to the deflection windings.

Cure:
                                                                                                 Serial No. 4/99
1. For protecting the IC, change the capacitor C422 from 47nF to 0.1



◦ Jabse Service Manual Search 2024 ◦ Jabse PravopisonTap.bg ◦ Other service manual resources online : FixyaeServiceinfo
