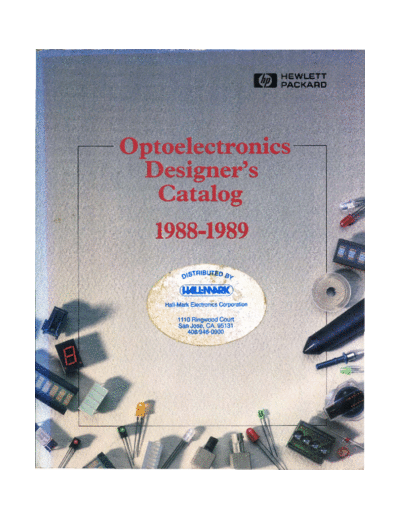

.-------.:.:- Optoelectronics
Designer's
Catalog
, ..

1988-1989
O,S1RIBUT 0 8y

(1M1ltfM()
Hall-Mark Electronics Corporation

1110 Ringwood
San Jose, CA. 95131
Co rt / .
:
408/946-0900
--..... . .........-
Optoelectronics
Designer's
Catalog
To help you choose and design with Hewlett- At the beginning of each of the nine product
Packard optoelectronic components, this catalog sections, there is a selection guide with basic
includes detailed specifications for HP component product specifications which allows you to quickly
products. The products are divided into nine select products most suitable for your application.
sections: Following the product sections is a complete
High Reliability listing of application bulletins and notes which are
Ink-Jet Components frequently useful as design aids. The final section
Bar Code Components is an appendix containing HP sales, service, and
Motion Sensing and Encoder Products authorized distributor locations.
LED Light Bars and Bar Graph Arrays How to Order
LED Lamps
LED Displays To order any component in this catalog or
Fiber Optics additional applications information, call the HP
Optocouplers office nearest you and ask for the Components
representative. A complete listing of the U. S. sales '
How to Find the Right Information offices is on pp. 11-13; offices located outside of
The Table of Contents (pp. iii) indicates each of the U.S. are listed on pp. 11-6.
the nine sections listed above by a thumb-tab. An A world-wide listing of HP authorized
alphanumeric index (pp. iv) follows the Table of distributors is on pp. 11-2. These distributors can
Contents, and it lists every component offer off-the-shelf delivery for most HP
represented in this catalog. components.

/l
JiP
"
. .

1 . /1
ji

;1
.. '
.
Hewlett-PackardCotnponents:
A Brief Sketch
History Quality and Reliability
In 1964, Hewlett-Packard established a new Quality and reliability are two very important
division having the charter of developing and concepts to Hewlett-Packard in maintaining the _
producing state-of-the-art electronic components commitment to product performance.
for internal use. By 1975, both microwave and At Hewlett-Packard, quality is integral to product
optoelectronic devices contributed to the growing development, manufacturing and final
business of Hewlett-Packard and the Components introduction. "Parts per million" (PPM) asa
Group was formed. Today there are three measure of quality is used in HP's definition of
divisions: the Optoelectronics division, Optical product assurance. And HP's commitment to
Communications division and Microwave quality means that there is a continuQus process of
Semiconductor division. In addition to these three improvement and tightening of quality standards.
divisions there is a specialiZed team of people to Manufacturing quality circles and quality testing
develop, manufacture and market bar code . programs are important ingredients in HP
components. products.
The products of the Components Group are Reliability testing is also required for the
vertically integrated, from the growing of LED introduction of new HP components. Lifespan
crystals to the development oCthe various on- calculations in "mean-time-between-failure"
board integrated circuits to package design. (MTBF) terms are published and available as .
Vertical integration insures that HP quality is reliability data sheets. HP's stringent reliability
maintained throughout product development and testing assures long compOnent lifetimes and'
manufacturing. consistent product performance.
Over 5000 employees-are dedicated to HP
Components, including manufacturing facilities in
Malaysia and Singapore, factory and marketing
support in San Jose, California and a world-wide
sales force. Marketing operations for Europe are
located in Boeblingen, Germany.
Each field sales office is staffed with engineers
trained to provide-technical assistance. An
extensive communications network links field
/
with factory-to assure that each customer can
quickly attain the information and help needed.

--~~~~~~~~- ~~~~- - ~---
Table of Contents
Alphanumeric Index ........... ~ ................ : ................. : ................... , iv.
High Reliability ......................................................................... 1-1
Visible Product Screening Programs ............................................... 1~3
Hermetic Lamps Selection Guide ................................................. 1-7
Hermetic Displays Selection Guide .......... ; .................................... 1-9
Hermetic Optocoupler Screening Programs ..................................... 1-13
Hermetic Optocoupler Selection Guide ......................................... 1-18
Ink-Jet Components ... ; ............................... ~ ; ......................... '. " 2-1
Ink-Jet Components Selection Guide ............................................. 2-3.
Bar Code Components ...... ~ . . . . . . . . . . . . . . . .. . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 3-1
Bar Code Components Selection Guide ..................... : ..................... 3-3
Motion Sensing and Control .... ; ................................................ :.. 4. :1
Motion Sensing and .Control Selection Guide ................................. '.. 4-4
Light Bars and Bar Graph Arrays ................................................. 5-1
. Light Bars and Bar Graph Arrays Selection Guide ............................ 5-3
Solid State Lanips : .............................. , ................................... :. 6-L
Solid State Lamps Selection Guide ............ ; ...................... ; .......... ; 6,;.3
Hermetic Lamps . .'.: ............................ .'................................. 6-145"
Solid State Displays : ..... ; ..... : ...................... :.............................. 7-1'
