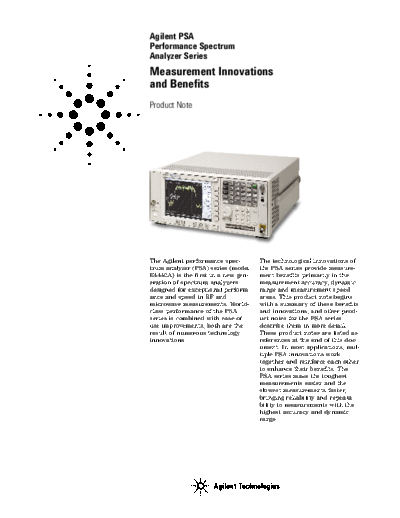

Image preview - the first page of the document



>> Download 5980-3082EN documenatation <<

Text preview - extract from the document

Agilent PSA
Performance Spectrum
Analyzer Series
Measurement Innovations
and Benefits
Product Note




The Agilent performance spec-        The technological innovations of
trum analyzer (PSA) series (model    the PSA series provide measure-
E4440A) is the first in a new gen-   ment benefits primarily in the
eration of spectrum analyzers        measurement accuracy, dynamic
designed for exceptional perform-    range and measurement speed
ance and speed in RF and             areas. This product note begins
microwave measurements. World-       with a summary of these benefits
class performance of the PSA         and innovations, and other prod-
series is combined with ease-of-     uct notes for the PSA series
use improvements, both are the       describe them in more detail.
result of numerous technology        These product notes are listed as
innovations.                         references at the end of this doc-
                                     ument. In most applications, mul-
                                     tiple PSA innovations work
                                     together and reinforce each other
                                     to enhance their benefits. The
                                     PSA series make the toughest
                                     measurements easier and the
                                     slowest measurements faster,
                                     bringing reliability and repeata-
                                     bility to measurements with the
                                     highest accuracy and dynamic
                                     range.
Measurement Benefits
of the PSA Series

Exceptional Amplitude                The accuracy and
                                     resolution of
Accuracy and Resolution              measurements with
                                     the PSA series can
Most amplitude accuracy              eliminate the need
specifications of the PSA series     for a separate
are approximately 10 times           power meter. In
tighter than preceding high-per-     this illustration,
formance spectrum analyzers,         a two-tone
                                     measurement is
such as the Agilent Technologies     made at 0.1 dB/div.
8563E. The accuracy improve-         with a reference
ments apply to continuous wave       level resolution
(CW) signals, signals with both      of 0.01 dB.
analog and digital modulation,
and noise or noise sidebands.
Using the Agilent PSA series can
eliminate the need for a separate
power meter and filters because
they combine the frequency selec-
tivity of a spectrum analyzer with
accuracy approaching that of a
power meter.                                                                error.
                                     Accurate amplitude measure-
