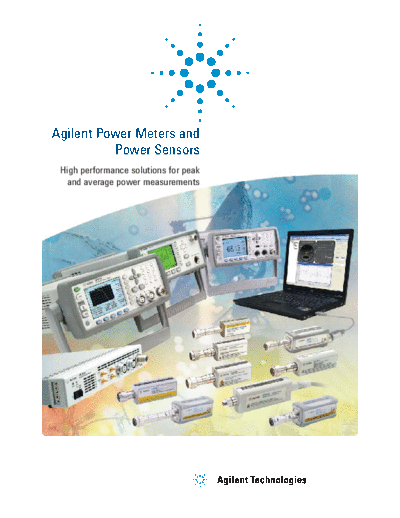

Agilent Power Meters and
          Power Sensors
 High performance solutions for peak
   and average power measurements
Introducing Agilent Power Meters and Sensors


                                                     Reliable, high-performing solutions
                                                     Every power meter and sensor from Agilent consistently delivers great results.


                                                     A sure investment for many years to come
                                                     Code-compatibility between power meters reduces the need for re-coding. Not
                                                     only that, all Agilent power meters are backward-compatible with most legacy
                                                     power sensors.

                                                     One specific application: One right solution
                                                     Agilent offers a wide selection of power meters and sensors for practically
                                                     all application needs--wireless communications, radar pulse measurements,
                                                     component test and more.


                                                     Global network support
                                                     No matter where you are, Agilent is committed to giving you the 24-hour
                                                     support you need regarding our products, applications or services.



 Explore Agilent Power Solutions Further
 Peak Power Measurements and Analysis
     For Faster Measurement Speed and Greater Measurement Accuracy ........................................... 3
 Peak and Average Power Measurements
     For Compact ATE Systems ....................................................................................................................... 6
     For Effective Capture of Wireless Signals ............................................................................................. 9
     For Testing of Complex Modulation Formats ..................................................................................... 13
 Average Power Measurements
     For Metrology and Calibration Laboratories ....................................................................................... 16
     For Flexible Testing: On the Rack and On the Go .............................................................................. 17
     For Mobile Testing that's Plug-and-Play Easy ................................................................................... 19
     For Portable RF Measurements ............................................................................................................. 21
 Power Measurement Software
     For Easy Monitoring and Troubleshooting ........................................................................................... 23
 Power Meters Selection Chart for Wireless Communication ................................................................ 25
 Power Sensors Selection Chart for Wireless Communication ............................................................... 26
 Power Meters and Sensors Compatibility Table ....................................................................................... 27
 Related Agilent Literature ............................................................................................................................. 29
 Warranty Information ..................................................................................................................... Back cover
 Contact Agilent ............................................................................................................................... Back cover

                                                                              2
Peak Power Measurements and Analysis
For Faster Measurement Speed and Greater Measurement Accuracy
Agilent 8990B peak power analyzer
The 8990B peak power analyzer
comes with two RF channels and two
video channels and, when used with
a compatible power sensor, measures
the dynamic time-dependent
aspects of RF and microwave power.
Combined with the N1923A/N1924A
wideband power sensors, the 8990B
achieves 5 nanoseconds RF pulse rise
time/fall time. The 8990B provides
internal and external trigger functions
and the peak power analyzer's video
input allows for the simultaneous
analysis of time-domain control
signals.

Designed with both ease of use and
high performance in mind, the 8990B
peak power analyzer does more than        Features
just measure and analyze
