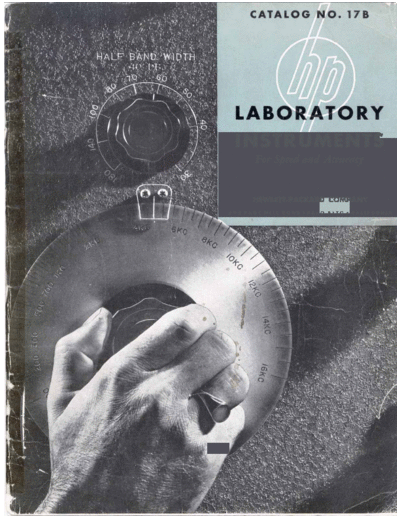

Image preview - the first page of the document



>> Download HP-Catalog-1944-17B documenatation <<

Text preview - extract from the document

    INSTRUMENTS
         For Speed and Acmracy


         HEWLETT-PACKARD COMPANY
a 9 5 C A G E MILL   R O A D . C A L O A L T O . CALIFORNIA




1
R    ESEARCH into the fields of electrical engineering, physics, chemistry and all
phases of science is greatly aided by the use of modern electronic measuring
devices. The accuracy with which measurements are made is the yardstick of
progress. Time is always an important element. Thus, electronic instruments
should combine speed of operation with accuracy. It was with this idea in mind
that -hp- instruments were developed. In all -hp- instruments the accem is on
speed combined with accuracy. Speed is obtained by simplicity of operation-
accuracy by advanced design and construction.
On the following pages is a comprehensive description of the -hp- instruments
which are now in use by leading organizations throughout the country. Continual
engineering and research in the -hp- laboratory is resulting in newer develop-
ments and additional instruments to answer the increasing number of problems
encountered in the field of electronic research and production.

                                                                              .      i

                   INDEX OF                      EQUIPMENT



               MODEL                DESCRIPTION                      PAGE
               200 Series  Resistance-Tuned Audio Oscillators    .   .   12
                 A, B, C and D
               205A
               205AGI
                      1     Audio Signal Generators. . .             .   14
               400A         Vacuum Tube Voltmeter .                  .   16
               300A         Harmonic Wave Analyzer . . .             .   1s
               320 Series   Distortion Analyzers . . . .             .   20
                 AandB
               500A         Electronic Frequency Meter .    .            !2
               325B         Noise and Distortion Analyzer   . . . .      24
               210A         Square Wave Generator . .       . . . .      26
               100 Series   Secondary Frequency Standards   . . . .      28
                 A and B
               350A         Attenuators and Voltage Dividers   . . .     30




                                                                                     1
