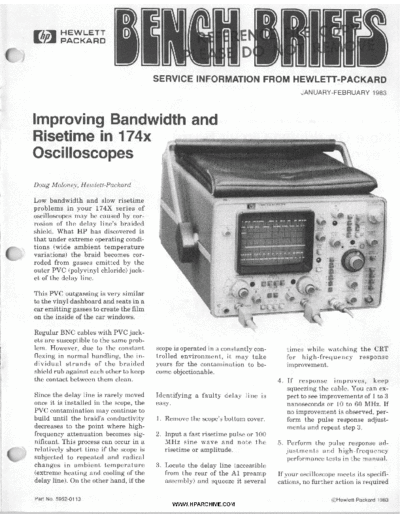

HP-Bench-Briefs-1983-01-02


>> Download HP-Bench-Briefs-1983-01-02 documenatation <<

Text preview - extract from the document
                                                     SERVICE INFORMATION FROM HEWLETT-PACKARD
                                                                                                      JANUARY-FEBRUARY 1983



            Improving Bandwidth and
            Risetime in 174x
            Oscilloscopes
            Doug Moloney, Hewlett-Packard

            Low bandwidth and slow risetime
            problems i n your 174X series of
            oscilloscopes may be caused by cor-
            rosion of the delay line's braided
            shield. What HP has discovered is
            that under extreme operating condi-

    r   '
            tions (wide ambient temperature
            variations) the braid becomes cor-
            roded from gasses emitted by the
            outer PVC (polyvinyl chloride) jack-
            et of the delay line.

            This PVC outgassing is very similar
            to the vinyl dashboard and seats in a
            car emitting gasses to create the film
            on the inside of the car windows.
                                                                                   (   I   .




            Regular BNC cables with PVC jack-
            ets are susceptible to the same prob-
I           lem. However, due to the constant        scope is operated in a constantly con-      times while watching the CRT
I
I           flexing in normal handling, the in-      trolled environment, it may take            for high-frequency response
I           dividual strands of the braided          years for the contamination to be-          improvement.
            shield rub against each other to keep    come objectionable.
            the contact between them clean.                                                    4. If response     improves, keep
                                                                                                  squeezing the cable. You can ex-
            Since the delay line is rarely moved     Identifying a faulty delay line is           pect to see improvements of 1 to 3
            once it is installed in the scope, the   easy.                                        nanoseconds or 10 to 60 MHz. If
            PVC contamination may continue to                                                     no improvement is observed, per-
            build until the braid's conductivity     1. Remove the scope's bottom cover.          form the pulse response adjust-
            decreases to the point where high-                                                    ments and repeat step 3.
            frequency attenuation becomes sig-       2. Input a fast risetime pulse or 100
            nificant. This process can occur in a       MHz sine wave and note t h e           5 . Perform the pulse response ad-
            relatively short time if the scope is       risetime or amplitude.                     justments and high-frequency
    f       subjected to repeated and radical                                                      performance tests in the manual.
            changes i n ambient temperature          3. Locate the delay line (accessible
            (extreme heating and cooling of the         from the rear of the A1 preamp         If your oscilloscope meets its specifi-
            delay line). On the other hand, if the      assembly) and squeeze it several       cations, no further action is required

            Part No. 5952-0113                                                                                   QHewlett-Packard 1983
                                                          WWW.HPARCHIVE.COM
and the delay line reliability will be   Or, if desired, a new delay line can     service notes from the address on the
as good as a new one. However, if        be installed that is no longer suscep-   service note order form. The service
your oscilloscope does not meet its      tible to the PVC contaminants. The       notes are:
specifications, additional trou-         new delay line part numbers are:                                                    p7
                                                                                    1740A-20A
bleshooting should be performed to
verify the true problem before re-           01740-61633 (for all 174X except       1741A-13A
                                             1743)                                  1742A-5A
placing the delay line.
                                             01743-61613 (1743 only)                1743A-6A
                                                                                    1744A-7A
                                         For more information on individual         1745~-1
                                         oscilloscopes, order the following         1746~-1


                                                                                  The previous issue of Bench Briefs
More On Printed Circuit Board                                                     showed a picture of a dendrite
                                                                                  formed between two circuit traces
 ework, Repair, and Cleaning                                                      and indicated that the cause was ex-
                                                                                  cessive use of circuit cooler. It's true
Dendrite                                                                          that using the circuit cooler helped
                                                                                  cause t h e dendrite, but it was
A dendrite, as shown in the photo, is a resistive short between these two         mainly the moisture condensed out
solder nodes.                                                                     of the atmosphere t h a t gave t h e
                                                                                  dendrite its start. The water causes
                                                                                  a bridge across the circuit traces,
                                                                                  and the difference in voltage poten-
                                                                                  tial forms a n electrolyte corrosion
                                                                                  cell. Since corrosion is electroplating
                                                                                  in reverse and gold is a noble metal,
                                                                                  it becomes a cathode and the copper
                                                                                  trace under the gold becomes the           3
                                                                                  anode. The copper anode is depleted
                                                                                  and the metal follows the water path
                                                                                  to the gold.
                                                                                  You can create your own dendrite
                                                                                  phenomena by placing DI water be-
                                                                                  tween two traces on a n old circuit
                                                                                  board and applying a voltage poten-
                                                                                  tial of 30 volts. Watch the dendrite
                                                                                  grow under a microscope. In some
                                                                                  tests here at HP it grew across the
                                                                                  gap in less than 60 seconds.


Videotapes on P C Board                  Printed Circuit Board Contact            Ordering:
                                         Reliability-25 min.                      Contact your nearest HP sales or
Reliability                              HP part 90661R*                          service office and specify the tapes
The last issue of Bench Briefs dis-
                                         Analysis of Multilayer Ceramic           you want, or contact Hewlett-
cussed three new videotapes avail-
                                         Capacitors-27 min.                       Packard Video Products directly at:
able from Hewlett-Packard concern-
                                         HP part 90662R*                          Hewlett-Packard
ing printed circuit board reliability.
Unfortunately, the ordering infor-       *   =   Tape Formats:                    Video Products
mation was incomplete.                                                            1819 Page Mill Road
                                         A   = VHS-SP
                                                                                  Palo Alto, California 94304
The complete tape part numbers are:      B   = Beta 1
                                                                                  (415) 857-2381
                                         D   = %" Umatic
                                                                                  For more information on many other         -\
                                         Example:                                 HP videotapes and videotape prod-
Printed Circuit Board Reliability-
36 min.                                  90660RB orders the 36-minute tape        ucts, ask for the videotape catalog
HP part 90660R*                          in Beta 1 format.                        HP part number 5952-0157.

2   BENCH BRIEFS JANUARY-FEBRUARY 1983
                                                       WWW.HPARCHIVE.COM
     ;onformal                                  Prevent contamination of the
                                                dielectric surface by field soil (oil
                                                                                        coatings and the methoc
                                                                                        moval. The above IPC refer      ___-I




    Coatings                                    vapor or fingerprints), which can
                                                cause electrical leakage in humid
                                                                                        a good job of describing all the vari-
                                                                                        ous coatings, and reference I
                                                environments.                           700B does an equally good job
                                                Inhibit t h e growth of fungus,         scribing how to remove them.
                                                thereby improving the electrical
                                                characteristics. Even nonnutrient       I can, however, describe the 1 e c U l 1 1 -
    What They Are
                                                surfaces (the fiberglass board) can     mended handling procedure for some
    A conformal coating can be a thick                                                  of Hewlett-Packard's PPC (Protec-
                                                support fungus growth when con-
    or thin layer of protective material                                                tive Polymer Coating) coated boards
                                                taminated with field soils such as
    that is applied to one or both sides of                                             used in several of our DVM products
    a n assembly. The thin coating              oil vapor.
                                                                                        (e.g., 3468A/3478A DMMs). The
    closely follows the contours of the         Suppress electrical flashover be-
                                                tween conductors a t high               PPC provides a high-impedance bar-
    board and components; it "conforms"                                                 rier to leakage between nodes and
    to the shape of the assembly, and           altitudes.
                                                                                        circuit traces. The PPC is applied be-
    ideally produces a film of consistent                                               fore t h e board is loaded and
    thickness over the entire surface. It     A secondary function of the confor-
                                              mal coating is to help support the        wavesoldered and all solder points
    can be so thin as to be unnoticed, or                                               are left open. The PPC is the solder
    so thick that you can't even see the      components so that the entire mass
                                              of the component is not carried by        mask.
    unit (i.e., a "potted" assembly).
                                              the solder joints.
                                                                                        If you are confronted with another
    Assemblies are frequently given a                                                   manufacturer's board where the en-
    conformal coating to assist them in       A lot more information on conformal
                                                                                        tire solder-side is covered by a thin
    functioning under harsh environ-          coatings is contained in the follow-
                                              ing publication:                          conformal coating, the repair proce-
    mental conditions. When correctly                                                   dure would be similar.
    chosen and carefully applied, con-
    formal coatings will help to protect      IPC-CM-770B
                                              Guidelines for Printed Board              1. Remove the PPC film by scraping
    a n assembly from the following                                                        with an x-acto knife. Be careful to
    hazards:                                  Component Mounting
                                                                                           remove only the film.




                                              -
    0   Humidity                                       -obtained from-
                                                                                        2. Make the repair or alteration fol-
    0   Dust and dirt                                                                      lowing the accepted procedures at
                                              The Institute for Interconnecting
    0   Airborne contaminants-e.g.,           and Packaging Electronic Circuits            your company. The volume 22,
        smoke, chemical vapors                                                             number 4 issue of Bench Briefs
        Conducting particles-e.g., metal                                                   contained some information on
        chips, filings                                                                     this subject.
        Accidental short circuit by
        dropped tools, fasteners, etc.
    0   Abrasion damage                       Removing the Conformal                    Cleaning the Repaired Area
    0   Vibration and shock (to a certain     Coating                                   Clean the repaired area according to
        extent)                               Occasionally, you are going to be         the following steps. The flux
    0   Tampering or modification             faced with repairing a board that         removers we use contain bipolar sol-
                                              has a conformal coating. You may          vents. That means they contain two
    Generally speaking, the primary           have to either replace a component        kinds of solvent, one to dissolve the
    function of the conformal coating on      or actually modify or repair part of      rosin and one t o dissolve the ac-
    printed circuit boards is to protect      the circuit board. To do this means       tivators in the rosin. Once you dis-
    the electrical characteristics of the     you are going to have to determine        solve the rosin and activators and
    board. And high-impedance boards          which removal method (there are           spread them all over the board, you
    are the ones most susceptible to          several) should be used for a specific    then have to remove the rosin, the
    leakage in almost any environment.        coating.                                  activators, and the flux remover.
    Therefore, conformal coatings on                                                    The key to proper flux removal is to
'   printed circuit boards are used espe-
    cially to:
                                              It is beyond the scope of this article
                                              to try to describe all the different
                                                                                        use large quantities of solvent for
                                                                                        thorough cleaning and rinsing.




                                                                                    JANUARY-FEBRUARY 1983       BENCH BRIEFS 3
                                                   WWW.HPARCHIVE.COM
1. When applying the flux remover,      fingers-they    leave oily finger-                       board to remove all traces of mois-
   hold the board with the edge con-    prints, which cause corrosion. We do                     ture. Allow one hour at 7VC (158
