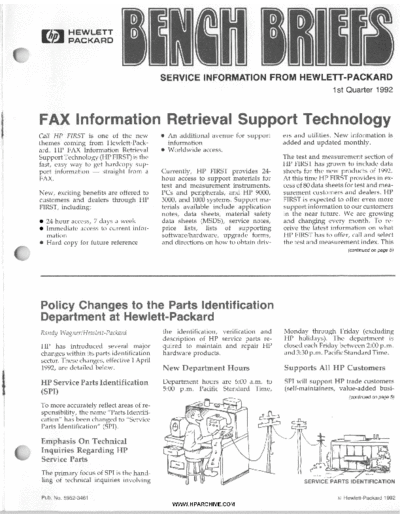

Image preview - the first page of the document
>> Download HP-Bench-Briefs-1992-01-03 documenatation <<
Text preview - extract from the document
SERVICE INFORMATION FROM HEWLETT-PACKARD
1st Quarter 1992
FAX Information Retrieval Support Technology
Call H P FIRST is one of the new 0 An additional avenue for support ers and utilities. New information is
themes coming from Hewlett-Pack- information added and updated monthly.
ard. HP FAX Information Retrieval 0 Worldwide access.
Support Technology (HI' FIRST) is the The test and measurement section of
fast, easy way to get hardcopy sup- HP FIRST has grown to include data
port information - straight from a Currently, HP FIRST provides 24- sheets for the new products of 1992.
FAX. hour access to support materials for At this time HP FIRST provides in ex-
test and measurement instruments, cess of 80 data sheets for test and mea-
New, exciting benefits are offered to PCs and peripherals, and HI' 9000, surement customers and dealers. HI'
customers and dealers through HP 3000, and 1000 systems. Support ma- FIRST is expected to offer even more
FIRST, including: terials available include application support information to our customers
notes, data sheets, material safety in the near future. We are growing
24-hour access, 7 days a week data sheets (MSDS), service notes, and changing every month. To re-
Immediate access to current infor- price lists, lists of supporting ceive the latest information on what
mation software/hardware, upgrade forms, HP FIRST has to offer, call and select
0 Hard copy for future reference and directions on how to obtain driv- the test and measurement index. This
[continued on page 5)
Policy Changes to the Parts Identification
Department at Hewlett-Packard
Randy WagnerlHewlett-Packard the identification, verification and Monday through Friday (excluding
description of HP service parts re- HI' holidays). The department is
HP has introduced several major quired to maintain and repair HP closed each Friday between 2O p.m.
:O
changes within its parts identification hardware products. and 3:30 p.m. Pacific Standard Time.
sector. These changes, effective 1April
1992, are detailed below. New Department Hours Supports All HP Customers
HP Service Parts Identification Department hours are 6:OO a.m. to SPI will support HI' trade customers
5:OO p.m. Pacific Standard Time, (self-maintainers, value-added busi-
(SPI) (continued on page 5)
To more accurately reflect areas of re-
sponsibility, the name "Parts Identifi-
cation" has been changed to "Service
Parts Identification" (SPI).
Emphasis On Technical
I
Inquiries Regarding HP
Service Parts
The primary focus of SPI is the hand-
ling of technical inquiries involving SERVICE PARTS IDENTIFICATION
Pub. NO.5952-3461 0 Hewlett-Packard 1992
WWW.HPARCHIVE.COM
Logistics Data Book - 1992
Iohn CloutierIHewlett-Packard
Need access to National Stock Num- with postage-paid cards included in
the Logistics Data Book.
.-
bers (NSNs) for HP products and
parts for HP products? NSNs for HP
products are listed in HP's annual To obtain a free copy of the 1992Logis-
Logistics Data Book, which also cross tics Data Book, contact your nearest HP
references HP product numbers to office, or:
Joint Electronic Type Designators
(JETDs) and to provisioning contract John Cloutier
numbers. In addition, the book Hewlett-Packard Co.
recommends replacements for dis- N. American Field Operations
continued products. Federal Support Services
19320 Pruneridge Ave., MS 49BR
NSNs for product parts are available Cupertino, CA 95014
on microfiche that can be requested (408) 865-6815 0
Test and Verification Programs, Maintenance
Kits, and Firmware Upgrades
used for troubleshooting the instru- a Group 3 touch tone FAX
ment and programs that are almost machine.
complete application tools. Some
programs are not stored on a disk or 2. When HP FIRST prompts you,
tape but are stored in the instrument's select section 4 for test and mea-
internal firmware. These programs surement products.
are usually activated by following in-
structions in the service manual.
Other programs may be printed in the 3. Once you have entered the test
operating and service manual and and measurement section, press 3
need to be manually entered into the for password customers.
controller line-by-line. In some in-
.. CONDITIONI .
RS
..T ......
......
10 UII WW-PAES
*mmm ............ U
....
.... ............
-ME0
29*50 "Z
X l M
31000
stances, the software is part of a 4. HP FIRST will then prompt you to
lllOD0
,6000
80 wz WY-PISS 80600 H I llD00
maintenance kit and cannot be pur- enter the password. Enter 76683.
0VTm I*PEDUCB PISBED chased separately.
TEST rnNDITlOHS
........
........ ............D .... l M
........B w... ...W
. ML .
"lNIM l
5. HP FIRST will then prompt you to
600 O
h. OvtPYt 49.90 50.19 * 50.40
You can obtain a copy of this list of enter the four-digit ID number of
programs (10 pages) through Hew- the document you want to receive.
lett-Packard's new HP FIRST system Enter 5178.
(HP FAX Information Retrieval Sup-
Many Hewlett-Packard instruments port Technology). This system pro- 6. When HP FIRST prompts you,
and instrument-based systems use vides 24-hour access to support ma- press the [START/COPY]or [RE-
ready-made programs that will test, terials for test and measurement in- CEIVE] button on your FAX
verify and exercise the instrument or struments, PCs and peripherals, and machine, and if appropriate, hang
system in a variety of ways, all of HP 9000, 3000, and 1000 systems. up the handset.
which are designed to provide the
user with a high confidence level that 7. You will then receive the complete
the instrument/system is performing test and verification program- list
the way it should. How To Order the Test and of 10 pages.
Verification List
Some of the programs are HP-IB If you do not have a Group 3 FAX
based and test the interface capability machine, you can write the editor at
of the instrument through a particular 1. Dial (208) 344-4809 from your FAX the address on the back page of this
controller. There are also programs machine keypad. You must have issue. 0
2 BENCH BRIEFS 1ST QUARTER 1992
WWW.HPARCHIVE.COM
Safety-Related
Service Notes
Service notes from Hewlett-Packard Serial Numbers Affected HI' is providing a new support strut,
relating to personal safety and pos- top cover, and metric screws to fix the
sible equipment damage are of vital O O A O O I 3121A00223
OOOOO problem. For more information order
importance to our customers. To Safety Service Notes 5342A-58A-S
make you more aware of these impor- Some instruments in the above serial and 5343A-31A-S.
tant notes, they are printed on paper number range have inadequate
with a red border, and the service grounding of the rear panel to the
note number has an "-S" suffix. In mainframe chassis. This problem is
order to make you immediately aware resolved by adding grounding wire
of any potential safety problems, we harness, HP PIN J2176-61602. Order
are highlighting safety-related service Safety Service Notes 4980A-02-S,
notes here with a brief description of 4981A-02-S and 4982A-02-A for more 8971B Noise Figure Test Set
each problem. Also, in order to draw information.
your attention to safety-related ser- Serial Numbers Affected
vice notes in the service note index,
each safety-related service note is O O A O O I 2716A00630
OOOOO
highlighted with a contrasting color.
HP 5342N43A Microwave The 1.25A fuse does not blow when
HP 3456A Digital Voltmeter the transformer secondary is shorted
Frequency Counters in the 220124OV operation mode. The
2.OA fuse used in the 100/120V oper-
ation mode operates properly.
Replace the 1.25A fuse with a LOA
fuse (HP PlN2110-0001) and attach
Serial Numbers Affected new fuse label (HP PIN 08971-80013)
over the present fuse label on the rear
2943A21800 I 2943A22118 panel.
These voltmeters have an ac power
switch inside the unit that does not For more information order Safety
have adequate protection over the Service Note 8971B-01A-S.
solder-eye terminals. The modifica-
tion consists of placing heat-shrink
tubing over the exposed terminals to
protect service personnel from ex-
posed high voltage potentials when HP 87421A Microwave System
servicing the voltmeter. Amplifier
Order Safety Service Note 3456A- Serial Numbers Affected
24A-S for more information.
3116A00101 I 3116A00150
HP 4980A/81A/82A
Network Advisors The power supply module is secured
Serial Numbers Affected to the plastic case of the power supply
by metal rivets. In some cases these
5342A OOOOAOOOOO I 2636A10914 rivets may fracture the plastic housing
5343A OOOOAOOOOO I 2636A02416 causing the power supply to come
loose. This may expose a potential
shock hazard.
The framework of the counters within
the serial number ranges above does
not ensure that the front and rear cast- Return your amplifier to the nearest
ings will remain in parallelism. If this HP Customer Service Center and a
condition exists, lifting the counter new power supply will be installed
with the top handle could pull the top free of charge. For more information
panel off the instrument allowing it order Safety Service Note 87421A-01-S.
to fall. 0
1ST QUARTER 1992 BENCH BRIEFS 3
WWW.HPARCHIVE.COM
Principles The suggestions in Application Note
326 will help you get the best perfor-
of Microwave mance from all coaxial microwave
connectors: to know what to look for /7
Connector Care when cleaning and inspecting them
in order to preserve their precision
and extend their life; and to make the
Recent advances in measurement best possible microwave connections,
capabilities have made connectors improving the accuracy and repeata-
and connection techniques more im- bility of all your measurements, sav-
portant than ever. Damage to the con- ing both time and money.
nectors on calibration and verification
devices, test ports, cables, and other Application Note 326 is available free
devices represents an increasing bur- of charge through your nearest Hew-
den in downtime and expense. lett-Packard Sales/Service office.
Important Notice about Service Notes
Service notes contain product-specific
service information for Hewlett-Pack-
a r d s electronic products. Subjects in-
clude product improvements, modifi-
cations, and procedures for troub-
leshooting, maintenance, and repair.
Service notes are published as ap-
propriate throughout the life of a
product. All new notes are an-
MAIN PROLOGUE
I-PCs K PERIPHERALS
2-SERVICE PARTS
1-SEND
2-10 ENTER
I 1
nounced in Bench Briefs. 3-COMPUTER SYSTEMS ANOTHER
4-TEST 6 MERSUREMNT DOC I D NO.
Note that Hewlett-Packard has re-
structured the procedure for handling
and distributing instrument-related
t
2
service notes.
FAX Retrieval
T K M PROLOGUE
1-OOCUMENT I O NO.
2-INDEX
3-PASSWORD CUSTOMER
-
3
SERVICE NOTE
PROLOGUE
I-OOC I D NO.
2-INDEX
HI' FIRST (FAX Information Retrieval 1
Support Technology)is a new and ex-
citing way to order service notes from
Hewlett-Packard. It is fast and effi-
cient. You immediately receive only
the notes you want and do not have
to wait several weeks on the mail.
And we are expanding the database
of service notes in two directions; all
new service notes are placed in the
system the first of each month, and
we are going back in history to include
older service notes. In the future you
will have access to a library of instru-
ment-related service notes going back
through 1989.
If you want to order a service note,
refer to the list of notes in the index,
11
find the service note number belong-
ing to the product you are interested
in and note the package number.
Look for an asterisk (*) next to the
package number. This means that the
4 BENCH BRIEFS 1ST QUARTER 1992
WWW.HPARCHIVE.COM
service note is located on the HP 3. Go through the list and write down column. You will receive a package
FIRST system. If there is no asterisk, the ID numbers of all the notes you of service notes that includes the one
you can still order the service notes want. you ordered.
through Bench Briefs.
4. Call HP FIRST back and follow the
1. Use the accompanying flowchart flowchart procedure to order mul- Microfiche
to access HP FIRST and get into tiple service notes.
the service note section. Service notes are still available on
Bench Briefs microfiche. The part numbers are:
2. Request the index of service notes,
which will provide the service note If you do not have a Group 3 FAX Library 5951-6511
ID numbers. This index will be ac- machine, you can still order service Update Service 5951-6517
curate for the month in which you notes through Bench Briefs. Refer to
request it. In other words, infor- the list of service notes in the index, Contact your local HP saledservice of-
mation is loaded on the system the find the service note number belong- fice to order these microfiche numbers.
evening of the last day of each ing to the product you are interested
month and the index is updated. in, and note the package number. Use Please note that the procedure for or-
Therefore, the index will be cur- the form on the last page of Bench dering microfiche service notes is
rent from the first of the month to Briefs to order the number that ap- changing. Look for more information
the last of the month. pears in the "service note package" in future issues of Bench Briefs. 0
(FAX Information, continued from page 1 )
index also gives you additional infor- press the [START/COPY] or [RE- You can also request parts price lists
mation about HP FIRST and how to CEIVE] button (usually green) on for specific product families and
use it. your FAX machine, and if appro- recommended parts stocking lists
priate, hang up the handset. 0 from HI' FIRST to assist you in your
How does it work? Follow the accom- buying decisions.
panying directions and HP FIRST will
produce crisp text and graphics from You may obtain these documents for
its computer storage to send to your the cost of the telephone call by dial-
(Parts Identification,continued from page 1 ) ing HP FIRST at (208) 344-4809 from
Group 3 FAX machine.
ness partners, third-party support a Group 3 facsimile machine. (A
Note: A Group 3 FAX machine has providers, and government prime Group 3 facsimile machine has hand
both a hand receiver and touch-tone contractors), as well as HI' personnel. receiver as well as touch-tone capabil-
capability. ity.) On-line instructions guide you
through the process.
1. Lift your hand receiver and dial Two Facsimile (FAX) Services
(208) 344-4809 from the FAX Available SPIFAX
keypad.
SPI now provides service parts infor- SPIFAX is a direct FAX line into the
2. Select the test and measurement mation via two facsimile services: HP service parts identification depart-
section by pressing 4, or select the FIRST (FAX Information Retrieval ment on-line support center. This ser-
section for which you would like Support Technology) and SPIFAX vice may be faster than a phone call.
to receive support. (Service Parts Identification FAX). For example, you may have several
inquiries about parts for different
3. If you pressed 4 you will now hear HP FIRST products or inquiries about recom-
the test and measurement pro- mended support kits. These calls usu-
logue. After the prologue you can HP FIRST is a FAX-on-demand ser- ally require a lot of time on the initial
key in the identification number of vice, using computer-prompted re- phone call, then a return call back to
the document (assuming you al- sponse technology and a separate you with the answers to your ques-
ready have the index), or press 2 telephone number available 24 hours tions. With SPIFAX you can combine
to obtain an index of the available a day, 7 days a week. A variety of all your inquiries ot
n
c
-
documents, their ID numbers, and documents including data sheets, ap- send the paper t@T6) 785-7157, 24
the number of pages of each docu- plication notes, service notes, price hours a day, 7 days a week. The
ment. This index will be accurate lists, and driver information are read- majority of FAX inquiries will be
for the month in which you request ily available. answered in less than two working
it. In other words, information is days. Note that to ensure a timely re-
loaded on the system the evening A current, comprehensive listing of sponse, customers should use the
of the last day of each month and all available service parts for specific SPIFAX form (document ID 1000) av-
the index is updated. Therefore, HI' products is also available on HP ailable from HP FIRST.
the index will be current from the FIRST. Each list provides a break-
first of the month to the last of the down by part type category, ex- For more information about SPI and
month. panded descriptions to help identify its parts identification services, please
the part(s) quickly and easily, and cur- send us a FAX as described above, or
4. When HP FIRST prompts you, rent full list prices. give us a call at (916) 783-0804. 0
1ST QUARTER 1992 BENCH BRIEFS 5
WWW.HPARCHIVE.COM
1991/92 Bench Briefs' Instrument
Service Note Index
SN SN Abstract Service Note
Type No. Package
MA 437B-07 Preferred replacement for battery holders A3MP12/A3BT1 *040
IO 3235A-14 Instructions on correctly labeling line voltage switches *040
IO 3235AIE-11 Change in the harmonic & spurs test specifications 038
IO 3235A/E-12 New SMB connectors to improve VSWR performance *041
*041
t
IO 3235AIE-13 New SMB connectors to improve VSWR performance
MR 3235A/E-15 Procedure replaces weak links on mass quick interconnect mechanism *044
IO 3245A-02 Change in the harmonic & spurs test specifications 038
IO 3245A-02 Instructions on correctly labeling line voltage switches *040
IO 3245A-03 Instructions on correctly labeling line voltage switches *042
MR 3325B-01 Modification to replace high and low line fuses *048
MR 3326A-06 Required fuse change for 220/240 Volt operation *041
IO 342lA-16 Information corrects service manual error 038
IO 3455A-28 Recommended part for capacitor HP P/N 0160-3945 *042
SA 3456A-24-S Modification covers exposed high voltage on power switch 038
SA 3456A-24A-S Modification eliminates exposed high voltage points *042
MR 3457A-12A Modification to fuc hardware error "Error 512" 036
MR 3457A-13 Modification prevents hardware error "512" 038
IO 3457A-14 Instructions on correctly labeling line voltage switches *040
MR 3458A-07 Mod. eliminates errors "MultislopeRundown Conversion"& failed "NMR 1Test" 038
IO 3458A-08 Instructions on correctly labeling line voltage switches *040
MA 3458A-09 Fixes, changes, & enhancements to outguard fumware (Rev. 7) *047
MA 3458A-11 Rec performance enhancement eliminates ac noise on twisted shielded pair cables *048
*040
IO
IO
3497A-32
3577A-04B
Instructions on correctly labeling line voltage switches
Recommended replacement EPROMs for old style masked ROMs *044 '7
MA 3582A-16 Modification to A13 Rev. D board for use in older 3582As *044
MA 3588A-03A Firmware upgrade kit improves performance *046
MR 3588A-04A Modification improves relay reliability *040
MR 3588A-05A Recommended modifications improve disk drive/front panel alignment *040
MR 3588A-05 Recommended modifications improve disk drivdfront panel alignment 038
IO 3764A-26 Wrongly marked connectors may cause signals to be crossed 036
MR 3764A-27 Modification corrects firmware defect on Options 006 & 007 *040
MR 3784A-0lA Modification eliminates spurious errors at high clock frequencies (50 MHz *040
IO 3784A-02 Notification of which power supply assembly works with which option instrument 036
MA 3787B-12 Instructions on retrofitting Opt 003 (voice channel output) *048
MA 3789B-02A Retrofitting Options 002 (2nd measu) and 003 (2nd measu & DS3 jitter meas) *048
IO 3789B-09A How to retrofit Option 200 (BNC connectors) *048
IO 3789B-15 Fitting a replacement processor board in units before serial prefvt 2937U 037
IO 3852A-05 Instructions on correctly labeling line voltage switches *040
MA 3852A-08 Firmware enhancement 4.21 *042
MA 3852X-08A 3852 firmware enhancement 4.21 *045
MR 4062C-05 Recommended replacement of incorrect AC line breaker *ON
MR 4062UX-05 Recommended replacement of incorrect AC line breaker *040
IO 4084AIB-01 Preferred replacement for the cooling fan assembly *040
IO 4086A-01 Preferred replacement for the cooling fan assembly *040
IO 4140B-16 Preferred replacement for the cooling fan assembly *040
MR 4142B-10 Recommended replacement of F5 & F6 fuses on the A1 power supply *040
IO 4145A-14 Instructions on repairing flexible disk drive *043
MR 4145B-06 New fan eliminates excess noise *040
IO 4145B-07 Preferred replacement CRT display *040
MR 4194A-10B Mod. corrects blinking overload lamp for test channel input *046
MR
IO
4195A-12
4274A-30
Mod. corrects "no signal for spans less than 2.4 MHz"
Recommended power transformer replacement
*046
038
7
IO 4274A-31 Sumested reuair method for A9 MPU board *044
IO 4274A-32 Suggested repair method for A9 MPU board with special frequency ROM (A9Ull) *044
IO 4275A-26 Recommended replacement power transformer 038
6 BENCH BRIEFS 1ST QUARTER 1992
WWW.HPARCHIVE.COM
____I__ - - -
-
SN SN Abstract Service Note
Type No. Package
r7 IO
IO
4275A-27
4275A-28
Suggested repair method for A9 MPU board
Suggested repair method for A9 MPU board with special frequency ROM (A9Ull)
*044
*044
IO 4278A-07 Replacing the EEPROM requires initialization *046
IO 4280A-09 Preferred replacement for the cooling fan assembly *040
MR 4284A-11 Mod. to prevent the HP 4284lA Bias Current Source A4 board's fuses from blowing 039
MR 4285A-08 Rec. ROM changes correct "UNBAL" message during parallel Q measurement 035
MR 4285A-09 Mod. to prevent the HP 4284lA Bias Current Source A4 board's fuses from blowing 039
IO 4329A-09 Alternate test voltage accuracy test method 037
IO 4332A-02 New repair method for a defective IC amplifier *041
IO 4332A-03 New repair method for a defective IC amplifier *041
MR 4934A-llA Recommended modification prevents hold circuit failure 038
IO 4935A-15A New clamshell case halves for older instruments 038
MR 4935A-16 Modification to correct signal measurement when using receiver hold circuit 037
IO 4935A-17 Suggested replacements of volume control assembly for older instruments 039
IO 4936A-15 Correction to specification & performance tests in oper & calib manual *048
IO 4937A-05 Suggested replacement volume control assembly for older instruments 039
IO 4951C-12A Keyboard cable application 037
MR 4951C-14 Modification to eliminate erroneous ABORT frames; SCC retrofit kit 04951-62726 037
IO 4952A-09A Recommended A4 Option memory DRAMS *048
MA 4952A-12B Available firmware upgrade from Rev. 1.0 to Rev. A.02.02 *041
MA 4952A-13A Available firmware upgrade from Rev. A.02.00/A.02.01 to Rev. A.02.02 *041
MA 4952A-17 Real time clock allows captured data in buffer to be time stamped 037
MR 4954A-08 New firmware revision 2.1 corrects several known problems 037
MA 4957A-01A High-speed option retrofitting *044
MA 4957A-01 Available modification allows hi-speed option retrofitting 038
MR 4957A-02 Recommended replacement power supply zener diode (CR10) improves reliability 038
IO 4957A-03 Redesigned CRT for the 4957A 039
MR 4957A-04 New ROM fixes DLC Data Bus Contention problemlAlUT4 039
MR 4957A-05A Modification to prevent enlargement or shrinkage of display *041
MR 4957A-05 Modification to prevent enlargement or shrinkage of display *040
IO 4957A-06 New cooling fans are available *041
MR 4957A-07 Modification to misloaded diodes corrects '!no display" *042
MR 4957A-08 Firmware Revision A.OO.O1 Anomalies *043
MA 4957A-09 Katakana option retrofitting *044
MA 4957PC-01 New ROM allows Hi-Speed option retrofitting 039
MR 4957PC-02 New ROMs fx auto-configuration anomaly
i *043
MR 4957PC-03 Modification to stop monitoring and/or simulating *044
SA 4980A-024 Modification brings instrument up to HP standards for grounding *048
MR 4980A-03 Modification eliminates bad sectors on hard disk drive *048
MR 4980A-04 Modification prevents trace shorting on the LCD board *048
MR 498OA-05 Modification resolves "service request timeout on port m"error *048
MR 4980A-06 Modification to resolve "hardware/software watchdog timeout errors" *048
SA 4981A-02-S Modification brings instrument up to HP standards for grounding *048
MR 498lA-03 Modification eliminates bad sectors on hard disk drive *048
MR 498lA-04 Modification prevents trace shorting on the LCD board *048
MR 498lA-05 Modification resolves "service request timeout on port xxx" error *048
MR 498lA-06 Modification to resolve "hardwarelsoftware watchdog timeout errors" *048
SA 4982A-02-S Modification brings instrument up to HP standards for grounding *048
MR 4982A-03 Modification eliminates bad sectors on hard disk drive *048
MR 4982A-04 Modification prevents trace shorting on the LCD board *048
MR 4982A-05 Modification resolves "service request timeout on port m"error *048
MR 4982A-06 Modification to resolve "hardware/software watchdog timeout errors" *048
IO 4991A-11 Complete description of firmware applications 037
MR 499lA-12 Modification improves reliability of P1& P2 power supply connections 038
MR 4991A-13 Mod. to f c "Node Movement, or Node Hopping," & network performance problem
v *045
'1 MR
MR
4992A-02
5314A-05A
v
Mod. to f c "Node Movement, or Node Hopping," & network performance problem
Modification to fix "dead zone" problem
*045
036
IO 5315A-05 Add safety warning to Opt. 004 oven contained oscillator adjustments *044
MR 5335A-26B Power supply replacement kit replaces relay K1 *046
IO 5340A-22D Preamp retrofit kit is available for the 5340A 037
1ST QUARTER 1992 BENCH BRIEFS 7
WWW.HPARCHIVE.COM
SN SN Abstract Service Note
Type No. Package
IO 5340A-24 Performance test and adjustment procedure modification for Opt. 006 uwave limiter 037
SA 5342A-58A-S New support strut & top-cover make counter safe to carry with the carrying handle 035
IO 5342A-59 Procedure for troubleshooting 350 MHz miscount problems 035
IO 5343A-30A Procedure for troubleshooting 350 MHz miscount problems 035
SA 5343A-31A-S New support strut & top cover make counter safe to carry with the carrying handle 035
MA 5347A-08 HP-IB retrofit kit (P/N 05348-67002) is available 038
MA 5348A-08 HP-IB retrofit kit (P/N 05348-67002) is available 038
IO 5361B-01 Use HighLow Meas. band for Op. 040 Units when following perf. test proced. *046
MR 5382A-04 Instructions on replacing 1820-0633 (AlU4) and 1820-0634 (AlU14) 036
MR 5383A-06 Instructions on replacing 1820-0633 (AlU4) and 1820-0634 (AlU14) 036
IO 5501B-01 Non-adjustable power supply now used for laser heads 035
MR 5508A-03 Modification to correct circuit board 05508-60002 trace interference problem 037
IO 5517A/B/C-01 Non-adjustable power supply now used for laser heads 035
IO 5518A-01 Non-adjustable power supply now used for laser heads 035
MR 6010A-06 Modification using RTV to prevent W8 ribbon cable disconnect *048
MR 6011A-07 Modification using RTV to prevent W8 ribbon cable disconnect *048
MR 6012B-05 Modification using RTV to prevent W8 ribbon cable disconnect *048
MR 6015A-02 Modification using RTV to prevent W8 ribbon cable disconnect *048
MR 6030A-13 Modification using RTV to prevent W8 ribbon cable disconnect *048
MR 6031A-15 Modification using RTV to prevent W8 ribbon cable disconnect *048
MR 6032A-14 Modification using RTV to prevent W8 ribbon cable disconnect *048
MR 6035A-03 Modification using RTV to prevent W8 ribbon cable disconnect *048
MR 8130A-01 Solution to eliminate crosstalk to the output signal 039
MR 8131A-01 Solution to eliminate crosstalk to the output signal 039
IO 813lA-02 Recommended testladjustment after replacement of the output board 039
IO 8180A-07 Modifications to be made when replacing P/N 5180-2420by 5180-2470 *045
IO 8180B-02 Modifications to be made when replacing P/N 5180-2420by 5180-2470 *045
IO
IO
IO
818lA-05
8181B-01
8182A-03
Modifications to be made when replacing P/N 5180-2420 by 5180-2470
Modifications to be made when replacing P/N 5180-2420 by 5180-2470
Modifications to be made when replacing P/N 5180-2420 by 5180-2470
*045
*045
*045
c
IO 8182B-02 Modifications to be made when replacing P/N 5180-2420 by 5180-2470 *045
IO W7D/E/F-08 Preferred replacements for microcircuit preamp & pwr. amp. *@N
MR 8447F-07 Mod. eliminates 20 kHz-40 kHz residuals appearing at output of 9 kHz-50 MHz amp 038
MA 8560A-01D Firmware upgrade kit improves performance *046
MR 8560A-03A Recommended electrolytic capacitor changes on cal oscillator assemblies 036
IO 8560A-06 Recommended replacement CRT 036
IO 8560A-11 Modifying instruments for use with preselected external mixers 036
MR 8560A-16 Modification to prevent negative peak detector latchup 037
MA 8560A-17 Modifications for use with 85644445A power sweep capability *043
MR 8560A-18 Modification to eliminate unwanted sidebands (oscillations) *040
IO 8560A-19 Frequency offsets and making YTO endpoints adjustment *042
IO 8560A-20 CRT second anode discharge procedure *042
MR 856lA-13A Recommended electrolytic capacitor changes on cal oscillator assemblies 036
IO 856lA-24 Recommended replacement CRT 036
MR 856lA-28 Recommended modification to improve frequency counter accuracy 036
MR 8561A-29 Modification to prevent negative peak detector latchup 037
MA 856lA-30 Modifications for use with 85644N45A power sweep capability *043
IO 8561A-32 CRT second anode discharge procedure *042
MA 8561B-01D Firmware upgrade kit improves performance *046
MR 8561B-03A Recommended electrolytic capacitor changes on cal oscillator assemblies 036
IO 8561B-11 Modifying instruments for use with preselected external mixers 036
IO 8561B-14 Recommended replacement CRT 036
MR 8561B-18 Modification to prevent negative peak detector latchup 037
MA 8561B-19 Modifications for use with 85644445A power sweep capability *043
MR 8561B-20 Modification to eliminate unwanted sidebands (oscillations) *040
IO
IO
8561B-21
8561B-22
Frequency offsets and making YTO endpoints adjustment
CRT second anode discharge procedure
*042
*042
f
MA 8562A-02H Available firmware upgrade kits *043
MR 8562A-46A Recommended electrolytic capacitor changes on cal oscillator assemblies 036
IO 8562A-56 Recommended replacement CRT 036
BENCH BRIEFS 1ST QUARTER 1992
WWW.HPARCHIVE.COM
SN SN Abstract Service Note
Type No. Package
MR 8562A-59 Recommended modification to improve frequency counter accuracy 036
MR 8562A-60 Modification to prevent negative peak detector latchup 037
MA 8562A-61 Modifications for use with 85644N45A power sweep capability *043
MR 8562A-63 Modification to eliminate unwanted sidebands (oscillations) *040
IO 8562A-64 CRT second anode discharge procedure *042
MA 8562B-01H Available firmware upgrade kits * 043
MR 8562B-43A Recommended electrolytic capacitor changes on cal oscillator assemblies 036
IO 8562B-54 Recommended replacement CRT 036
MR 8562B-57 Recommended modification to improve frequency counter accuracy 036
MR 8562B-58 Modification to prevent negative peak detector latchup 037
MA 8562B-59 Modifications for use with 85644N45A power sweep capability *043
MR 8562B-61 Modification to eliminate unwanted sidebands (oscillations) *040
IO 8562B-62 CRT second anode discharge procedure *042
MA 8563A-02B Firmware upgrade kit improves performance *046
10 8563A-10 Recommended replacement CRT 036
MR 8563A-12 Modification to prevent negative peak detector latchup 037
MA 8563A-13 Modifications for use with 85644N45A power sweep capability *043
IO 8563A-14 Standard 8563A specified to 26.5 GHz *042
MR 8563A-15 Modification to eliminate unwanted sidebands (oscillations) *040
IO 8563A-16 Frequency offsets and making YTO endpoints adjustment *042
IO 8563A-17 CRT second anode discharge procedure *042
MA 8566A-20C H P 8566AB Retrofit Kit upgrades performance of "A"version to "B"version *046
IO 8566A-42 New adjustment procedures for replacement A4A1 Video Processor *046
IO 8566B-37 New adjustment procedures for replacement A4A1 Video Processor *046
IO 8567A-12 Preferred replacement for the cooling fan assembly *ON
IO 8567A-17 New adjustment procedures for replacement A4A1 Video Processor *046
MA 8568A-44C HP 8566AB Retrofit Kit upgrades performance of "A"version to "B"version *046
IO 8568A-57 Preferred replacement for the cooling fan assembly *040
IO 8568A-59 New adjustment procedures for replacement A4A1 Video Processor *046
IO 8568B-25 Preferred replacement for the cooling fan assembly *040
IO 8568B-31 New adjustment procedures for replacement A4A1 Video Processor *046
IO 8594A-02 Instructions on entering flatness correction data *046
10 8595A-02 Instructions on entering flatness correction data *046
MR 8671B-08 Modification improves power supply reliability and eliminates blown fuses *040
MR 8672A-25 Modification improves power supply reliability and eliminates blown fuses *040
MR 8673B-13B Modification improves power supply reliability and eliminates blown fuses *040
MR 8673C-14B Modification improves power supply reliability and eliminates blown fuses *040
MR 8673D-15B Modification improves power supply reliability and eliminates blown fuses *ON
MR 8673E-07A Modification improves power supply reliability and eliminates blown fuses *040
MR 8673G-04 Modification improves power supply reliability and eliminates blown fuses *040
MR 8673H-05 Modification improves power supply reliability and eliminates blown fuses *040
MR 8719C-01 Modification to correct reversed bias tee connectors *048
MR 872OC-01 Modification to correct reversed bias tee connectors *048
MR 8722A-01 Modification to correct reversed bias tee connectors *048
IO 875lA-05A Procedure on making additional adjustments for A9/AlO/A11 receivers 037
IO 875lA-05 Procedure on making additional adjustments for A9/AlO/A11receivers 035
MR 875lA-06A Modification corrects power-on test failure *042
MR 8751A-06B Modification to ftu the A4 (Rev. E or below) power-on test failure *044
MR 875lA-06 Modification to prevent the A4 power-on test failure 037
IO 875lA-07 Modification to extend the A7 board using P/N 08751-66594 037
IO 875lA-08 Replacement procedure for A1/A2 digital boards 037
IO 875lA-09A Relationship between the firmware version and ROM set *042
IO 875lA-09B Tables showing relationship between the firmware version and ROM set *046
IO 875lA-09 Information on the relationship between firmware version and ROM sets 037
MR 8751A-10 Modification to prevent test failure after adjustment 037
'3 MR
MR
875lA-11
875lA-12
Modification allows control of solid-state version HP 85046NBs
Modification to ftu the intermittent lock UPPRESEToperation
038
*046
MR 875lA-13 Mod. prevents unit from "hanging up" when it initializes floppy disk *046
MR 8752A-OlA Firmware revision 1.03 corrects previous problems with revision 1.02 036
IO 8753C-03 Recommended replacement source amplifier kit *044
1ST QUARTER 1992 BENCH BRIEFS 9
WWW.HPARCHIVE.COM
SN SN Abstract Service Note
Type No. Package
MR
MR
MR
8nOA-24A
8902A-12A
8902A-13
Modification of the line voltage operating range
Recommended replacement firmware improves performance
F/W upgrade corrects TRFL Cal Factor anomaly
*042
035
035
r
MR 8904A-04 Replacing audio transformer corrects inverted waveform *044
MR 892OA-01 Required new A9 power supply for selected serial numbers *040
MR 8920A-02 Early instruments require firmware upgrade *046
SA 8971B-0lA-S Recommend changing fuse from 1.25 amp to 1.0 amp for 220/240volt operation 035
IO 8971B-03A Preferred replacement for the A2 microprocessor assembly 038
IO 8971C-01A Preferred replacement for the A2 microprocessor assembly 038
IO 8980A-03A Manual corrections clarify delay problems in operator check 3-40 038
MR 898lA-02A Faulty power splitter in some instruments may cause severe quadrature error 038
IO 898lA-03A Manual corrections clarify delay problems in operator check 3-40 038
MR E1222M-07 New multi-fuses increase reliability 038
MR E1222M-08 Modification to prevent power supplies from switching off *043
MR E1300A-01 Mod. to elim. possible RAM mem. loss & maintain batt. stdby. vol. above + 4.5V *045
MR E130lA-01 Modification increases operating life *041
MR E130lA-02 Mod. to elim. possible RAM mem. loss & maintain batt. stdby. vol. above +4SV *045
MR E1326B-01 Modifications to prevent erroneous readings and incorrect delay settings 036
MR El326B-02 Modification to prevent losing readings when operating with a VI360 Controller 036
MR E1332A-01 Modification to prevent losing readings when operating with a V/360 Controller 036
MR E1332A-02 Modification prevents pulse widthhime i t . errors
nv *041
MR E1333A-01 Modification to prevent losing readings when operating with a V/360 Controller 036
MR E135lA-01 Mod. prevents high envir. noise causing random errors & disrupting bus commun. 036
MR E1352A-01 Mod. prevents high envir. noise causing random errors & disrupting bus commun. 036
MR E1353A-01 Mod. prevents high envir. noise causing random errors & disrupting bus commun. 036
MR E1357A-01 Mod. prevents high envir. noise causing random errors & disrupting bus commun. 036
MR E1358A-01 Mod. prevents high envir. noise causing random errors & disrupting bus commun. 036
IO
MR
MR
E1400B/T-01
E1411B-01
E1411B-02
Notification of new, enhanced p◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
