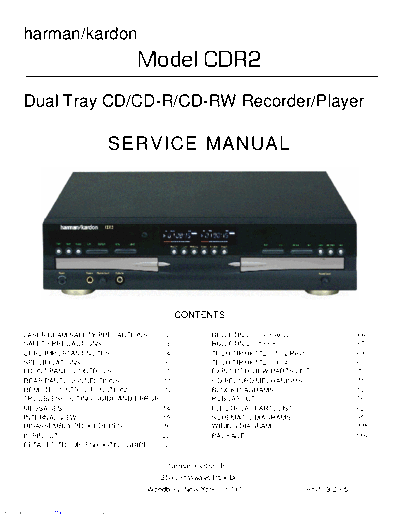

Image preview - the first page of the document
>> Download CDR-2 documenatation <<
Text preview - extract from the document
harman/kardon
Model CDR2
Dual Tray CD/CD-R/CD-RW Recorder/Player
SERVICE MANUAL
CONTENTS
LASER BEAM SAFETY PRECAUTIONS.........2 BULLETIN 2000-08 Rev2................................. 66
SAFETY PRECAUTIONS............................... 3 BULLETIN 2001-008....................................... 67
CDR2 IMPORTANT NOTES............................4 TECH TIP HKTT2001-02 Rev1.........................68
SPECIFICATIONS ..........................................6 TECH TIP HKTT2003-04.................................69
FRONT PANEL CONTROLS................... .....7 EXPLODED VIEW/PARTS LIST ...................... 70
REAR PANEL CONNECTIONS .. ................ 11 CD-RECORD MECHANISMS ..........................71
REMOTE CONTROL FUNCTIONS...............12 BLOCK DIAGRAMS........................................73
TROUBLESHOOTING GUIDE AND ERROR PCB LAYOUT ....................................................76
MESSAGES........................................ ...... 14 ELECTRICAL PARTS LIST............................82
INTERNAL VIEW ...........................................15 SCHEMATIC DIAGRAMS ............................ 95
DISASSEMBLY PROCEDURES .. ...............16 WIRING DIAGRAM .....................................115
IC PINOUTS........ ....................................... 22 PACKAGE ...................................... .......... 116
DETAILED TROUBLESHOOTING GUIDE.......37
.
harman/kardon, Inc.
250 Crossways Park Dr.
Woodbury, New York 11797 Rev1 9/2005
Downloaded from www.Manualslib.com manuals search engine
CDR2 harman/kardon
LASER BEAM SAFETY PRECAUTIONS
CLASS 1 LASER PRODUCT
CAUTION
Invisible laser radiation when the unit is open.
Do not stare into beam.
CAUTION: USE OF ANY CONTROLS, ADJUSTMENT, OR
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
Do not look directly at the laser beam
coming from the pickup or allow it to
strike against your skin.
This compact disc player uses a pickup that emits a laser beam. The laser beam is emitted from the
location shown in the figure. When checking the laser diode, be sure to keep your eyes at least 1 foot away
from the pickup lens when the diode is turned on. Do not look directly at the laser beam.
CAUTION:
Using controls and adjustment, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.
2
Downloaded from www.Manualslib.com manuals search engine
CDR2 harman/kardon
SAFETY PRECAUTIONS
This symbol is intended to alert the user to
the presence of uninsulated "dangerous
voltage" within the product's enclosure that
may be of sufficient magnitude to consti-
tute a risk of electric shock to persons.
This symbol is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
Caution: To prevent electric shock do not use this
(polarized) plug with an extension cord, recep-
tacle or other outlet unless the blades can be
fully inserted to prevent blade exposure.
Attention: Pour prevenir les chocs electriques ne pas
utiliser cetre fiche polarisee avec un
prolongateur, une prise de courant ou une au-
tre sortie de courant, sauf si les lames prevent
etre inserees a fond-sans en laisser aucune
WARNING partie a decouvert.
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
HANDLING LASER PICKUP
The laser diode in the optical system of this player can be damaged by electrostatic discharge from
your clothes or your body. Proper electrostatic grounding for service personal is required during servicing.
BEFORE REPAIRING THE COMPACT DISC PLAYER
Preparation
Human Body Grounding:
Many of the components used in this compact disc player, including the laser pickup, are sensitive to
electrostatic discharge. Service personal should be grounded with an electrostatic armband (1 Mohm).
Caution:
Static charge on clothing does not escape through a body grounding wrist band.
Be careful not to contact the pickup or electrical components with your clothing.
Workbench and Tool Grounding:
A properly-grounded electroconductive plate (1Mohm) or metal sheet should be fitted to the workbench
surface. Tools and instruments (such as soldering irons and scopes) should be grounded to prevent AC
leakage.
Note: Laser diodes are so susceptible to damage from static electricity that, even if a static discharge does
not ruin a diode, it can shorten its life or cause it to work improperly.
3
Downloaded from www.Manualslib.com manuals search engine
CDR2 harman/kardon
