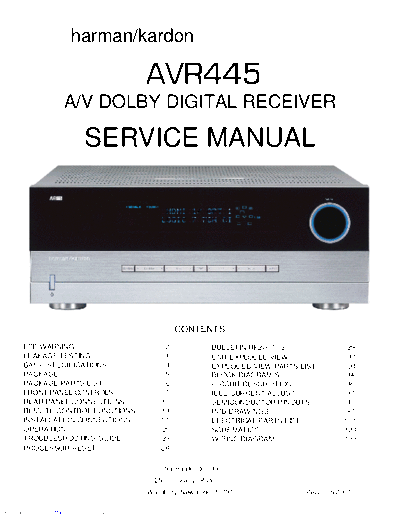

Image preview - the first page of the document



>> Download AVR-445 Rev 2 documenatation <<

Text preview - extract from the document

                            harman/kardon

                                                           AVR445
                         A/V DOLBY DIGITAL RECEIVER

                                  SERVICE MANUAL




                                                                   CONTENTS
        ESD WARNING.......................................2                    BULLETIN HK2007-02..........................29
        LEAKAGE TESTING................................3                       UNIT EXPLODED VIEW.........................30
        BASIC SPECIFICATIONS.........................4                         EXPLODED VIEW PARTS LIST..............31
        PACKAGE..............................................5                 BLOCK DIAGRAM(S)...........................34
        PACKAGE PARTS LIST...........................6                         CIRCUIT DESCRIPTION.......................36
        FRONT PANEL CONTROLS......................7                            IDLE CURRENT ADJUST......................37
        REAR PANEL CONNECTIONS................10                               SEMICONDUCTOR PINOUTS................40
        REMOTE CONTROL FUNCTIONS...........13                                  PCB DRAWINGS.................................87
        INSTALLATION/CONNECTIONS.............17                                ELECTRICAL PARTS LIST...................101
        OPERATION........................................20                    SCHEMATICS.....................................123
        TROUBLESHOOTING GUIDE..................28                              WIRING DIAGRAM................................138
        PROCESSOR RESET...........................28

                                                                harman/kardon, Inc.
                                                             250 Crossways Park Dr.
                                                           Woodbury, New York 11797                            Rev2
