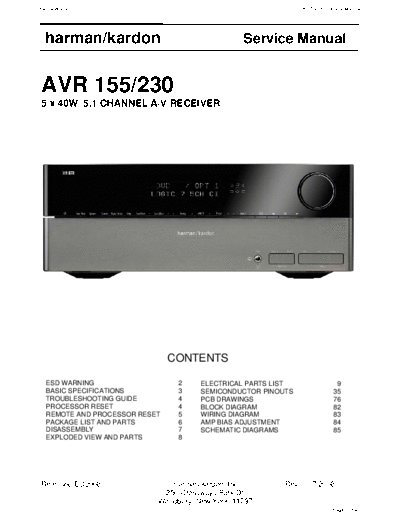

Image preview - the first page of the document



>> Download AVR-155 & 230 documenatation <<

Text preview - extract from the document

harman/kardon                                                 AVR 155/230 Service Manual




  harman/kardon                                  Service Manual


AVR 155/230
5 x 40W 5.1 CHANNEL A/V RECEIVER




                               CONTENTS

  ESD WARNING                   2     ELECTRICAL PARTS LIST                   9
  BASIC SPECIFICATIONS          3     SEMICONDUCTOR PINOUTS                  35
  TROUBLESHOOTING GUIDE         4     PCB DRAWINGS                           76
  PROCESSOR RESET               4     BLOCK DIAGRAM                          82
  REMOTE AND PROCESSOR RESET    5     WIRING DIAGRAM                         83
  PACKAGE LIST AND PARTS        6     AMP BIAS ADJUSTMENT                    84
  DISASSEMBLY                   7     SCHEMATIC DIAGRAMS                     85
  EXPLODED VIEW AND PARTS       8




Released EU2008               harman/kardon, Inc.        Rev 0, 07/2008
                            250 Crossways Park Dr.
                           Woodbury, New York, 11797
                                                                            Page 1 of 92
harman/kardon                                                                                                          AVR 155/230 Service Manual




 Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called

 Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field effect transistors and

 semiconductor "chip" components.

 The following techniques should be used to help reduce the incidence of component damage caused by static electricity.

 1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on

   your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device,

   which should be removed for potential shock reasons prior to applying power to the unit under test.

 2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to

   prevent electrostatic charge build-up or exposure of the assembly.

 3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

 4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges

   sufficient to damage ES devices.

 5. Do not use freon-propelled chemicals. These can generate electrical change sufficient to damage ES devices.

 6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement

   ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material.)

 7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the

   chassis or circuit assembly into which the device will be installed.

   CAUTION : Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

 8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together

   or your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES devices.




 Each precaution in this manual should be followed during servicing.

 Components identified with the IEC symbol        in the parts list are special significance to safety. When replacing a component identified with

     , use only the replacement parts designated, or parts with the same ratings or resistance, wattage, or voltage that are designated in the

 parts list in this manual. Leakage-current or resistance measurements must be made to determine that exposed parts are acceptably

 insulated from the supply circuit before retuming the product to the customer.




                                                                                                                                                  2
                                                                                                                                         Page 2 of 92
    harman/kardon                                                                                                AVR 155/230 Service Manual


Technical Specifications

Audio Section                                                    FM Tuner Section
Stereo Mode                                                            Frequency Range                              87.5
