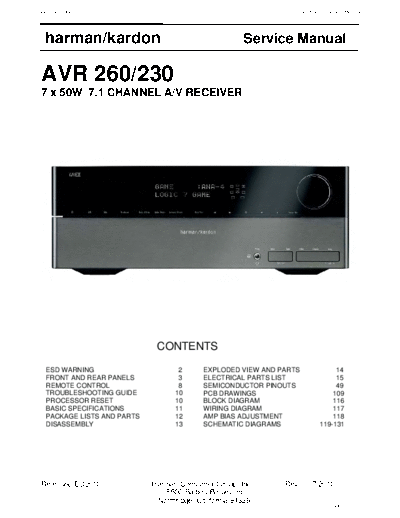

Image preview - the first page of the document
>> Download AVR-260 & 230 documenatation <<
Text preview - extract from the document
harman/kardon AVR 260/230 Service Manual
harman/kardon Service Manual
AVR 260/230
7 x 50W 7.1 CHANNEL A/V RECEIVER
CONTENTS
ESD WARNING 2 EXPLODED VIEW AND PARTS 14
FRONT AND REAR PANELS 3 ELECTRICAL PARTS LIST 15
REMOTE CONTROL 8 SEMICONDUCTOR PINOUTS 49
TROUBLESHOOTING GUIDE 10 PCB DRAWINGS 109
PROCESSOR RESET 10 BLOCK DIAGRAM 116
BASIC SPECIFICATIONS 11 WIRING DIAGRAM 117
PACKAGE LISTS AND PARTS 12 AMP BIAS ADJUSTMENT 118
DISASSEMBLY 13 SCHEMATIC DIAGRAMS 119-131
Released EU2010 Harman Consumer Group, Inc. Rev 0, 07/2010
8500 Balboa Boulevard
Northridge, California 91329
Page 1 of 131
harman/kardon AVR 260/230 Service Manual
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field effect transistors and
semiconductor "chip" components.
The following techniques should be used to help reduce the incidence of component damage caused by static electricity.
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on
your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to
prevent electrostatic charge build-up or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges
sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical change sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement
ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material.)
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the
chassis or circuit assembly into which the device will be installed.
CAUTION : Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together
or your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES devices.
Each precaution in this manual should be followed during servicing.
Components identified with the IEC symbol in the parts list are special significance to safety. When replacing a component identified with
, use only the replacement parts designated, or parts with the same ratings or resistance, wattage, or voltage that are designated in the
parts list in this manual. Leakage-current or resistance measurements must be made to determine that exposed parts are acceptably
insulated from the supply circuit before retuming the product to the customer.
Page 2 of 131
harman/kardon AVR 260/230 Service Manual
FRONT-PANEL CONTROLS
B C D
260
AVR Info Resolution Audio Effects Video Modes Surround Modes Back/Exit M N OK L K Source List
Composite Analog
2 1 6 7 8 9 A E F 4 5 J
3 G H I
0 Volume Control: Turn this knob clockwise to increase the volume, 7 Info Settings Button: Press this button to directly access the AVR's
counterclockwise to decrease the volume. If the AVR is muted, adjusting Setup Source submenu, which contains the settings for the current
volume control will automatically release the unit from the silenced source.
condition. 8 Resolution: Pressing this Button once and then using the KL
1 System Power Control: When the Main Power Switch on the rear Buttons 4 changes the AVR's video output resolution to these settings:
panel is "ON," press this button to turn on the AVR; press it again to turn 576i, 576p, 720p, 1080i or 1080p. The AVR is set to default to 576i when
the unit off (to Standby). Note that the Power Indicator 2 will turn first switched on, or if you reset it later. This resolution has been chosen
white when the unit is on. to ensure that the On Screen Display information is visible on your TV
2 Power Indicator: This LED will be illuminated in amber when the even with analog S-Video or Composite (CVBS) signals. Having selected
unit is in the Standby mode to signal that the unit is ready to be turned the best resolution for your system, confirm with the OK Button 5.
on. When the unit is in operation, the indicator will turn white. The Front Panel Display now shows "Res Change, Cancel". If you press OK
now, or do nothing for 20 seconds, the AVR returns to normal play mode.
3 Headphone Jack: This jack may be used to listen to the AVR's
To confirm the new resolution, press the L Button 4, which changes
output through a pair of headphones. Be certain that the headphones
the Display from "Cancel" to "Accept", then press the OK Button 5. The
have a standard 6,3 mm stereo phone plug. Note that the speakers will
new resolution is now in use.
automatically be turned off when the headphones are connected.
When configuring your system using EzSet/EQ, the calibration 9 Audio Effects: Press this button to directly access the Audio Effects
microphone should be plugged into this jack using the supplied adaptor submenu, which allows adjustment of the tone and other controls. See
that converts the small mini-plug at the end of the microphone's cord to the Initial Setup section for more information.
a 6,3 mm plug. A Video Modes: Press this button for direct access to the Video Modes
4 Navigation: These buttons are used to navigate the AVR's menus and submenu, which contains settings that may be used to improve the
to operate the tuner. picture if necessary after you have adjusted the picture settings using
the video display or TV.
5 OK Button: Press this button to select the currently highlighted item.
B Remote Sensor Window: The sensor behind this window receives
6 AVR Settings Button: Press this button to access the AVR's main
infrared signals from the remote control. Aim the remote at this area
menu.
and do not block or cover it unless an external remote sensor is installed.
C Main Information Display: This display delivers messages and
status indications to help you operate the receiver.
Page 3 of 131
harman/kardon AVR 260/230 Service Manual
FRONT-PANEL CONTROLS
D Speaker/Channel Input Indicators: These indicators are
multipurpose, indicating either the speaker type selected for each
channel or the incoming data-signal configuration. The left, center,
right, right surround and left surround speaker indicators are composed
of three boxes, while the subwoofer is a single box. The center box lights
when a "Small" speaker is selected, and the two outer boxes light when
"Large" speakers are selected. When none of the boxes are lit for the
center, surround or subwoofer channels, no speaker has been selected
for that position. (See page 20 for more information on configuring
speakers.) The letters inside each of the center boxes display active
input channels. For standard analog inputs, only the L and R will light,
indicating a stereo input. When a digital source is playing, the indicators
ENGLISH
will light to display the channels being received at the digital input.
When the letters flash, the digital input has been interrupted.
(See page 31 for more information on the Channel Indicators).
NOTE: When you have reassigned the surround back speakers to the
remote zone using the MULTI ROOM SETUP menu, the boxes that indicate
the presence of the surround back speakers will automatically disappear,
reflecting the fact that the main listening area is now configured for
5.1-channel operation. (See page 33 for more information on reassigning
the surround back speakers for multiroom use.)
E Surround Modes: Press this button to select a surround sound
(e.g.,multichannel) mode. The Surround Modes menu will appear on
screen, and the menu line will appear on the lower line of the front-
panel display.
Use the front-panel or remote KL Buttons to highlight a different
menu line: Auto Select, Virtual Surround, Stereo, Movie, Music or Video
Game. Each line represents a type of audio signal, and is set to the
surround mode the AVR will automatically select when it detects the
audio signal.
You may manually select a different mode for each type of audio. Press
the OK Button when the menu line is highlighted, and the available
surround mode options for the current signal will appear. Use the KL
Buttons to select the desired mode, and press the OK Button to engage
it. Press the Back/Exit Button to exit the Surround Modes menu and
display the next higher menu in the hierarchy.
See the Advanced Functions section for more information on surround
modes.
F Back/Exit: Press this button to return to the previous menu. When the
main AVR menu is displayed, press this button to exit the menu system.
G Digital Optical Front Input: Connect the optical digital audio
output of an audio or video product to this jack.
H Digital Coax Front Input: This jack is normally used for connection
to the output of portable digital audio devices, video game consoles or
other products that have a coax digital jack.
I Video Front Input Jacks: These audio/video jacks may be used for
temporary connection to video games or portable audio/video products
such as camcorders and portable audio players.
J Source List: Press this button to select a source device, which is a
component where a playback signal originates, e.g., DVD.
7
Page 4 of 131
harman/kardon AVR 260/230 Service Manual
FRONT-PANEL CONTROLS
B C D
260
AVR Info Resolution Audio Effects Video Modes Surround Modes Back/Exit M N OK L K Source List
Composite Analog
2 1 6 7 8 9 A E F 4 5 J
3 G H I
0 Volume Control: Turn this knob clockwise to increase the volume, 7 Info Settings Button: Press this button to directly access the AVR's
counterclockwise to decrease the volume. If the AVR is muted, adjusting Setup Source submenu, which contains the settings for the current
volume control will automatically release the unit from the silenced source.
condition. 8 Resolution: Pressing this Button once and then using the KL
1 System Power Control: When the Main Power Switch on the rear Buttons 4 changes the AVR's video output resolution to these settings:
panel is "ON," press this button to turn on the AVR; press it again to turn 576i, 576p, 720p, 1080i or 1080p. The AVR is set to default to 576i when
the unit off (to Standby). Note that the Power Indicator 2 will turn first switched on, or if you reset it later. This resolution has been chosen
white when the unit is on. to ensure that the On Screen Display information is visible on your TV
2 Power Indicator: This LED will be illuminated in amber when the even with analog S-Video or Composite (CVBS) signals. Having selected
unit is in the Standby mode to signal that the unit is ready to be turned the best resolution for your system, confirm with the OK Button 5.
on. When the unit is in operation, the indicator will turn white. The Front Panel Display now shows "Res Change, Cancel". If you press OK
now, or do nothing for 20 seconds, the AVR returns to normal play mode.
3 Headphone Jack: This jack may be used to listen to the AVR's
To confirm the new resolution, press the L Button 4, which changes
output through a pair of headphones. Be certain that the headphones
the Display from "Cancel" to "Accept", then press the OK Button 5. The
have a standard 6,3 mm stereo phone plug. Note that the speakers will
new resolution is now in use.
automatically be turned off when the headphones are connected.
When configuring your system using EzSet/EQ, the calibration 9 Audio Effects: Press this button to directly access the Audio Effects
microphone should be plugged into this jack using the supplied adaptor submenu, which allows adjustment of the tone and other controls. See
that converts the small mini-plug at the end of the microphone's cord to the Initial Setup section for more information.
a 6,3 mm plug. A Video Modes: Press this button for direct access to the Video Modes
4 Navigation: These buttons are used to navigate the AVR's menus and submenu, which contains settings that may be used to improve the
to operate the tuner. picture if necessary after you have adjusted the picture settings using
the video display or TV.
5 OK Button: Press this button to select the currently highlighted item.
B Remote Sensor Window: The sensor behind this window receives
6 AVR Settings Button: Press this button to access the AVR's main
infrared signals from the remote control. Aim the remote at this area
menu.
and do not block or cover it unless an external remote sensor is installed.
C Main Information Display: This display delivers messages and
status indications to help you operate the receiver.
6
Page 5 of 131
harman/kardon AVR 260/230 Service Manual
REAR-PANEL CONNECTIONS
C RS-232 Reset: This switch is only used during a software upgrade. A K Monitor Component Video Outputs: Connect these outputs
standard processor reset is performed by pressing and holding the front- to the component video inputs of a video projector or monitor. When
panel OK Button while the receiver is in Standby. a source connected to one of the two Component Video Inputs JL is
D Front Speaker Outputs: Connect these outputs to the matching selected the signal will be sent to these jacks.
