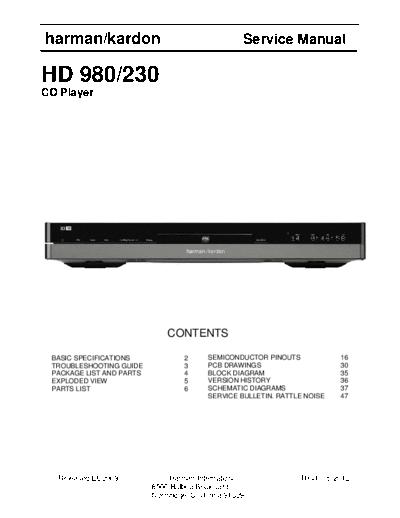

Image preview - the first page of the document
HD-980 & 230 Rev 1


>> Download HD-980 & 230 Rev 1 documenatation <<

Text preview - extract from the document
harman/kardon                                        Service Manual

HD 980/230
CD Player




                              CONTENTS

 BASIC SPECIFICATIONS              2       SEMICONDUCTOR PINOUTS             16
 TROUBLESHOOTING GUIDE             3       PCB DRAWINGS                      30
 PACKAGE LIST AND PARTS            4       BLOCK DIAGRAM                     35
 EXPLODED VIEW                     5       VERSION HISTORY                   36
 PARTS LIST                        6       SCHEMATIC DIAGRAMS                37
                                           SERVICE BULLETIN, RATTLE NOISE    47




  Released EU2009              Harman International                Rev1, 05/2012
                          8500 Balboa Boulevard
                          Northridge, California 91329
harman/kardon                                                                                                             HD 980/230 Service Manual




   Technical Specifications

   Signal Format
   Sampling Frequency                                        32 kHz to 96 kHz
   D/A Conversion                                            Multibit Sigma-Delta modulator
   Oversampling                                              24-bit/176.4 kHz Sample Rate Convertor or
                                                             24-bit/96 kHz with HRS-Link, internal DAC.

   Discrete Analog Output Section
   Error Correction                                          CIRC System
   Frequency Response                                        20 Hz
