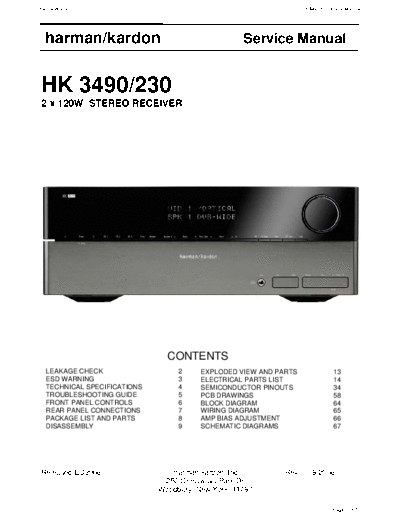

Image preview - the first page of the document
HK-3490 & 230


>> Download HK-3490 & 230 documenatation <<

Text preview - extract from the document
harman/kardon                                                 HK 3490/230 Service Manual




  harman/kardon                                    Service Manual


HK 3490/230
2 x 120W STEREO RECEIVER




                               CONTENTS
  LEAKAGE CHECK                   2     EXPLODED VIEW AND PARTS              13
  ESD WARNING                     3     ELECTRICAL PARTS LIST                14
  TECHNICAL SPECIFICATIONS        4     SEMICONDUCTOR PINOUTS                34
  TROUBLESHOOTING GUIDE           5     PCB DRAWINGS                         58
  FRONT PANEL CONTROLS            6     BLOCK DIAGRAM                        64
  REAR PANEL CONNECTIONS          7     WIRING DIAGRAM                       65
  PACKAGE LIST AND PARTS          8     AMP BIAS ADJUSTMENT                  66
  DISASSEMBLY                     9     SCHEMATIC DIAGRAMS                   67




Released EU2008                 harman/kardon, Inc.        Rev 0, 09/2008
                              250 Crossways Park Dr.
                             Woodbury, New York, 11797

                                                                            Page 1 of 70
harman/kardon                             HK 3490/230 Service Manual



 SAFETY PRECAUTIONS

 The following check should be performed for the continued
 protection of the customer and service technician.

 LEAKAGE CURRENT CHECK

 Measure leakage current to a known earth ground (water
 pipe, conduit, etc.) by connecting a leakage current tester
 between the earth ground and all exposed metal parts of the
 appliance (input/output terminals, screwheads, metal
 overlays, control shaft, etc.). Plug the AC line cord of the
 appliance directly into a 120V AC 60Hz outlet and turn the
 AC power switch on. Any current measured must not exceed
 o.5mA.




                                                Reading should
                                                not be above
                                      Leakage
                                                0.5mA
          Device                      current
          under                       tester
          test

                      Test all
                      exposed metal
                      surfaces
           Also test with
           plug reversed
           (Using AC adapter                          Earth
           plug as required)                          ground


                      AC Leakage Test




   ANY MEASUREMENTS NOT WITHIN THE LIMITS
   OUTLINED ABOVE ARE INDICATIVE OF A
   POTENTIAL SHOCK HAZARD AND MUST BE
   CORRECTED BEFORE RETURNING THE APPLIANCE
   TO THE CUSTOMER.




                                                        Page 2 of 70
harman/kardon                                                                                                           HK 3490/230 Service Manual




 Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called

 Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field effect transistors and

 semiconductor "chip" components.

 The following techniques should be used to help reduce the incidence of component damage caused by static electricity.

 1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on

   your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device,

   which should be removed for potential shock reasons prior to applying power to the unit under test.

 2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to

   prevent electrostatic charge build-up or exposure of the assembly.

 3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

 4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges

   sufficient to damage ES devices.

 5. Do not use freon-propelled chemicals. These can generate electrical change sufficient to damage ES devices.

 6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement

   ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material.)

 7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the

   chassis or circuit assembly into which the device will be installed.

   CAUTION : Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

 8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together

   or your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES devices.




 Each precaution in this manual should be followed during servicing.

 Components identified with the IEC symbol        in the parts list are special significance to safety. When replacing a component identified with

     , use only the replacement parts designated, or parts with the same ratings or resistance, wattage, or voltage that are designated in the

 parts list in this manual. Leakage-current or resistance measurements must be made to determine that exposed parts are acceptably

 insulated from the supply circuit before retuming the product to the customer.




                                                                                                                                                  2
                                                                                                                                         Page 3 of 70
          harman/kardon                                                                                                                      HK 3490/230 Service Manual

Technical Specifications

Audio Section                                                                                      FM Tuner Section
Stereo Mode                                                                                                  Frequency Range         87.5
