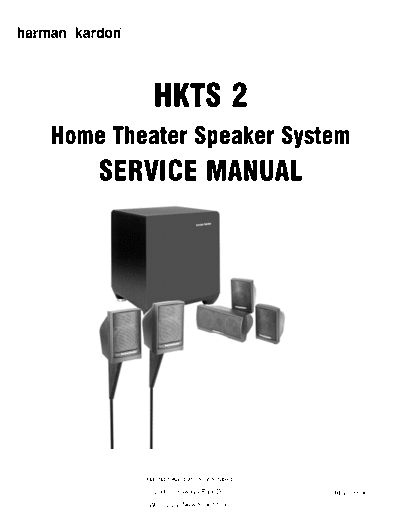

Image preview - the first page of the document
>> Download HKTS-2 Rev 0 documenatation <<
Text preview - extract from the document
HKTS 2
Home Theater Speaker System
SERVICE MANUAL
Harman/Kardon Incorporated
250 Crossways Park Dr. REV 0 11/00
Woodbury, New York 11797
HKTS 2
TABLE OF CONTENTS
BASIC SYSTEM SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
DETAILED HKTS 2 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
MECHANICAL/PACKAGING PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
EXPLODED VIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
TEST SET UP and PROCEDURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
PACKAGING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
ELECTRICAL PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
INTEGRATED CIRCUIT DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
PRINTED CIRCUIT BOARDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
SCHEMATIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
2
HKTS 2
Specifications
HKTS 2 SYSTEM
Frequency Response 35Hz - 20kHz (-6dB)
Satellites
Recommended Power 10 - 50 watts
Impedance 8 ohms nominal
Sensitivity 86dB @ 1 watt/1 meter
Tweeter One 1/2" titanium-laminate dome, video-shielded
Midrange One 3" driver, video-shielded
Dimensions (H x W x D) 4-5/8" x 3-1/8" x 3-3/4"
117mm x 79mm x 93mm
Weight 1.1lb/0.5kg
Center Channel
Recommended Power 10 - 50 watts
Impedance 8 ohms nominal
Sensitivity 86dB @ 1 watt/1 meter
Tweeter One 1/2" titanium-laminate dome, video-shielded
Midrange Dual 3" drivers, video-shielded
Dimensions (H x W x D) 3-1/2" x 7-5/8" x 3-3/4"
89mm x 194mm x 95mm
Weight 1.89 lb/0.86kg
SUB-TS 2 Subwoofer 100 watts RMS
8" woofer, bass-reflex enclosure
Dimensions (H x W x D) 18 1/4" x 15 3/4" x 16 3/4"
464mm x 400mm x 425mm
Weight 35.8 lb/16.2kg
Refinements may be made on occasion to existing products without notice, but will always meet or
exceed original specifications unless otherwise stated.
3
HKTS 2
SUB-TS2 Detailed Specifications
4
HKTS 2
Connections
5
HKTS 2
Connections (Cont.)
6
HKTS 2
Connections (Cont.)
7
HKTS 2
Operation
8
HKTS 2
Troubleshooting
9
HKTS 2
Mechanical/Packaging Parts List
SUB-TS-2
Amplifier assembly N/A
8" 4 ohm woofer 25MF10DZB-DW01
Cushion for Foot (4) WI5307
Plastic Foot (4) WI5321
Plastic base X105000
SAT-TS2
Satellite, Complete HKTS2/SAT
Woofer N68A45PF-02DW
Grille G255002
Grille Logo SZ5322
Rear foot WI0782
Wall bracket WI0408
Support mural WI0409
CEN-TS2
Center Channel, Complete HKTS2/CENTER
Woofer 22PF45NA-HW01
Grille G255003
Grille Logo SZ5371
Packaging
Owner's manual AI5083
Warranty card AT5073
Outer carton WB5710
Subwoofer styrofoam WP5120
Styrofoam Set for Satellites WP5119
20' Wire set (Sub in/out) SAL063-1
40' Wire set (sats & center) SAL5009
15' Wire set (surround) SAL5020
OPTIONAL: Floor Stands for SAT-TS2 satellites - FSTS1
10
HKTS 2
Exploded view
\M+2B9CF\M+2AFC8\M+2B357\M+2AEE6
A0
M
H
D
L
K
F
E
B
G
C
A
J
1
1
harman/kardon HKTS 2 Exploded View
PARTS LIST
1 REF.No. PARTS No. DESCRIPTION Q'TY
1 152U602015 AC CORD SVT FT-2 6FT 1
2
2
2 707AC800 CORD BU SHINHS 2
3 155520020 FUSE HOLDER R3-11 1
2
4 4 154U25006T0 FUSE 2.5A 250V 20mm 1
5 180PBR12C11S POWER PUSH SW. BR12C11S 1
7
5 WIRE RED 18AWG 80mm
8 3 6 16210082007 1
6 7 06-T30804 TAPPING SCREW 3x8mm 6
3
3
9 8 653HS135-1 HEAT SINK 117.5x60x25mm (BLACK) 1
9 700BK800 SUB. LEVEL KNOB 1
13 11
12 10 640RP135-2 REAR PANEL 215x270x2.5t 1
13 06-M41605 MACHINE SCREW M4x16mm
12 11 4
16 15 11 12 06-T41208 WOOD SCREW 4x12mm 4
13
14 13 10 13 06-T4205012 TAPPING SCREW 4x20mm 10
14 06-M30809 MACHINE SCREW M3x8xP0.5 2
4
4
a
b 15 06-T30804 TAPPING SCREW 3x8mm 2
16 06-T31004 TAPPING SCREW M3x10mm 4
17 725A125 RUBBER CUSHION 25x21x4t 4
18 1010SUB135 PRE. AMP./POWER AMP. P.C. BOARD 1
17 19 150E8604107 TRANSFORMER EI-86 60Hz 120V 1
18 20 723D125 EVA CUSHION 170x5x1t 1
5
5
20 17 21 1010SUB135 PRE. AMP./POWER AMP. P.C. BOARD 1
22 06-N4HW01 TOOTH LOCK WASHER FOR M4 NUTS 4
19
21 23 06-M30809 Machine Screw M3.0x8xP0.5 4
24 06-T30804 TAPPING SCREW 3x8mm PAN TYPE C 2
25 1010SUB135 PRE. AMP./POWER AMP. P.C. BOARD 1
26 650SUB240 PCB BRACKET L TYPE T=1.6mm A.P.C.C. 2
23
22 27 06-M31403 MACHINE SCREW M3x14xP0.5
26 24
6
6
1
27 28 653HS135-S HEAT SINK 65x32x31mm(ALUMINIUM) 1
a 22 29 1933M2520 MICA TO-3P 25x20mm 2
b 23
30 192021TIP35C TRANSISTOR TIP35C 1
28 31 192022TIP36C TRANSISTOR TIP36C 1
29 32 712A130 IC WASHER(SW06002) 2
29
31 25 33 06-M30814 MACHINA TAPPING SCREW M3x8mm 2
*
7
7
41 30 26 34 650LB800 BRACKET 14.2x8x5.2 T=1.6mm 1
32
32 35 723A125-1 EVA CUSHIOH 213x15x1.0t 2
33
33 36 723B125-1 EVA CUSHIOH 238x15x1.0t 2
34 37 700RC800A REAR CABINET 268x213x102 A.B.S. UL 1
36
8
8
38 723A125 EVA CUSHIOH 213x15x2.0t 2
35
39 723B125 EVA CUSHIOH 238x15x2.0t 2
35 40 16210302001 SPEAKER WIRE UL1015 300mm 1
36
*
37 41 700PT125 PORT TUBE 1
* On9/1/2000 a new replacement port tube was
included with the HKTS2
42 XY105003 EMPTY CABINET ASSEMBLY 1
38
38 43 DM5088 SOUND-ABSORBENT 4
39 44 SZ534 harman/kardon LOGO 1
39
45 PA075000 SPEAKER EVA CUSHIOH 1
40 46 25MF10DZB-DW01 1
2 47 06-T4205012 5
9
9
TAPPING SCREW 4x20mm
48 X105000 BOTTOM BASE 1
49 WI5321 PLASTIC FOOTS 4
50 06-T31004 TAPPING SCREW 3x10mm 8
42 51 4
WI5334 RUBBER FOOTS
10
10
52 06-T4255029 WOOD SCREW 4x25mm 8
11
45 11
46
47
12
12
48
43
49
50
51
52
52
13
13
44
49 52
50 51
52 49
50
14
14
51
52
52
Service tips for woofer removal:
52
Turn the unit upside-down on a padded surface. 50
15
15
50
Remove eight screws holding the base to the enclosure: four are in the center
of each plastic "foot". 49
Remove bottom plastic base. 50
51
Remove the five Phillips woofer mounting screws. 52
Extract woofer - pay attention to polarity and the speaker wires; the wire
16
16
terminals are similar in size, but there are plus & minus symbols on the woofer
terminal.
00378
M
L
K
H
F
E
D
B
G
C
A
J
11
HKTS 2
Test Set Up and Procedure
