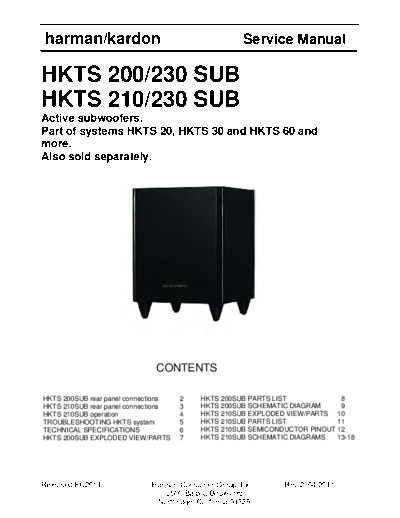

Image preview - the first page of the document
>> Download HKTS-200 & 210 Rev 2 documenatation <<
Text preview - extract from the document
harman/kardon Service Manual
HKTS 200/230 SUB
HKTS 210/230 SUB
Active subwoofers.
Part of systems HKTS 20, HKTS 30 and HKTS 60 and
more.
Also sold separately.
CONTENTS
HKTS 200SUB rear panel connections 2 HKTS 200SUB PARTS LIST 8
HKTS 210SUB rear panel connections 3 HKTS 200SUB SCHEMATIC DIAGRAM 9
HKTS 210SUB operation 4 HKTS 210SUB EXPLODED VIEW/PARTS 10
TROUBLESHOOTING HKTS system 5 HKTS 210SUB PARTS LIST 11
TECHNICAL SPECIFICATIONS 6 HKTS 210SUB SEMICONDUCTOR PINOUT 12
HKTS 200SUB EXPLODED VIEW/PARTS 7 HKTS 210SUB SCHEMATIC DIAGRAMS 13-18
Released EU2011 Harman Consumer Group, Inc. Rev 2, 04/2011
8500 Balboa Boulevard
Northridge, California 91329
Harman/Kardon HKTS 200 SUB/230 + 210 SUB/230 Service Manual
HKTS200SUB Rear-Panel Connections
1
2
3
4
5
6
7
8
9
PL0004-01001
.Subwoofer Level Control: Use this control to adjust the HKTS200SUB's volume. Turn 5.Line-Level LFE In Connector: Use the LFE (purple) connector of the supplied combination
clockwise to increase the volume; turn counterclockwise to decrease the volume. LFE and trigger cable to connect the Line-Level LFE In to the dedicated subwoofer
output of a receiver or preamp/processor. This input bypasses the HKTS200SUB's
1.Bass Boost Switch: Set this switch to ON to enhance the HKTS200SUB's low-frequency
internal crossover circuitry, so it should only be used with a subwoofer output that has
performance. Set this switch to OFF for normal low-frequency performance.
been low-pass filtered. If your receiver or preamp/processor does not have a dedicated
2.Phase Switch: The Phase Switch 2 determines whether the HKTS200SUB's piston-like subwoofer output that is low-pass filtered you should use the HKTS200SUB's Line-
action moves in and out in phase with the satellite speakers. If the subwoofer were Level L/R In Connectors 6 instead.
to play out of phase with the satellite speakers, the sound waves produced by the
subwoofer could be canceled out, reducing bass performance and sonic impact. This 6.Line-Level L/R In Connectors: Use these connectors if your receiver or preamp/processor
phenomenon depends in part on the relative placement of all the speakers in the does not have digital surround sound decoding or a subwoofer output that is low-pass
room. In most cases the Phase Switch 2 should be left in the NORMAL position. filtered.
